Tue Oct 08, 2019 4:06 pm quote
Believe it or not that is the original trim. It was pretty scratched up so I sanded it smooth and polished it - maybe too much.
I don’t really want to get into porting and bigger carb, etc. I’m just wondering if there would be any noticeable difference by just bolting in a 130 kit (?).

Btw - what exhaust is that?

Maybe I’ll change my mind and go nuts. I do need a winter project.


Style Maven
74 50s x3 78 P200 x2 84 Cosa PK50XL2 58 AllState 68 Sprint 80 50special '66(?) Super125
Joined: 22 Nov 2010
Posts: 7999
Location: seattle/athens
Tue Oct 08, 2019 4:31 pm quote
rehash
You could just bolt on either kit, but both would like it if you matched the ports better. The knock off kit still breathes better & makes more power. Here's how us cheaters do port matching: Cannot recommend...

Cliff notes:

How to seal up all the little cracks & crevices in my aluminum foil dam with candle wax. Note scribe lines from the gasket.


Open up, say"AWWW". Now spit it all out & thenyou can BREATHE.


And all cleaned up. Yeah the kick start is the way I got it, still there, starts EASIER and never hits curbs or big rocks.

The pipe is a good quality Simonini version of a common design kidney for smallies, many brands & some just crap noisemakers. I run the same Simonini and like the performance AND the sound.



The hi dollar Malossi version is on the bottom pic, @ Mercato who doesn't carry the Simonimi kidney. They do have a nicer Simonini I want again @ just over the Malossi kidney price.


$175

2005-01-04 10.16.53.jpg
$170

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 2143
Location: Veria, Greece
Wed Oct 09, 2019 8:12 am quote

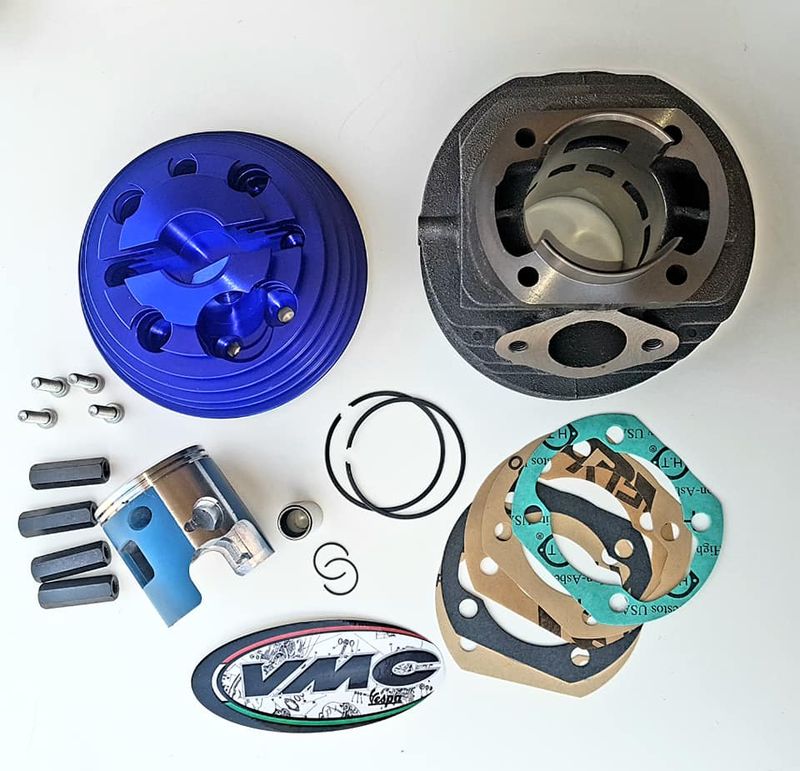

An interesting new kit from VMC (149€)...

130cc Cast Iron Cylinder (6 port)
Applications: Vespa PK-50, PK125, 50 Special, 50R-L-N, 125 ET3
Bore: 56mm
Stroke: 51mm
Displacement: 125.61 cc
Timings: 124°/174°
CNC Aluminum Head
Squish: 1.5 mm
Bolts and nuts torque: 11 ÷ 12 Nm
Cylinder gaskets in paper / aluminum
Treated "asbestos free" exhaust gasket
Recommend Plug: NGK BR9EG
Ignition: 20 ° BTDC



Hooked
Joined: 14 Jun 2016
Posts: 109
Location: Macedonia
Fri Oct 11, 2019 2:00 am quote
Just wanted to share my recent smallframe purchase.

Its a V50 N

On the papers its says year of production 1965, but when I checked the chassis number online I got 1968.



A lot of rust in the tank

Hooked
‘64 V90 survivor, ‘75 V90 graffiti
Joined: 30 May 2018
Posts: 253
Location: Madison WI
Fri Oct 11, 2019 5:10 am quote
jocco

Nice find. ‘68 is probably correct for this scooter. ‘65 was the last year of the small door model

63 - 65 Small door

‘66 and later large door

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 2143
Location: Veria, Greece
Sun Oct 13, 2019 10:06 am quote
New toy for restoration. It's for my brother in law. A 1981 Vespa 50S we got for a steal. Only 200€ including the paperwork and license plate. Needs a lot of work though. Restoration thread coming soon, cause I'll also need some help on how to make it a bit faster...



Hooked
‘64 V90 survivor, ‘75 V90 graffiti
Joined: 30 May 2018
Posts: 253
Location: Madison WI
Sun Oct 13, 2019 10:10 am quote
Great find SaFiS. V oodoo knows most of the tricks to get improved performance for little cost.
Style Maven
74 50s x3 78 P200 x2 84 Cosa PK50XL2 58 AllState 68 Sprint 80 50special '66(?) Super125
Joined: 22 Nov 2010
Posts: 7999
Location: seattle/athens
Sun Oct 13, 2019 11:52 am quote
The Grasshopper instructs the Master, sayeth the flea!

Nice try though, I am flattered and you are wrong.

Thanks!

Regardless, you just need a 90/100/125 crank and new primary gears. Pick a top end, & a pipe & a carb, maybe a clutch(I just use fresh stock) - match some ports... You know all this. Lucky dog you, it's already got 4 speed. Chris strikes GOLD, w/ papers in Greece is rare & no VERMONT to use. For 200 a killer deal, wish I had soma them papers .
Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 2143
Location: Veria, Greece
Sun Oct 13, 2019 12:32 pm quote
Money is not an issue on this one, so we're already planning to spend 2k - 4k on it. I have a PK50XL2 motor for parts, so I'm thinking, cases, gearbox & rear hub from the PK, change the primary, Polini 51mm stroke crank, Polini 130 kit, a 24 or 25 carb and a race exhaust (will decide on it). Front from the PK and probably a disc brake...

Terry, this one came from Chios. Original color was yellow...
Ossessionato
Joined: 26 Oct 2015
Posts: 2891

Sun Oct 13, 2019 12:54 pm quote
SaFiS wrote:
Money is not an issue on this one, so we're already planning to spend 2k - 4k on it. I have a PK50XL2 motor for parts, so I'm thinking, cases, gearbox & rear hub from the PK, change the primary, Polini 51mm stroke crank, Polini 130 kit, a 24 or 25 carb and a race exhaust (will decide on it). Front from the PK and probably a disc brake...

Terry, this one came from Chios. Original color was yellow...
Since there isn't a set budget, maybe a 5 speed gearbox then? They look legit. The sliding shifter thing appears to be "Lambretta strong" since it has 6 legs instead of 4.
Style Maven
74 50s x3 78 P200 x2 84 Cosa PK50XL2 58 AllState 68 Sprint 80 50special '66(?) Super125
Joined: 22 Nov 2010
Posts: 7999
Location: seattle/athens
Sun Oct 13, 2019 8:49 pm quote
^^^ WHAT? Linky, please?
Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 2143
Location: Veria, Greece
Sun Oct 13, 2019 9:06 pm quote
Too much money. Not worth it...

https://www.sip-scootershop.com/en/products/gearbox+kit+5956545248_40476600
Ossessionato
Joined: 26 Oct 2015
Posts: 2891

Sun Oct 13, 2019 9:25 pm quote
V oodoo wrote:
^^^ WHAT? Linky, please?
What's more crazy is that I think someone was making a smallframe 6 speed transmission a few years back. I don't know if it ever made it into production, but I think I heard about it in Scootering magazine?
Ossessionato
Joined: 26 Oct 2015
Posts: 2891

Sun Oct 13, 2019 9:39 pm quote
Definitely expensive! But when compared to the Lambretta Cyclone 5 speed, you get lots more parts included with the BSA smallframe transmission. So based on the weight of steel alone, the Vespa 5 speed kit might be a better deal...

smallframe 5 speed- 1550 Euros
Lammy Cyclone 5 pro- 1150 Euros

Lots of Lammy riders are springing for the 5 speeds nowadays, so i'm wondering why there's no love for the smallframe 5 speed. Is it because the Lammy is a better touring (where the 5 speed might be more worth while) , while the smallframe is just too small (comparatively) to tour on?
Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 8055
Location: Victoria, Australia
Mon Oct 14, 2019 3:04 am quote
FAIO have made a 5-speed smallie gearbox since I think 2011. Apparently they also made at the beginning a six speed for racing (actual racing, not the SIP kind ) but don't any more.
https://www.10pollici.com/en/homepage/classic-vespa/engine/gear-cogs/smallframe/5-gear-set-faio-racing-11-56-15-53-18-50-20-47-22-46-teeth-vespa-50-90-125-et3-primavera-pk.2.1.111.gp.6056.uw
Hooked
'79 - V90 =//= 2005 - ET2
Joined: 05 Sep 2019
Posts: 147
Location: Brooklyn, New York
Sat Dec 14, 2019 10:54 am quote
Polini 133 Build - CARB Advice needed
Hello Everyone,
Rebuilding my v90 with a Polini 133 cylinder, Polini crank, Polini IDM ignition, SIP Road pipe

I need advice on the Carburettor

What would you go with?





Ossessionato
2015 GTS300, 1974 Primavera, 04 Ninja 250
Joined: 04 Apr 2013
Posts: 4576
Location: San Diego, CA
Sat Dec 14, 2019 2:23 pm quote
Polini CP21 clamp on style to mate with original intake manifold, eliminating all the stupid foolishness of the multi-part assembly with felt gaskets that leaks 99.9% of the time.
Hooked
'79 - V90 =//= 2005 - ET2
Joined: 05 Sep 2019
Posts: 147
Location: Brooklyn, New York
Mon Dec 16, 2019 3:44 am quote
Thanks sdjohn I will check out that CP21
sdjohn wrote:
Polini CP21 clamp on style to mate with original intake manifold, eliminating all the stupid foolishness of the multi-part assembly with felt gaskets that leaks 99.9% of the time.
Enthusiast
'81 Special, '81 P150X, '13 LML Star 200
Joined: 30 Nov 2018
Posts: 79
Location: Ukraine
Sat Dec 21, 2019 12:35 pm quote
Today it was enduro day.


Ossessionato
Joined: 26 Oct 2015
Posts: 2891

Sat Dec 21, 2019 4:22 pm quote
definitely like!^^^
Style Maven
74 50s x3 78 P200 x2 84 Cosa PK50XL2 58 AllState 68 Sprint 80 50special '66(?) Super125
Joined: 22 Nov 2010
Posts: 7999
Location: seattle/athens
Sat Dec 21, 2019 4:58 pm quote
Romp
Hooning this scruffy yellow 50 special offroad, what's not to like?


"Everything is going well, the scooter runs and makes me happy."
Veni, Vidi, Posti
a not so normal vbb2 '64, a weirdo vbx '86, a not so normal pts100 '82 and a red lipstick '74 sprint
Joined: 15 Jun 2009
Posts: 5727
Location: Indo
Sun Dec 22, 2019 12:57 pm quote
whodatschrome wrote:
definitely like!^^^
+1
Enthusiast
'81 Special, '81 P150X, '13 LML Star 200
Joined: 30 Nov 2018
Posts: 79
Location: Ukraine
Sun Dec 22, 2019 1:55 pm quote
Really - why not?)))
Molto Verboso
Vespa
Joined: 19 Jun 2007
Posts: 1248
Location: California
Sun Dec 22, 2019 7:38 pm quote
roland87 wrote:
Really - why not?)))
Great photo roland87 I agree why not
Hooked
‘64 V90 survivor, ‘75 V90 graffiti
Joined: 30 May 2018
Posts: 253
Location: Madison WI
Sun Apr 12, 2020 7:57 am quote
Left side door heat tape
Saw a post on FB Smallframe page showing the use of heat reflecting tape on the inside of the left door to protect paint from curley exhaust heat. Since I am cutting the battery box out to accommodate the PM Tuning Evolution exhaust I am using on the ‘75 V90 build I am doing.
From the color pattern on the tape seems like a good idea.



Molto Verboso
Vespa
Joined: 19 Jun 2007
Posts: 1248
Location: California
Sun Apr 12, 2020 8:08 am quote
wow mayor that is looking fantastic!
Ossessionato
Joined: 24 Jan 2008
Posts: 2004
Location: Santa Margarita,Ca.
Sun Apr 12, 2020 9:05 am quote
Re: Left side door heat tape
exmayor wrote:
Saw a post on FB Smallframe page showing the use of heat reflecting tape on the inside of the left door to protect paint from curley exhaust heat. Since I am cutting the battery box out to accommodate the PM Tuning Evolution exhaust I am using on the ‘75 V90 build I am doing.
From the color pattern on the tape seems like a good idea.
I used that same stuff under the entire engine area to help with heat sink into the gas tank/ air box area.
Hooked
‘64 V90 survivor, ‘75 V90 graffiti
Joined: 30 May 2018
Posts: 253
Location: Madison WI
Sun Apr 12, 2020 9:39 am quote
scootermarc69

Great idea thanks
bodgemaster
63 GL, 76 Super (x 2), 74 Primavera (x 2), 06 Fly 150
Joined: 26 Sep 2013
Posts: 5579
Location: So Cal
Sun Apr 12, 2020 11:28 am quote
What’s that fancy latch you’re using on the door?
Ossessionato
Joined: 24 Jan 2008
Posts: 2004
Location: Santa Margarita,Ca.
Tue Apr 14, 2020 7:55 pm quote
From parts. Mostly VMA1 with exception of round speedo headset. And the goodies.




Ossessionato
Joined: 26 Oct 2015
Posts: 2891

Tue Apr 14, 2020 8:13 pm quote
Very cool!
Lurker
100Sport
Joined: 02 Jun 2020
Posts: 1
Location: British Columbia
Tue Jun 02, 2020 2:57 pm quote
new register!

Hello, great forum glad it didnt go the way of farcebook, like so many other forums

100Sport, rescued from a barn in about 2009 along with another 100Sport(blue).

had bent fork and non runner when pulled from the barn.
fixed fork in short order then stopped working on it while I rode the other (blue) for the summer.
moved houses, other projects, yada yada.

decided to get it running.

re wired stator, new points and new coil, fought timing.

it lives.
https://i.imgur.com/Vw0Nr0j.mp4



bike is mostly complete, missing some turn signal stalks but i have fabbed something up that should work.

thanks great forum loads of nice info.
-Pete
Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 2143
Location: Veria, Greece
Tue Jun 09, 2020 7:06 am quote
A temperamental PK. Perfectly timed. I was crying when I first saw the video...

https://www.youtube.com/watch?v=rKClk7zWl9w

Ossessionato
1980 P200E , 2005 Stella 177
Joined: 20 Jul 2018
Posts: 2586
Location: Staten Island, NY
Tue Jun 09, 2020 7:20 am quote
hahaha!
Style Maven
74 50s x3 78 P200 x2 84 Cosa PK50XL2 58 AllState 68 Sprint 80 50special '66(?) Super125
Joined: 22 Nov 2010
Posts: 7999
Location: seattle/athens
Wed Jun 10, 2020 12:48 am quote
HALP!
Looks like a guy who claimed it ALWAYS starts with one kick. Because the kid is having such a good time! I hope that's not you... I've learned to add "usually" when/IF one does.

Now I hated my PK for just this reason, flip side. It NEVER starts easy cold with normal techniques! Gas on, 'choke' activated(fuel enrichener circuit that adds extra gas to the mix), throttle closed, twenty kicks plus every variation and not even a pop. Runs great, lots of power, winds up to the moon and starts warm fine. I would resort to squirting a little gas into open throttled carb thru a long thin tube. But I hated it and didn't ride it.

This year with lockdown etc, I was DETERMINED to do something about it. Rebuild carb AGAIN making SURE the choke parts are clean, clear and functioning mechanically as they should. But no love With all this effort, I was running no air filter, no seat latch in back and no tool bucket in yet. In desperation I flipped seat and stuck my middle finger over the intake (symbolic, right? ) only because it reached best and choked it the old fashioned way. Couple kicks later, she's purring! Now I love to ride it, click click click, single cable shifter for the win.

So now that's my method and quite reliable, but Chris or anybody, PLEASE tell me how to fix this, it's rather embarrassing!

bent over and kicking

I like the scruffy comfy MotoVespa seat Nuttmeg gave me

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 8055
Location: Victoria, Australia
Wed Jun 17, 2020 4:12 am quote

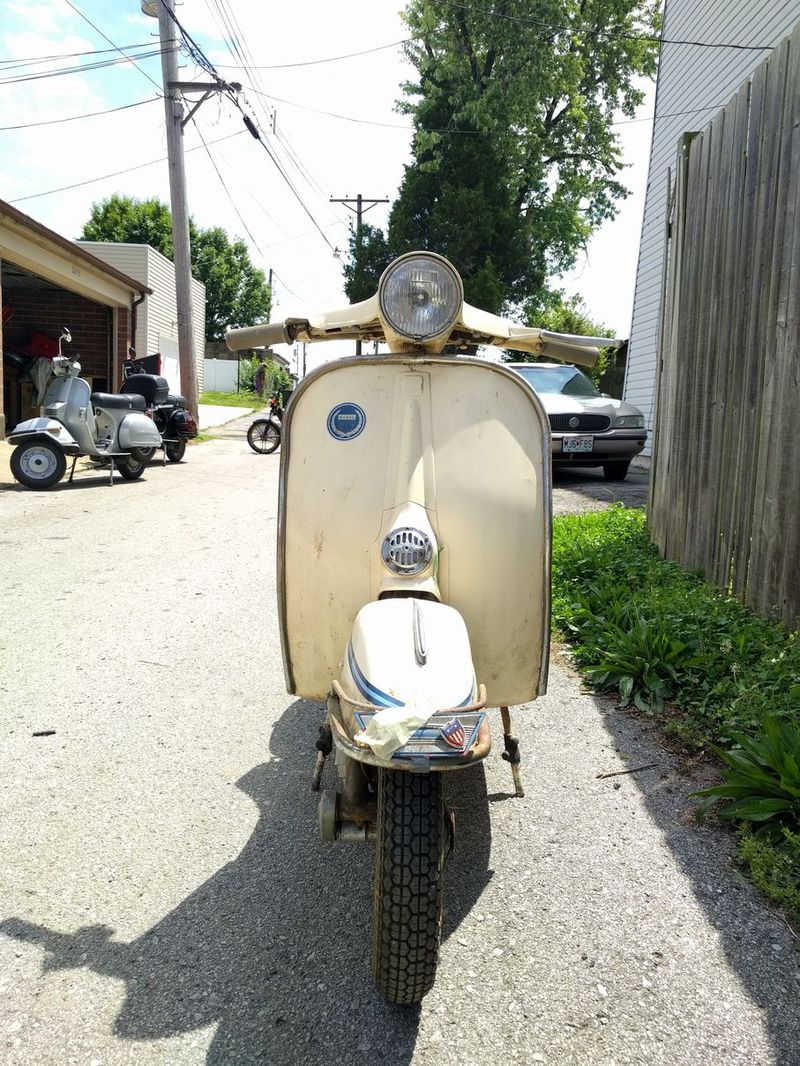

Hi all. On a Blue Badge smallie, how big is the actual blue badge? There are two available, 52 and 65mm.

This is not it btw, just for illustration.




Hooked
79p200e 66smallstate 85pk50xl 84p125ets 63GL
Joined: 24 Nov 2016
Posts: 250
Location: Flatness, TX
Wed Jun 17, 2020 10:05 am quote
65mm
Ginch,
Looks to be 65mm.
Hope this helps.



Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 8055
Location: Victoria, Australia
Wed Jun 17, 2020 2:23 pm quote
Re: 65mm
poidog wrote:
Ginch,
Looks to be 65mm.
Hope this helps.
Thanks heaps Poidog, appreciate the advice!
Ossessionato
Joined: 24 Jan 2008
Posts: 2004
Location: Santa Margarita,Ca.
Wed Jun 17, 2020 4:22 pm quote
V oodoo wrote:
With all this effort, I was running no air filter, no seat latch in back and no tool bucket in yet. In desperation I flipped seat and stuck my middle finger over the intake (symbolic, right? ) only because it reached best and choked it the old fashioned way. Couple kicks later, she's purring! Now I love to ride it, click click click, single cable shifter for the win.

So now that's my method and quite reliable, but Chris or anybody, PLEASE tell me how to fix this, it's rather embarrassing!
How does it start with the air filter installed? Polini make a big one for PK https://www.treatland.tv/polini-CP-carb-curved-air-box-48mm-ID-p/polini-air-box-203.0015.htm
Member
Vespa PX200
Joined: 15 Apr 2020
Posts: 31
Location: Isle of Wight
Thu Jun 18, 2020 4:39 am quote
My dad's SS90





Cross Egypt Challenge - A 2400km ride throughout Egypt   vespa scooterwest scooter west Motorsport Scooters   Yelcome Leather Top Cases and Roll Bags for Piaggio Vespa PX LX LXV GTS GTV
Post Reply    Forum -> Not-So-Modern Previous123...151617Next
[ Time: 0.2166s ][ Queries: 27 (0.0513s) ][ Debug on ]
