My first smallframe build
Post Reply    Forum -> Not-So-Modern Previous12
Author Message
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Tue Jan 30, 2018 4:51 am quote

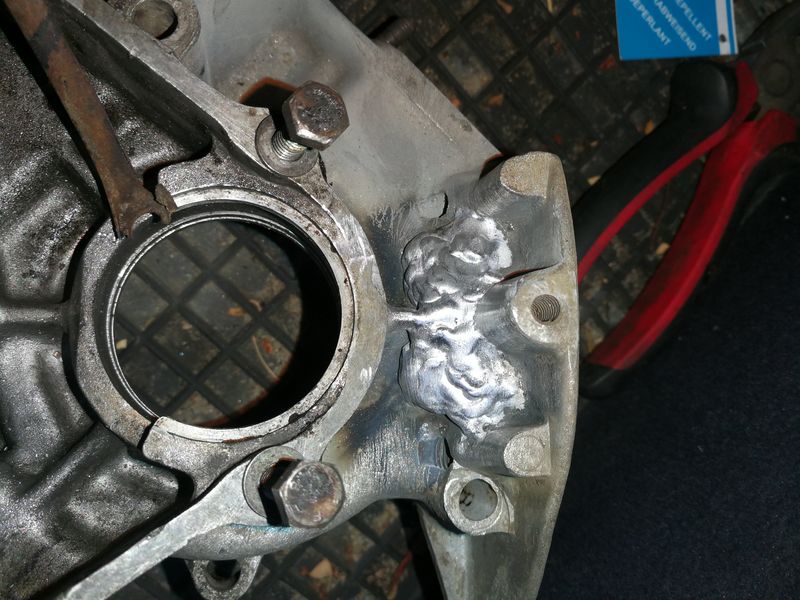

Got the case back from welder quick and easy from the welder shop


Enthusiast
too many
Joined: 16 May 2012
Posts: 61
Location: Norway
Tue Jan 30, 2018 5:04 am quote
looks good!

But I hope you didn't weld without the bearings in the casings?!?

Risk of warping the casings without the bearings in when Welding due to the high temperature...
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Tue Jan 30, 2018 5:35 am quote
Time Wil tell. But can get a sip engine case for a good price
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Tue Jan 30, 2018 2:24 pm quote
So think I have ported enough for now.
Also gonna smoothen one the cylinder because it have som ruff stuff Ine the ports I wanna get away.
Think I have landed on exhaust Lth Road after som recommend from different shops.
Meanwhile here is an old p200 engine that is gonna start rebuild while waiting for some small bits and pieces

Beer is a good thing while grinding.




P200e engine

Odd bearing

Worn-out chims

Ooh got som damaged to the pad

Did the P200e have this shape mechanism?
Thought to be more like the px200

Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Wed Feb 07, 2018 2:50 am quote
So one package in the post to day.
Comp8enginw bolt screws clip kit
And pinasco flytech 1400gr.
Only one thing holding me back is the gear cluster. A friend is checking his garage if I has one. If not
Then i order with exhaust Lth Road.
Think I soon have al the parts to assemble the engine 🤘

Flytech 1400gr


Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Fri Feb 09, 2018 3:00 pm quote
So the crank, carb and clutch came today.
The crankshaft had very little protection in the boks just single wrap of bubble wrap 🤔
But gonna check it during the week.
So then I am gonna start buying together the machine😎

And a picture of the post stamps that my future wife got to the wedding invitations.
Me and her on my Primavera




With 2 chims,a bearing stuffer for testing.



My future wife got these made for our wedding invitations

Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Mon Feb 12, 2018 2:01 pm quote
Soo didn't hit me that I have grind down the flywheel side to make the crank fit. Until to day when a friend of mine came by to take a look at the project.
So when to and dremling and grind the flywheel side.
But do I have to do something with the rotary pad. Like grind it down or just leave it.
The crankshaft : drt full circle- 45089000(sip part number)




Addicted
1974VLB 1979VSX 1974V9A
Joined: 12 Sep 2014
Posts: 665

Mon Feb 12, 2018 6:55 pm quote
Are you going reed direct to cylinder?...Then the pad doesnít matter.
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Mon Feb 12, 2018 11:31 pm quote
Yes gonna use direct intake to cylinder., just wondering if I have to remove the lip or something to make the crank fit on the clutch side😋
Gonna wash the block to day and start working on it
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Tue Feb 13, 2018 10:57 pm quote
So didn't have my phone on my yesterday, and have started to put together the engine.
So fare so good.
Went for stock 4 gear.
Waiting for exhaust and som new tires and shocks

Suffering from pss(parked scooter syndrome)
But just started to snow again after couple days of rain. 😥





Ossessionato
T5 Pole Position, T for thoroughbred
Joined: 07 Oct 2010
Posts: 4630
Location: Dublin
Mon Feb 19, 2018 1:15 am quote
V oodoo wrote:
As usual, the ports on a T5 motor have me drooling and your motor is especially gorgeous.

Stupid question: Has anybody ever tried fitting a T5 top end on a smallie motor and if not what are the obstacles? Just serious welding & machining challenges or basic geometry won't fit?
Someone on the small frame forum has done it. But it was a lot of work. The links are dead now though. I tried find it but no joy
Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 7270
Location: Victoria, Australia
Mon Feb 19, 2018 5:38 pm quote
jackson85 wrote:
V oodoo wrote:
As usual, the ports on a T5 motor have me drooling and your motor is especially gorgeous.

Stupid question: Has anybody ever tried fitting a T5 top end on a smallie motor and if not what are the obstacles? Just serious welding & machining challenges or basic geometry won't fit?
Someone on the small frame forum has done it. But it was a lot of work. The links are dead now though. I tried find it but no joy
Henri is apparently preparing to do one.
Ossessionato
T5 Pole Position, T for thoroughbred
Joined: 07 Oct 2010
Posts: 4630
Location: Dublin
Tue Feb 20, 2018 5:48 am quote
Thatís cool. Ozoap on scooterboy world went a different way and done a ts1 cyclinder on a t5 engine
Ossessionato
Joined: 26 Oct 2015
Posts: 2066

Mon Feb 10, 2020 6:11 am quote
A two year bump!

So T5Wilhelm, give us some updates.

#1, how's married life?
#2, how's the scooter engine? Do you have more details on the rest of the build?
#3, how's married life AND scooter life together?
Hooked
Vespa t5 Mk1
Joined: 03 Sep 2015
Posts: 106
Location: Norway
Sat Feb 22, 2020 11:19 am quote
Aaah shit😅 Well not much too be honest, gonna get som picture and tell you whats done and not.
Married life is nice, signed my soul away to always loose arguments 😛
Married life 2 kids and scooter lif is stressful, but more stress due to autoimmune illness igot diagnosed 2 years ago, and lost the spirit,and less money to finish all shit i have to do, owning a old house is expensive, so hopefully i wil start making som blody progress this year, some mate have commented on this aswell

More wil come😁
