ET4 150 grinding noise
Post Reply    Forum -> General Discussion
Author Message
Member
Joined: 17 Dec 2009
Posts: 29

Sat Jan 19, 2019 1:52 am quote
Hello,
I am feeling exhausted, this grinding noise issue has been years, replaced lots of parts but still cannot get if fixed.

The situation is, when I go at high speed (above 90km/h) for a while, there will be a grinding noise coming from the gear box, and it is in sync with the throttle. The noise will not stop until it comes to a very low speed (20km/h), and it will not come back until you go high speed again.

I have replaced,
-Variator with rollers and slide
-Belt pulley
-Both nuts
-Cover bearing

Using torque wench to tighten them, so they cannot be too loose.
There sill be some minor grinding noise when turning the wheel by hand.
Both the nut at the engine shaft and wheel shaft was tightened too much, and the nut at the clutch was failed, noticed it when there is a gearing grinding noise when closing the throttle.

Could there be any other possible issue from the CVT side? Should I go check the gear box or flywheel side?

Any help is appreciated!
Veni, Vidi, Posti
Lx 50 4T, S 150, GTS 250
Joined: 21 Feb 2011
Posts: 7175
Location: KS USA
Sat Jan 19, 2019 4:01 pm quote
I would check the gear box oil level.
Addicted
2006 LX150 (carbed) | 2007 GT200
Joined: 29 Jun 2016
Posts: 579
Location: Toronto
Sat Jan 19, 2019 4:55 pm quote
What kind of bike? Year? Miles?

Edit: sorry, I see now the title says ET4 150. Year and mileage would still be useful to know.
Member
Joined: 17 Dec 2009
Posts: 29

Sat Jan 19, 2019 5:30 pm quote
Max6200 wrote:
I would check the gear box oil level.
checked it is at the lowest marking on the stick
should be above the minimum level
Member
Joined: 17 Dec 2009
Posts: 29

Sat Jan 19, 2019 5:34 pm quote
berto wrote:
What kind of bike? Year? Miles?

Edit: sorry, I see now the title says ET4 150. Year and mileage would still be useful to know.
oops those basic info i should let you know at the first place

Year 2003
about 55000km
never had major maintenance
Member
Joined: 17 Dec 2009
Posts: 29

Sat Jan 19, 2019 8:47 pm quote
already removed the kick start gear, not making any difference
Addicted
2006 LX150 (carbed) | 2007 GT200
Joined: 29 Jun 2016
Posts: 579
Location: Toronto
Sun Jan 20, 2019 4:22 am quote
What does the gear oil look like is you drain it (any metal shavings?)

How does the clutch side look and feel?

You said it grinds when turned by hand - where from? If you take off the belt, does it still grind? If yes, suggests clutch or gearbox. If no, suggests variator side.

I know you said the problem happens at speed, so this may be impossible, but a video of the grinding sound would help understand the problem. Or maybe you can ask someone who owns the same model to ride yours and help give impression of how bad it is and where from?
Member
Joined: 17 Dec 2009
Posts: 29

Sun Jan 20, 2019 9:10 pm quote
berto wrote:
What does the gear oil look like is you drain it (any metal shavings?)

How does the clutch side look and feel?

You said it grinds when turned by hand - where from? If you take off the belt, does it still grind? If yes, suggests clutch or gearbox. If no, suggests variator side.

I know you said the problem happens at speed, so this may be impossible, but a video of the grinding sound would help understand the problem. Or maybe you can ask someone who owns the same model to ride yours and help give impression of how bad it is and where from?
Thank you for your help!

For the clutch, I have experience some noise coming from the metal plate as the holes on it getting larger and I have replaced the plate at 2017.

The clutch itself turns perfectly without the belt and bell.
There will be some gear "kicking" noise when turning the rear wheel without the clutch and transmission cover, but when I pull the shaft toward the left from the bike, the noise will getting smaller. Seems something has to be put in place by tighten the clutch shaft on the transmission cover, the wheel do not turn a lot and make some noise when the cover is off, but I am not sure if it is the noise I am looking for.

I wanted to look into the gear box, or may be get all the bearings replaced once I have it open. What tools and parts I should get before I open the gear box?
Gasket, 4 bearings and 1 oil seal? Any special tools I need to replace the bearings?
Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Mon Jan 21, 2019 12:15 am quote
Is it by any chance more of a high speed whine.

I have a friend here at work he has a LX 125. His transmission has a whine I can hear it if I follow him.

I'm thinking it is the final drive. Bung the correct amount of STP Gearbox Treatment in there and see if the sound changes.

If so it will confirm. Then you can plan.

The original Minis for example where notorious for a gearbox whine it was the transfer gear (not unlike the Vespa final drive) the bearings would wear and cause the gear to run at a veeery slight angle.

The following is not a Vespa but similar in principle

Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Mon Jan 21, 2019 5:17 pm quote
Run the scooter on the centre stand and see if you can generalize where the noise is coming from.
Member
Joined: 17 Dec 2009
Posts: 29

Fri Jan 25, 2019 9:17 pm quote
has been too busy for the past few days
have had a discussion with my mechanics, he suggest it might be coming from the clutch bearing
will try to confirm it by removing the clutch,refit the cover , then spin the wheel see if the noise is gone

but i would think it is from the gear box
Member
Joined: 17 Dec 2009
Posts: 29

Mon Feb 04, 2019 5:01 am quote
An update before Chinese New Year

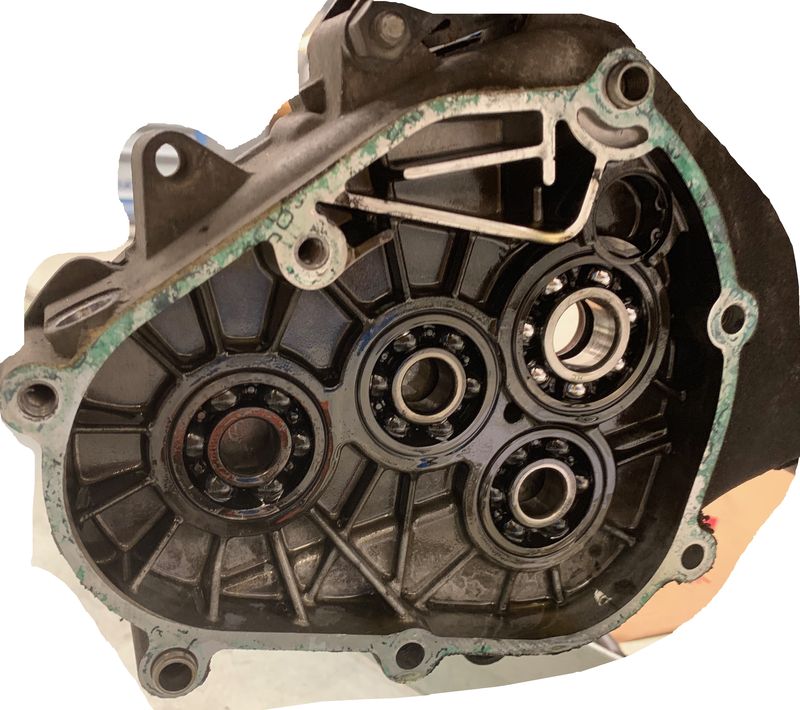

I have cracked open the gearbox, find out some of the bearings are badly seized, and there is a rusted rear wheel shaft which seized with the bearing.
There are also burn mark on the bearing and casing, may be in high speed the outer ring of the bearing is turning with the shaft and making the noise.

Once I have open the gear box, find out it is a little bit black inside.
And the color and smell of the hub oil seems not normal.
The grease in the sealed bearing on the gearbox cover was dried out.

I have managed to use the "Paper towel" method to extract the blind bearing on the cover, but could not get the rest of them come out.

Due to Chinese New Year, all the shops are closed for about 10 days, could not get the replacement bearing until then.
My plan is to get the proper tool, then extract all the bearings out to get an replacement after then have back to work.

Will keep update




Member
Joined: 17 Dec 2009
Posts: 29

Mon Feb 04, 2019 5:14 am quote
Also, I find out there is a mark on the gear, seems it is machined on it, or is it need replacement?


Addicted
2006 LX150 (carbed) | 2007 GT200
Joined: 29 Jun 2016
Posts: 579
Location: Toronto
Mon Feb 04, 2019 5:58 pm quote
You mentioned Chinese New Year a couple of times - are you located in China?

It looks like you found the source of the noise

Best of luck sorting it out - I hope it is fixed soon!

The marks on the gear look too even to be damage, but I am not sure. Hopefully someone else will have a more certain response for you.
Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Mon Feb 04, 2019 6:45 pm quote
Result.
Member
Joined: 17 Dec 2009
Posts: 29

Mon Feb 04, 2019 6:53 pm quote
berto wrote:
You mentioned Chinese New Year a couple of times - are you located in China?

It looks like you found the source of the noise

Best of luck sorting it out - I hope it is fixed soon!

The marks on the gear look too even to be damage, but I am not sure. Hopefully someone else will have a more certain response for you.
Yes and no, I am from Hong Kong, which supposed not to be a part of China. Normally we will resume our work on the fourth day. China will have a much longer holiday for CNY.

But I am still wondering what is the cause for multi bearing failed even the sealed one.

The sealed one is burned and it should be overheating the grease inside, but that is after the outer ring rotates together with the wheel.

Suppose the bearings are designed for last for long, say more than 10 000km and 20 years. Mine is 2004 with 56000 on the clock only.
Ossessionato
09 190s taormina
Joined: 08 Apr 2010
Posts: 2072
Location: Googleville
Tue Feb 05, 2019 10:51 am quote
nicholas0000 wrote:
Also, I find out there is a mark on the gear, seems it is machined on it, or is it need replacement?
Marks are normal, gears are fine.
Member
Joined: 17 Dec 2009
Posts: 29

Tue Feb 05, 2019 4:03 pm quote
bluecloud wrote:
nicholas0000 wrote:
Also, I find out there is a mark on the gear, seems it is machined on it, or is it need replacement?
Marks are normal, gears are fine.
Thanks for that!
now I only have to buy the bearings and the beather tube to finish the job
Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Tue Feb 05, 2019 5:51 pm quote
Nicholas,

Remember you don't have to buy those bearings from Piaggo. They have the model numbers etched on the side. You just need to get good quality bearings like SKF, NTN, FAG etc.

Just try motor parts stores etc. or google bearing shops HK. Take them along .

Member
ET4-150 ( Called ET8 here )
Joined: 14 Sep 2014
Posts: 34
Location: Hong Kong
Tue Feb 05, 2019 10:25 pm quote
Hi Nicholas.
Kung Hei Fat Choi.
Also from HKG
Great bearing shop in Mong Kok.
If you need any help in locating it after CNY pm me.
Cheers
Member
Joined: 17 Dec 2009
Posts: 29

Wed Feb 06, 2019 8:38 pm quote
waspmike wrote:
Nicholas,

Remember you don't have to buy those bearings from Piaggo. They have the model numbers etched on the side. You just need to get good quality bearings like SKF, NTN, FAG etc.

Just try motor parts stores etc. or google bearing shops HK. Take them along .

Thanks Mike and Hilton
The original bearings I believe it is from KBC(Koera), not able to find the information of the bearings itself. Will being the original one to the shop and ask them to get me some SKF may be.

Before putting them all together I have to know what is the cause of this failure, I found the breather hose is degraded and very easy to break, the water might goes into the gearbox and contaminate the oil, may be?
Member
Joined: 17 Dec 2009
Posts: 29

Wed Feb 06, 2019 8:41 pm quote
Hilton wrote:
Hi Nicholas.
Kung Hei Fat Choi.
Also from HKG
Great bearing shop in Mong Kok.
If you need any help in locating it after CNY pm me.
Cheers
Hello Hilton,
Wanted to ask sth about garage in HKG, I was used to get most of the work done by myself, and the job like changing tires will bring it to KinLik.
I know there is one shop VESPAIR, but it is too far away from me, is there any other recommendation for Vespa?
Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Thu Feb 07, 2019 12:44 am quote
nicholas0000 wrote:
Before putting them all together I have to know what is the cause of this failure,
Quote:
The original bearings I believe it is from KBC(Koera),
I would say no or incorrect oil.

can we assume that they are the original bearings?

A good bearing shop will take one look and go and get you some new ones. Will take minutes.

OD
ID
Width
Seal type
Etc.
Member
Joined: 17 Dec 2009
Posts: 29

Thu Feb 07, 2019 6:11 pm quote
waspmike wrote:
nicholas0000 wrote:
Before putting them all together I have to know what is the cause of this failure,
Quote:
The original bearings I believe it is from KBC(Koera),
I would say no or incorrect oil.

can we assume that they are the original bearings?

A good bearing shop will take one look and go and get you some new ones. Will take minutes.

OD
ID
Width
Seal type
Etc.
They should be, I suppose we cannot get this brand of bearings in Hong Kong.

The spec. for rear hub oil is 80W90 API GL3
And I am using Redline 75W90 GL5, this should have a higher spec
Ossessionato
LXV 150 Midnight Blue (SOLD)
Joined: 06 Dec 2010
Posts: 2475
Location: Bangkok
Thu Feb 07, 2019 6:44 pm quote
I think you were OK BUT you should not use GL5 where there are brass or other alloys of soft metals. GL-5 has an additive that is fine for hardened gears but will corrode them.

Stick with GL4?
Member
ET4-150 ( Called ET8 here )
Joined: 14 Sep 2014
Posts: 34
Location: Hong Kong
Fri Feb 08, 2019 2:09 am quote
Nicholas, MotoPlex in Tokwawan Rd has done work for on my sonís scoot.
They seem very professional and are now the official HK Vespa dealer.
Not sure about older Vespa models.
The bearing shop is Kowloon Bearing Shop. Corner of Soy/Canton Rd.
If they donít have it itís probably not made.
I have 2 ET4ís awaiting restoration and my son rides a Primaveria.
HTH
Member
Joined: 17 Dec 2009
Posts: 29

Sat Feb 09, 2019 11:16 am quote
waspmike wrote:
I think you were OK BUT you should not use GL5 where there are brass or other alloys of soft metals. GL-5 has an additive that is fine for hardened gears but will corrode them.

Stick with GL4?
Opps I do not know about the GL-5 is not compatible with GL-3 requirement, justed learned that.
Will put GL-3 or GL-4 into my hub from now on.

The breather tube is not in stock
I think I will just seal the hole, or glue another tube on it to prevent water from going into the gearbox.


Member
Joined: 17 Dec 2009
Posts: 29

Sat Feb 09, 2019 11:23 am quote
Hilton wrote:
Nicholas, MotoPlex in Tokwawan Rd has done work for on my sonís scoot.
They seem very professional and are now the official HK Vespa dealer.
Not sure about older Vespa models.
The bearing shop is Kowloon Bearing Shop. Corner of Soy/Canton Rd.
If they donít have it itís probably not made.
I have 2 ET4ís awaiting restoration and my son rides a Primaveria.
HTH
I do not have a very good experience with MotoPlex.

I have called them for parts, and the first thing they ask for my reg. number, and reg. document, refuse to get any information without the document. The lady on the phone is very rude to me.

Thanks for the info of the bearing shop, have check all shop will resume to normal opening hours on monday.

How could you get the parts for ET4? Sometimes if you only need just 1 part, it is not possible to order it from overseas, the shipping cost will be 10 times of the parts.
Member
Joined: 17 Dec 2009
Posts: 29

Sun Feb 10, 2019 4:33 am quote

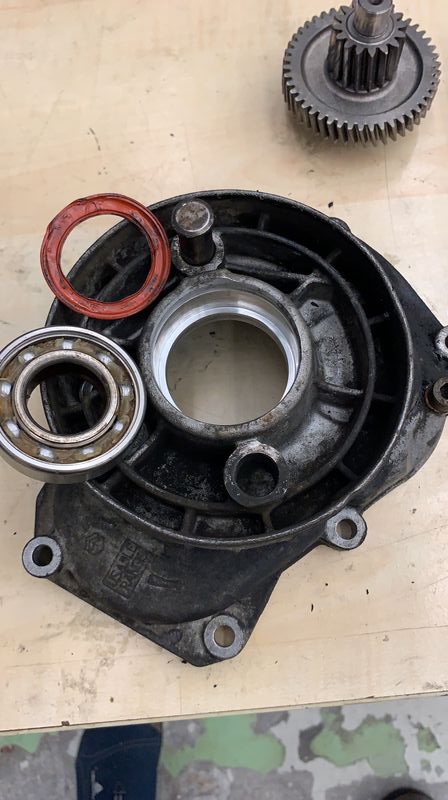

All bearings are out, could not get the bearing extraction tool, had made it by using a bolt and angle grinder.

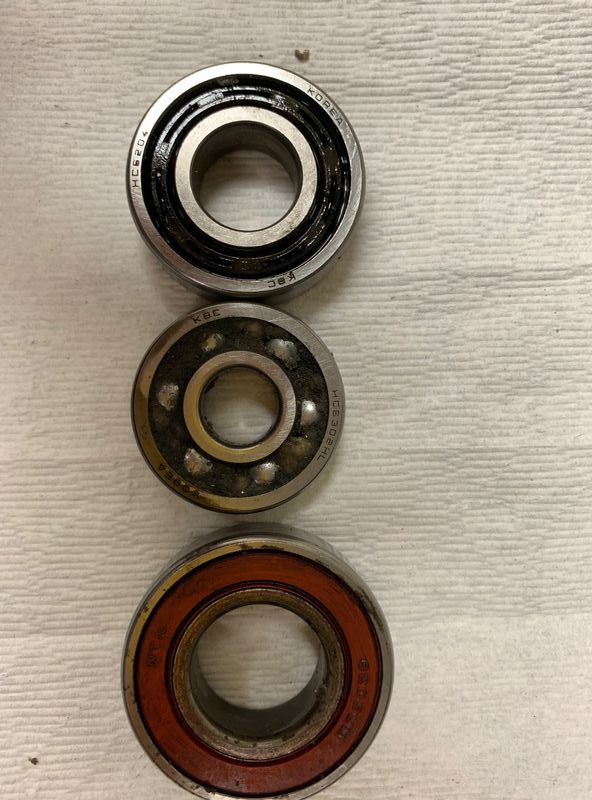

Found most of the blind bearings with burn marks/discoloration.
Hope there will be no more problems from the gear box after replacing the bearings.


WhatsApp Image 2019-02-10 at 8.23.57 PM.jpeg

Member
Joined: 17 Dec 2009
Posts: 29

Sun Feb 17, 2019 9:13 pm quote
An update
All bearings replaced, found one of them is not used but it is there only.

Freeze all the bearings in the freezer for a few hours before work, using the hot air gun to heat up the casing to about 100 deg c. But need a lot of effort for putting the bearings into the casing, hammer it hardly with the old bearing on top of it. It should not require this much of force to fit in the bearings.

Re-fitting the oil seal, but one of them was pushed too much into the hole, but nothing I can do, no spare on hand.

Using an PU hose and silicone sealant to replace the broken breather hose.

The disappear after the work, hope it will never come again.

Will get the oil replaced after 1 week of running to see is there any metal come out with the oil.



Thanks, to all of you!
Rallies Europe 2016   vespa scooterwest scooter west Motorsport Scooters   Cool Ass scooter seat cover
Post Reply    Forum -> General Discussion
[ Time: 0.3736s ][ Queries: 25 (0.0545s) ][ Debug on ]
