P series front hub size
Post Reply    Forum -> Not-So-Modern
Author Message
Hooked
1978 P150X; 1982 P200e
Joined: 18 Jul 2010
Posts: 424
Location: Toronto
Sat Jun 15, 2019 2:22 pm quote
Hi guys,

I am installing a new front hub on my P150x (I stripped one of the threads on the old one) but I am finding that the diameter of that inner gear for speedo is different from the new hub vs old. The challenge is that I canít get new hub on and I think I messed up the seal that keeps all that grease in place.

Anyone know how to ensure to order right part from SIP?

Thanks,

V


Hooked
1978 P150X; 1982 P200e
Joined: 18 Jul 2010
Posts: 424
Location: Toronto
Sat Jun 15, 2019 2:30 pm quote

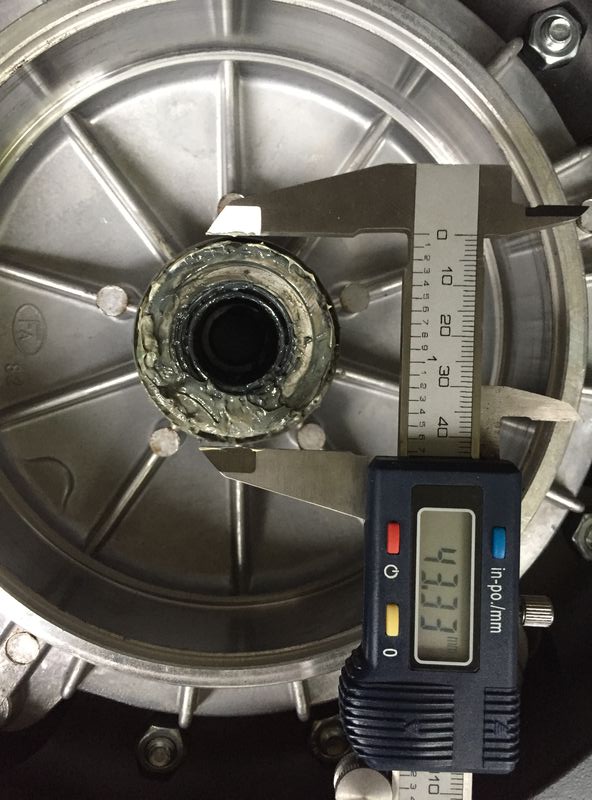

Here is size of new hub:
[image1.jpeg]

Old hub seems to be 4mm shorter in diameter:
[image2.jpeg]

[image3.jpeg]

Ripped seal off:
[image4.jpeg]














Last edited by Velasquez on Sun Jun 16, 2019 4:04 pm; edited 1 time in total
Molto Verboso
1979 P150X, 1983 P200E, 1987 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: 02 Aug 2015
Posts: 1893
Location: Veria, Greece
Sat Jun 15, 2019 3:02 pm quote
Looks like you have the old, 16mm hub and the one youíve got is the newer 20mm one. Measure the diameter of the axle, just to be sure. Youíll have to return it and get the correct one...

https://www.sip-scootershop.com/en/products/brake+drum+fa+front+for+vespa+_17744400
Hooked
1978 P150X; 1982 P200e
Joined: 18 Jul 2010
Posts: 424
Location: Toronto
Sun Jun 16, 2019 4:05 pm quote
SaFiS wrote:
Looks like you have the old, 16mm hub and the one youíve got is the newer 20mm one. Measure the diameter of the axle, just to be sure. Youíll have to return it and get the correct one...

https://www.sip-scootershop.com/en/products/brake+drum+fa+front+for+vespa+_17744400
Yep. Didn't realize there are two sizes. I have the old 16mm one. Thanks Safis!
