Sat Jul 25, 2020 11:59 am quote

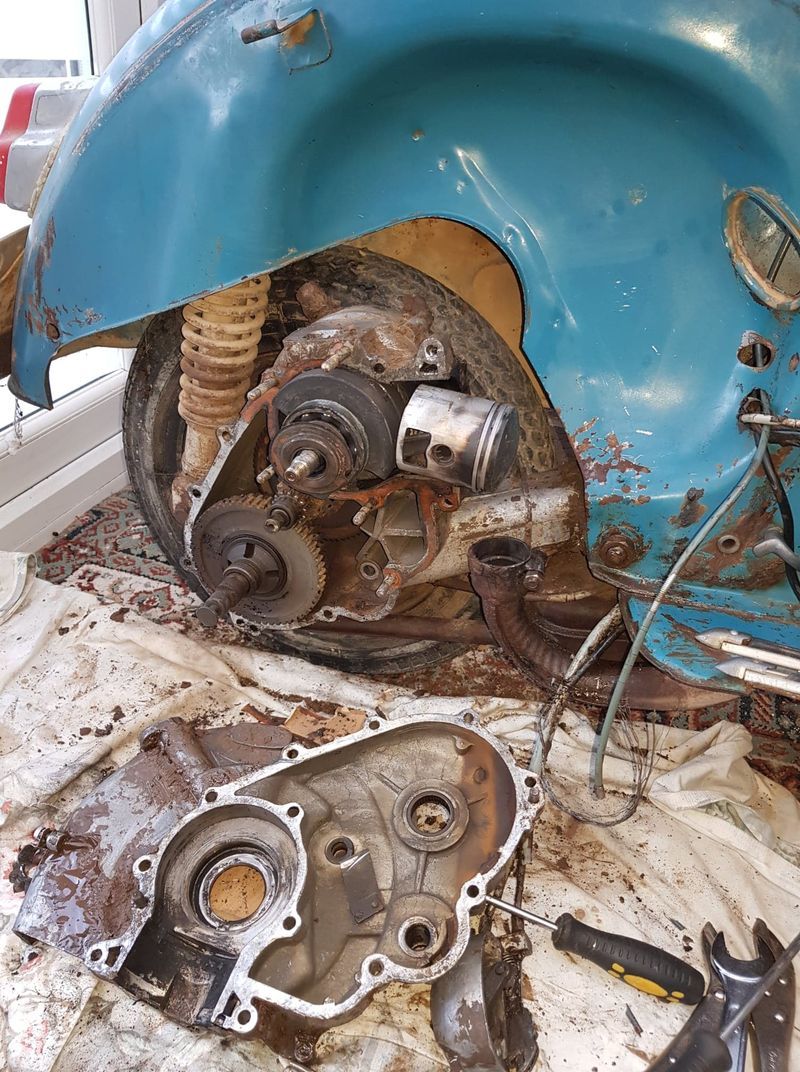

So it IS piston port after ALL


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Jul 25, 2020 1:07 pm quote
Piston ported
yes mate ,the rebuild is coming along nicely
Molto Verboso
Honda elite
Joined: 19 Jun 2007
Posts: 1096
Location: California
Sat Jul 25, 2020 1:11 pm quote
Sweet is it a 160 still?
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Jul 25, 2020 1:25 pm quote
Most definitely Hibbert,had the frame and casing welded,gave the engine and parts a good cleaning, replaced all the bearings and seals,rebuilt the clutch,put the gears back together unsure if I,ve them the correct way round,in terms of which side? Sent off the paperwork for registration, getting there slowly


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Jul 25, 2020 1:26 pm quote
Can,t wait till it's up and running


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Jul 25, 2020 1:29 pm quote
had the legshield and around the horn straightened out a little ,it has some battle scars this baby ha ha
Addicted
GL, PK, PE200 with hack, Sears Rust Badge
Joined: 24 Apr 2012
Posts: 865
Location: Deep in the heart of Texas
Sat Jul 25, 2020 2:12 pm quote
Speshulbrew wrote:
How do I confirm I,ve put the gears on the right way round,I took a picture of the gears when I removed them,but only just realised it's not a good picture,I've put them on best I could ,just need to confirm they're on correct ,any advice please would be appreciated
Don't know if the gears are like p200 gears but these pictures should give you and idea. http://modernvespa.com/forum/topic116141?highlight=gear+stack+order

In summary, flat side of gear against lip side of next gear.

You can also look for markings from the gears rubbing in the past.

Someone with hands on knowledge of this particular motor may chime in and advise if this is incorrect.

Good luck!
Molto Verboso
1963 VBB2T
Joined: 07 Nov 2012
Posts: 1919

Sat Jul 25, 2020 3:01 pm quote
Definitely some battle scars
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sun Jul 26, 2020 2:42 am quote
many thanks rowdyc
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sun Jul 26, 2020 2:53 am quote
Many thanks ,I think this is it,with the biggest gap between 3rd and 4th


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sun Jul 26, 2020 3:05 am quote
Another pic


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Aug 01, 2020 11:44 am quote
Engine rebuild is coming along nicely,had a look at the flywheel inner ,seems to be a couple of panels missing,will this affect the running or starting of the scooter?


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Aug 01, 2020 11:45 am quote
Some more


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Aug 01, 2020 11:46 am quote
Flywheel inner panels


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Sat Aug 01, 2020 11:47 am quote
Panels missing


Member
Motovespa PX200E "iris" elestart. Motovespa 160
Joined: 03 Mar 2017
Posts: 37
Location: Madrid, SPAIN.
Tue Aug 04, 2020 2:49 pm quote
I think there's nothing missing. Note that there is no hole to support on top of the "missing" pannels. IMHO is designed like that. Mine looks pretty much the same. Good luck! Looks nice.
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Tue Aug 04, 2020 2:52 pm quote
Thanks Corradino
Hooked
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 399
Location: UK - 3rd Rock From the Sun
Wed Aug 05, 2020 4:28 am quote
been a while since i have been able to get onto the forum and have a look at this project. coming along nicely

keep up the good work - what will you be doing to the welded areas in terms of paint??
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 6:41 am quote
Yeah welcome back Grav ,quite a bit of progress, putting everything back together ,got the tank soaking with white vinegar,get the headstock back on tomorrow, then looking at starting it up, I bought a new seat cover from Spain,its similar to the original one,I may get the original one repaired,quoted about 80 ,I think it ll look better, I m returning to work next week so i need to finish things, I've enjoyed the whole process, soon as this is done i,ll start on my 58 Douglas


Molto Verboso
Honda elite
Joined: 19 Jun 2007
Posts: 1096
Location: California
Wed Aug 05, 2020 6:54 am quote
wow never seen anything like that engine the roots of the rotary valve and never ever seen or heard of ignition system like that one scooter looks great should be as good as new.
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:01 am quote
for some reason i could,nt upload more pics here i go again


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:02 am quote
progress


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:03 am quote
light at the end of the tunnel


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:05 am quote
not sure about the finish,the new metal is not getting painted ,just covered


Molto Verboso
Honda elite
Joined: 19 Jun 2007
Posts: 1096
Location: California
Wed Aug 05, 2020 7:13 am quote
very good did you find the license plate under the other one? Something in me wants to seal/prime the bare metal above the tail light.
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:39 am quote
yes i did hibbert,just waiting for the paperwork to come back registered then ,i,ll fit the new plate over the old Spanish one ,i ve put rust solution over the bare metal, i ,ll probably cover the bike with Owatrol or ACF50 not sure yet
Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:51 am quote
few bits to refit headset ,side panel rubbers ,glovebox lock and rubber,rear rack ,plenty to do


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:52 am quote
more


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:53 am quote
soon be finished


Enthusiast
58 Douglas,P200e,Motovespa 160
Joined: 29 Mar 2020
Posts: 99
Location: Shildon,Co Durham
Wed Aug 05, 2020 7:54 am quote
pleased how its turning out
