Tire Change Pictures
Post Reply    Forum -> MP3 Discussion 12Next
Author Message
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Mon Feb 09, 2009 4:00 am quote
I took a few pictures while getting my rear tire off for a change last week. Thought seeing some pictures might help some who are considering. Tools needed are metric allen wrenches, metric sockets and a phillips screw driver.

Removing the parking brake after taking the wheel nut off helps hold the wheel to turn the nut.

Don't squeeze the brake lever when it is off. It is difficult to get the pads to open up all the way for putting back over the disk. (Maybe there is a trick too it but I struggled with this first time.)

As someone else said keep track of which bolts go where. Twice I have installed the wrong bolt then later ended up with one too short. Both some of the allen head and regular head are the same thread and can go in the wrong spot. This was my third time and each one gets easier and has saved about $40 in labor each time.

Muffler Removed.

Rear brake disconnected, sliding off disk.

Close up of nut on rear wheel.

Brake removed, bolt out of bottom of rear shock.

Parking brake removed

Support bracket removed.

Rear tire off.

Moderatus Rana
MP3 250 (sold) MP3 500 (current)
Joined: 11 Jul 2008
Posts: 21445
Location: Palatka, Florida
Mon Feb 09, 2009 6:29 am quote
Great post and pics Fuzzy! Couple this with the one I did for putting it back on and we have the whole show now. http://www.modernvespa.com/forum/topic35390?highlight=rear+tire+change

I would add to be very careful when sliding the muffler off to protect the bushing. It is a cheap part but a pain if you don't have one on hand.

Zinfan added this to my post and may be helpful here at the beginning.
Zinfan wrote:
Other things you will need to do this job

24 mm socket for the wheel nut

Torque wrench able to apply 120 newton/meters of torque to the wheel nut

10 mm socket for removing the rear brake caliper (not the parking brake but the actual brake caliper on the front side of the brake disc).

I also recommend you zip tie the front brake lever down if you are not using a work stand, if something bumps the bike while the rear wheel is off there is a chance it could slip forward and off the centerstand. Using zipties on the front brake lever prevents the bike from rolling foward.
PS What tire did you put on?
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Mon Feb 09, 2009 10:31 am quote
The new one is a Michelin Gold Standard in 130/70-12 size. After 5,000 miles total on two 140/70-12 tires I can tell an improvement in power and top speed.
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Mon Feb 16, 2009 9:29 am quote
Just clocked in about 9400 miles yesterday so front tires will be a reality soon. What do we have in 12X70 12? Couldn't find this size on the Michelin web site so where should I look for them. Plus, when and if I get the front tires, can I pull both of them out at the same time to have them changed, or do I have to do one at a time? Or, is there a good spot underneath strong enough to place a jack under the scooter while both tires are off?
Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: 26 Aug 2007
Posts: 37426
Location: Pleasant Hill, CA
Mon Feb 16, 2009 10:22 am quote
I use a lift like this:
http://www.busters-accessories.co.uk/productinfo/TRE4101/Workshop/Bike-Lifts/Big-Red-Jacks

If the two V-pads are unscrewed and removed, then the two posts can support the frame each side of the tank. Just be careful you get the frame tubes and not a coolant hose.

Then both wheels/suspensions can be worked on at once. A couple of bottle-jacks will do the same job, but it's a bit un-nerving jacking up a bit at a time on each side.
Ossessionato
2009 MP3 400
Joined: 27 Jul 2008
Posts: 2004
Location: Saratoga, N.Y.
Mon Feb 16, 2009 11:17 am quote
No TRE4101s here in the states, it seems, but I found these:






Last edited by ramblerdan on Wed Nov 18, 2009 10:49 am; edited 5 times in total
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Mon Feb 16, 2009 12:49 pm quote
Thanks for the quick response guys; how about a website for that US product Ramblerdan?

Last edited by emptynest on Mon Feb 16, 2009 12:52 pm; edited 1 time in total
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Mon Feb 16, 2009 12:51 pm quote
Heck, I just saw that 888# on the jack....
Ossessionato
2009 MP3 400
Joined: 27 Jul 2008
Posts: 2004
Location: Saratoga, N.Y.
Mon Feb 16, 2009 1:25 pm quote
Just click on the photos!
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Mon Feb 16, 2009 4:12 pm quote
Got it... Thanks...
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Mon Feb 16, 2009 4:33 pm quote
As for which tires on the front, my originals that went 10000 miles were Michelin Pilot Sport tires which are available in 120/70-12 size. UFO likes the Continental Zippy 1. I went with Pirelli GTS 23 just because my local motorcycle shop could get them and several members report good results with the Pirelli tires. With the original fronts lasting through more than 4 rear tires I couldn't get excited about tire life and just want a good ride. 700 miles on the Pirelli tires and I am happy so far. It will take another 9 months to have a wear comparison for the front tires. UFO is the only one I know of who has changed front tires more than one time.
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Mon Feb 16, 2009 6:28 pm quote
Thanks for the info Fuzzy.
Member
MP3 250, Morphous, Tmax 500
Joined: 25 Mar 2009
Posts: 44
Location: Toronto area, Ontario, CANADA
Tue Jun 02, 2009 10:21 am quote
Another big thank you to eveybody who is documenting these processes...
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Tue Jun 02, 2009 1:03 pm quote
Ramblerdan, I saw those jacks in Sears of all places...No, I didn't buy them, I broke down and had my dealer change the tires..Tomorrow I have an appointment to change the rollers and belt with 12,500 miles on the clock.
Molto Verboso
MP3 250
Joined: 07 Jun 2007
Posts: 1135
Location: San Diego
Tue Jun 02, 2009 7:32 pm quote
That's good 2 know..I just hit 70000 miles and am still running my original rear tyre..
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Wed Jun 03, 2009 5:59 am quote
??????...?????
Moderatus Rana
MP3 250 (sold) MP3 500 (current)
Joined: 11 Jul 2008
Posts: 21445
Location: Palatka, Florida
Wed Jun 03, 2009 6:27 am quote
lol ufo fell off the wagon again.
Addicted
MP 3
Joined: 26 May 2008
Posts: 627
Location: Lehigh Acres, Florida
Wed Jun 03, 2009 11:05 am quote
Just got back from the dealer after having my new belt and rollers installed. The ones taken off looked like they could have gone a lot longer, but why take a chance....Miles: 12,500
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Wed Jun 03, 2009 3:07 pm quote
ufo wrote:
That's good 2 know..I just hit 70000 miles and am still running my original rear tyre..
How many bridges have you sold this week?
Molto Verboso
She's an I-talian $$-burning machine
Joined: 12 May 2008
Posts: 1859
Location: America, The Beautiful
Sat Jun 13, 2009 4:32 pm quote
Question about the exhaust
Hey, Fuzzy

Great details, btw.

So did you have to replace the gasket for the exhaust pipe? If you didn't, have you noticed the exhaust noise being louder than before?
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Sun Jun 14, 2009 3:19 am quote
I read a thread about failure of the gasket and bought one to have. I never replaced mine and it was still sealing fine when I put the Leo Vince on. The Leo Vince does not have a gasket. 7 tire changes before the Leo Vince.
Molto Verboso
She's an I-talian $$-burning machine
Joined: 12 May 2008
Posts: 1859
Location: America, The Beautiful
Sun Jun 14, 2009 4:58 am quote
Exhaust
I just hope my mechanic remove the whole thing from the header; if not, change the gasket. He is new at this and was warned first. Man, I might end up having to get that gasket from you, Fuzzy, if you're not using it?

LV is good like that, without needing a gasket.
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Sun Jun 14, 2009 5:14 am quote
Re: Exhaust
sushiman007 wrote:
I just hope my mechanic remove the whole thing from the header; if not, change the gasket. He is new at this and was warned first. Man, I might end up having to get that gasket from you, Fuzzy, if you're not using it?

LV is good like that, without needing a gasket.
Probably a different size on 250. Just to be clear what I have is a sleeve that is clamped over the pipe that the muffler mounts to. Not a gasket at the header. That is not normally removed in tire change or for any routine service I know of. If it is a problem definitely warranty issue.
Molto Verboso
She's an I-talian $$-burning machine
Joined: 12 May 2008
Posts: 1859
Location: America, The Beautiful
Sun Jun 14, 2009 5:19 am quote
That's right, probably a different size on the 250 and won't fit the 500, the sleeve, that is.
You have a great Sunday! I gotta go do a side job to pay for the scooter...
Veni, Vidi, Posti
. . 2008 Blue MP3 400. . di Peluria Orso .... 1993 Kawasaki Vulcan 500 ....... 2013 Honda NC700XD; 2017 Versys X300
Joined: 02 Jun 2008
Posts: 6148
Location: Milledgeville, GA
Sun Jun 14, 2009 5:31 am quote
sushiman007 wrote:
That's right, probably a different size on the 250 and won't fit the 500, the sleeve, that is.
You have a great Sunday! I gotta go do a side job to pay for the scooter...
At least you will get paid. I have to mow the grass after being gone 10 days. I can't ride my new 400 until I get insurance set up and they are not open today. I really can't complain as it was a fantastic 10 days of family work and play with the play including 900 miles in the Ozarks on my 250. Hope you get your ride back fast. Withdrawal symptoms can be tough.
Molto Verboso
She's an I-talian $$-burning machine
Joined: 12 May 2008
Posts: 1859
Location: America, The Beautiful
Sun Jun 14, 2009 11:13 am quote
Yes, hope I get my ride back soon! Life sucks w/o my MP3.
Member
MP3 250, Morphous, Tmax 500
Joined: 25 Mar 2009
Posts: 44
Location: Toronto area, Ontario, CANADA
Sun Jul 18, 2010 8:11 am quote
First of all, thank you to Fuzzy and Stickyfrog for taking the photos and posting here.

I recently posted elsewhere on the board my experience with the rear tire and how the dealer in Toronto Canada quoted me $350 to replace said rear tire. I decided to do it myself using the shop manual and the photos that Fuzzy and stickyfrog posted.

By doing part of the work myself, my total cost to replace the tire was Canadian $95.13 (cost of the City Grip tire + mounting and balancing it). So I saved around $200... the dealer here in Toronto is crazy expensive.

I would like to add the following things that I noticed as I was doing the work:






REMOVING the MUFFLER

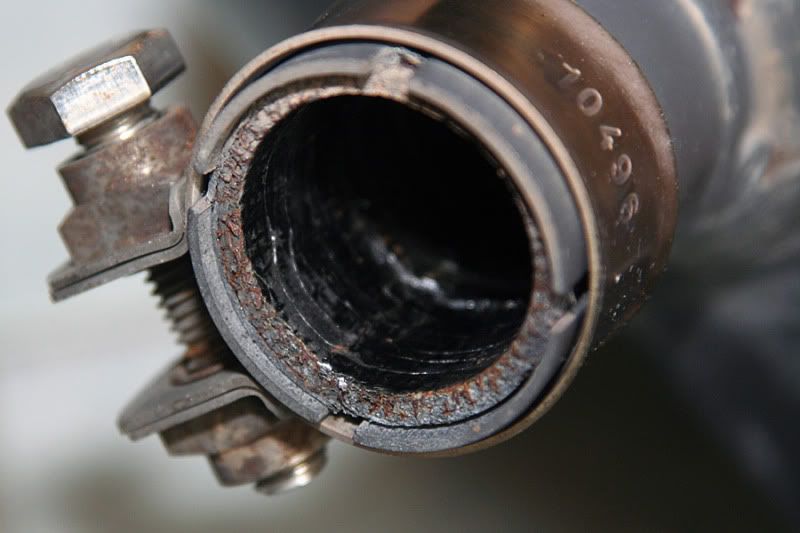

There is a gasket for the exhaust pipe (on the inside, see photo above) that can be re-used as long as it is not damaged when removing the muffler. As already said by others, sliding the muffler off CAREFULLY is the best way to protect the gasket. Do not yank it to side to side. The gasket seems to be just like the one in motorcycle exhausts - based on my experience these gaskets last a long time as long as the removal and installation is done carefully.

The big bolt on the photo above is a 17mm

I put the muffler on my bath scale:
15.3 pounds = 6.93 kilograms









REMOVING THE CENTER NUT
WIth this setup, it was a piece of cake:


A breaker bar and the scooter is on the floor, not on the stand. It can be done differently, using the center stand, but I loosen the nut as shown, so the weight of the scooter helps to keep things steady. I guess it depends on your preference. NOTE: The breaker bar is great for loossening, not so much for tightening. You should torque the nut to spec when putting the wheel back.

Please note the plastic wrapped around the pipe. I had once a bad experience with a bolt going inside a exhaust system of a motorcycle, and I wasted 20 minutes getting it out. Since then, as soon as I remove part of the exhasut system and there is a pipe exposed, I like to wrapp plastic (or a plastic bag) around it, just in case...

Member
MP3 250, Morphous, Tmax 500
Joined: 25 Mar 2009
Posts: 44
Location: Toronto area, Ontario, CANADA
Sun Jul 18, 2010 8:31 am quote
Last but not least, take care of your screws and threads. Everything (yes, everything) goes back on easily. Do not force anything. As stickyfrog said on How I reinstalled the rear wheel on my 250 , the best way is to screw the bolts you take out back into their respective holes, so you do not mix them up.

Zinfan wrote that you do not need to remove the rear shock. I did.
So, as a final comment - There are three areas where you may have to be careful when installing the wheel back:



1.- The rear shock - If you do remove it, just make sure the hole is aligned. Do not force the bolt. It is a 17mm and if it is not properly done, it can damage the thread big time. To align the whole thing, just wiggle the shock absorber carefully, or push up or down a little bit.
2.- The center nut - be careful with the order of the 2 spacers (ring and conical). Really, you can't mix them up that easily, but still pay attention to the order. You may need to screw the nut a little bit (without the outer spacer, the one that has the shape of a ring)) to "seat" the wheel down properly.
3.- The hex screws: These two screws have 2 washers each. Make sure the screws are properly centered. Do not tighten them until they are centered, or you maye damage the washers, or the bracket. Again, just wiggle gently the support bracket to make sure the holes are aligned.

Have fun wrenching!


Marcos
Moderatus Rana
MP3 250 (sold) MP3 500 (current)
Joined: 11 Jul 2008
Posts: 21445
Location: Palatka, Florida
Mon Jul 19, 2010 7:37 am quote
Glad it was a help to you and thanks for your additions. We really should do a wiki for this using info from these threads. Maybe you would like the challenge? Here is an example of simple one I did for windshields. MP3: Installing a Fabbri Windscreen 250 and 400 models

If you click edit you can see the BBCode used to format it. Here is a link to BBCode info if you are not familiar http://en.wikipedia.org/wiki/BBCode

If you get the initial wiki started you would have help from others here (me included) with corrections or suggestions.

If you do want to give it a go don't forget to link it back here MP3 250 and here MP3 400 since I believe the procedure for rear wheel tire change is the same on both.

Also, I am sure any of the moderators can give pointers. Forgot who the wiki moderators are.
Molto Verboso
MP3 500 08
Joined: 08 Aug 2009
Posts: 1560
Location: Toms River area, New Jersey
Thu Jul 22, 2010 5:34 pm quote
ramblerdan jack TR #####, does not work for the scooter out of the box! The heavy jack "Y brackets", are to wide! About three inches, this would dig into the plastic fuel tank. 7/8" solid bare with some grinding for a "V form" could be one option; or 1/2 " pipe nipples with some modifications on the end. (could be 3/4 pipe, id ) Recieved mine today, and working on the mod. Thinking a 1" pipe cut in half for top of nipples for support.
Enthusiast
wife has the MP3 500 (red&black)
Joined: 05 Apr 2008
Posts: 98
Location: Arlington, Texas
Thu Jul 22, 2010 6:12 pm quote
Is there any difference to changing the rear on the 500? The wife's scoot is in need of a replacement. No, I haven't checked the shop manual yet, but figured it will be similar.

Yes, I plan to take pictures...
Ossessionato
2009 MP3 400
Joined: 27 Jul 2008
Posts: 2004
Location: Saratoga, N.Y.
Fri Jul 23, 2010 6:01 am quote
Thanks for the tip, G03. Looking forward to your report.
Molto Verboso
MP3 500 08
Joined: 08 Aug 2009
Posts: 1560
Location: Toms River area, New Jersey
Sat Jul 24, 2010 10:20 am quote

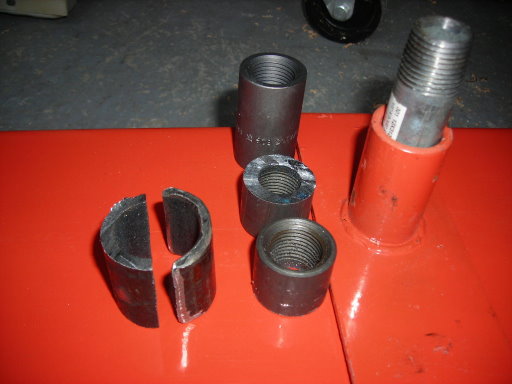

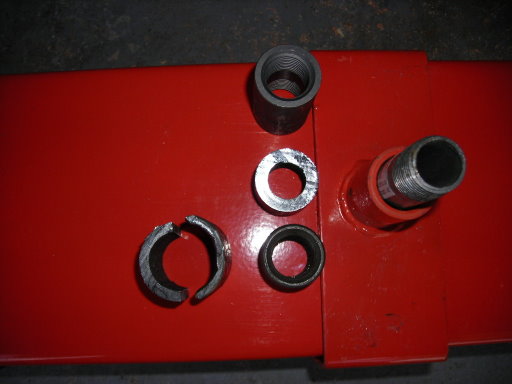

Ok, here is the low down on the jack. Spent three hours making a saddle brace for the mp3. No matter where the stand is under the gas tank, it only lifts the front wheels. My simple board for under the front shocks does the same thing. My 2 cents, no use for the jack at this time. Here are the photos of making the saddle pieces. Used 1/2' pipe nipples, and cut a coupling in half. Used one inch pipe nipple to cut in half for saddles.

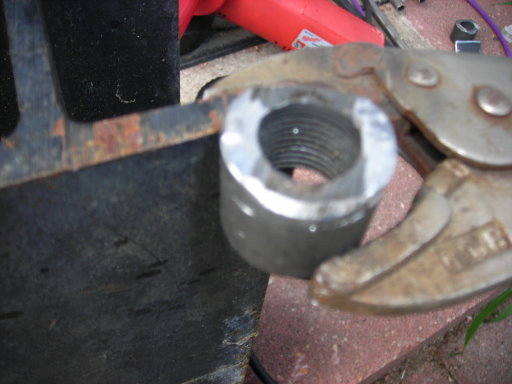

saddle grindDSCN0791.JPG

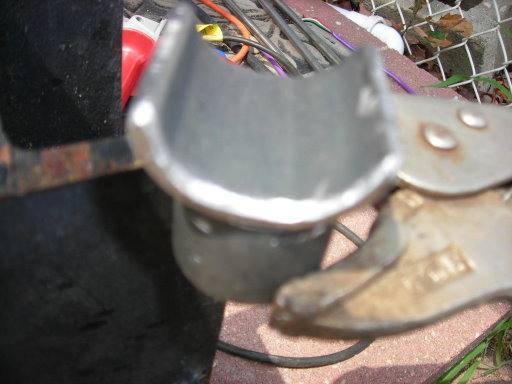

saddle grind2DSCN0792.JPG

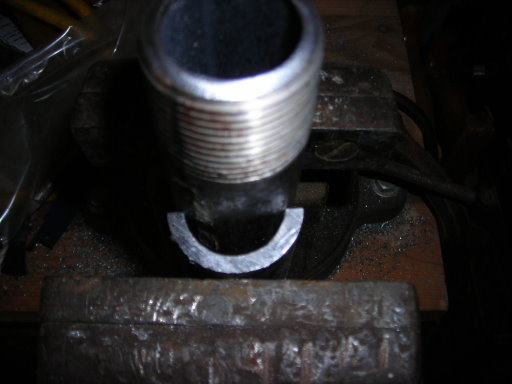

saddle bendDSCN0788.JPG
before squeezing saddle flatter

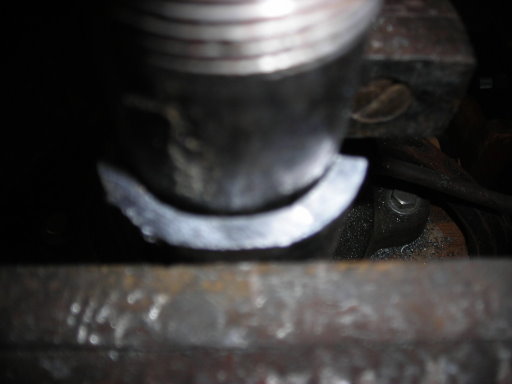

saddle bend2DSCN0789.JPG
1 inch cut pipe bent on same pipe

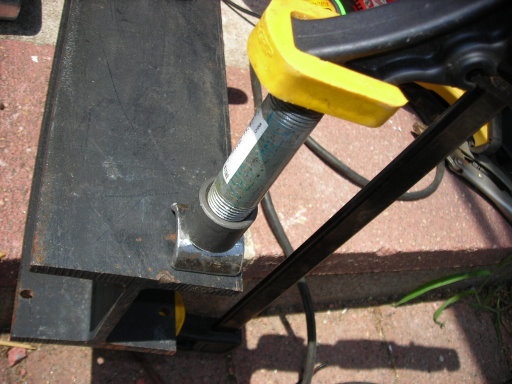

saddle weldDSCN0793.JPG

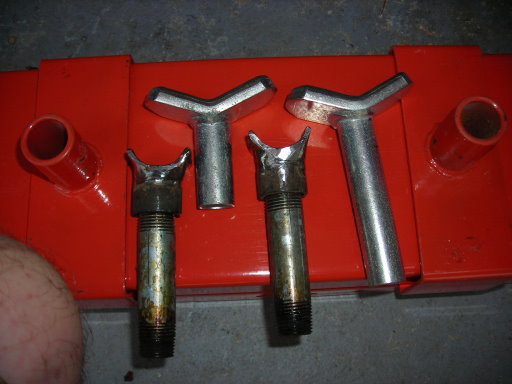

two y stocks, and my homemade

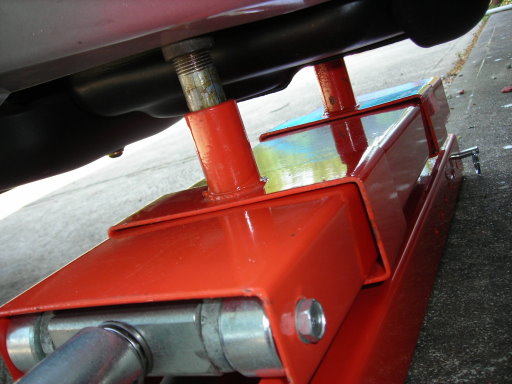

jack bikeDSCN0795.JPG
under scooter

Banned
MP3 500
Joined: 20 Aug 2008
Posts: 4530
Location: Ashburn, Va
Sun Jul 25, 2010 5:31 am quote
G03 wrote:
No matter where the stand is under the gas tank, it only lifts the front wheels.
You want to lift the whole bike, you need something like this with those brackets adapted to it.
http://www.discountramps.com/mcImages/BW0101-motorcycle-jack-1.jpg

I have one from my ATVing days. Need to adapt it to the MP3 or sell it.
Member
MP3 250
Joined: 07 Feb 2009
Posts: 19
Location: Venice Ca
Wed Jul 28, 2010 4:33 pm quote

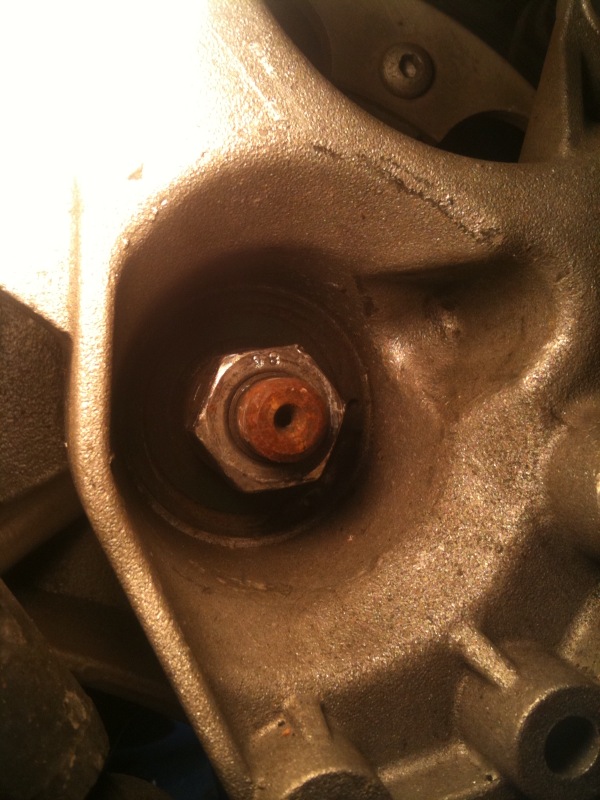

Center bolt standard threading or reverse?
Quick question, does the Center Bolt in the rear wheel use standard threading or is reverse?

Thanks

center bolt.jpg
center bolt

Addicted
MP3-250 Tiger 1050 Moto Guzzi V7 Stone
Joined: 21 Nov 2007
Posts: 862
Location: Central Coast, California
Wed Jul 28, 2010 4:36 pm quote
Standard thread. righty tighty, lefty loosey
Hooked
2007 MP3 250
Joined: 17 Apr 2010
Posts: 108
Location: South Carolina Lowcountry
Sun Mar 20, 2011 2:02 pm quote
Re: Tire Change Pictures
I realize that I'm resurrecting an old thread here, and if thread necromancy is a crime then I plead guilty.

But there are threads that deserved to get an occasional "bump", and this is most definitely one of them. The information here belongs in the wiki.

I spent the morning removing my rear wheel with help from the pictorials of Fuzzy and stickyfrog.

I then spent a few hours driving around trying to find a service station that could put the new tire on my rim.

As luck would have it, it turns out that no such place exists in my part of South Carolina that is open on Sunday.

So I thought "OK, I'll just have to drive the car for the next day or two". Nope. Wife has doctor's appointments, so she needs the car.

So I spent the rest of the afternoon putting the wheel back on with the old tire still intact.

Thanks to all for the invaluable information. I learned more things about my scooter during the process, and next time it will be easier.

Not complaining... Was nice to spend the time with the scoot, even if it was only in the driveway.
Veni, Vidi, Posti
Neutrino MP3 492.7 AK, 2013 Moto Guzzi Norge
Joined: 29 Mar 2008
Posts: 21311
Location: Harriman, Tennessee, Tn
Sun Mar 20, 2011 5:47 pm quote
yeah finding any mechanic on a Sunday is tough.
Hooked
2007 MP3 250
Joined: 17 Apr 2010
Posts: 108
Location: South Carolina Lowcountry
Tue Mar 22, 2011 5:13 pm quote
Welp.

Might've screwed up bad. Bottom bolt for the parking brake won't tighten. Everything went together just fine last time, but now that bottom bolt is acting like the female end of the bracket is stripped.

Will try again when I have some daylight, but pretty sure it's hosed.

Edit:
The bolt still wouldn't snug as well as it should, but a little bit of loc-tite on it seemed to do the trick. It's now made a couple of trips to work and back along with some other minor tooling around, with no signs of loosening. Will continue checking it before and after each ride for awhile.

Last edited by jw_fox on Thu Mar 24, 2011 3:17 pm; edited 1 time in total
Hooked
Piaggio MP3 400 - 2008
Joined: 17 Aug 2008
Posts: 207
Location: New York City
Thu Mar 24, 2011 1:40 pm quote
Remember there is a new graphite collar (gasket/bushing) and clamp for the exhaust pipe:

Exhaust graphite collar

Thanks to sushiman007 for the article.

My collar cracked shortly after a dealer replaced my rear tire. Dealer did not know about the new parts.
Land of 10,000 Scoots Rally   Vespa Wasp Pin Badges   Scooter Parts Company
Post Reply    Forum -> MP3 Discussion 12Next
[ Time: 0.5339s ][ Queries: 25 (0.1256s) ][ Debug on ]
