LXV (or LX) gets GTV (or GTS) Top Case - I Like It
Post Reply    Forum -> General Discussion
Author Message
Ossessionato
2012 GTV 300 & LXV 150
Joined: 09 Mar 2012
Posts: 3485
Location: Pacific Northwest
Sat Jun 02, 2012 5:11 am quote
I installed a GTV top case on my LXV, because I preferred the styling of the case, and wanted to match more of the styling of the GTV.

Here are some pics of the pair of 2012 espresso scoots.

I used the same bracket as the GTV or GTS, part number 623699.

The curvature of the tubulars on the rack were a bit more sharp, so that only required a little hacksaw or steak knife to the bracket plastic edges, giving a custom fit. I made two cuts in a "V" shape to the bracket, then snapped off the cut with pliers.

Procedure:

1. Assumes you have installed an LX/LXV 150 rack on your scoot. Install as necessary, if it fits your scoot.

2. Place the clamshell GTS/GTV top case bracket (black plastic) over the rack, in its "down" position.After you do that, you will notice that the rack tube steel curves too sharply for the bracket to completely fit. While holding the clamshell over the position it needs to go, use a pencil to draw the cutaway shape on the plastic.

3. With a serrated knife (such as a common steak knife), saw away the excess plastic to match the curvature of the S 150 rack. Steel shears may be used also. Be patient, and chew away small bits at a time. Repeat process of holding the clamshell half over the rack often, to check your progress. Shape both sides the same way.

4. Once you have the clamshell bolted together (which holds the rack down), you are in the final stretch. Install the screw clips into the three positions on the clamshell, which will be for the bolts. Thread bolts through the clamshell from the top without the case first, to make sure they will go. Remove the bolts.

5. Note the corresponding holes in the plastic top case. If the holes have not been drilled out, drill (or with the point of your knife) make the holes. Drop/screw the bolts through the top case holes (I recommend washers just under the bolt heads also).

6. Place the top case on the rack, fishing the bolts into their respective holes, and into the nuts on the bottom. The top case must feel firm, so wiggle the case down firm to make it through the bolt holes. When you are done, there should be no "play" in the case.



The top case sits on the LXV just a bit more back than on a GTV. This is OK, since even the GTV has clearance, and the LXV passenger gets a little more room.

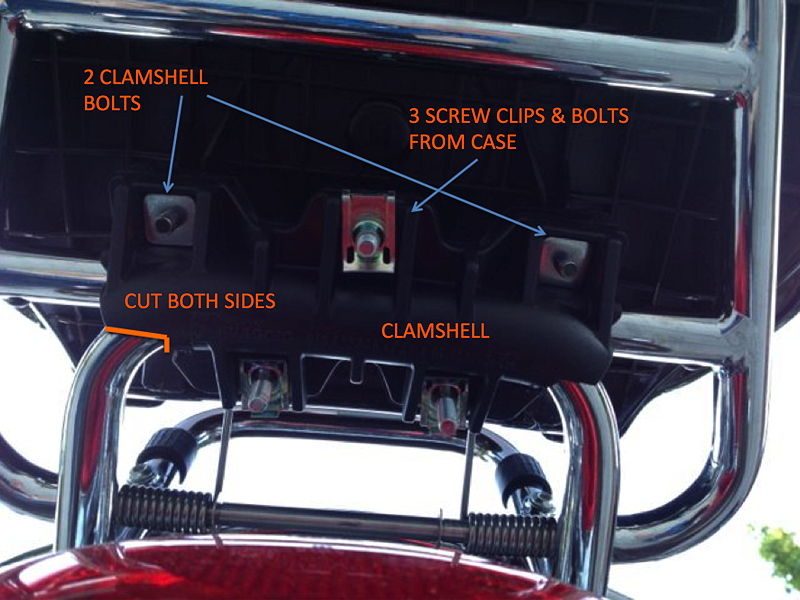

Underside of the LXV. Bracket modified for the rack curvature (bottom left and right of the bracket in the photo). Compare these points to the GTV underside.

Underside of the LXV top case.

Underside of the GTV top case.


Note the stick-on chrome clock. The LXV does not come with a clock due to the "vintage" dash.








Last edited by sharpcolorado on Sat Mar 08, 2014 9:58 am; edited 5 times in total
Molto Verboso
2010 Vespa Volcanic Black GTS 300 Super "Marta"
Joined: 05 Apr 2012
Posts: 1757
Location: Hatfield, Pennsylvania
Sat Jun 02, 2012 6:44 am quote
Very nice pair of scoots.
Veni, Vidi, Posti
'00 Helix TARDIS
Joined: 30 Jan 2007
Posts: 7249
Location: the Vortex
Sat Jun 02, 2012 10:42 am quote
It looks big, but it looks good.

Great job, nice post!
Hooked
2007 GTS 250ie
Joined: 01 May 2012
Posts: 218
Location: Lakes Region, NH
Sat Jun 02, 2012 4:27 pm quote
Very nicely done.
World Traveler
2007 LX150 Daring Plum Leonardo Da Vespa
Joined: 02 Jul 2006
Posts: 29304

Sat Jun 02, 2012 8:59 pm quote
I like them both and i don't think it's too big for the LXV.
Ossessionato
2011 GTS 300 Super 2013 BMW K1600 GTL
Joined: 26 Nov 2006
Posts: 3991
Location: Irvine, CA
Sat Jun 02, 2012 9:02 pm quote
I like the larger case and think it looks great!
Molto Verboso
2009 Vespa LX150ie, 2007 GTS250ie, 1982 Honda CB900F, 1989 BMW K100RS
Joined: 01 Apr 2011
Posts: 1075
Location: Sydney Australia
Sat Jun 02, 2012 9:41 pm quote
Just be careful with loading that thing up. I have loaded my LX up by taking off the top case off its rack and bungee cording my 'wheely bag' (international carry on size bag) on the rack and placing a reasonably heavy briefcase on the seat behind me. The reasonably large weight aft of the back wheel placed the centre of gravity too far aft for safe handling. I suspect the reason for the smaller top box on the LX style bikes is related to handling and CofG issues.

Regards,

Chris
Ossessionato
2012 GTV 300 & LXV 150
Joined: 09 Mar 2012
Posts: 3485
Location: Pacific Northwest
Sun Jun 03, 2012 4:19 am quote
joedevola wrote:
Just be careful with loading that thing up.
Good thoughts, Chris. Thanks.
Hooked
Vespa LXV 150
Joined: 15 Apr 2012
Posts: 194
Location: Nova Scotia
Sun Jun 03, 2012 5:17 am quote
I love the look. Assuming the back can handle the extra weight of what you put in there, I think you're good to go.
Ossessionato
2011 GTS 300 Super 2013 BMW K1600 GTL
Joined: 26 Nov 2006
Posts: 3991
Location: Irvine, CA
Sun Jun 03, 2012 5:22 am quote
You might want to consider giving your rear suspension an extra turn to firm things up a tad to offset what could be additional weight when loaded?
Molto Verboso
lx150
Joined: 02 Oct 2011
Posts: 1237
Location: Adrian, Mi
Sun Jun 03, 2012 7:28 am quote
+1 on the extra weight issue.
+1 on the look.

Always think balance. When you are adding items to the rear add some to the front.

On a side note is there a weight limit on the rack for the LX models?

That back rest looks inviting!
Addicted
Peugeot Citystar 200i, Vespa PX 200
Joined: 17 Aug 2013
Posts: 798
Location: Finland
Sat Mar 08, 2014 6:01 am quote
camper wrote:
On a side note is there a weight limit on the rack for the LX models?
---------------------
It's an old thread, but since it has been referred to in a recent post elsewhere, I think it's safe to state that according to Piaggio's instructions on mounting a top box it should not exceed 3 kg. Note: the rack depicted here is different (solid, not folding) and the weight limit is presumably for the top case.

The instructions are here:

http://modernvespa.com/forum/topic125621
