Corrected MP3 400 and 500 driving pulley diagram w part numb
Purpose

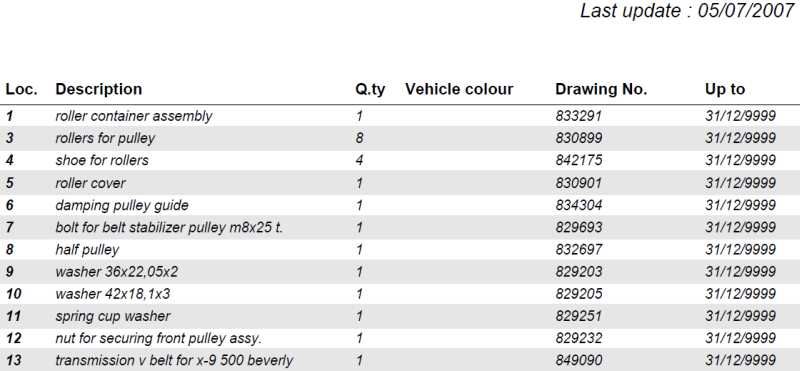

To show the correct order of the parts of the driven pulley. The original Piaggio diagram had spacer #9 between washer #10 and nut #12. Also included is the part number reference.



Article originally contributed by stickyfrog
Last Updated Mon Jun 10, 2013 12:03 pm
