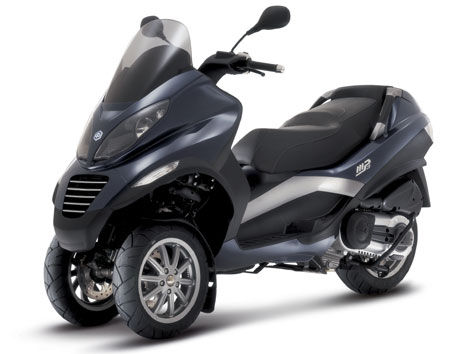

MP3 125


Specifications

Engine: Single-cylinder, 4-stroke, 4-valve Piaggio LEADER with
SAS and two-stage catalytic converter

Cylinder Capacity: 124 cc

Bore / Stroke: 57 mm / 48.6 mm

Compression ratio: 12.0 : 1

Max. power output: 15 bhp (11 KW) at 9250 rpm

Max. torque: 12 Nm at 8500 rpm

Cooling: Liquid

Transmission: CVT automatic transmission with centrifugal clutch

Ignition: Electronic with capacitive discharge (CDI) and advance
mapping

Carburetation: 29 CVT carburettor with throttle position sensor

Starter: Electric (Bendix) with automatic decompressor and
automatic choke

Frame: High-strength tubular steel twin cradle

Front suspension: Parallelogram consisting of four aluminium arms
supporting two steering tubes, cantilever suspension
system - Travel: 85mm

Rear suspension: Two double-acting hydraulic shocks and adjustable spring
preload - Travel: 110mm

Front brake: Two 240mm stainless steel discs and floating calliper
with two pistons 30mm

Rear brake: 240mm stainless steel disc and calliper with 30mm
opposed pistons

Front wheel rim: Die cast aluminium alloy 12" x 3.00

Rear wheel rim Die cast aluminium alloy 12" x 3.50

Front tyre: Tubeless 120/70-12" 51P

Rear tyre: Tubeless 130/70-12" 62P

Length / width: 2130mm / 745mm

Height: 1490mm

Seat height: 780mm

Dry weight: 199kg

Fuel capacity: 12 litres (including 1.8 litre reserve)
