When installing a new wiring harness, it's helpful to label it so that you know what goes where without constantly comparing the harness to the wiring diagram as you're doing the job!
"Single Yellow Wire" Late P200E
US-spec P200E (VSX1T), with key & battery, after 1979. Serial numbers from 34627. Harness part number 182309.
Wiring diagram: https://www.scooterhelp.com/electrics/wiring/VSX1T.USA.after.pdf
Buy a harness online:
* https://www.scootermercato.com/Scooter-Parts/Wiring-Harness/182309
* https://www.scooterwest.com/p200e-wiring-harness-1980-1983-single-yellow-wire-182309-late-a.html
* https://www.scooterworks.com/products/wiring-harness-vsx?variant=46757223432472
Labeling

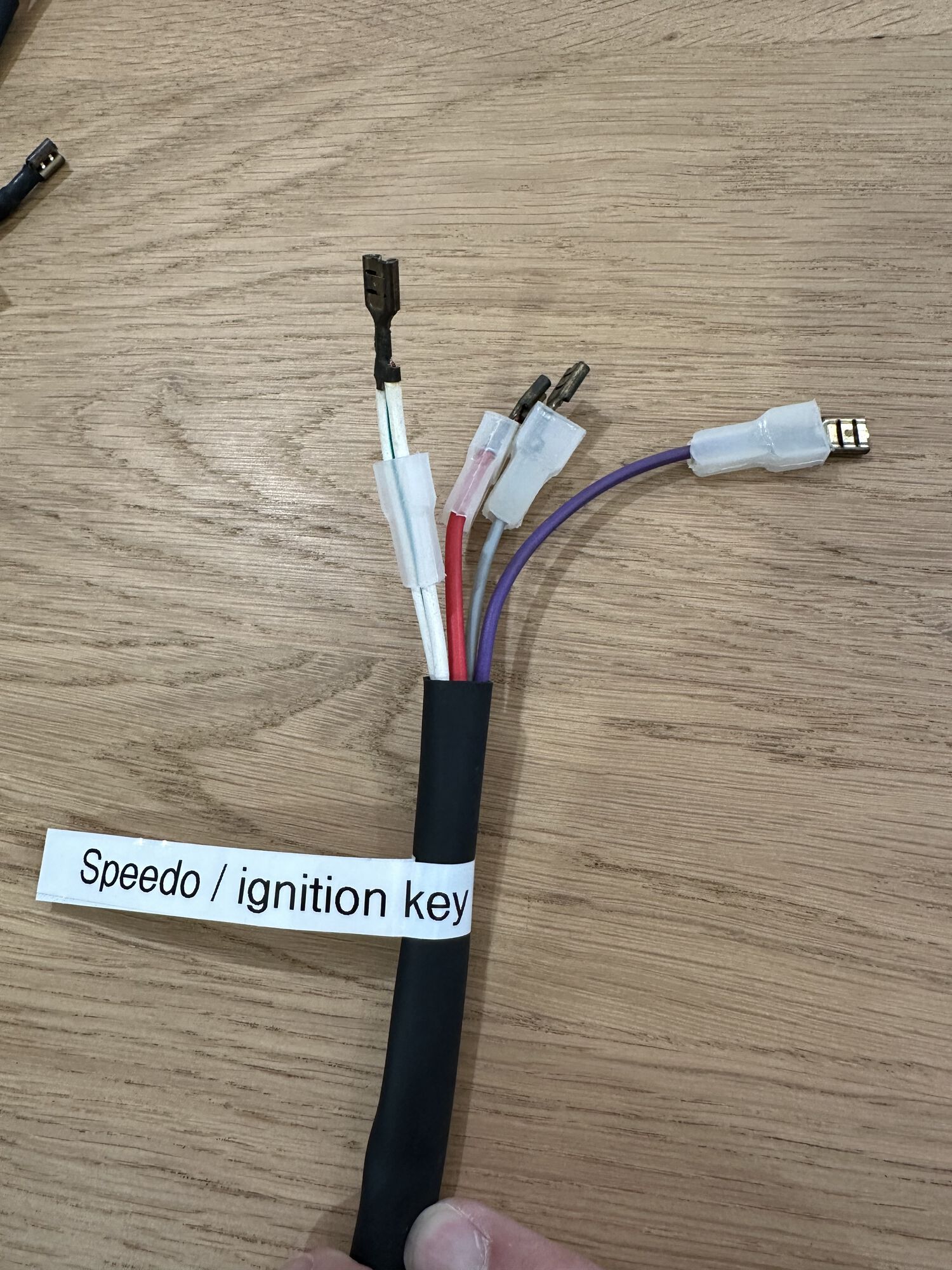

Speedo light / ignition key switch

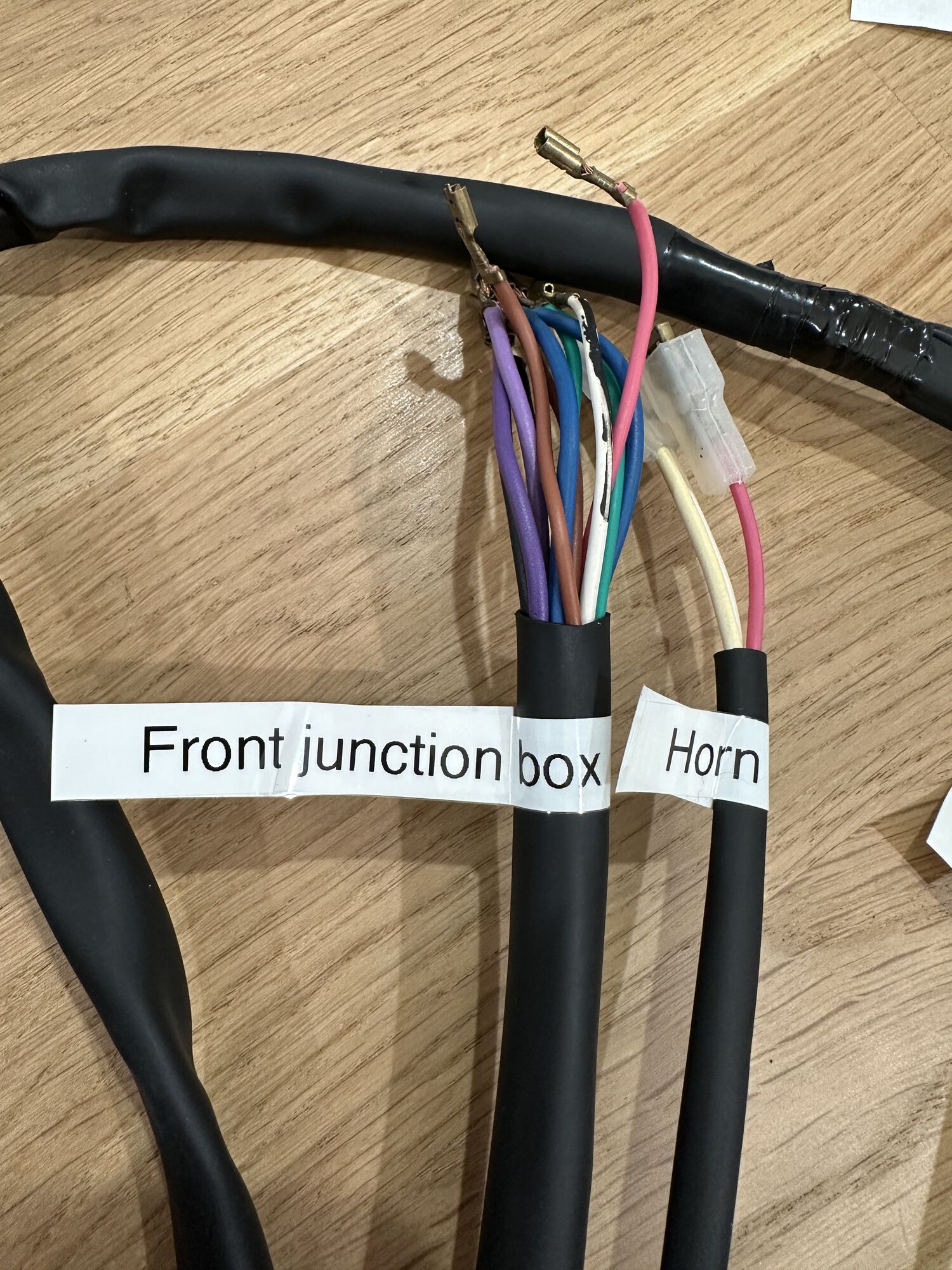

Front junction box, horn

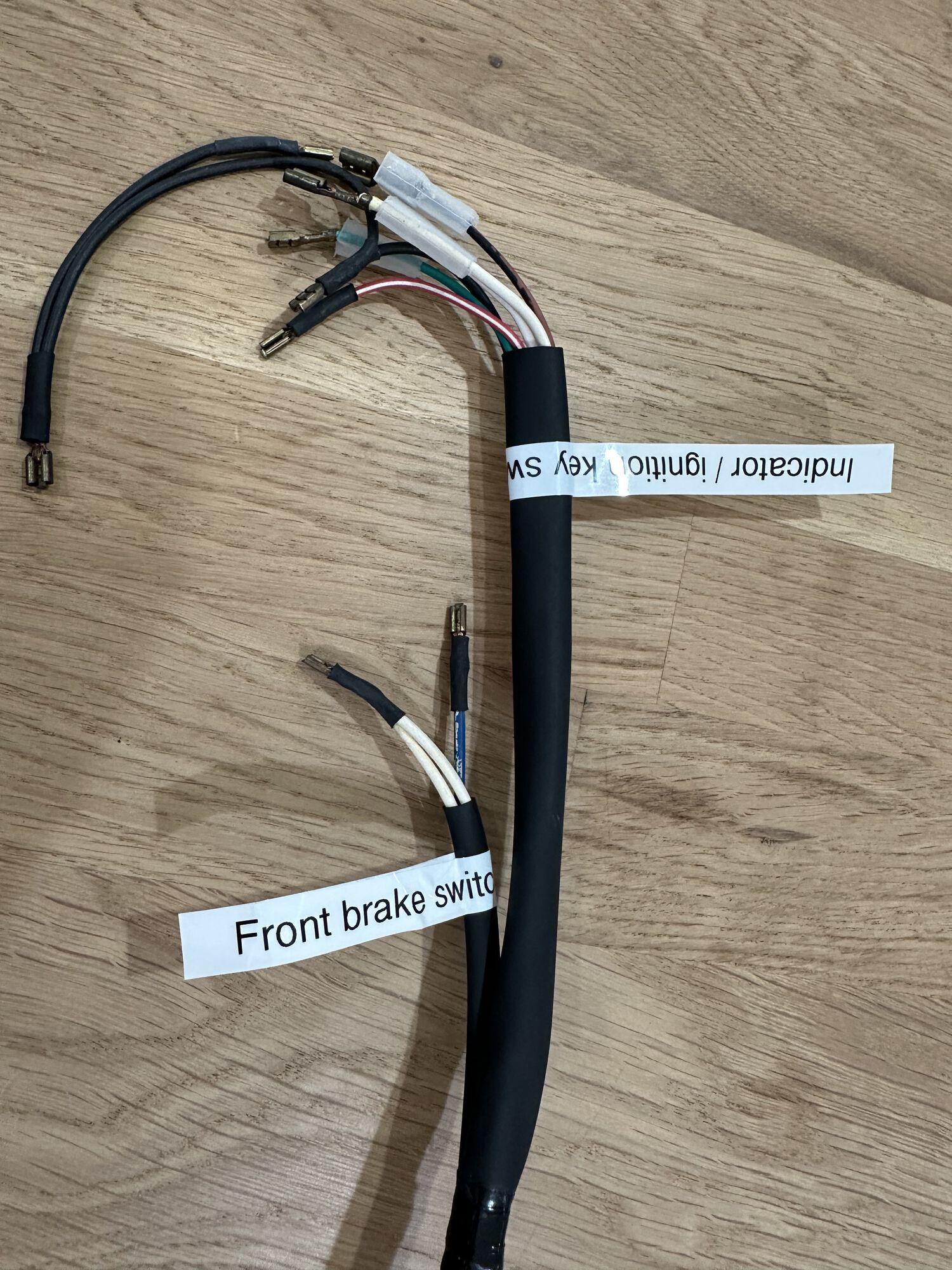

Front brake switch, indicator bulb / ignition key switch

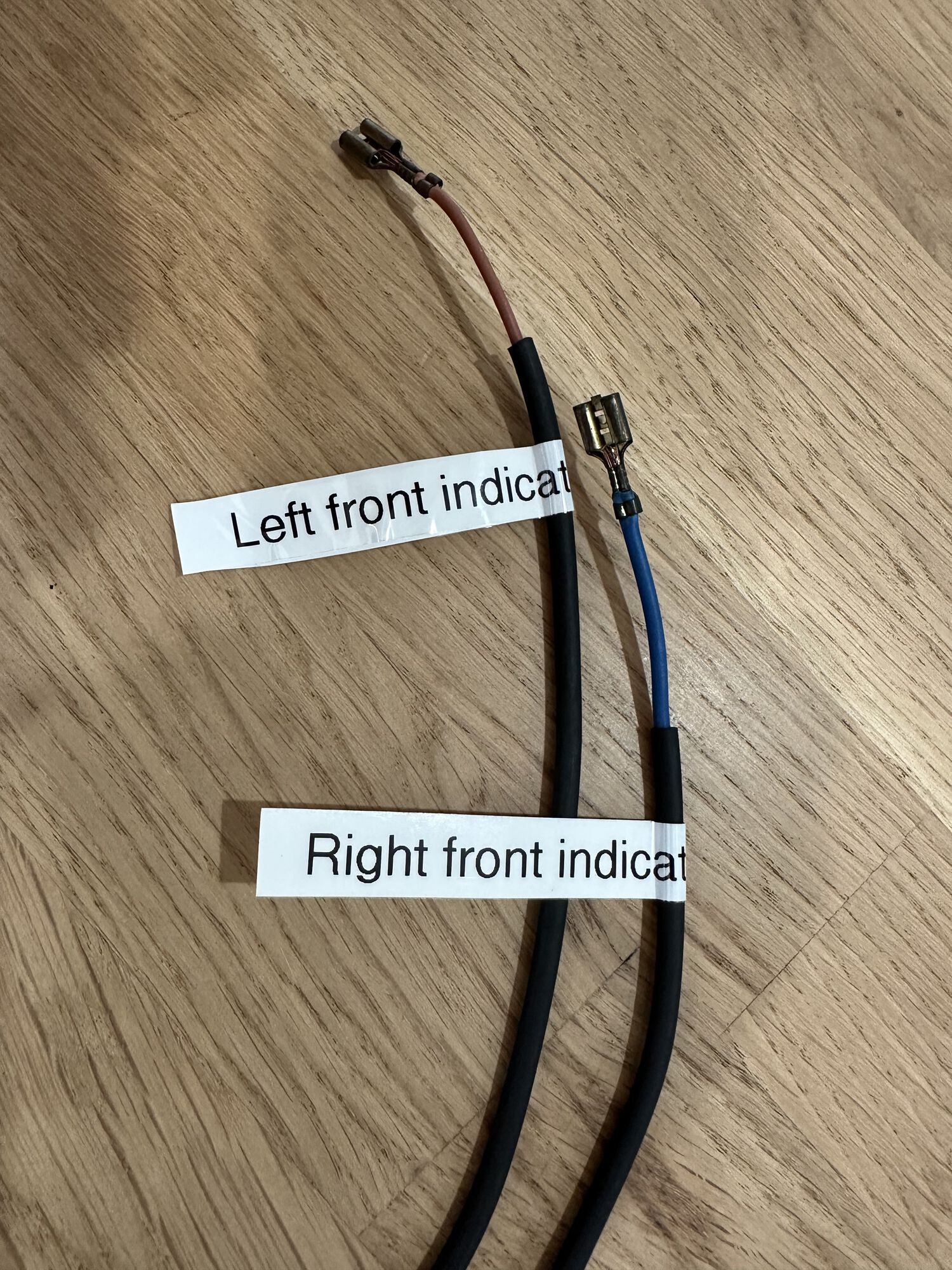

Front indicators

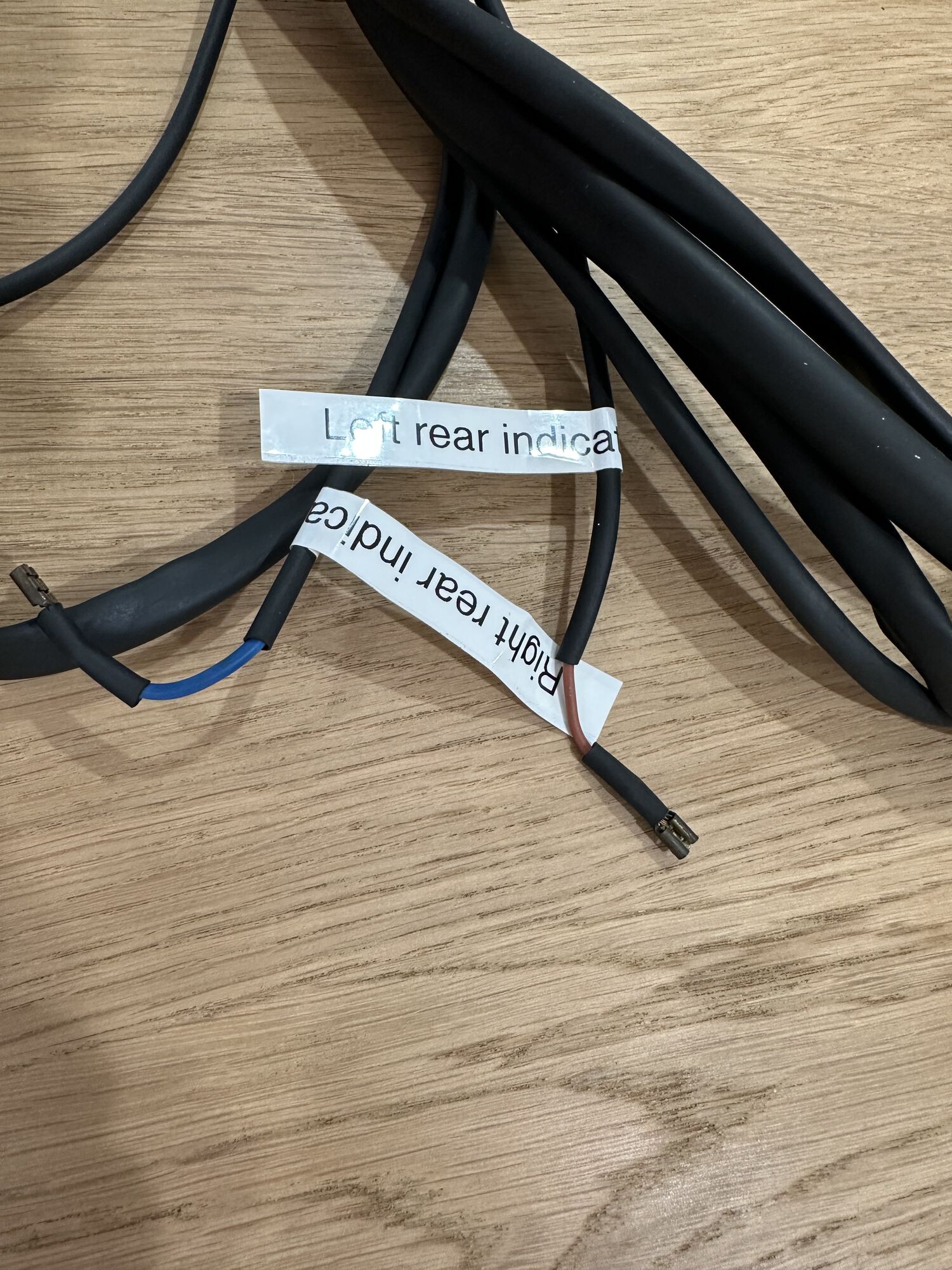

Rear indicators

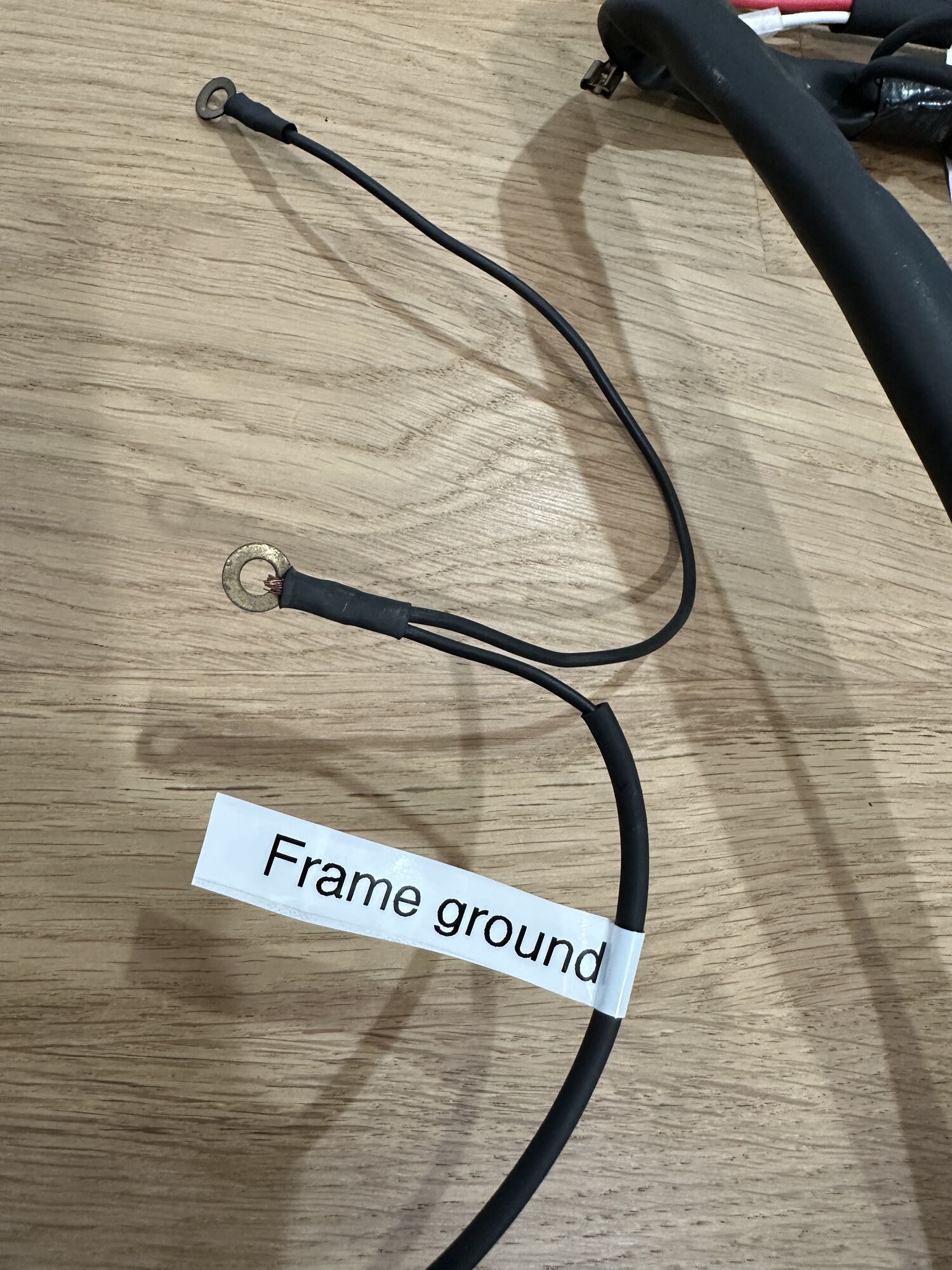

Rear indicator grounds (inside frame)

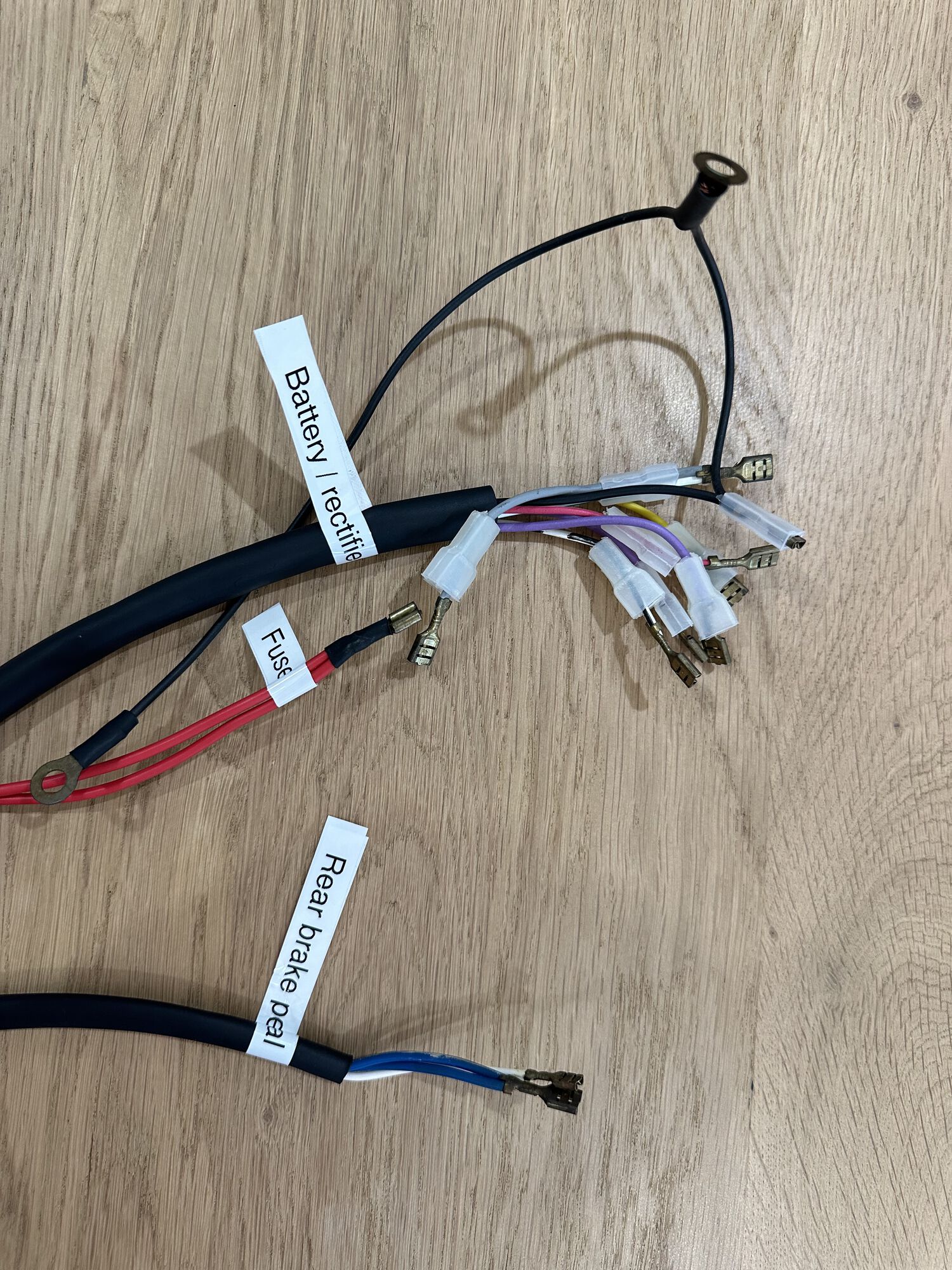

Battery / rectifier, fuse, rear brake pedal

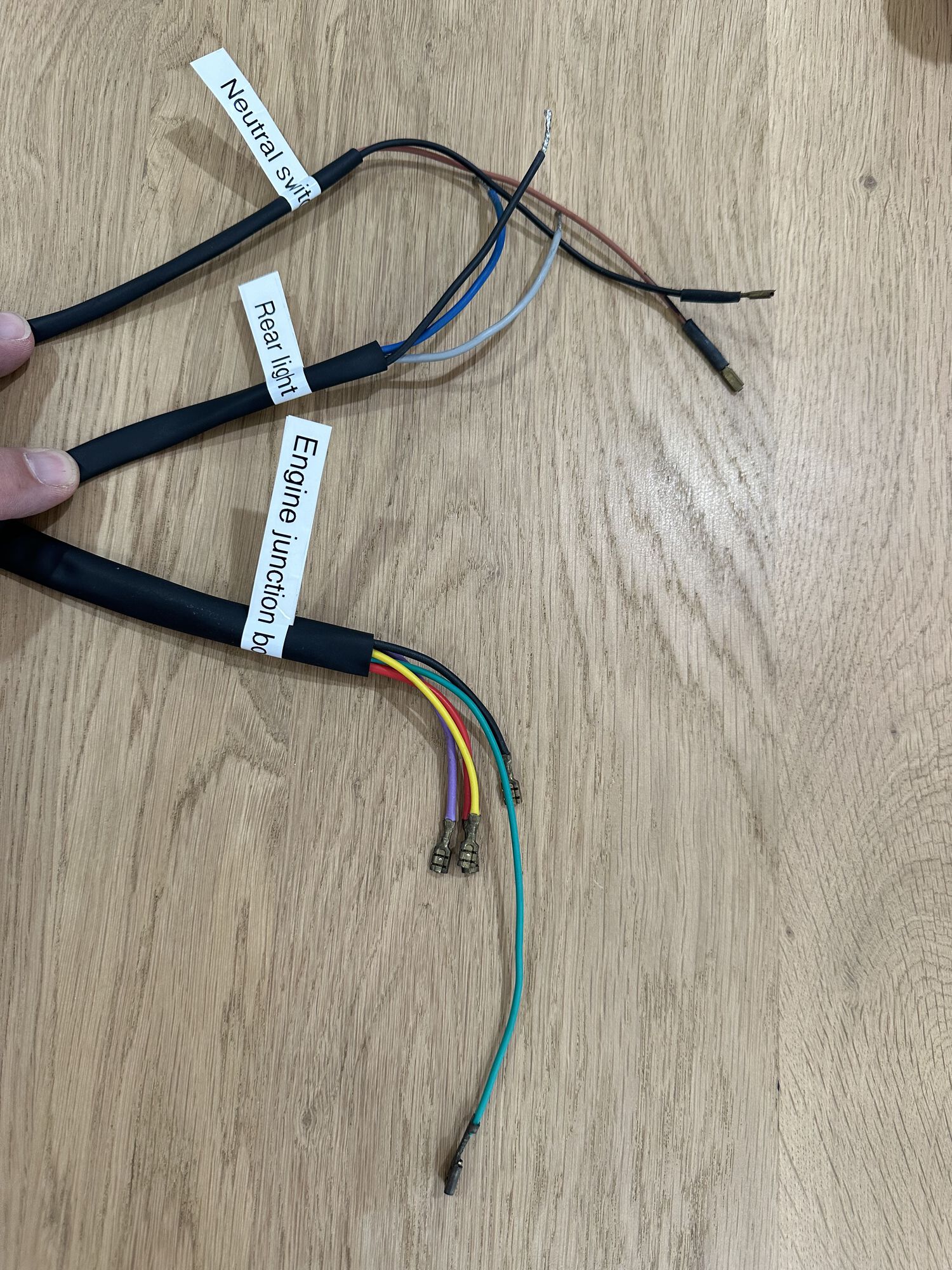

Neutral switch, rear light, engine junction box
