When thinking about a disc conversion for a pre-P largeframe, the conventional wisdom says put a PK fork in it. Which is fine if you live on the outskirts of Munich, Naples or Barcelona. For the rest of us it's generally a bit harder to find one. However, P forks are plentiful, and potentially cheap. So what's the difference? This table from a T5 forum has the dimensions:



My friend did a conversion with a PX fork and Scoot r s disc setup. It was great for braking but I never liked the too-tall look - too much air between the guard and the tyre. He did a pretty neat job creating a bulge for the top of the shock and it's mounting bracket, but it was clearly a bulge that wasn't meant to be there. Some people cut a hole, but I wanted something that looked a bit more "natural".

Eventually I got hold of a PX fork with a drum brake and everything on it (except the guard which apparently had been autographed by Manny from the Stone Roses!). According to the table above and a comparison with a spare Super fork, everything else was pretty much the same except for the lower section - 'Degree lower bearing seat to control arm pivot point' - was approximately 35mm longer than the original.

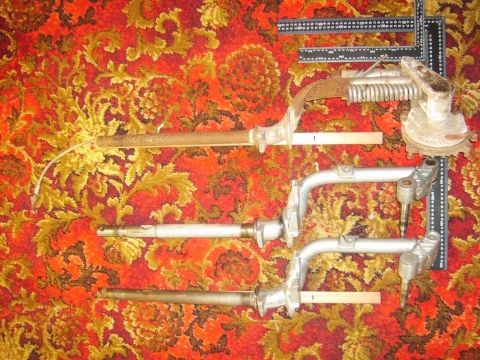

Crappy photo sorry.

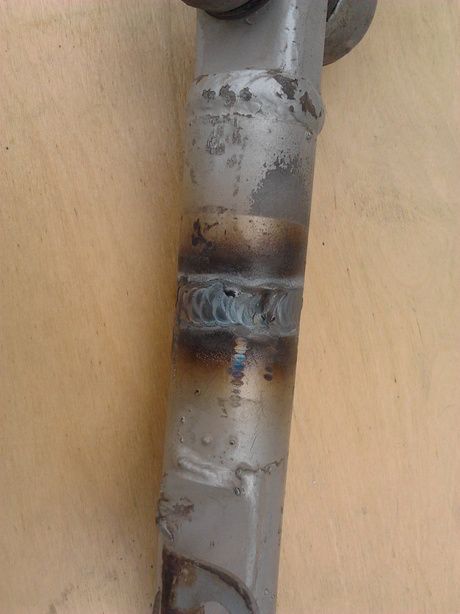

So I was a bit apprehensive about cutting the fork... I went to a local automotive engineer who said if he were to do it and certify the modification it would cost me hundreds. But he also said if it was his, he wouldn't even think about not doing it... and put me on to his welder. The welder cut, sleeved and tig welded the fork by 35mm and ensured the original direction of the swing-arm was maintained. I was really pleased with his job, which he charged me $80 for.

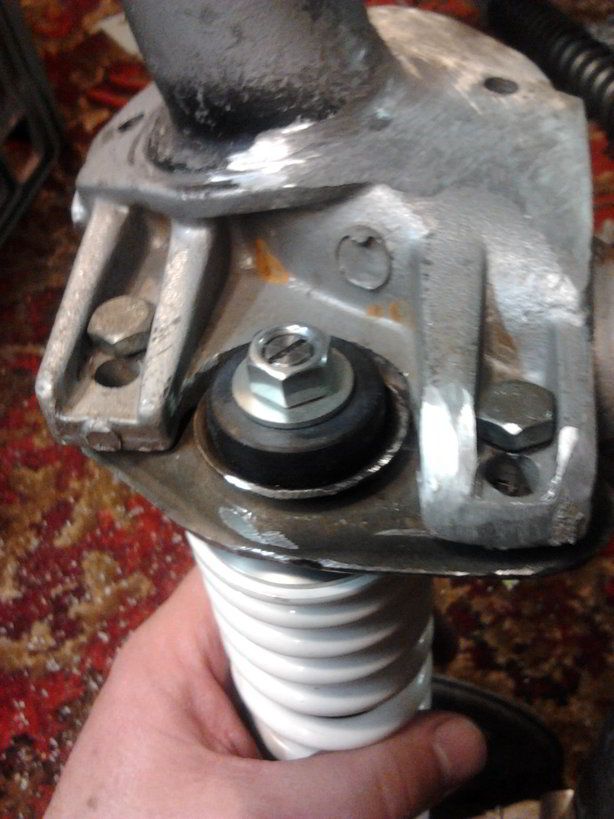

Now that I had a shorter fork, I needed a shorter shock as well. I'd been browsing SCK one day and saw the nice YSS pro adjustables... I had a look at the others in the range and saw that the PK was exactly the same design, but 45mm shorter! And if that wasn't short enough, a Zip shock is shorter again! P/PX=255mm, PK=210mm, Zip=185mm.

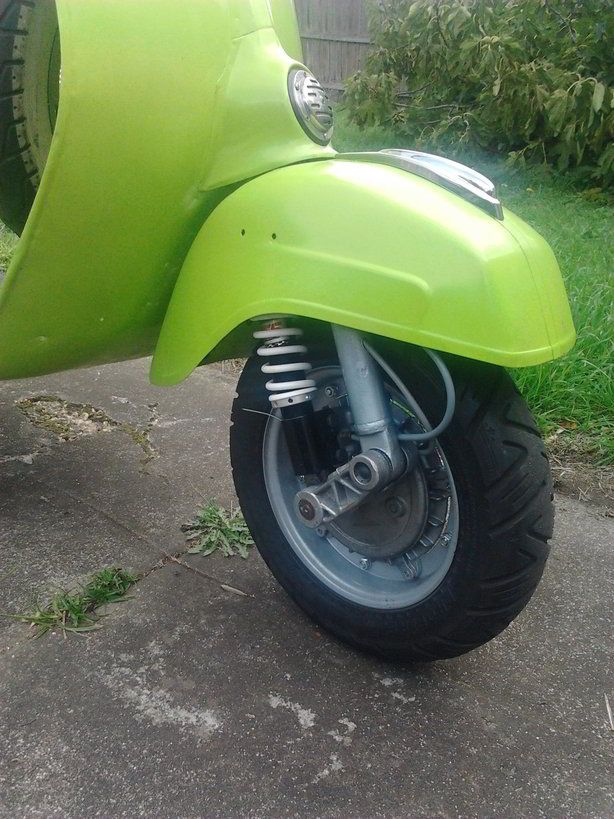

If you fit this fork, you need to grind down the 'platform' that the guard sits on a bit, otherwise it will sit too high at the front. The other thing that I did was move the top of the shock mount inwards about 10mm, which means less bodywork on the guard to leave clearance.



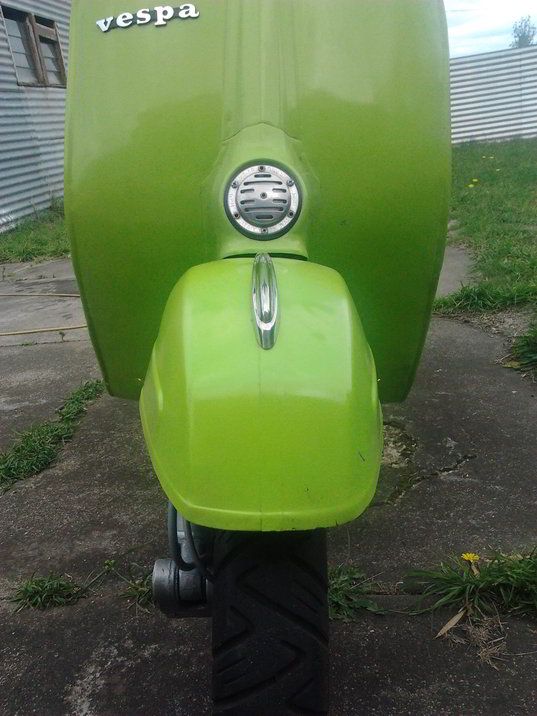

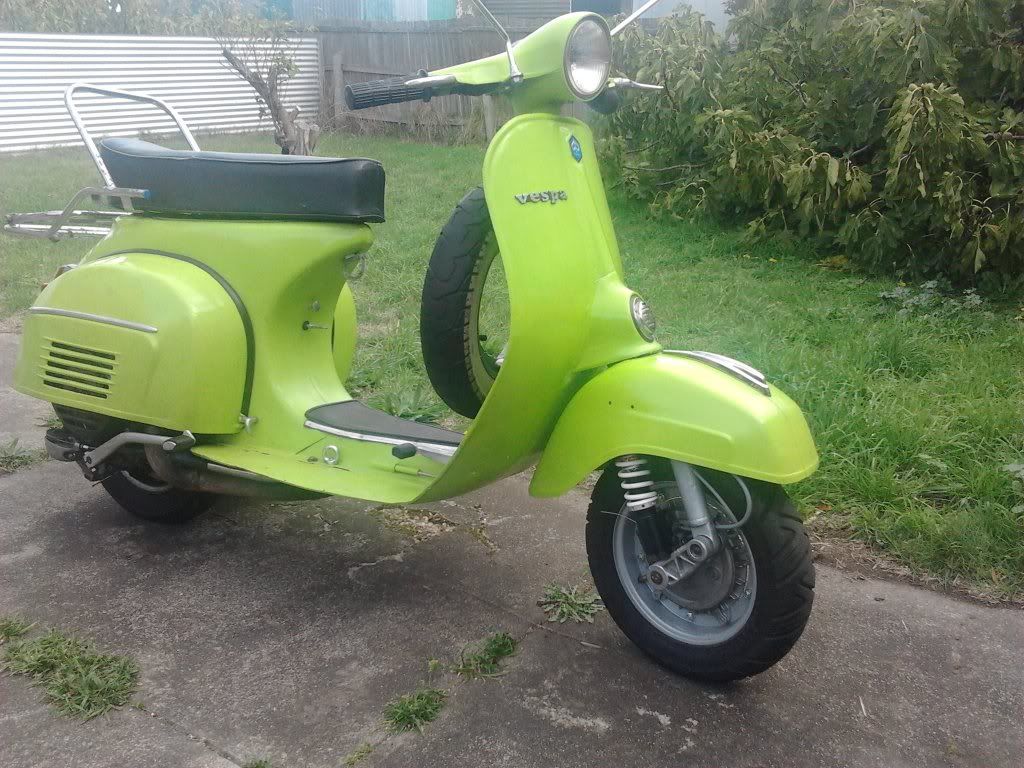

After that I cut the hole bigger with a pattern from a P guard (thanks again Rob98801!) using the front bolt hole as the datum point. I drilled a new hole at the side. Then I beat out the rhs of the guard, making a gentle bulge along the top side section. Now there's maybe 5mm clearance from the bracket to the guard. You can tell it's a little different from one side to the other. Though with the bulging, moving the shock in and grinding back of the shock mount, I think I ended up with something that doesn't instantly look modified...except to everyone here!





⚠️ Last edited by Ginch on Mon, 04 Nov 2019 08:17:25 +0000; edited 1 time
Mon, 29 Apr 2013 19:42:14 +0000

Hooked
rollin on 8s
Joined: Sat, 06 Mar 2010 10:26:45 +0000
Posts: 283
Location: NZ

Hooked
rollin on 8s
Joined: Sat, 06 Mar 2010 10:26:45 +0000
Posts: 283
Location: NZ
Mon, 29 Apr 2013 19:42:14 +0000 quote
Nice work. I think drum brakes look better on these old scoots.

as a side note, I used to cook lunch for manny when i was a chef in manchester too long ago. johnny marr too. should have got them to sign something.
OP
Mon, 29 Apr 2013 22:26:33 +0000

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: Thu, 01 Dec 2011 00:47:42 +0000
Posts: 8427
Location: Victoria, Australia

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: Thu, 01 Dec 2011 00:47:42 +0000
Posts: 8427
Location: Victoria, Australia
Mon, 29 Apr 2013 22:26:33 +0000 quote
Thanks. The drums do look good but I have a Scoot r s disc setup that I am keen to get on there... anyway from the other side you can't tell it's a disc.
Tue, 30 Apr 2013 00:52:08 +0000

Mr. Clean
P,SUPER,V90, 50 Special
Joined: Tue, 27 Jul 2010 15:35:42 +0000
Posts: 10205
Location: This is't my locker!

Mr. Clean
P,SUPER,V90, 50 Special
Joined: Tue, 27 Jul 2010 15:35:42 +0000
Posts: 10205
Location: This is't my locker!
Tue, 30 Apr 2013 00:52:08 +0000 quote
Ginch wrote:
from the other side you can't tell it's a disc.
That's one of the things I really like about that kit you got.. I dig that.. stealthy.. at least from one side!

Excellent work on this fork G... you're an inspiration to Superists everywhere! Really... great stuff brother!

Cheers
Tue, 30 Apr 2013 10:59:29 +0000

Veni, Vidi, Posti
a not so normal vbb2 '64, a weirdo vbx '86, a not so normal pts100 '82 and a yellow sunshine '74 sprint
Joined: Mon, 15 Jun 2009 15:12:19 +0000
Posts: 5794
Location: Indo

Veni, Vidi, Posti
a not so normal vbb2 '64, a weirdo vbx '86, a not so normal pts100 '82 and a yellow sunshine '74 sprint
Joined: Mon, 15 Jun 2009 15:12:19 +0000
Posts: 5794
Location: Indo
Tue, 30 Apr 2013 10:59:29 +0000 quote
nice mods mate, now i am curious to see how u gonna put the disc i am always curious on the brake and if only i were closer to you i will weld cut the fork for free especially for a nice friend like you

have a nice evening and cheer mate
Tue, 30 Apr 2013 18:30:24 +0000

Addicted
'79 P200
Joined: Tue, 29 Nov 2011 15:19:54 +0000
Posts: 926
Location: Chicago

Addicted
'79 P200
Joined: Tue, 29 Nov 2011 15:19:54 +0000
Posts: 926
Location: Chicago
Tue, 30 Apr 2013 18:30:24 +0000 quote
cubastreet wrote:
Nice work. I think drum brakes look better on these old scoots.

as a side note, I used to cook lunch for manny when i was a chef in manchester too long ago. johnny marr too. should have got them to sign something.
I used to see Mr. Marr all over Portland when I lived there.
OP
Tue, 30 Apr 2013 22:01:11 +0000

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: Thu, 01 Dec 2011 00:47:42 +0000
Posts: 8427
Location: Victoria, Australia

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: Thu, 01 Dec 2011 00:47:42 +0000
Posts: 8427
Location: Victoria, Australia
Tue, 30 Apr 2013 22:01:11 +0000 quote
Thanks for the encouragement guys!

Ebeth, the disc part will go on as you see on the scoot r s site, but the master cylinder I want something a bit different, so I didn't get their m/c.

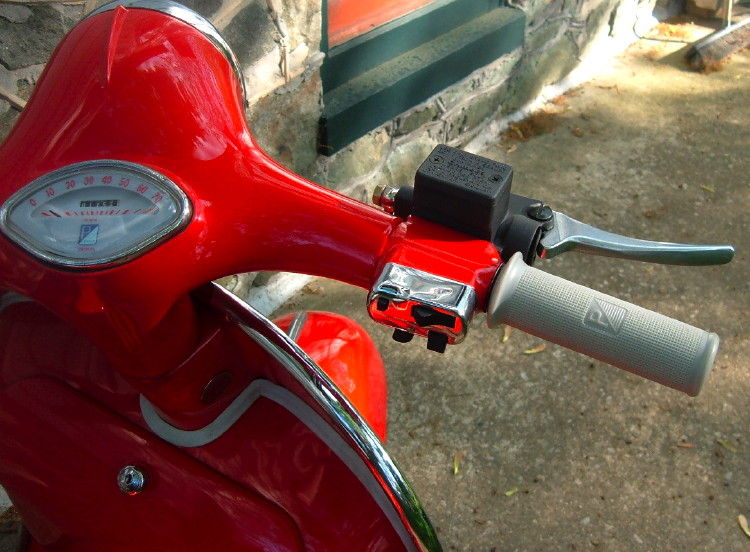

This is the initial picture that inspired me to go in this direction... to me it looks almost factory-produced.
