Hi there Vespa enthusiasts.

The chassis number is a VLB1T - a 1970 Sprint 150 but the Engine number is simply as per the attached screenshot - no series prefix. I don't think it is safe to assume that it is a VLB1T engine - If I am looking to identify this engine so I can replace one of the Fly-side needle roller bearings that was almost completely mashed when I dis-assembled - any idea on how I can go about identifying the replacement bearing if I don't find the prefix VLB1T when searching the engine numbers on http://www.scooterhelp.com/serial/ves.motor.serial.numbers.html
Forum member supplied image with no explanatory text
@mr10 avatar
UTC

Hooked
150 GLx, Rally 200
Joined: UTC
Posts: 256
Location: Netherlands

Hooked
@mr10 avatar
150 GLx, Rally 200
Joined: UTC
Posts: 256
Location: Netherlands
UTC quote
Measure the bearing, or check the numbers on the bearing?
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
measured the bearing - although mangled
Howzit,

Neither of the needle bearings have numbers on them - the one was almost completely in pieces when opening the engine (Gear selector), the other needle bearing has no identifiable number.

I've got the pieces of the one and the whole other - but still would like to understand exactly which engine type I've got in order to buy parts in confidence.
@dcunited4life avatar
UTC

Molto Verboso
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver

Molto Verboso
@dcunited4life avatar
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver
UTC quote
That bearing sucks. It's such a bad design realtive to the P series bearing in that location. I had to do the same thing to my GL. The entire drive shaft is supported by that thing on the selector rod side and when mine went out it ended up killing the hub side bearing as well. I found individual rollers inside the cases as well. Good thing I didn't try and run it like that (I bought it that way) who knows what kind of damage it could have done.

To answer your question you would need a pre-fix on the engine cases to exactly nail down which cases you have. Short of that, I know of no other way. How many ports does the top end have? Moar pictures?
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
more pic's - some info if you can

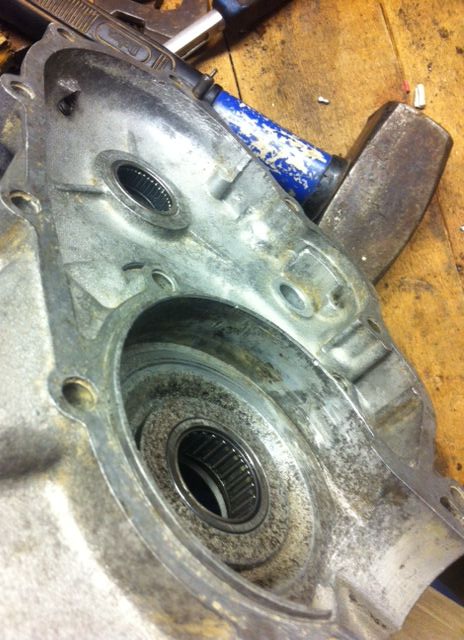

Hi again - here are images of the bearings. Any identification you can offer or a link to a website that sells these - would be much appreciated.

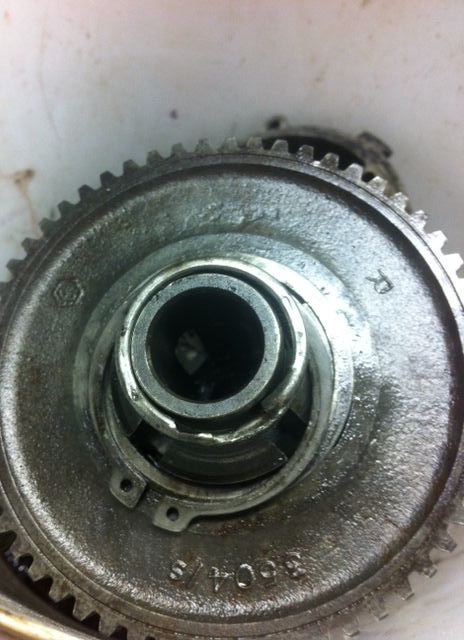

Forum member supplied image with no explanatory text

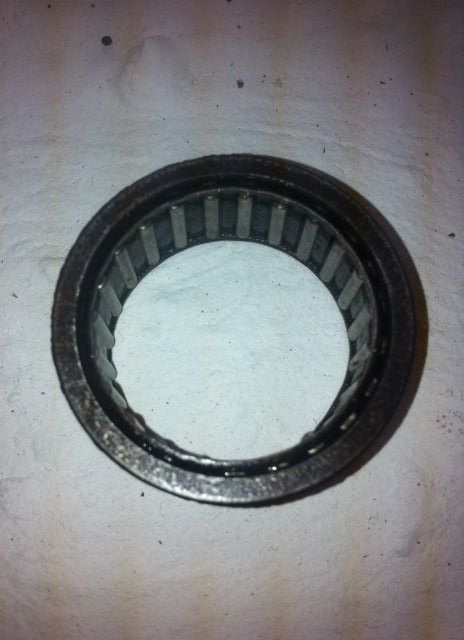

Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@nebulae avatar
UTC

Addicted
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk

Addicted
@nebulae avatar
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk
UTC quote
Re: measured the bearing - although mangled
Bazzer wrote:
Howzit,

Neither of the needle bearings have numbers on them - the one was almost completely in pieces when opening the engine (Gear selector), the other needle bearing has no identifiable number.

I've got the pieces of the one and the whole other - but still would like to understand exactly which engine type I've got in order to buy parts in confidence.
Wheres the other needle bearing from?
Crankshaft / flywheel?

If so, i'd say you had a P range engine which is a one type bearing that fits all P ranges.

Edit:

. . . but looking at your casing image above it doesn't look like one.
The bearing hole looks to big . . .
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
I'd say you have a Nammer engine.
@dcunited4life avatar
UTC

Molto Verboso
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver

Molto Verboso
@dcunited4life avatar
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver
UTC quote
Yea, where is that bearing with the pointy needle bearings from? There should be the first bearing you show in the selector rod area on the flywheel side. That other bearing is some mystery stuff scooby doo.
@vader19 avatar
UTC

Mr. Clean
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!

Mr. Clean
@vader19 avatar
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!
UTC quote
dcunited4life wrote:
where is that bearing with the pointy needle bearings from? There should be the first bearing you show in the selector rod area on the flywheel side.
what does this mean?
@dcunited4life avatar
UTC

Molto Verboso
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver

Molto Verboso
@dcunited4life avatar
No moar Vespas...sold them all
Joined: UTC
Posts: 1087
Location: Denver City Denver
UTC quote
Vader19 wrote:
dcunited4life wrote:
where is that bearing with the pointy needle bearings from? There should be the first bearing you show in the selector rod area on the flywheel side.
what does this mean?
This bearing appears to be the one which is expected to be found on the flywheel side where the selector rod exits the case.

External inline image provided by member with no explanatory text

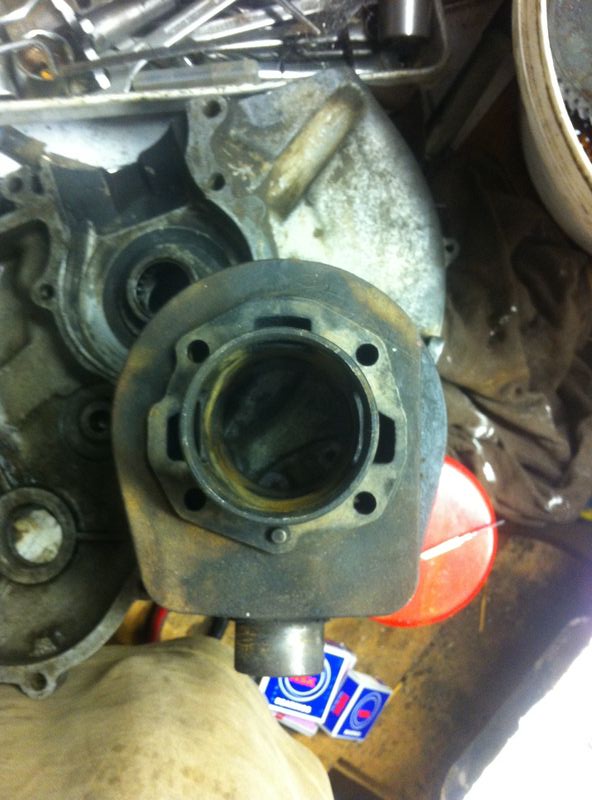

Which area of the engine case did this bearing originate from?

External inline image provided by member with no explanatory text
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
dcunited4life wrote:
This bearing appears to be the one which is expected to be found on the flywheel side where the selector rod exits the case.
No. That is a fly-side case bearing for crank.
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
Regardless. I've only ever seen that sort of wear from a Nammer engine.
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
Hi All,

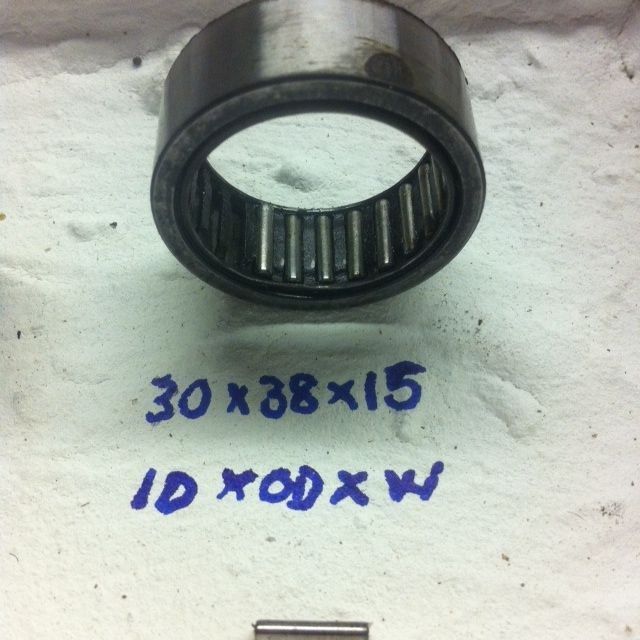

The two bearings are not the same dimension. If you look carefully at the crankcase image I have pressed the damaged bearing into the gear selector housing as it is from that housing.
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
From what I can see it is a 3 port engine if this helps anything. As far as I understand there isn't a 3T 150 sprint engine rather a 2T, but I see this engine has 3

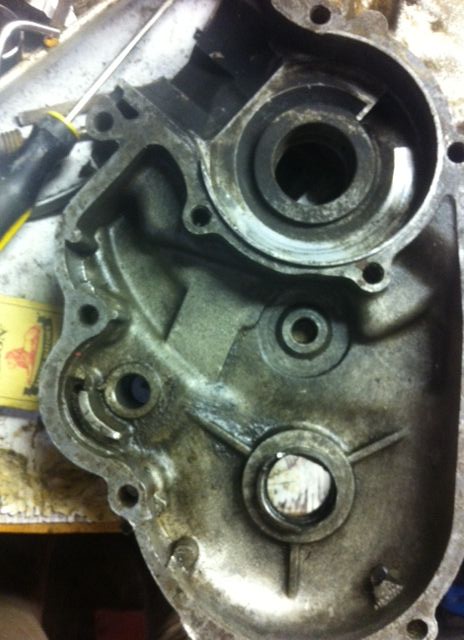

Forum member supplied image with no explanatory text
@nebulae avatar
UTC

Addicted
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk

Addicted
@nebulae avatar
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk
UTC quote
It does look like a P range engine now i can see your crank flywheel bearing in place.
Theres also the lack of kickstart springy plate that you'd find on older engines but not P ranges as P ranges had an actual spring.
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote

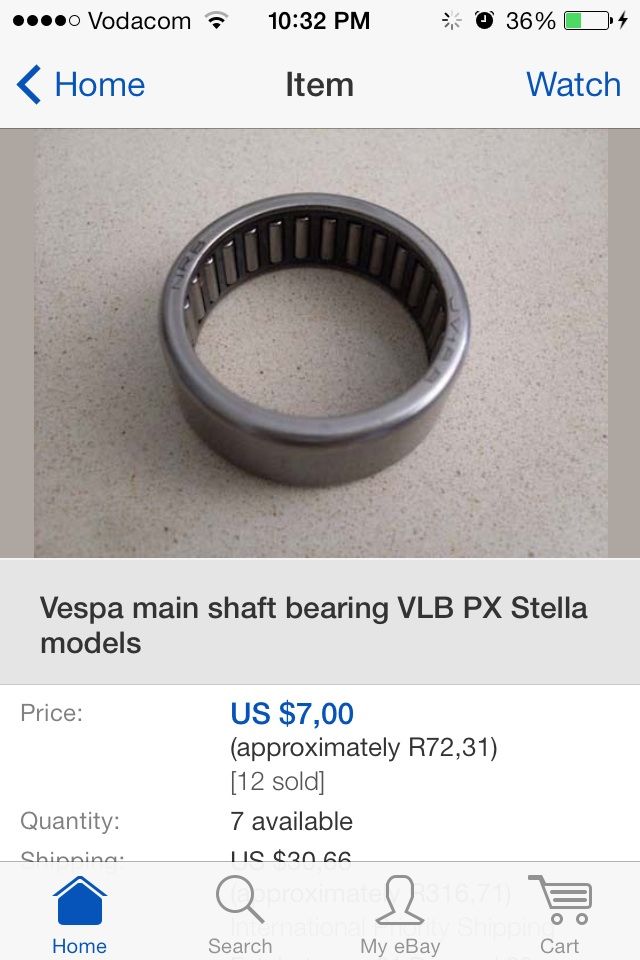

Do you guys think this is the same bearing? Seen on eBay
Forum member supplied image with no explanatory text
@nebulae avatar
UTC

Addicted
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk

Addicted
@nebulae avatar
Vespa Rally 210
Joined: UTC
Posts: 927
Location: uk
UTC quote
Check SIP's page.
They have dimensions for all their bearings.
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
Wow. That bearing is so fucked up I can't stop looking at it.
@biggy888 avatar
UTC

Enthusiast
GTR125
Joined: UTC
Posts: 95
Location: Peebles

Enthusiast
@biggy888 avatar
GTR125
Joined: UTC
Posts: 95
Location: Peebles
UTC quote
Maybe I'm way off here but the prefix should be above the engine number, next to the small piaggio emblem. I think I can make something out in the first photo you posted. Looks like it has an m in it.
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
I seriously doubt you'll be able to get a bearing to seat correctly in that lower case. It looks good and fucked.
UTC

nothing at all
Joined: UTC
Posts: 9656
Location: westla

nothing at all
Joined: UTC
Posts: 9656
Location: westla
UTC quote
Looks kike that bearing spun in the case soooo....I would be more concerned about the condition of that then replacing the bearing....no.
@sfvsr avatar
UTC

Ossessionato
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco

Ossessionato
@sfvsr avatar
a lambretta or two
Joined: UTC
Posts: 3724
Location: San Francisco
UTC quote
And a 1970 is too early for that later type of bearing.

Again, I'll say it: NAMMER
@rowdyc avatar
UTC

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas

Molto Verboso
@rowdyc avatar
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas
UTC quote
biggy888 wrote:
Maybe I'm way off here but the prefix should be above the engine number, next to the small piaggio emblem. I think I can make something out in the first photo you posted. Looks like it has an m in it.
s

I can see the letters on the case, too. I think you should use a magnifying glass or try to take some paper and pencil/charcoal or something and rub across letters to figure out what you really have before you start buying stuff.

BTW, the engine case looks toast. At least you didn't find a soda can in there.
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
I found it!
Howzit Guys,

I can't believe I didn't see it. It is clearly a VLX1M as the engine prefix.
Thanks Biggy888, now to find the replacement bearing from the parts catalogue -
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
I can't find a link to the catalogue for the bearing
Hi again Chaps,

now that I know the engine number to be a VLX1M - where do I find a catalogue that shows me what bearings are compatible with this engine type? Seem to be struggling to get to the SIP page that shows all the bearings specific to this engine type - just don't find the VLX1M engine type anywhere.
@jamesjohn avatar
UTC

Ossessionato
1970 Vespa Rally 180
Joined: UTC
Posts: 4145
Location: Denton Tx.

Ossessionato
@jamesjohn avatar
1970 Vespa Rally 180
Joined: UTC
Posts: 4145
Location: Denton Tx.
UTC quote
dude, that engine is toast. save your money for a new lump.
@rowdyc avatar
UTC

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas

Molto Verboso
@rowdyc avatar
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas
UTC quote
Re: I found it!
Bazzer wrote:
Howzit Guys,

I can't believe I didn't see it. It is clearly a VLX1M as the engine prefix.
Thanks Biggy888, now to find the replacement bearing from the parts catalogue -
If the numbers reads VLX1M-201238, that's a 1980 PX150 engine. Double check those letters to be sure. You may have a Vietnam special. Pictures would help.

The engine looks like its pushing daisies. Try for another engine. and go over the scooter with a magnet to see if you have something that may not be safe.
OP
@bazzer avatar
UTC

Enthusiast
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa

Enthusiast
@bazzer avatar
Vespa Sprint
Joined: UTC
Posts: 89
Location: South Africa
UTC quote
turning the corner on the restore project
Hi there Chaps,

Just thought you would like to know I solved my mystery of the no-name bearings. I hooked up with a young guy who seems to have taken over a truckload of old Vespa spares - and had the bearings I needed at a fraction of the new price.

Here is what the crankcase looks like now. Thanks for all the advice and help as usual.
Forum member supplied image with no explanatory text
