Since I never did a writeup on the original build in 2006 I figured I'd do one now as I prepare for a rebuild.

We'll start with a glimpse of the finish before stepping back through the build. Here's the bike after fulfilling its intended purpose in the 2006 Scooter Cannonball Run.
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
The beginning
Here's the first dry build. The frame has already had the seams welded, brace braised in, and nuts welded in to hold the cowls on. The PK fork in is but as you can see the headset sits way too high. The floor is cut out for rearsets I haven't come up with a plan for mounting them yet. Also, the dummy tank is cut out and mounted at this point.

It was about this time that I heard about the Scooter Cannonball Run and decided I would be entering with this bike.
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Headset
The p98 headset has a lip on the inside that rests on top of headset bearing lock nut. The lip was cut down to lower the headset.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Here's one of the final dry builds on the body. Flat head M6 stainless bolts are used everywhere they can and the sheet metal deformed so they sit flush. Second picture shows the mounting for the rearsets.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@v_oodoo avatar
UTC

Style Maven
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9625
Location: seattle/athens

Style Maven
@v_oodoo avatar
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9625
Location: seattle/athens
UTC quote
Good start, please keep them coming. I like how you did the floor, simple. What was your range with all fuel tanks full?

How did you mount the older mudguard on the PK fork? Yours looks real straight, better than mine. I ran into interference on the top shock mount flanged bracket and had to grind off just a little from the outside edge to get the mudguard on straight as I could.
ground back next to that nut
ground back next to that nut
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Fitting the fender mostly just needed trimming the mounting plate for the top of the shock. I put the fork in a vice with the wheel vertical and then lined up the fender as best I could and marked the holes. Everything fit fine till I fitted the RS24 shock. Then I found I needed a bulge to clear the shock, the day before it needed to go to the paint shop.
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Engine
I don't have any pictures of the cylinder but it's a mostly stock Malossi 133. I did cut out the lower section of the cylinder skirt by the transfer ports and connected the boost ports to the reed intake.

Due to the long range tank I need a fuel pump and needed a connection from the crank to drive the pump. Since I'm using direct induction on the cylinder, this allowed me to use the stock rotary port to drive the pump.

Things are a bit tight but it does all clear.
Removing the lower cylinder skirt allows for a smoother feed to the transfer ports.
Removing the lower cylinder skirt allows for a smoother feed to the transfer ports.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@quasi-moto avatar
UTC

Veni, Vidi, Posti
SawStop
Joined: UTC
Posts: 5391
Location: Puyallup, WA

Veni, Vidi, Posti
@quasi-moto avatar
SawStop
Joined: UTC
Posts: 5391
Location: Puyallup, WA
UTC quote
This will be a fun one!
@turkman avatar
UTC

Ossessionato
2009 GTV 250
Joined: UTC
Posts: 2533
Location: Olympia, WA

Ossessionato
@turkman avatar
2009 GTV 250
Joined: UTC
Posts: 2533
Location: Olympia, WA
UTC quote
2006 CannonBall
Saw you there at Pacific City in your black full leathers. On that scooter, cool!
@vader19 avatar
UTC

Mr. Clean
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!

Mr. Clean
@vader19 avatar
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!
UTC quote
Great idea using the intake cover plate for a fuel pump pull.. and your triming of the onside of the headset to lower it was also really good! I'm glad you're doing this thread... It makes me wanna start chopping mine whole it's still apart... good stuff Oops.

You know what else I like, is that P headset fits really nicely... doesn't look wrong at all.
@joshzingzing avatar
UTC

Veni, Vidi, Posti
px200 cutdown,px180,px150. Puch SR. Puch scooterette
Joined: UTC
Posts: 5109
Location: west aus

Veni, Vidi, Posti
@joshzingzing avatar
px200 cutdown,px180,px150. Puch SR. Puch scooterette
Joined: UTC
Posts: 5109
Location: west aus
UTC quote
are those kangaroo whistles on the front mudguard
@t5bitza69 avatar
UTC

Veni, Vidi, Posti
T5s
Joined: UTC
Posts: 17005
Location: The West Of Yorkshire ... Gods Country

Veni, Vidi, Posti
@t5bitza69 avatar
T5s
Joined: UTC
Posts: 17005
Location: The West Of Yorkshire ... Gods Country
UTC quote
like
now ya talking .... summat cool to watch again
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Paint
The bike almost had to skip the paint as I was running short on time. Went with a cheap earl scheib, no clear. In the meantime I finished putting the front end together.
Forum member supplied image with no explanatory text

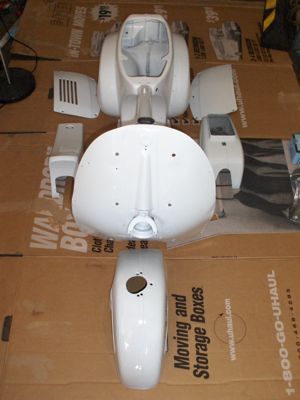

back from paint
back from paint
Starts to come together
Starts to come together
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Wiring
Wiring harness done and in the frame, next it's lots of detail connections.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
The wires were all left long on the harness so each needed to be trimmed to length, connectors crimped, soldered, and insulated with shrink wrap.

The fuel lines were all secured with safety wire.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Almost ready for the engine
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Engine completed.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@jrsjr avatar
UTC

Molto Verboso
Nazgul
Joined: UTC
Posts: 1985
Location: North Chesterfield, VA

Molto Verboso
@jrsjr avatar
Nazgul
Joined: UTC
Posts: 1985
Location: North Chesterfield, VA
UTC quote
Re: 2006 CannonBall
Turkman wrote:
Saw you there at Pacific City in your black full leathers. On that scooter, cool!
I saw him, too! Heh. My fave sighting was when he flew by Noe and me in some dusty western burg whilst riding sidesaddle. Seriously, the unstealth is amazing. It's really cool to finally see the original build documented.
@bommes avatar
UTC

Hooked
GTS 250 a.b.s.
Joined: UTC
Posts: 483
Location: Noord Brabant, Netherlands

Hooked
@bommes avatar
GTS 250 a.b.s.
Joined: UTC
Posts: 483
Location: Noord Brabant, Netherlands
UTC quote
I love it, your attention to details and the craftsmanship is awesome..!!!
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Almost done, but done just gets you to the point of knowing what works as expected and what needs rethinking.
Engine in
Engine in
Testing fuel gauge
Testing fuel gauge
Done
Done
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Fuel Debug
The first thing that didn't go as planed was the fuel pump. I use to have an ultralight that used the same pump and as I remembered it there was no return line. But as soon as it started it would overflow the float bowl.

I had bungs installed on the tops of both tanks for the vent line but what was really needed was another for a return line. Since there was no time for this I just looped the return back to the input side of the pump. This worked but it's kind of a mess. The feed to the carb is from a tee at the very top of the frame and gravity feed down from there.

Issues to be lived with:
Because of the recirculating fuel the gauge shows lower than normal under full throttle. Rolling off the throttle to check the fuel gives a more accurate reading.
The lower tank has a "one way" vented cap but if you top up both tanks the lower cap leaks a lot.
I had hoped to be able to just fill one tank and have it flow to the other. This turned out to be unrealistic with 1/4" fuel line so I have to measure out the oil for each tank and fill each one.
@scootermarc69 avatar
UTC

Ossessionato
Joined: UTC
Posts: 2101
Location: Santa Margarita,Ca.

Ossessionato
@scootermarc69 avatar
Joined: UTC
Posts: 2101
Location: Santa Margarita,Ca.
UTC quote
I was gonna ask if you used the stock tank too. seems like the Aux tank would be sufficient as a stand alone and convenient not to have to deal with the stock tank. But then I never tried a 3000 mile run either. Either way it improves weight distribution no doubt, eh?
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Here's some diagrams of my initial intent on the aux tank and the quick fix done given the need for a return line.

The stock tank is only 1.25gal IIR and the aux was 3.5. I was expecting to get 50 mpg (wishful thinking) but only ended up with about 35 mpg. The I misjudged the first day and ran out of fuel late in the day. I also found that I needed to run 1-2 main jet sizes larger to keep the temps on target.

While I could stretch it and make 150 miles on full tanks, I found I started looking for fuel after 100 miles just to be safe.

The weight distribution is great , but the front tank does need foam added to it. On high speed corners the fuel can start to slosh and the rear of the bike starts to wag a bit.
plan A
plan A
plan B
plan B
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8695
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8695
Location: Victoria, Australia
UTC quote
Oops, did you look at electric pump options at all? I'd like to do one that fills the main tank but don't want it to run all the time.

Looks like it was a fun project!
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Ginch wrote:
Oops, did you look at electric pump options at all? I'd like to do one that fills the main tank but don't want it to run all the time.

Looks like it was a fun project!
I did an electric pump on the SYM. Write up here: Cannonball Fuel Tank

One nice thing about the way I ran it on the unstealth is that I really don't ever have to turn off the fuel, and it never floods. Also, recirculating the fuel assures a good mix of the fuel and oil.
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8695
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8695
Location: Victoria, Australia
UTC quote
Thanks... more planning required I think.
I did see somewhere an NZ guy had fiberglassed the inside of his glovebox cowl, then used tank sealer to seal it. Not sure how you would attach a cap to fiberglass though.
UTC

Member
Vespa, Yamaha
Joined: UTC
Posts: 23
Location: Gainesville, GA

Member
Vespa, Yamaha
Joined: UTC
Posts: 23
Location: Gainesville, GA
UTC quote
Nice
Beautiful project!
@vader19 avatar
UTC

Mr. Clean
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!

Mr. Clean
@vader19 avatar
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!
UTC quote
This is a GREAT bike Patrick.. really great.. I'm glad you resurrected it's beginnings for us!


What size Raceman is on the rear? and did you have to grind your swingarm at all to fit it?
@petrolhead_tom avatar
UTC

Hooked
Vespa LX 50 4T
Joined: UTC
Posts: 228
Location: Holland

Hooked
@petrolhead_tom avatar
Vespa LX 50 4T
Joined: UTC
Posts: 228
Location: Holland
UTC quote
This looks awesome!
@v_oodoo avatar
UTC

Style Maven
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9625
Location: seattle/athens

Style Maven
@v_oodoo avatar
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9625
Location: seattle/athens
UTC quote
External inline image provided by member with no explanatory text
That fuel guage, YES!
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Yup. My ultralight had a fuel gauge like that and back when you could get away with fiberglass tanks they often left a clear patch (rickman, ducati).

Much easier to take a quick look down and know how much you have left. I've always intended to make 1/2 gal markings so I know how much I can fit in at fill up.
⬆️    About 3 months elapsed    ⬇️
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
15434km, 9590miles
Dropped the engine last night to start the rebuild.
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Here's the reason for the rebuild. Really pains me as the rest of the engine is in really good shape.

OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Top end is in really great shape.

Shows a 4 corner seise from when I let the EGT go way to high, trying to nurse it up a mountain at 1/2 throttle with a burnt clutch.
Forum member supplied image with no explanatory text
No carbon buildup on the underside of the piston
No carbon buildup on the underside of the piston
Listen to your EGT!
Listen to your EGT!
@modnrod avatar
UTC

Addicted
Lambretta child
Joined: UTC
Posts: 510
Location: Midwest, West Oz

Addicted
@modnrod avatar
Lambretta child
Joined: UTC
Posts: 510
Location: Midwest, West Oz
UTC quote
35MPG hey? I actually think that's pretty good! Laughing emoticon
Here's me thinking that I would only get 10 or 11km/L (about 25MPG), and I would blow the thing up after only 2 weeks by sitting on a steady 65mph.

Now that I know the fuel economy is likely to be quite acceptable, and yours took (for my annual travel anyway) about 2 years before rebuild time, the idea of a little manual old-school hotrod is planted firmly in front of my thinking again.
Thanks for that!
(I'll keep your address hidden from my long-suffering wife).

Nothing to stop me now apart from the usual lack of ability, blind ignorance of 2-smokes and a frightening ability to get in over my head.........
Laughing emoticon
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
MODNROD wrote:
...and I would blow the thing up after only 2 weeks by sitting on a steady 65mph.
For the record, most of those miles were just sitting on a steady 65-75mph. Max power is at 68mph and jetted right it will do that all day long.
@modnrod avatar
UTC

Addicted
Lambretta child
Joined: UTC
Posts: 510
Location: Midwest, West Oz

Addicted
@modnrod avatar
Lambretta child
Joined: UTC
Posts: 510
Location: Midwest, West Oz
UTC quote
Thanks again.
Oh, and in case you want to sit on 135kph or so on an X8 250ie, they only last about 15secs. Laughing emoticon

Nice ride man.
8)
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Cases are split, gears look really good still.
Forum member supplied image with no explanatory text
⬆️    About 1 month elapsed    ⬇️
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
Something I should have had done long ago but didn't was to deck the cases down to get a better gasket face.

Had an extra set of cases done as well.
Forum member supplied image with no explanatory text
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8993
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8993
Location: San Francisco
UTC quote
The cases had been ported to match the Malossi cylinder but for the next build I'll be using the Parmakit. Came out well, better than the malossi. The ports of the parmakit angle out at the gasket surface so the cases needed to match in both size and angle.
Ports roughed in
Ports roughed in
Forum member supplied image with no explanatory text
Cases done
Cases done
And cylinder to match.
And cylinder to match.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0223s ][ Queries: 5 (0.0097s) ][ live ][ 313 ][ ThingOne ]
