Sun Sep 15, 2019 1:46 pm

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 '58 AllState '68 Sprint '80 50special and a '66(?) Super125
Joined: 22 Nov 2010
Posts: 8789
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 '58 AllState '68 Sprint '80 50special and a '66(?) Super125
Joined: 22 Nov 2010
Posts: 8789
Location: seattle/athens
Sun Sep 15, 2019 1:46 pm linkquote
iggydaybreaker wrote:
nooooooooooooooo
What? You thought that was the piston?

Nice tool, makes it look easy. I use one of those tough square shank Craftsman screwdrivers that fits the slots well & it's still a battle
Sun Sep 15, 2019 2:48 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sun Sep 15, 2019 2:48 pm linkquote
V oodoo wrote:
iggydaybreaker wrote:
nooooooooooooooo
What? You thought that was the piston?

Nice tool, makes it look easy. I use one of those tough square shank Craftsman screwdrivers that fits the slots well & it's still a battle
I guess it kinda does look like a piston. Kinda on parr with all of the cylinder rebuild threads that are happening right now.

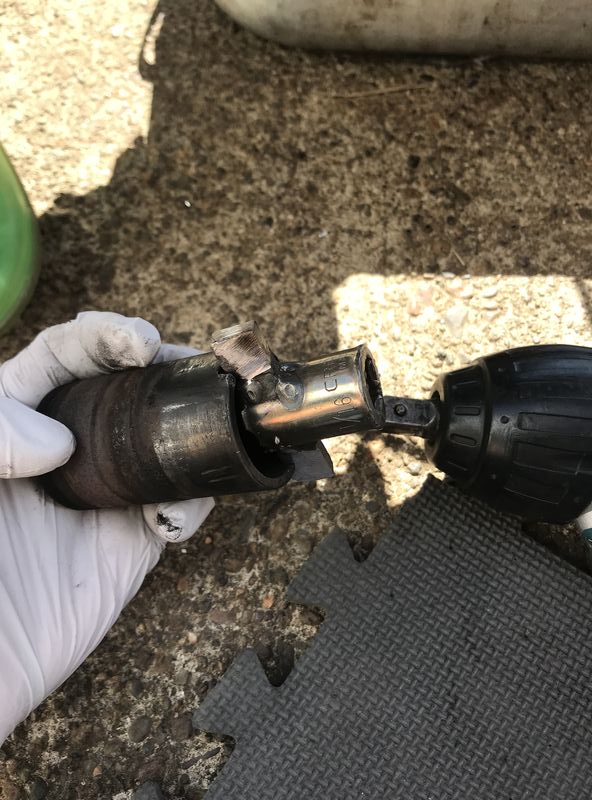

I made the tool quite a few years ago. I took an extra socket that I had, and then made a wide notch in it (can't remember how wide...1/4", 5/16", or 3/8?) Then I welded in a piece of however thick flat bar that was needed to match the notch in the cylinder stub. It makes it VERY easy to remove the stub.

I've been trying to upload the rest of the pictures, but my phone won't let me. I keep getting a "Unable to upload file. The given source has not been uploaded." every time I try to upload a pic.
Sat Sep 21, 2019 11:28 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:28 pm linkquote
I cut the neck off of the Sito as close to the weld as possible.



Sat Sep 21, 2019 11:35 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:35 pm linkquote
Here's a pic of the Sito mounted back up with the neck cut off and the GS stub screwed in.



Sat Sep 21, 2019 11:40 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:40 pm linkquote
And a pic of the new neck that's set up for an O ring.



Sat Sep 21, 2019 11:42 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:42 pm linkquote
And finally the Sito with it slipped inside of it.



Sat Sep 21, 2019 11:49 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:49 pm linkquote
I fired up the MiG welder and zapped the two together. I also added two holes for the exhaust springs. I used a ball tipped carbide bit on my die grinder to create the holes.



Sat Sep 21, 2019 11:52 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sat Sep 21, 2019 11:52 pm linkquote
I tack welded two exhaust spring hangers to the Sito.



Sun Sep 22, 2019 12:06 am

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Sun Sep 22, 2019 12:06 am linkquote
I squirted it with some high temp exhaust paint, and then remounted it all back together.

I went out for an 80 mile ride the next day to test it out....and zero exhaust leaks!

Is this mod really needs for a Sito exhaust on a cast iron cylinder? Probably not?...unless you have a a leak that you can't get rid of. Where this mod does come into play is when you have an aluminum cylinder. It's not good to clamp down an exhaust to an aluminum stub. Over time it can damage the stub. I did this same exact mod on my Pinasco 215 kit a few weeks ago, and I have zero leaks on that scooter as well. I figured I'd be the one to spend the money to be the beta tester on these parts. I give it two thumbs up.



Sun Sep 22, 2019 7:35 am

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 2008 Stella (Olive)
Joined: 11 Jan 2006
Posts: 3162
Location: Florence, OR

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 2008 Stella (Olive)
Joined: 11 Jan 2006
Posts: 3162
Location: Florence, OR
Sun Sep 22, 2019 7:35 am linkquote
Nice mod whodat!
Tue Sep 24, 2019 4:48 am

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun
Tue Sep 24, 2019 4:48 am linkquote
all you need to do know, is buy a batch of exhausts and sell them on modified....
i would but one thats for sure
Tue Sep 24, 2019 6:56 pm

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 8169
Location: Victoria, Australia

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and new to 2018, '66 Blue Badge Smallframe
Joined: 30 Nov 2011
Posts: 8169
Location: Victoria, Australia
Tue Sep 24, 2019 6:56 pm linkquote
Great work as always!
Tue Sep 24, 2019 7:13 pm

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 '58 AllState '68 Sprint '80 50special and a '66(?) Super125
Joined: 22 Nov 2010
Posts: 8789
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 '58 AllState '68 Sprint '80 50special and a '66(?) Super125
Joined: 22 Nov 2010
Posts: 8789
Location: seattle/athens
Tue Sep 24, 2019 7:13 pm linkquote
First class design and first class workmanship!

Another good idea filed for the future...
Tue Sep 24, 2019 7:35 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Tue Sep 24, 2019 7:35 pm linkquote
Thank you guys! The modification was one that I have been interested in doing for a few years, but I was hoping someone else would do it first so I could see if it was worth it. I think it might be a little over a little too over the top for most box exhaust systems that are mounted on a cast iron cylinder. All the parts rounded up probably costs more than most would want to spend on something so trivial....But if you have a persistent exhaust leak, then this might be the ticket.

I think the weld on O ring neck was about $35, the GS exhaust stub was about $40, springs are about $4 each, and the big pack of weld on spring hooks were about $12 (all USD). That adds up to one expensive Sito!...but it doesn't leak, so I'm happy! I'd definitely do it again.
Wed Sep 25, 2019 3:26 am

Ossessionato
T5 Pole Position, T for thoroughbred
Joined: 07 Oct 2010
Posts: 4630
Location: Dublin

Ossessionato
T5 Pole Position, T for thoroughbred
Joined: 07 Oct 2010
Posts: 4630
Location: Dublin
Wed Sep 25, 2019 3:26 am linkquote
Hi Whodat,

I remember back when this was started and being excited, and i was then offline for awhile and today got to burn feverishly through the pages of this thread, very much worth the wait.

Great stuff,

Thanks for providing such an entertaining build
Wed Sep 25, 2019 10:09 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:09 pm linkquote
jackson85 wrote:
Hi Whodat,

I remember back when this was started and being excited, and i was then offline for awhile and today got to burn feverishly through the pages of this thread, very much worth the wait.

Great stuff,

Thanks for providing such an entertaining build
Well thank you for following along Jackson! There's still a few more little things to add. You know it goes, a project is really never finished.
Wed Sep 25, 2019 10:22 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:22 pm linkquote
Since warm weather riding is pretty much a thing of the past in the Pacific Northwest now, it's time to fit a flyscreen on the PK. Looks are always debatable with screens, but no one can deny the functionality of them when it get wet and cold out!

I had an extra flyscreen from one of my P's, but it was black acrylic, and I wanted white. I found a NOS upper and lower screen that was white on (thanks!)Scoot.net. The older screens were bettter quality than the newer ones. I also search around for transparent pink plastic surplus to make the upper screen out of, but I couldn't find a tint that I liked. Then I took a closer look at the extra black screen that I had...and duh, it had the perfect rose colored tint. After all these years of using it (close to 20 years!). I guess I never paid much attention to what color it actually was . I had to get a bit creative making my own flyscreen mounting, but when I finish it was strong enough that it didn't vibrate.



Wed Sep 25, 2019 10:24 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:24 pm linkquote
Another angle



Wed Sep 25, 2019 10:31 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:31 pm linkquote
I ordered up some Cycra brand handguard shields in a white (dirtbike specific parts). The shields are a different tone of white than the flyscreen, but I don't care. The reason for the shields is to help keep my hands warm and dry. Since the PK has grip heaters, I should be good to go for the rest of the fall and some winter ridding.



Wed Sep 25, 2019 10:35 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:35 pm linkquote
I pealed the stickers off the shields, and bolted them to my flyscreen.



Wed Sep 25, 2019 10:36 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:36 pm linkquote
With it mounting the scooter.



Wed Sep 25, 2019 10:39 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:39 pm linkquote
double post

Last edited by whodatschrome on Wed Sep 25, 2019 10:45 pm; edited 1 time in total
Wed Sep 25, 2019 10:43 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:43 pm linkquote
And a glamour shot of it. I think the white lower portion and the rose tint upper is spot on for this build.



Wed Sep 25, 2019 10:48 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Wed Sep 25, 2019 10:48 pm linkquote
I also got a key ring holder from eBay. When I saw it, i knew I just had to have it!!!



Fri Sep 27, 2019 4:03 am

Veni, Vidi, Posti
a not so normal vbb2 '64, a weirdo vbx '86, a not so normal pts100 '82 and a yellow sunshine '74 sprint
Joined: 15 Jun 2009
Posts: 5786
Location: Indo

Veni, Vidi, Posti
a not so normal vbb2 '64, a weirdo vbx '86, a not so normal pts100 '82 and a yellow sunshine '74 sprint
Joined: 15 Jun 2009
Posts: 5786
Location: Indo
Fri Sep 27, 2019 4:03 am linkquote
thats great Brother W, i really like ur flyscreen and the guard
Fri Sep 27, 2019 5:20 am

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun
Fri Sep 27, 2019 5:20 am linkquote
Do you have a link for those mirrors?
whodatschrome wrote:
I actually bought the legshield mirrors at the tail end of last summer, but I couldn't figure out the best way to mount them. I consider the Halcyon Staduim legshield mirrors the best out there.
Fri Sep 27, 2019 7:52 am

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Sep 27, 2019 7:52 am linkquote
Gravelrash2004 wrote:
Do you have a link for those mirrors?
whodatschrome wrote:
I actually bought the legshield mirrors at the tail end of last summer, but I couldn't figure out the best way to mount them. I consider the Halcyon Staduim legshield mirrors the best out there.
I consider Halcyon the best of the best, but if you buy more than one it adds up fast! https://www.amazon.com/s?k=halcyon+stadium+mirror&dc&qid=1569599296&ref=aw_s_fkmr0

https://classicpartsltd.com/classic-scooter-products.html?manufacturer=62
Wed Oct 02, 2019 4:34 am

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun
Wed Oct 02, 2019 4:34 am linkquote
Thanks!
⬆️    About 4 months elapsed between posts    ⬇️
Fri Jan 31, 2020 10:26 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:26 pm linkquote
Well about 4 months later and I finally got around to installing one of those old school PM Tuning "up and over" pipes. I've been intrigued by them for years, but never had a scooter that I would want to install one on. Months ago Roliver gave all of us here a heads up about a guy selling some PM Tuning pipes on eBay for cheap. I bought one and it's been sitting on the shelf...until a few days ago.

I did a dry fit on a spare P2 engine that I had on the shelf, but the PM pipe didn't fit that well. In fact it didn't fit whatsoever. The pipe is actually designed to fit the PX2 case. They're a smidge bit different shape, but when I held the PM bracket against my PX2 case, I still don't think it would have fit that engine either.



Fri Jan 31, 2020 10:28 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:28 pm linkquote
And out came the grinder to remove the bracket off the pipe.



Fri Jan 31, 2020 10:30 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:30 pm linkquote
I took a flapper wheel and then a wire wheel to clean the old weld off. I made extra darn sure that i didn't grind into the pipe. Having the metal too thin there wouldn't be good for long term durability.



Fri Jan 31, 2020 10:35 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:35 pm linkquote
Here's a pic of the bracket that PM provided. It wasn't going to work whatsoever. I ended up buying a couple (and a couple spares) rubber isolators from McMaster Carr.



Fri Jan 31, 2020 10:37 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:37 pm linkquote
They bolt through the case.



Fri Jan 31, 2020 10:38 pm

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: 16 Apr 2011
Posts: 2234
Location: Siam

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: 16 Apr 2011
Posts: 2234
Location: Siam
Fri Jan 31, 2020 10:38 pm linkquote
whodatschrome wrote:
Since warm weather riding is pretty much a thing of the past in the Pacific Northwest now, ...
What do you mean by this? I assumed with all the climate change talk, it would be the opposite. I'm not trying to get off topic, but just wondering.
Fri Jan 31, 2020 10:43 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:43 pm linkquote
I ended up using zip ties to hold the pipe bracket in the correct position so that I could tack weld it into place.



Fri Jan 31, 2020 10:46 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:46 pm linkquote
Once the pipe was unbolted I finished welding it up. This is what it looks like after i used a wire wheel on the weld bead.



Fri Jan 31, 2020 10:51 pm

Ossessionato
Joined: 26 Oct 2015
Posts: 3749


Ossessionato
Joined: 26 Oct 2015
Posts: 3749

Fri Jan 31, 2020 10:51 pm linkquote
Of course I had to notch out the floorboard so that the downtube (or uptube in this case) would fit. I used a double sided flapper wheel. It makes it super easy to sand in a circular shape at awkward angles.



Sat Feb 01, 2020 9:02 am

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun

Addicted
P Series / Li / LML / Motobi
Joined: 24 Jun 2019
Posts: 507
Location: UK - 3rd Rock From the Sun
Sat Feb 01, 2020 9:02 am linkquote
Loving the creative engineering on this thread
Sat Feb 01, 2020 9:08 am

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: 20 Jul 2018
Posts: 3985
Location: Staten Island, NY

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: 20 Jul 2018
Posts: 3985
Location: Staten Island, NY
Sat Feb 01, 2020 9:08 am linkquote
Good stuff. Want to hear it now!
Sat Feb 01, 2020 9:55 am

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 2008 Stella (Olive)
Joined: 11 Jan 2006
Posts: 3162
Location: Florence, OR

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 2008 Stella (Olive)
Joined: 11 Jan 2006
Posts: 3162
Location: Florence, OR
Sat Feb 01, 2020 9:55 am linkquote
Dude, that little piggy is awesome!
  DoubleGood Vespa Design

All Content Copyright 2005-2022 by Modern Vespa. All Rights Reserved.

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com.

Shop on Amazon Smile with Modern Vespa

[ Time: 1.0925s ][ Queries: 7 (1.0675s) ][ Debug on ][ 211 ][ Thing One ]
