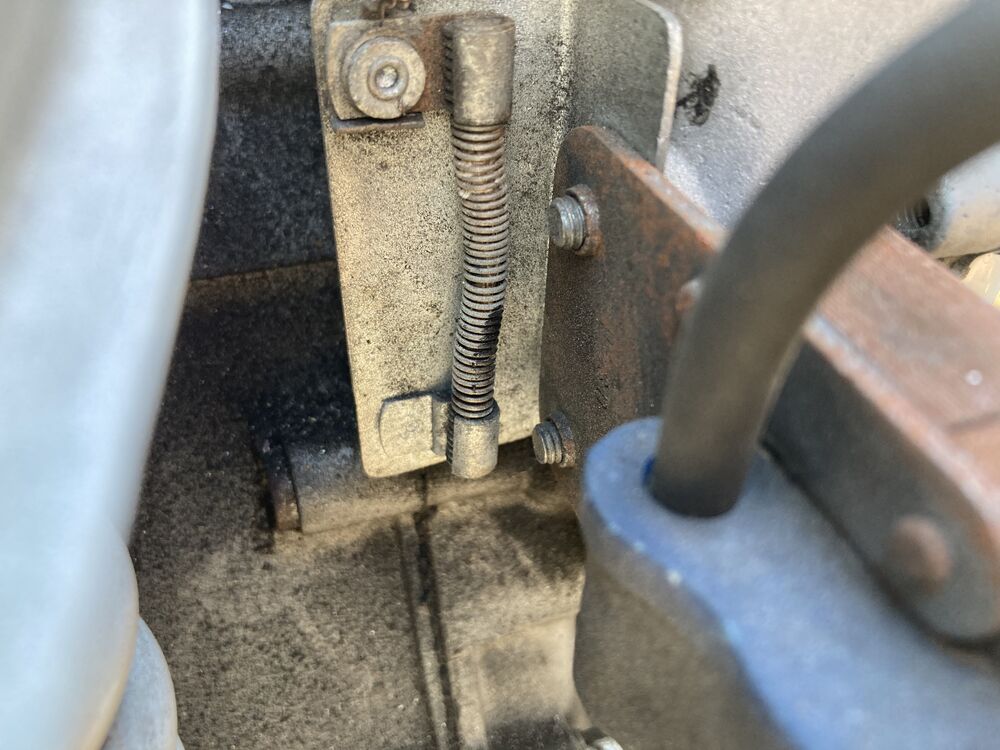

This has two leads coming from the stater harness to go into it. It looks like the power may be running from one side going through and then coming back? One green wire, going through the coils and apparently through the coil exactly the same on the other side, and then back through a blue wire to another post.

Anyone know what this actually is and what function it serves?



Sat Sep 04, 2021 2:32 am

Molto Verboso
'64 Motovespa 150S (177) , '66 Allstate SF, '65 VBB, '66 180SS
Joined: 27 Mar 2013
Posts: 1027
Location: S.Salem, NY

Molto Verboso
'64 Motovespa 150S (177) , '66 Allstate SF, '65 VBB, '66 180SS
Joined: 27 Mar 2013
Posts: 1027
Location: S.Salem, NY
Sat Sep 04, 2021 2:32 am linkquote
Curious... can you explain the wiring to it better ? Looks like some sort of resistance connection to ground.
Sat Sep 04, 2021 2:54 am

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: 14 Jun 2017
Posts: 2923
Location: London UK

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: 14 Jun 2017
Posts: 2923
Location: London UK
Sat Sep 04, 2021 2:54 am linkquote
Looks like a ballast resistor. Maybe has (or used to have) a 6v coil.
Sat Sep 04, 2021 8:26 am

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC
Sat Sep 04, 2021 8:26 am linkquote
Sat Sep 04, 2021 8:28 am

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC
Sat Sep 04, 2021 8:28 am linkquote
from the stater it comes in to the plate. there is one blue wire that goes from a connected pin, to the coil 'thingy' then I assume the current is carried through to the other side, then a green wore goes to a pin on the plate that seems to terminate.

see video link:
[url]
https://share.icloud.com/photos/0VoNBeRYrP_nG-_xj0mLEW7IA
[/url]
Sat Sep 04, 2021 8:40 am

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC

Member
Motovespa 150s MK2 65
Joined: 30 Jul 2012
Posts: 11
Location: Washington DC
