Thanks I put it on, I removed the lock washer and torqued to 5 lbs, hope I did good.
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
I think it's 11 ft lbs. Could someone else verify the torque settings for the engine case nuts?
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
qascooter wrote:
I think it's 11 ft lbs. Could someone else verify the torque settings for the engine case nuts?
I saw 5 lbs somewhere , but of course I could be wrong.
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote

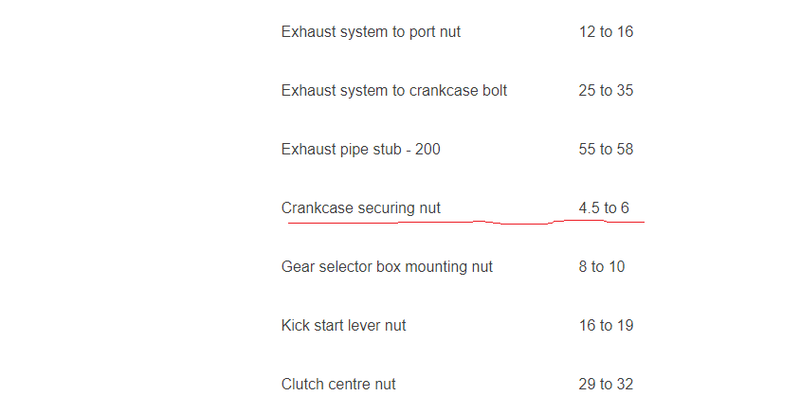

The Crankcase securing nut
Forum member supplied image with no explanatory text
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
Hey Lynn - I've seen that number out there also. I'm trying to find 11ft lbs in writing. I know I got it on paper in my garage but here is a link: P series case torque settings
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
Hmmm...

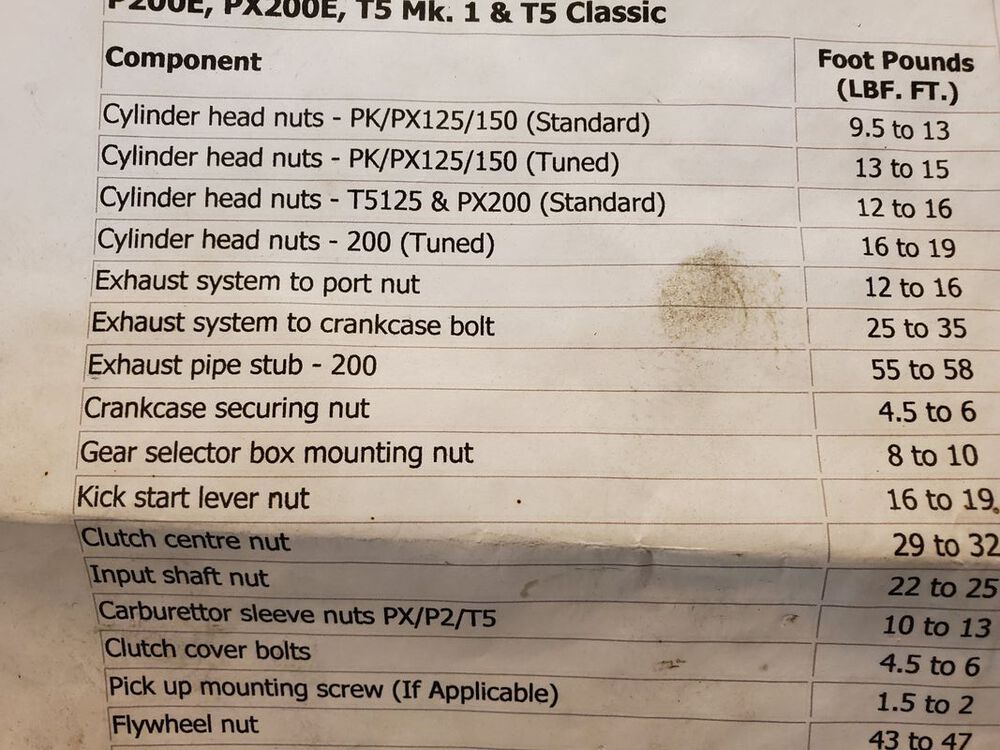

Well, this is what is hanging in my garage, and I'm sure I torqued to this sheet, so I wonder which value it is: 4.5-6 ft lbs, or 11 ft lbs???
So are the case nuts torque spec 4.5-6 ft lbs, or 11 ft lbs?
So are the case nuts torque spec 4.5-6 ft lbs, or 11 ft lbs?
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
Lol I hope it is 10lbs , I retorqued.
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
so I cracked my switch and ordered a new one and they are slightly different. Also when I ordered a wiring harness from scootermercato for my 62 allstate he said one for a vbb would work just fine. The thing is there is are extra wires!
my origial had six single wires and the vbb one has an extra green pair of wires.(3 colors are doubled too). Any advice? and how do I know which holes to put wires in. my idea was to copy the original switch but stuff is different! ill post pics first the original:
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

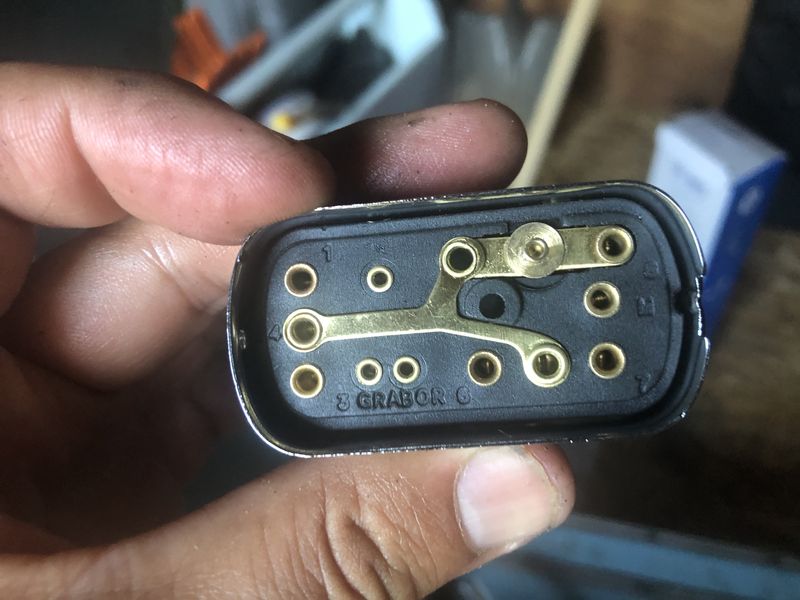

new one:
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

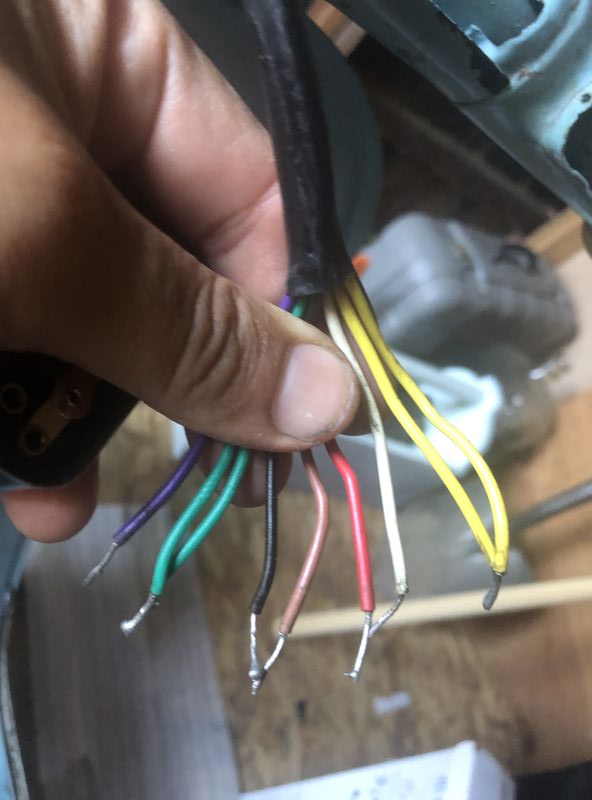

new wires:
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

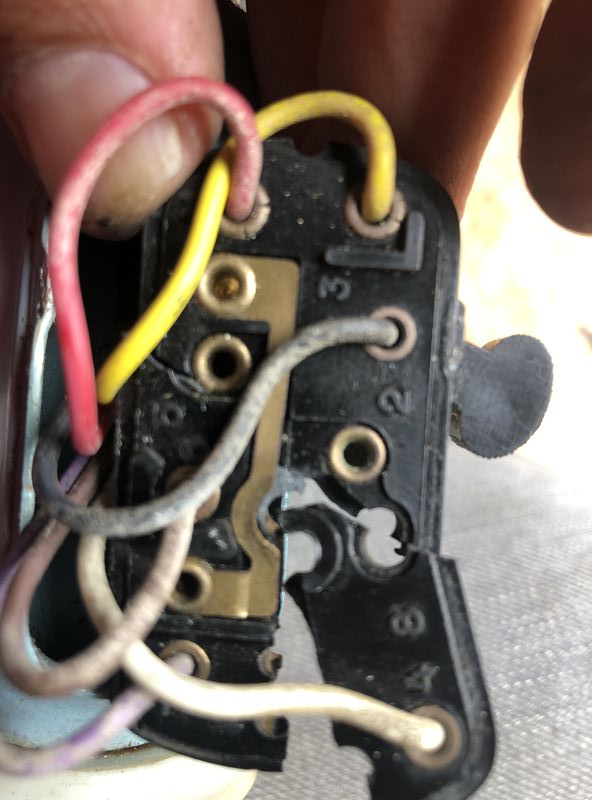

My fallback is I could just glue the switch back together and hook up all the wires but the green (which I believe is a tail light?). Here is my progress so far
Forum member supplied image with no explanatory text
@v_oodoo avatar
UTC

Style Maven
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9584
Location: seattle/athens

Style Maven
@v_oodoo avatar
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9584
Location: seattle/athens
UTC quote
Yes, I'd try to glue it back together. Once it is installed it is fairly well supported and protected as long as you only take the hold down screw just snug I think. I've done on cracked in half ones before. Clean w/ acetone or similar first. I'd use my old standby ShoeGoo because it doesn't get hard and brittle and is sticky enough as you'll discover when you peel any you got on your fingers off after. It's like rubber cement on steroids.

Your bike is looking great!
External inline image provided by member with no explanatory text
⬆️    About 3 months elapsed    ⬇️
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

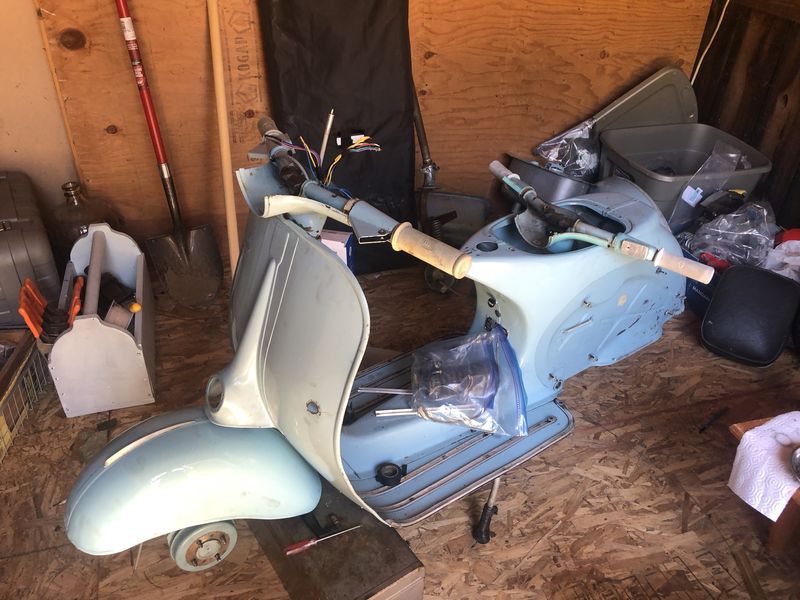

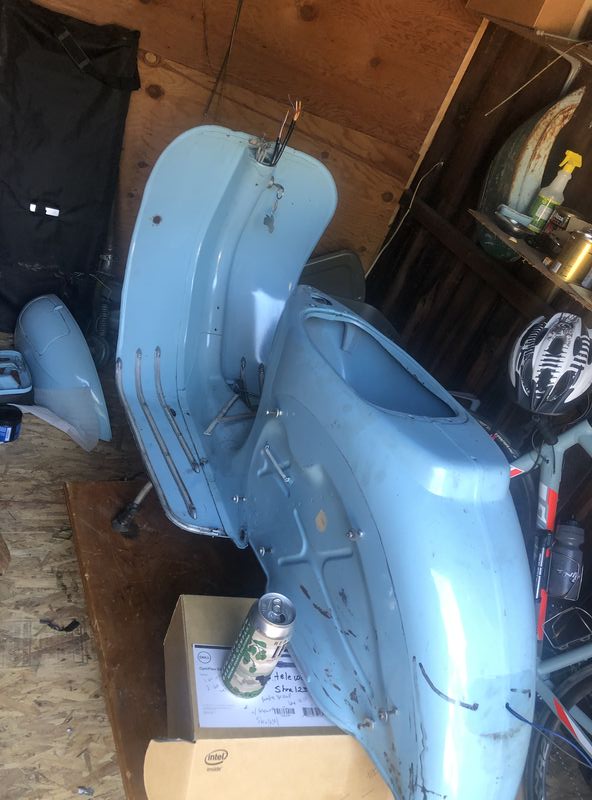

Well finally got the right wiring harness an started over. Lost a lot of ground but this isn't a race
Forum member supplied image with no explanatory text
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
No race, there will always be something else, at least for a while. Laughing emoticon
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

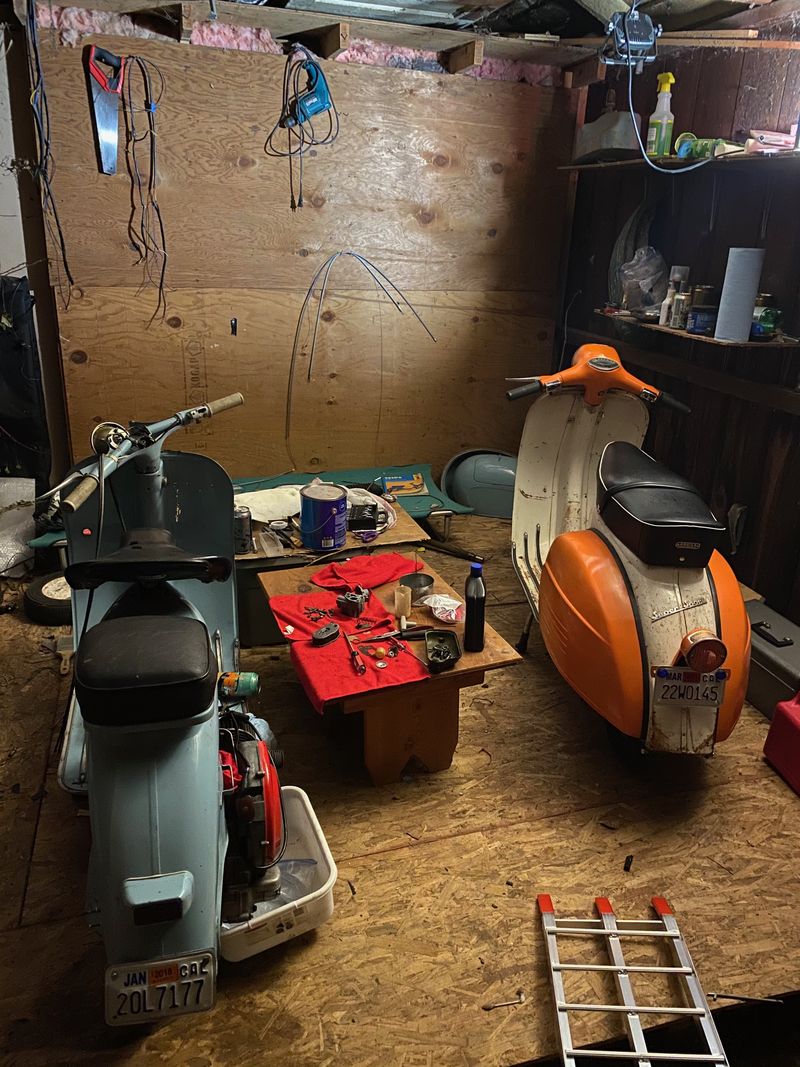

More progress and some happy hours in the shop 😊
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

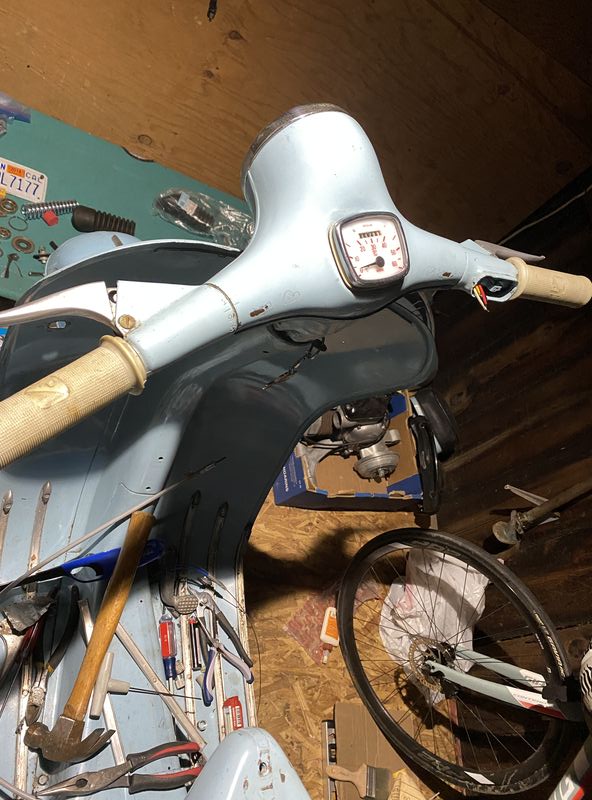

Speedo!!😊
Forum member supplied image with no explanatory text
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
Your tray looks like a toolbox - ha! Wait, is that a pic of when I'm working on my scooter? Razz emoticon

Keep the faith - you'll get it! Looking good...
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

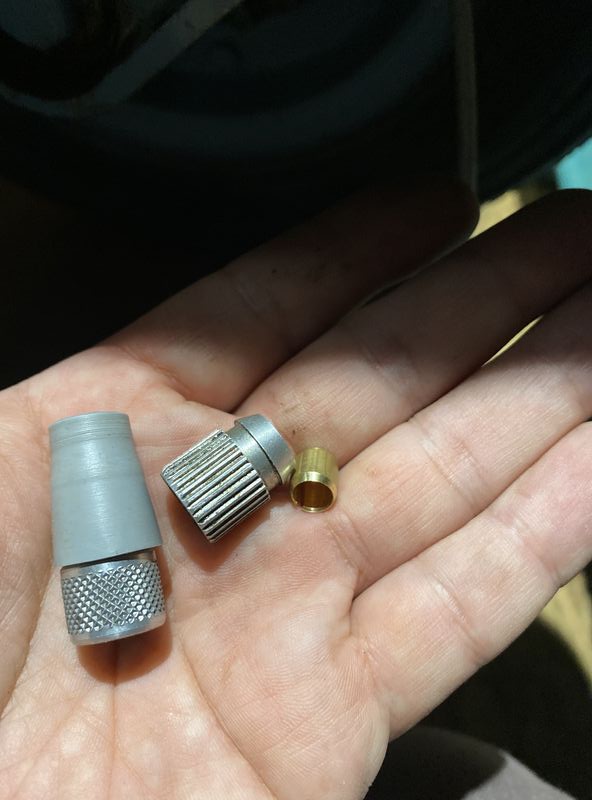

I am trying to hook up the speedo cable for my 62 Allstate and it's all in place but I'm not sure how to secure it, after it's all screwed in it still pulls out with a gentle tug. There is this brass thingy that seems like a clamp, is this it? Where does it go?
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
To clarify the fixture stays screwed in but the cable pulls out easily
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
I just so happened to be at the same point and was wondering how it fit, did a bit of searching and came across this. VBB Speedo Drive installation
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
Lynne, thanks so much for that! was super easy after I understood what was supposed to happen and how it worked!
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

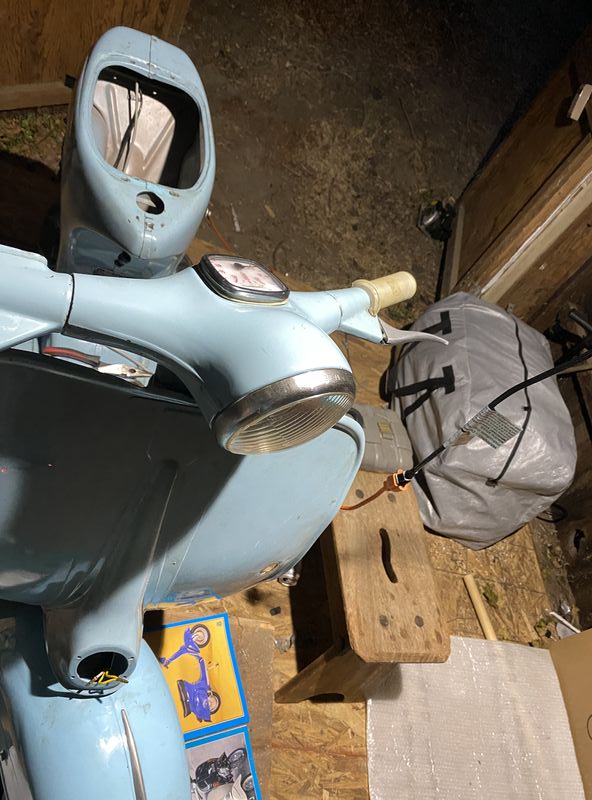

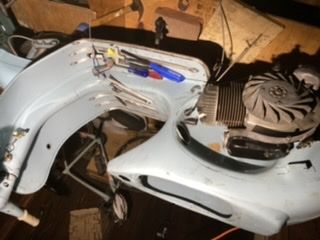

Engine is in! So relieved it fit haha and I did it by myself
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote

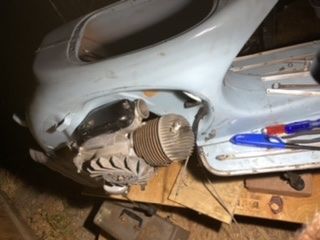

Sorry it's upside down!
Forum member supplied image with no explanatory text
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
I know what a struggle it is to get an engine in by yourself , takes unique setting up. I built most of my bike up on the sawhorse table and had to get it down myself, that was interesting.
@v_oodoo avatar
UTC

Style Maven
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9584
Location: seattle/athens

Style Maven
@v_oodoo avatar
'74 50s x3 '87 PK125XL '92 PK50XLS Plurimatic - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: UTC
Posts: 9584
Location: seattle/athens
UTC quote
Frame is really looking fine! Feels good to get that dang motor in, right?
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
Thanks Lynne and Voodoo

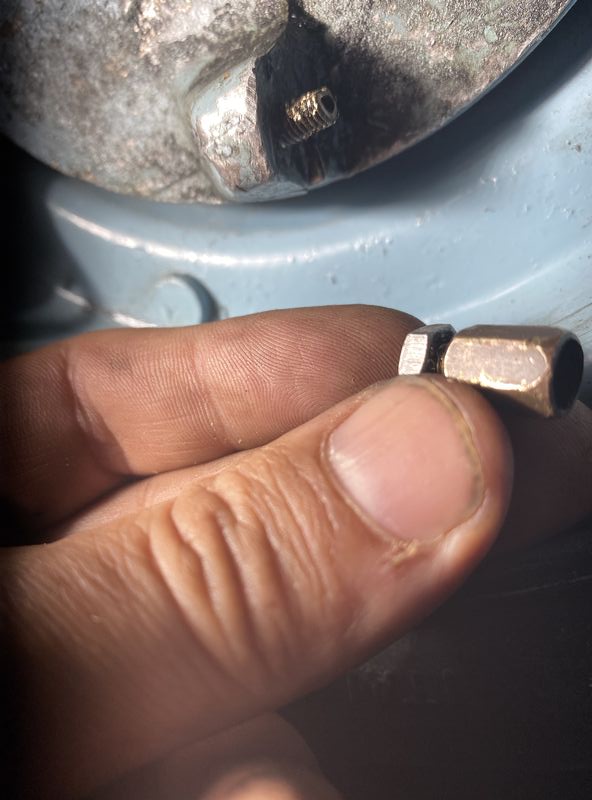

well the engine was in then i had to take it out again to fix an obstruction in the rear brake cable passage (cable end). But now its back in! so......I was hooking up the front brake and this happened.....any better ideas than removing the front wheel and trying to get the threads out through brute force and luck? it came out easy the first time but then I always had problems getting it back in. It would just be a battle every turn...then about halfway in it snapped
Forum member supplied image with no explanatory text
@lynnb avatar
UTC

Ossessionato
1963 VBB2T
Joined: UTC
Posts: 2543

Ossessionato
@lynnb avatar
1963 VBB2T
Joined: UTC
Posts: 2543
UTC quote
You have quite a length sticking out, go easy with small visegrips , been through this myself.
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
You can also stick a square tipped bit in the end and give it a tap, then turn it out.

After you get it out, you might want to chase the threads in there with the proper tap to fit so next adjuster you screw in there will be like butter, with a dab of grease on it.

I don't know the size of the thread offhand.
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
so things are good thanks for the good advice on removing the broken threads it worked with pliers!

and I GOT IT TO START!! but it races revs high then sputters and dies..I played with idle speed and airmix but nothing seems to help. Maybe an airleak? any advice on carb adjusting, troubleshooting? does this year vespa have a rubber gasket around the airbox? getting closer. oh and since it has gas now i would rather not take the carb apart, but will if need be
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
I took apart, cleaned the carb and put it back together again, and lo and behold, she purrs!
This series of vids by Jeff Allen really helped!

first link is my 62 allstate, second is carb help


https://youtu.be/l2forFl4yXo


https://www.youtube.com/watch?v=wZ7eaFzQPSs
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX
UTC quote
Sounds great!

I didn't see your Oct 14 post!!! Sorry to leave you hanging but glad you have it sorted!
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4235
Location: Florence, OR
UTC quote
Very nice CD - Sounds great. Way better than mine. I've got to rebuild her soon. I think you're going to enjoy running around on 8s...
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
allstate
wow beautiful allstates gascooter! and no worries birdsnest! so I have to adjust the clutch cable and shifter cables but getting closer, then there is this distraction! just sold my modern 300gtv and got this 68 ss180.
question is I think I may have put a bit too much oil in it (i forget if I did 4% or 6%) It is newly rebuilt so I have heard its good to go on the rich side in the break in period. Its a smokey ride for sure, but I have also heard the ss 180 is smokey by nature. What do you all think?
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
here is the ss180
Forum member supplied image with no explanatory text
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
cable help
so run into a problem that will put me back many steps, my shifter and clutch cable have all slid down the neck of the bike. the cable still goes through but awkwardly and gets hung up. I will try to push them back up, but how do you place them correctly so they dont slip agaqin? heeeeellllpppp!!
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX
UTC quote
clarify please - they slipped while you had the headset off working on the bike? Or, are you saying they came unseated and slipped after you had buttoned up the headset?
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX
UTC quote
PS - nice score on the 180
OP
@cdevillasante avatar
UTC

Addicted
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area

Addicted
@cdevillasante avatar
1979 P200, 1960 Lambretta s2, 1975 Rally 200
Joined: UTC
Posts: 545
Location: San Francisco Bay Area
UTC quote
cables
oh yea sorry, not the cables but the housing when I buttoned it up they were a bit low but when I opened her up they were a lot lower, just the housing.
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8170
Location: Hustletown, TX
UTC quote
So two things...

1. Get some red sticky grease and but a dollop on the ends of the outers and the top hats. It'll help keep the top hats in the gear guides and the outers in the top hats.

2. Make sure you bind (tape) the two selector cables together so that when they push/pull the outers don't move. I think Patrick or SoCal had a good picture in the GS160 cable thread ...let me see if I can find it for your reference.
⚠️ Last edited by Birdsnest on UTC; edited 1 time
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0203s ][ Queries: 6 (0.0077s) ][ live ][ 313 ][ ThingOne ]
