There's an often referenced post DIY Diagnostic tool for injection Vespa's with MIU ECU but it doesn't work with newer bikes. The plug has changed and the software mentioned (guzzidiag) doesn't support the newer ECU.

This post should work for all recent piaggio scoots & bikes (vespa, beverley, liberty, mp3 etc).

1. The cable.
Recent Vespas use a 'Euro5' plug even if the bike is E4. This plug is red and under the pet carrier on the left or on some other vespas in the battery compartment. You have to squeeze to remove the black cap. Search for euro5 obd2 cable in ebay or amazon, should be less than $20. eg https://www.aliexpress.com/item/1005003540612076.html Don't worry if it says honda or suzuki etc in the ad.

2. The device.
With the above adapter cable you could connect a normal code reader OR can use an ELM327 bluetooth adapter (which is cheaper and my preference) to connect to your phone. Search for ELM327 obd2 in ebay/amazon/aliexpress, typically less than $25. eg https://www.ebay.com.au/itm/354167471096

3. The software.
I use CarScanner on Android, there will no doubt be similar for iPhones (search for obd2 or elm327 in the store). https://play.google.com/store/apps/details?id=com.ovz.carscanner.

4. The codes.
It seems some codes are standard across all bikes and some are not. I think the low numbers are the standard ones (maybe less than 1000?). The number displayed will be correct but the english description will be wrong for the non standard codes. I found this list that seems to be correct for vespas (note piaggio also makes aprilla bikes and they also use magnetti marelli ecus) https://www.apriliaforum.com/forums/showthread.php?350345-RSV4-TuonoV4-error-codes-listing **UPDATE** newer workshop manuals have the codes listed. see https://manuals.wotmeworry.org.uk/Vespa/GTS%20300i%20HPE/ also the 'quick guides' at the bottom of this page https://file.dogantrend.com/dogantrend/dtonline/Dogan_Trend_Servis_Manuelleri/2022/Aprilia/

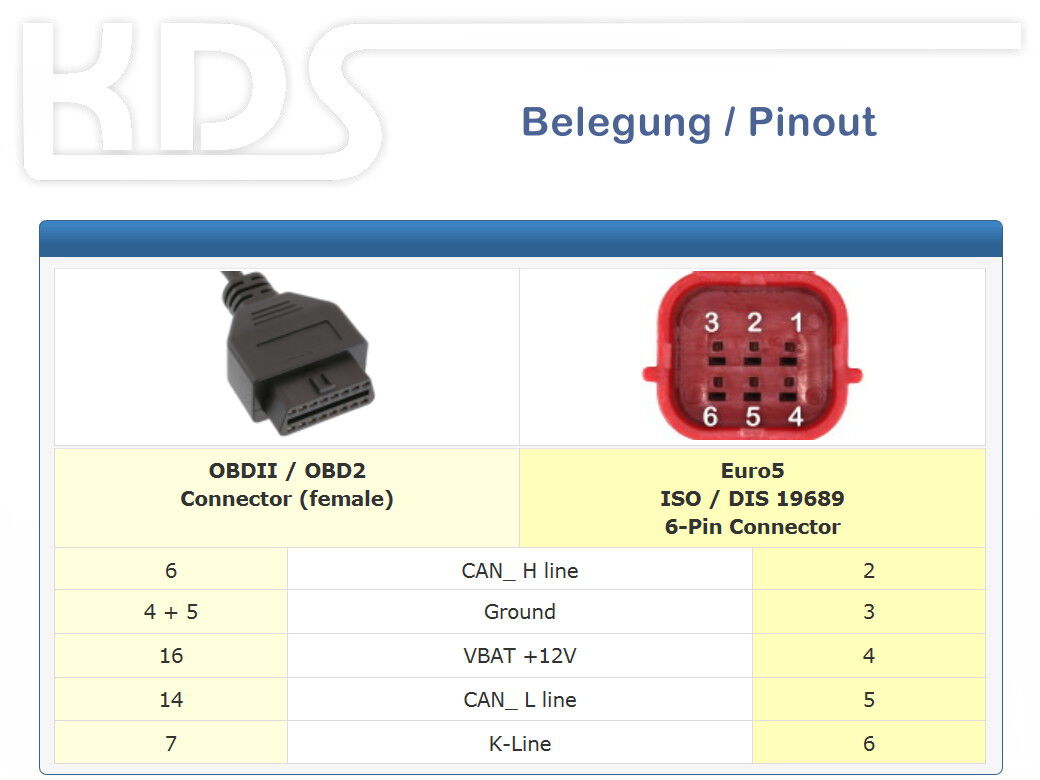

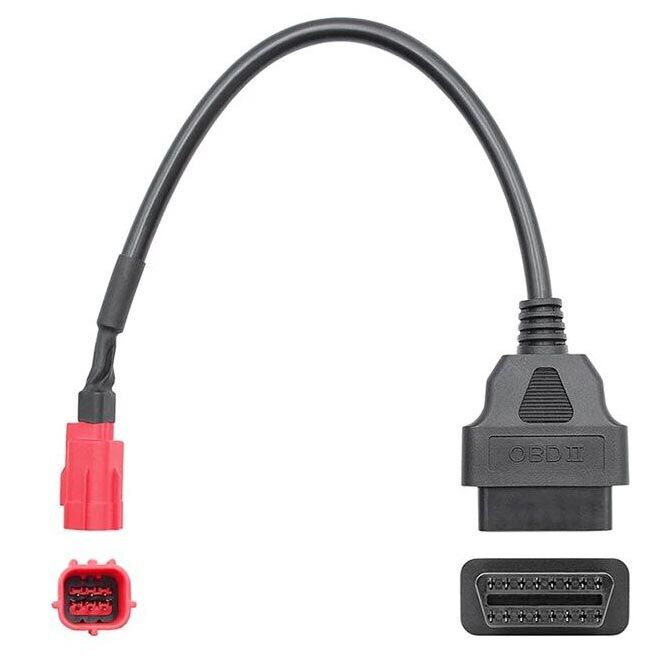

euro5 obd2 cable
euro5 obd2 cable
elm327 obd2 bluetooth adaptor
elm327 obd2 bluetooth adaptor
⚠️ Last edited by SteelBytes on UTC; edited 18 times
@jimc avatar
UTC

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43934
Location: Pleasant Hill, CA

Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43934
Location: Pleasant Hill, CA
UTC quote
Excellent information.
⬆️    About 7 months elapsed    ⬇️
@rottekatz avatar
UTC

Hooked
Primavera 150
Joined: UTC
Posts: 128
Location: Monument, Colorado

Hooked
@rottekatz avatar
Primavera 150
Joined: UTC
Posts: 128
Location: Monument, Colorado
UTC quote
Has anyone tried with an ABS Primavera?
Mines a 2021 150.
OP
@steelbytes avatar
UTC

Veni, Vidi, Posti
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia

Veni, Vidi, Posti
@steelbytes avatar
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia
UTC quote
rottekatz wrote:
Has anyone tried with an ABS Primavera?
Mines a 2021 150.
I'm 99% confident it'll work. Just have a quick look under the seat first and find the red connector
@rottekatz avatar
UTC

Hooked
Primavera 150
Joined: UTC
Posts: 128
Location: Monument, Colorado

Hooked
@rottekatz avatar
Primavera 150
Joined: UTC
Posts: 128
Location: Monument, Colorado
UTC quote
steelbytes wrote:
I'm 99% confident it'll work. Just have a quick look under the seat first and find the red connector
I'll have a look soon. I believe that the connector is in the battery compartment.
Thank you
⬆️    About 8 months elapsed    ⬇️
UTC

Member
Sprint 150
Joined: UTC
Posts: 21
Location: Seattle, WA

Member
Sprint 150
Joined: UTC
Posts: 21
Location: Seattle, WA
UTC quote
rottekatz wrote:
I'll have a look soon. I believe that the connector is in the battery compartment.
Thank you
Did you end up finding the connector? I looked under my battery compartment cover and couldn't see it.
@dooglas avatar
UTC

Veni, Vidi, Posti
GTS 300ABS, Buddy 125, Buddy Kick 125
Joined: UTC
Posts: 13411
Location: Oregon City, OR

Veni, Vidi, Posti
@dooglas avatar
GTS 300ABS, Buddy 125, Buddy Kick 125
Joined: UTC
Posts: 13411
Location: Oregon City, OR
UTC quote
alpine wrote:
Did you end up finding the connector? I looked under my battery compartment cover and couldn't see it.
"Profile : scooter : none, yet"

Ah, you don't see an ECU codes connector in the scooter you don't have? (or perhaps your profile information is incomplete - though it shows this was your first post)
OP
@steelbytes avatar
UTC

Veni, Vidi, Posti
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia

Veni, Vidi, Posti
@steelbytes avatar
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia
UTC quote
alpine wrote:
Did you end up finding the connector? I looked under my battery compartment cover and couldn't see it.
under the battery compartment cover? doubt it. check the engine bay.
⚠️ Last edited by SteelBytes on UTC; edited 1 time
OP
@steelbytes avatar
UTC

Veni, Vidi, Posti
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia

Veni, Vidi, Posti
@steelbytes avatar
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5730
Location: Batmania aka Melbourne, Australia
UTC quote

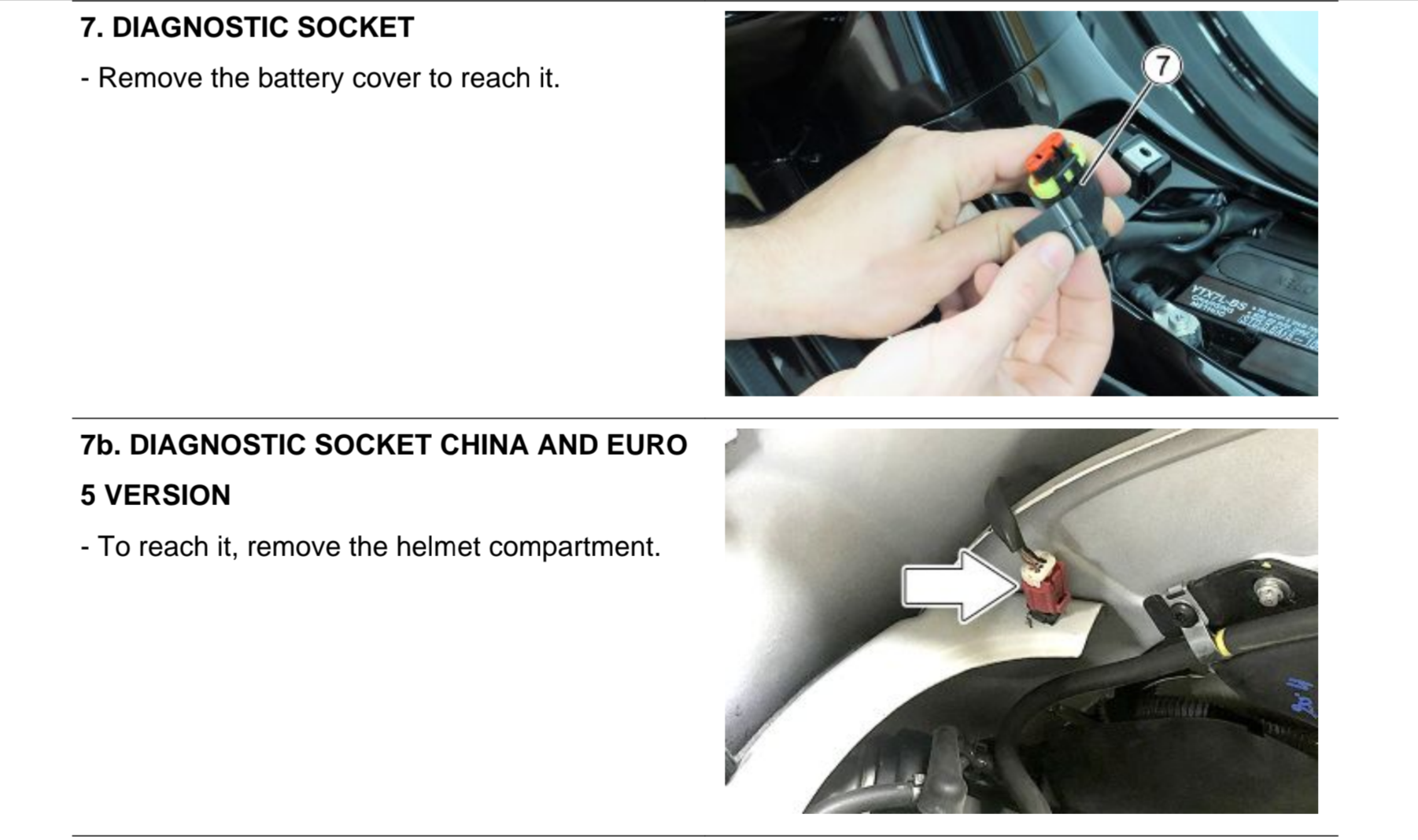

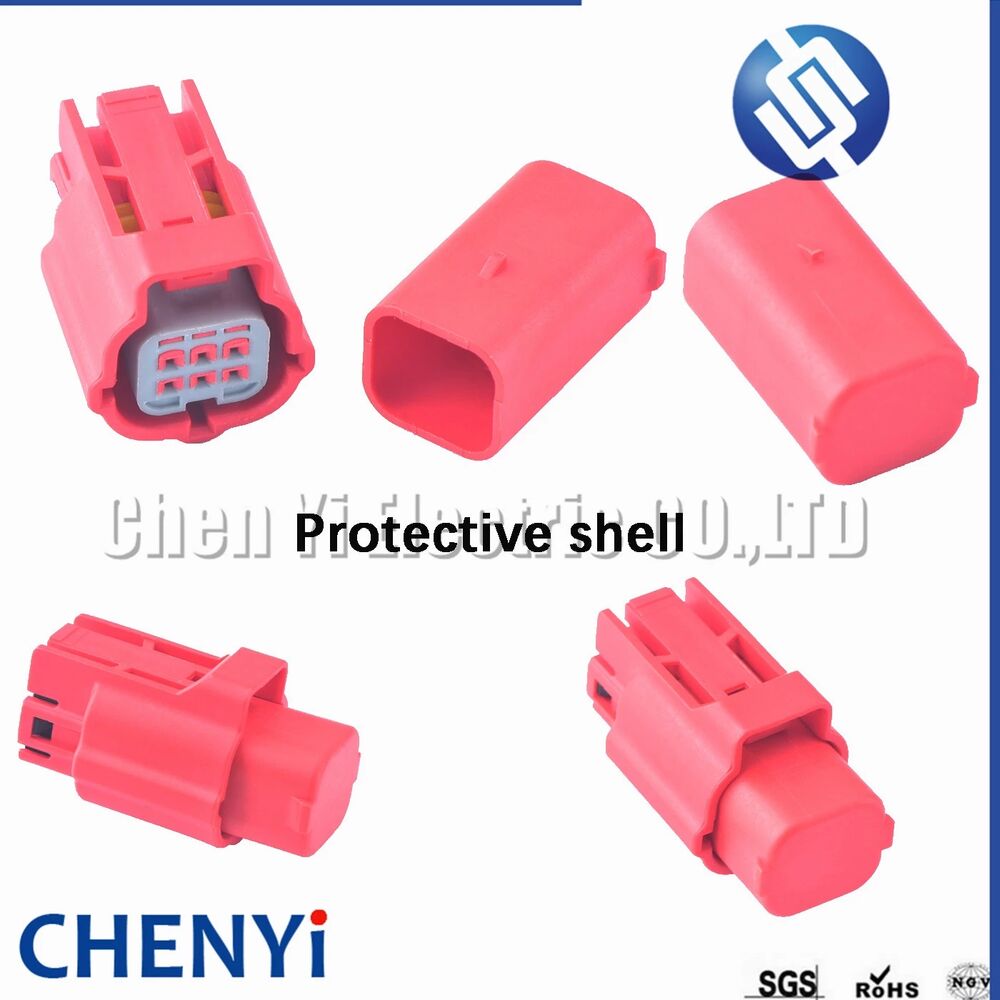

if you loose the black cap like I did you can buy cheap caps from here https://www.aliexpress.com/item/1005003738006806.html
