So the 6v with its inherent flaws of having no rectifier/regulator and blowing bulbs left and right especially when the wiring and equipment are new an correctly installed. So I went and bought a 6v regulator but has only 2 wires, one ground the other for what ever is being regulated. Thing is it seems like the whole system needs to regulated? What gives and how do i stop burning through bulbs and riding home with no headlight thanks yall

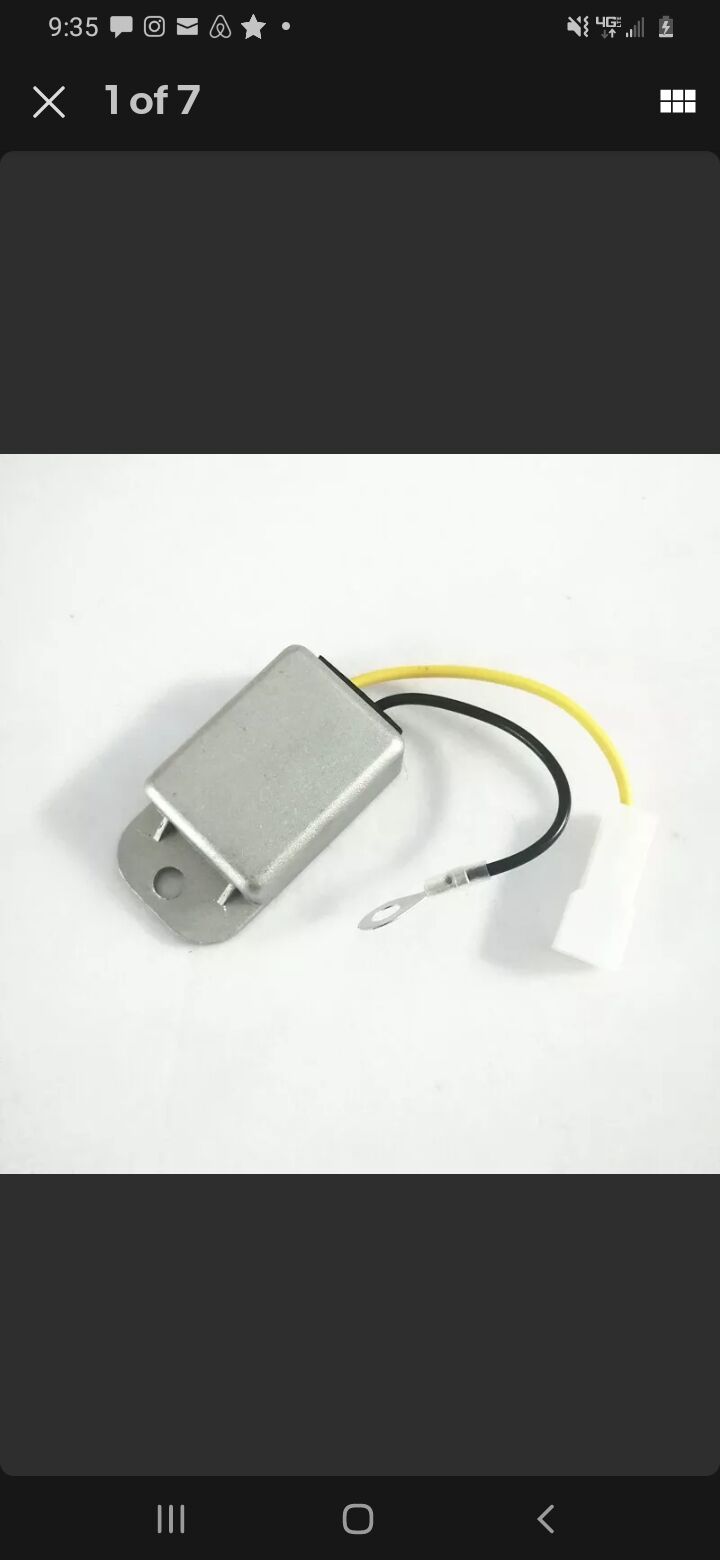

Forum member supplied image with no explanatory text
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
You are correct in thinking about the entire system. I'm going to be looking into this on a Allstate I'm getting. If your keeping the factory stator, I think you would need to put a regulator on each coil supply line. This device is diverting any voltage over say 7.3 volts ac to ground. So if you put it on the wire connected to the headlight anytime voltage gets over 7.3 volts it will clip the top of the AC signal off.

When looking at a 1958 Allstate it has two wires yellow and a green wire coming from two separate coils. I'm thinking a regulator at the junction box of those wires should reduce voltage spikes and over volt issues. You could attach the lead under the screws for the wiring that is there. In theory this should work, as I said I haven't tried it yet.

https://www.scooterhelp.com/electrics/wiring/VNA1.pdf



http://gpzweb.s3-website-us-east-1.amazonaws.com/RegRec/GPZacRegulator.html
@rowdyc avatar
UTC

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas

Molto Verboso
@rowdyc avatar
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas
UTC quote
To use that regulator, power from the stator wires goes to yellow and power out to the switches comes from the yellow wire, too. Black wire is ground to the frame. You could use a two to one connector on the yellow wire of the regulator like the picture. Extra wires are needed from junction box to regulator and regulator back to the junction box.
External inline image provided by member with no explanatory text

The correct way to stop the bulbs from blowing is to have a proper stator with the correct wattage 6v bulbs so the system can balance itself. In theory, the bulbs would balance the electrical system if the stator is working correctly. Check the bulbs with the diagram Chris posted above. Also with a multimeter check the power wires from the stator while the motor is running and revving. If you're seeing high voltage (way above 7 volts) there maybe a problem with the stator.

Sometimes adding a 6v regulator just hides another problem.
UTC

Addicted
PK50XL, PK100S, ET3, Matchless G80S, Honda CBR400RR, Ducati ST4S
Joined: UTC
Posts: 612
Location: UK

Addicted
PK50XL, PK100S, ET3, Matchless G80S, Honda CBR400RR, Ducati ST4S
Joined: UTC
Posts: 612
Location: UK
UTC quote
Does your speedo bulb work?

We went through a few backlight bulbs before i realised that the speedo bulb was blown.

We changed that and touch wood its been ok since.
OP
UTC

Enthusiast
Joined: UTC
Posts: 62

Enthusiast
Joined: UTC
Posts: 62
UTC quote
Yah it started with my tail lights blowing then it seemed like the headlight was good but that went last night. So in theory how many wires can I run to the regulator if need be? Can the regulator take more than 14v (wire one 7v wire two 7v) I'll do the test here in a moment to see what's coming out of the state. Lastly if need be I spend $45 on a huge selection of bulbs and pray everything will do its job. https://www.scooterwest.com/complete-6v-bulb-set-for-vintage-vespa.html
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
areabaylove wrote:
Yah it started with my tail lights blowing then it seemed like the headlight was good but that went last night. So in theory how many wires can I run to the regulator if need be? Can the regulator take more than 14v (wire one 7v wire two 7v) I'll do the test here in a moment to see what's coming out of the state. Lastly if need be I spend $45 on a huge selection of bulbs and pray everything will do its job. https://www.scooterwest.com/complete-6v-bulb-set-for-vintage-vespa.html
I would use two separate regulators and not connect the two circuits. With AC you have to worry about the phase of each sine wave.
@rowdyc avatar
UTC

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas

Molto Verboso
@rowdyc avatar
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas
UTC quote
areabaylove wrote:
Yah it started with my tail lights blowing then it seemed like the headlight was good but that went last night. So in theory how many wires can I run to the regulator if need be? Can the regulator take more than 14v (wire one 7v wire two 7v) I'll do the test here in a moment to see what's coming out of the state. Lastly if need be I spend $45 on a huge selection of bulbs and pray everything will do its job. https://www.scooterwest.com/complete-6v-bulb-set-for-vintage-vespa.html
I maybe wrong but I would connect all stator power wires to one screw at the junction box and run a larger quage wire from there to the regulator. From the regulator I'll run a larger guage wire to a screw in junction box and connect all harness wires that powers your horn and lights. Electricity should take the path of less resistance and allow stator power to flow like water and regulate the flow back to the component.

But you'll prob don't need to do any of that if your bulbs gets sorted out correctly. Regarding the $45 for bulbs, it maybe cheaper to order each bulb individually from Mercato but will need to look at a diagram for your specific scooter. BTW, what year and model are you trying to fix?
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
Your lighting coil most likely has a floating ground. Putting a regulator on it is not going to help. The light bulbs regulate the wattage; when one goes, they all go. a possible work around is increasing the wattage at the rear running light.

Now that is all hypothetical until we see what stator you are running, but that is my guess anyways.
⚠️ Last edited by GickSpeed on UTC; edited 1 time
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
I was thinking about these and converting to 12 vdc, using a regulator and very small battery. Probably a lithium motorcycle battery, small easy to hide and lite.

Then wire for dc every where and be done with it.

https://www.scooterwest.com/high-output-ac-coils-pair-vintage-vespa.html
OP
UTC

Enthusiast
Joined: UTC
Posts: 62

Enthusiast
Joined: UTC
Posts: 62
UTC quote
rowdyc wrote:
areabaylove wrote:
Yah it started with my tail lights blowing then it seemed like the headlight was good but that went last night. So in theory how many wires can I run to the regulator if need be? Can the regulator take more than 14v (wire one 7v wire two 7v) I'll do the test here in a moment to see what's coming out of the state. Lastly if need be I spend $45 on a huge selection of bulbs and pray everything will do its job. https://www.scooterwest.com/complete-6v-bulb-set-for-vintage-vespa.html
I maybe wrong but I would connect all stator power wires to one screw at the junction box and run a larger quage wire from there to the regulator. From the regulator I'll run a larger guage wire to a screw in junction box and connect all harness wires that powers your horn and lights. Electricity should take the path of less resistance and allow stator power to flow like water and regulate the flow back to the component.

But you'll prob don't need to do any of that if your bulbs gets sorted out correctly. Regarding the $45 for bulbs, it maybe cheaper to order each bulb individually from Mercato but will need to look at a diagram for your specific scooter. BTW, what year and model are you trying to fix?
I like what ur thinking. The only problem I see is that to replace the wire coming out of the regulator I would have to dig into the regulator which doesn't sound good! It's a mid 60's vespa super 150. Also I did the volt test and at idle I get a good seven across-the-board easily. When I rev it up the volts definitely picked up significantly. I think up to 15 volts is what I read!
Forum member supplied image with no explanatory text
@rowdyc avatar
UTC

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas

Molto Verboso
@rowdyc avatar
GL, PK, PE200 with hack, Sears Rust Badge
Joined: UTC
Posts: 1346
Location: Deep in the heart of Texas
UTC quote
I take back everything I said. I have no idea what you should do to solve blowing bulbs.
I hope you don't have bigger problems.
I'm out and good luck!
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
Wow. No one will know what you have in that thing until you pull the stator. That being said, I'm out.
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
Did someone convert to 12 volts already?
UTC

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: UTC
Posts: 2537
Location: Siam

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: UTC
Posts: 2537
Location: Siam
UTC quote
I have three bikes that run on stock 6 volt systems. There is no regulator on any of the them, and I believe Piaggio never intended any of them to have one. Like someone has already said, if the wiring and stator coils are correct and in good condition and all the bulb wattages are correct, then it works as it should without a regulator.
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
areabaylove wrote:
rowdyc wrote:
areabaylove wrote:
Yah it started with my tail lights blowing then it seemed like the headlight was good but that went last night. So in theory how many wires can I run to the regulator if need be? Can the regulator take more than 14v (wire one 7v wire two 7v) I'll do the test here in a moment to see what's coming out of the state. Lastly if need be I spend $45 on a huge selection of bulbs and pray everything will do its job. https://www.scooterwest.com/complete-6v-bulb-set-for-vintage-vespa.html
I maybe wrong but I would connect all stator power wires to one screw at the junction box and run a larger quage wire from there to the regulator. From the regulator I'll run a larger guage wire to a screw in junction box and connect all harness wires that powers your horn and lights. Electricity should take the path of less resistance and allow stator power to flow like water and regulate the flow back to the component.

But you'll prob don't need to do any of that if your bulbs gets sorted out correctly. Regarding the $45 for bulbs, it maybe cheaper to order each bulb individually from Mercato but will need to look at a diagram for your specific scooter. BTW, what year and model are you trying to fix?
I like what ur thinking. The only problem I see is that to replace the wire coming out of the regulator I would have to dig into the regulator which doesn't sound good! It's a mid 60's vespa super 150. Also I did the volt test and at idle I get a good seven across-the-board easily. When I rev it up the volts definitely picked up significantly. I think up to 15 volts is what I read!
What regulator are you talking about? Are you referring to the stator?

Do you have good bulbs installed again? If you don't and are measuring unloaded AC voltage your output will be wrong. Unloaded as in no headlight to make the system work. This system is a very simplistic and relies on the correct bulbs to load the system.

If your measuring 15 volts with a loaded system I would say you have been converted to 12 volt AC coils at some point.

If you have been converted to 12 volts, you will need to track down correct 12 volt bulbs.
OP
UTC

Enthusiast
Joined: UTC
Posts: 62

Enthusiast
Joined: UTC
Posts: 62
UTC quote
Its definitely a 6v stator, I just double checked my order! The 15v is from an unloaded test so maybe I just buy a bunch of bulbs of higher v's and see what happens?
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
areabaylove wrote:
Its definitely a 6v stator, I just double checked my order! The 15v is from an unloaded test so maybe I just buy a bunch of bulbs of higher v's and see what happens?
I would put the proper bulb in and check the AC voltage again, and see what you are getting. Putting in an oversized bulb may draw to much current and melt other components such as a switch terminal, wiring or light coil in the stator if they can't handle the extra current.
@subetherbass avatar
UTC

Ossessionato
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 4814
Location: Australa, Mate

Ossessionato
@subetherbass avatar
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 4814
Location: Australa, Mate
UTC quote
In the end, I found 24v bulbs sorted the issue with Speedy
@subetherbass avatar
UTC

Ossessionato
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 4814
Location: Australa, Mate

Ossessionato
@subetherbass avatar
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 4814
Location: Australa, Mate
UTC quote
Ohh dear, you may have far BIGGER problems than first anticipated... dat a bodgy bodge for sure!
I suspect the only "Super" bit may be the poorly placed "Super" badge... please read "Bodgespotting" post for further advice
OP
UTC

Enthusiast
Joined: UTC
Posts: 62

Enthusiast
Joined: UTC
Posts: 62
UTC quote
SubEtherBASS wrote:
In the end, I found 24v bulbs sorted the issue with Speedy
Explain further. An yes I'm aware the bike might be a fake but I still fixed it and life moves on...
⬆️    About 1 month elapsed    ⬇️
UTC

Member
Joined: UTC
Posts: 36

Member
Joined: UTC
Posts: 36
UTC quote
Any reply from the OP please?
@popgunandy avatar
UTC

Hooked
61 VBB 76 Rally 200 79 P200 80 Sport 100
Joined: UTC
Posts: 288
Location: Folsom CA

Hooked
@popgunandy avatar
61 VBB 76 Rally 200 79 P200 80 Sport 100
Joined: UTC
Posts: 288
Location: Folsom CA
UTC quote
Honestly I don't see the value in complicating a 6V system with a regulator...at that point you should consider conversion. A good harness, a good stator, and good bulbs is all these needed 60 years ago and it's all they need now.

Once I resolved issues with my stator and its wires my little 6V system does fine with two caveats...EVERY bulb has to be working properly or you're losing many, and keep at least 3-4 of each on hand at all times.

The other issue is quality control on bulbs...another reason to have many on hand.
UTC

Member
Joined: UTC
Posts: 36

Member
Joined: UTC
Posts: 36
UTC quote
you read my mind: my loom is relatively new but poor quality; stator is suspect too. Bulbs also go with the vibration they suffer and then there is a cascade of failures. So, if you have to deal with all that......a conversion beckons.
