@swiss1939 avatar
UTC

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY

Ossessionato
@swiss1939 avatar
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY
UTC quote
If you are really worried about any pitting try using a sanding wheel with the Dremel and just give it a light cleanup. But it doesn't look bad. Mine is also worse.
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
Seen worse and ran worse.

Agree with Chandlerman. Lap and go.
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
The rust doesn't look bad at all, especially as you were able to get it down to bright metal. It's not unusual to find light rust between overlapping spot welded assemblies. You would find that even in sound parts of the metal. It looks like you stopped in a good place. Knowing where to stop is a really good thing.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Thanks for the responses!

To lap the cylinder head – I would turn it? Maybe on a flat surface on 600 (or higher?) grit sandpaper? Like lapping valves?

The metal looks not bad! There is some surface rust between the sheets of metal going back further, but it's very light. I was thinking I would just remove the areas where the rust was expanding between the metal.

The bike was outside for decades, and the seat wore away. I think the areas with the worst rust was from water getting in to the air intake under the seat, and seeping down. And worst where it was more horizontal. Just the areas I cut out.

If I leave the areas that haven't expanded, are they pretty safe from continuing to rust?
the plastic cover was in there, so the water drained out along the seam of the frame channel.
the plastic cover was in there, so the water drained out along the seam of the frame channel.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
One more.

Is this a decent cylinder kit?

I had wanted to use an original Piaggio 200 one, but they're out of stock at Scooterwest. But this one is available.
Forum member supplied image with no explanatory text
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote

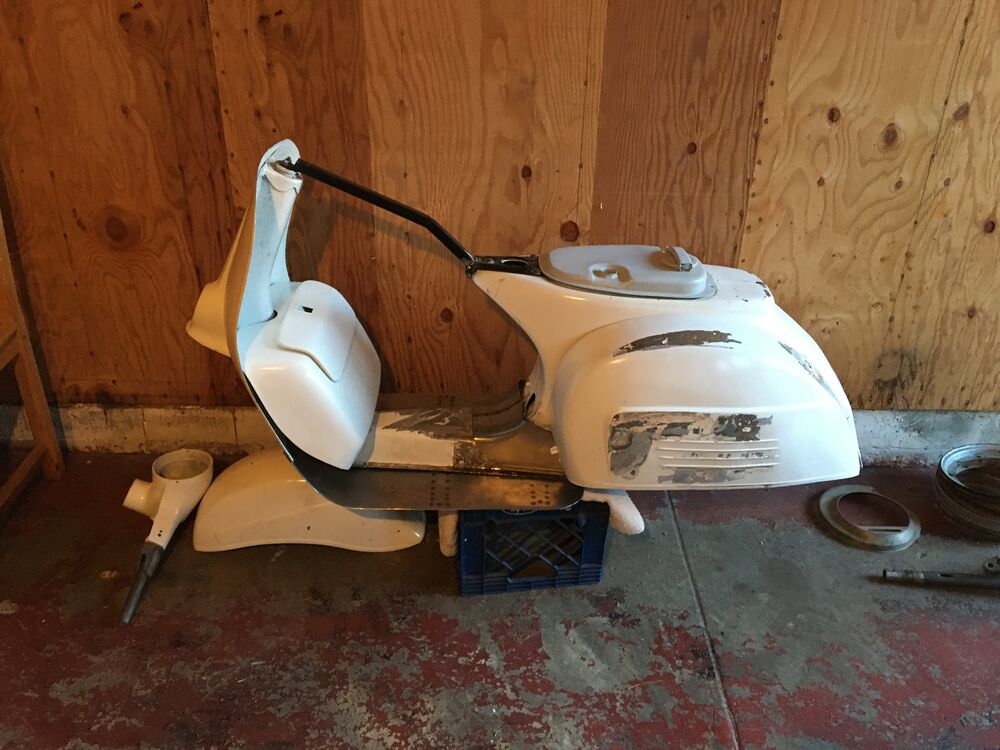

Coming along. Slowly.
Tape. I might go slightly higher than this.
Tape. I might go slightly higher than this.
Forum member supplied image with no explanatory text
This worked. I gouged the frame a bit. :(
This worked. I gouged the frame a bit. :(
Other side. This took hours!!
Other side. This took hours!!
Bye floorboard.
Bye floorboard.
Cutting this out to make the spot welds easier to remove.
Cutting this out to make the spot welds easier to remove.
It's not SO bad. But the area where the floorboard meets the frame is gross. I hope it's ok underneath.
It's not SO bad. But the area where the floorboard meets the frame is gross. I hope it's ok underneath.
Forum member supplied image with no explanatory text
These spot welds take forever to remove.
These spot welds take forever to remove.
This piece looks like it will work! The seam is a bit wider. I don't know how I'll blend those.
This piece looks like it will work! The seam is a bit wider. I don't know how I'll blend those.
I can go a bit higher. This piece isn't exactly like the original frame, but it's still saving a frame that would probably have been trash. And will be all repaired soundly.
I can go a bit higher. This piece isn't exactly like the original frame, but it's still saving a frame that would probably have been trash. And will be all repaired soundly.
Almost ready to blast.
Almost ready to blast.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Still thinking about color.
This is what it looked like new. And I'm keeping it all original, with the American pieces.
This is what it looked like new. And I'm keeping it all original, with the American pieces.
This is what most Rallys in California looked like. I guess common, but I haven't seen one like this in good shape in ages.
This is what most Rallys in California looked like. I guess common, but I haven't seen one like this in good shape in ages.
This green is so pretty. It wasn't a Rally color. But I think it's the same green that Primaveras had in 1974. 305 Verde Ascot (Ascot Green). I love this color.
This green is so pretty. It wasn't a Rally color. But I think it's the same green that Primaveras had in 1974. 305 Verde Ascot (Ascot Green). I love this color.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
The floorboard.

The scale goes up far. But the rust isn't that bad. There's a lot of volume, but it hasn't eaten away so much of the frame.

Almost ready to blast. And I think I might take to a welding shop. I got a recommendation.

Welding sounds fun, but I'm not confident I'd do a good job my first time.

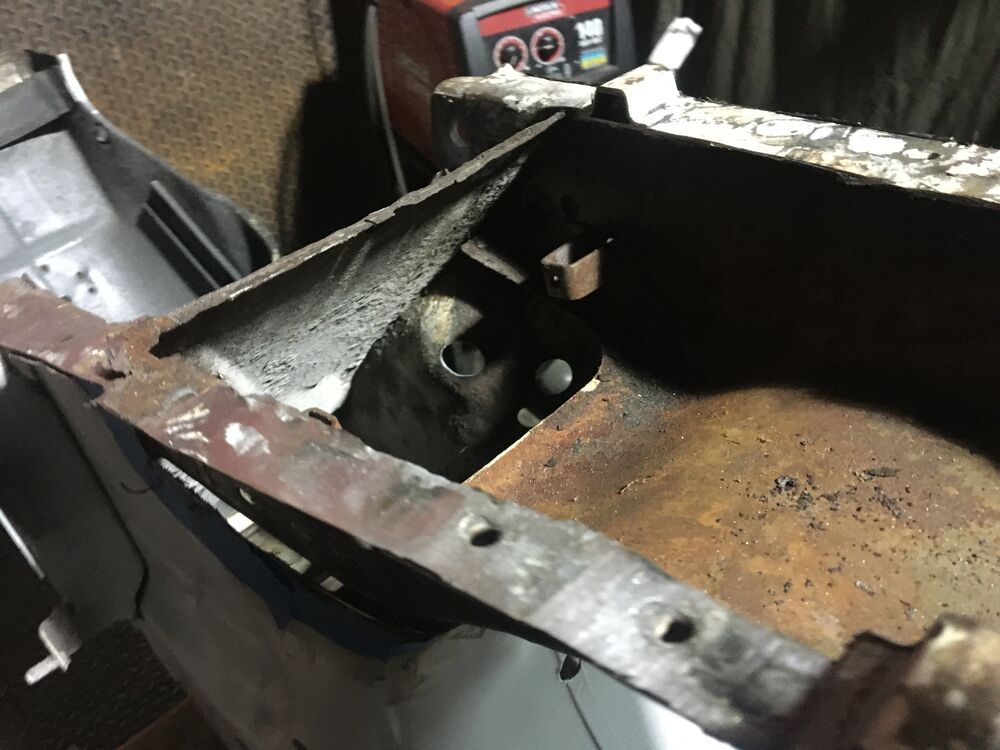

Today's focus.
Today's focus.
Drilled out the spot welds, but then the flap disc was really the hero here.
Drilled out the spot welds, but then the flap disc was really the hero here.
scaliness. Everywhere.
scaliness. Everywhere.
Forum member supplied image with no explanatory text
:(
:(

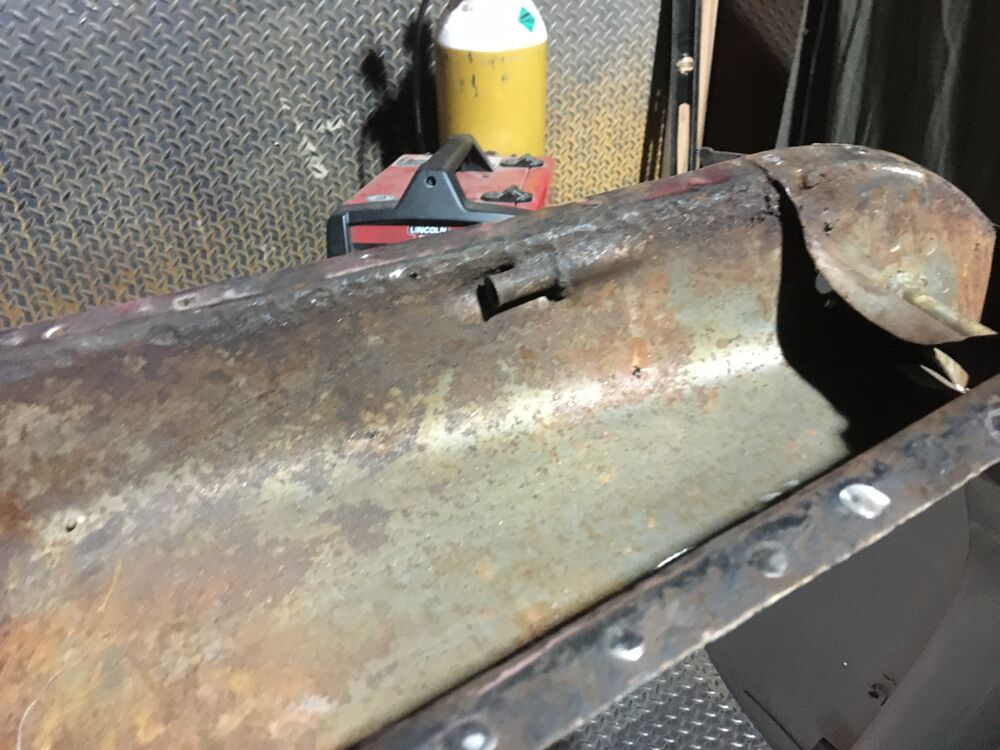

The lower part of the reinforcement place is really bad.
The lower part of the reinforcement place is really bad.
And ... gone! I'm not sure if I should go higher.
And ... gone! I'm not sure if I should go higher.
After some clean up.
After some clean up.
There are a couple of spots where the frame is rotted, but this is the worst.
There are a couple of spots where the frame is rotted, but this is the worst.

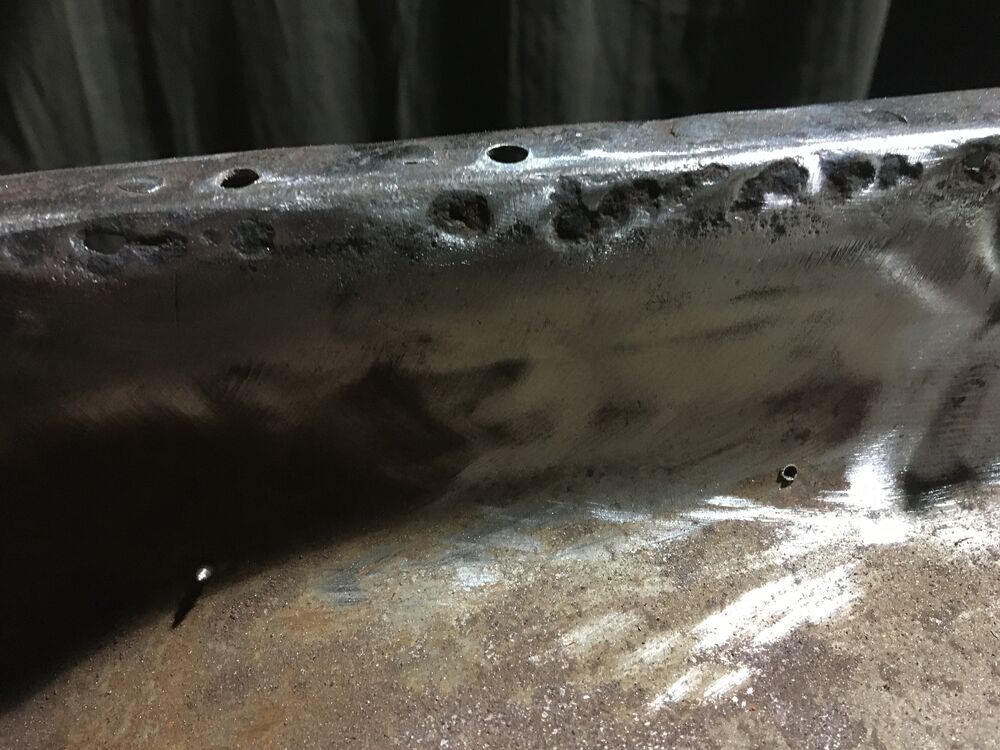

Should I go higher? These spot welds are puffy, but not really bad.
Should I go higher? These spot welds are puffy, but not really bad.
The floorboard has space.
The floorboard has space.
Forum member supplied image with no explanatory text
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
I cant comment to on going higher... would be good to treat as much of that rust as you can, but I'd be worried about running out of real estate.

Your documenting of this has been super impressive! Keep it up and thanks.
UTC

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: UTC
Posts: 2537
Location: Siam

Ossessionato
Vespas 1964 GS160, 1965 SS180, 1977 V9A1T, 1983 PX150E
Joined: UTC
Posts: 2537
Location: Siam
UTC quote
It looks fine. Keep going. Hiring a person to weld is cool. I even have a welder, and I'm too damn lazy to get everything out to do stuff.

The Apocalypse is upon us, so get it going and cruise it down the highway as long as you can. I'm riding all my bikes much more. I think they love me much more now too, gash darn it.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Birdsnest wrote:
I cant comment to on going higher... would be good to treat as much of that rust as you can, but I'd be worried about running out of real estate.

Your documenting of this has been super impressive! Keep it up and thanks.
Thanks!

I'm regretting not getting the Grabor one. Considering it, but it takes weeks to arrive. I chose this shorter one, bc it was smaller to ship, and had the struts.

But it's the whole thing, so can go higher.

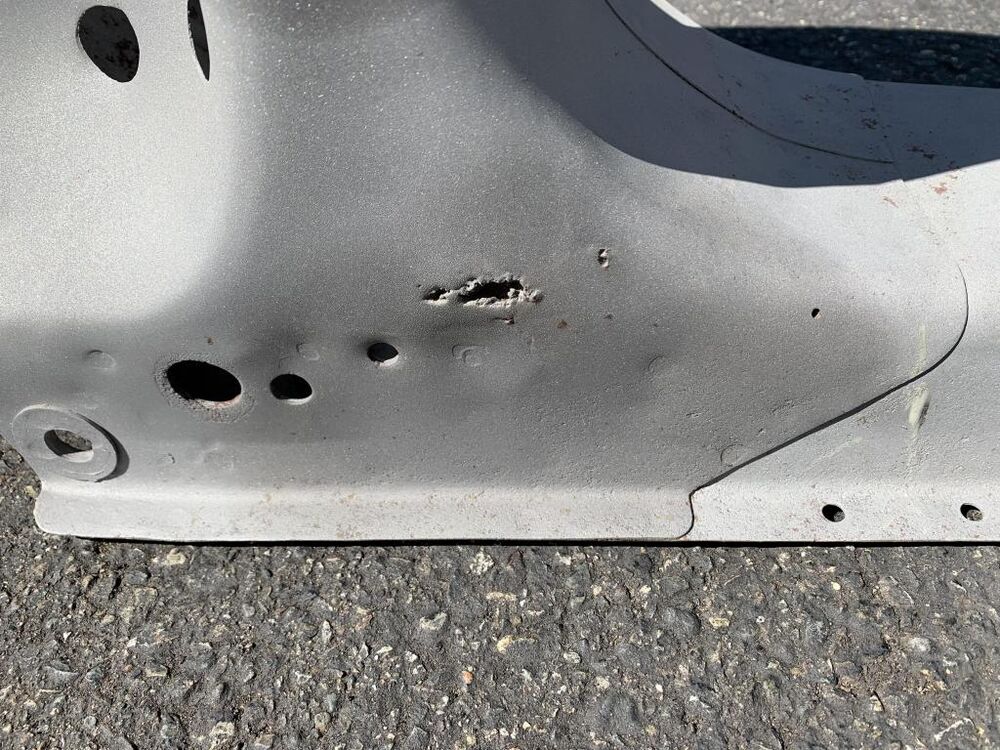

The bike must have been submerged in water a some point? How does that rust form?
Forum member supplied image with no explanatory text
This seemed ok in the higher part, but there was bondo over the sport welds higher.
This seemed ok in the higher part, but there was bondo over the sport welds higher.
This seems like it would be complicated, bc there's a backing plate, and this is where the metal attaches
This seems like it would be complicated, bc there's a backing plate, and this is where the metal attaches
This too. bc it can't cut out the whole backing plate. It goes all the way up.
This too. bc it can't cut out the whole backing plate. It goes all the way up.
This part was definitely worse.
This part was definitely worse.
There is some here. But it's not pushing out so much. I wonder if it will her worse over time.
There is some here. But it's not pushing out so much. I wonder if it will her worse over time.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Welding. Hard.

I got the materials to weld, and did a test with stitch and plug welds.

It's really hard! I didn't take enough photos.

I think I'll take to a welder, but I hope they do an ok job. I can drill all the holes for the plug welds.
Test subjects.
Test subjects.
Forum member supplied image with no explanatory text
Oh no! I didn't get one of the welds. But they were pretty rough. This is after grinding.
Oh no! I didn't get one of the welds. But they were pretty rough. This is after grinding.
Front.
Front.
Back.

The butt weld did not seal up. You can see the sheets are still separate.
Back. The butt weld did not seal up. You can see the sheets are still separate.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Learn something new each day.

I guess I need these for the seam. If the metal is too close, it expands and warps, and you need a bit of space to fill in with the weld.

Still on the fence about trying this. I will practice a day or two more.

This project is taking forever.
Forum member supplied image with no explanatory text
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
You're going at 'em too hard. Just do little baby tacks here and there until it's filled up.

I posted this video on another thread. If you have 40 min to kill you'll get a lot better idea of what that thin sheet metal takes:

OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Ray8 wrote:
You're going at 'em too hard. Just do little baby tacks here and there until it's filled up.

I posted this video on another thread. If you have 40 min to kill you'll get a lot better idea of what that thin sheet metal takes:

Thanks! I watched when you posted. I'll watch again!

These didn't turn out bad for a first attempt! But still need practice. I had a welding lesson, but from someone who does heavy duty welding.

I used .023 wire, and the lowest heat and feed setting
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
You need to turn up the heat on your machine. I use one setting higher than the lowest for sheet metal. Otherwise you don't get good penetration and the bead is too high.

When I butt weld, I do a few tacks at a time and space them out to disperse the heat. Grind down the racks, doesn't have to be completely flat, straighten the seam and add more takes. Repeat. After finish grinding, I shine a light from the other side to find voids and pinholes. Mark them with a sharply so you can see them and weld them up. Those clamps are ok. Sometimes I will even duct tape a panel in place just to get it started. If you can, clamp a piece of copper behind your seam. The weld won't stick to copper so you can fill big voids that way. Get a piece of copper pipe and hammer it flat.
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
hjo wrote:
Thanks! I watched when you posted. I'll watch again!

These didn't turn out bad for a first attempt! But still need practice. I had a welding lesson, but from someone who does heavy duty welding.

I used .023 wire, and the lowest heat and feed setting
Looks like my first attempts!
Try raising the feed bit by bit on your practice setups.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Thanks for the tips! I'll try again this week.

I might do the welds before blasting it. But would need to really clean out the inside of the frame.

Is it ok to leave the metal bare between the panels? After seeing all the rust that built up.

But water had gotten inside the frame. I definitely want to seam seal along the floorboard.
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
I use a zinc weld through primer in the places where panels overlap. If it is a large section, I will paint the inside of the panel with something like rustoleum, but use the weld through on the edges where I weld. You could also just do the whole inner side with the weld through. It's also called cold galv etc. You can get it at welding supply stores. Seam sealing is a good idea. You could also etch the metal with something like Ospho before the weld through. I doubt the rust would return.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
This guy uses an alternate approach to butt welding sheet metal that seems pretty slick. The sheet metal clamps made me think of it.

@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
That's a neat trick. I gotta try that.
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
chandlerman wrote:
This guy uses an alternate approach to butt welding sheet metal that seems pretty slick.
Genius!
This should be a Wiki at your welding thread.

Fun fact:
Only a welder can tell his significant other that he's going to the shop to "grind out my butt welds" in a serious manner.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
This is great! Thanks!
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
hjo wrote:
This is great! Thanks!
That 45 degree overlay cut cleans all the gaps. It's genius.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
That technique is really interesting. It might work for the bridge piece. Those clamps on't fit in there unliess it's cut up higher above the frame.

He put the door in upside down on that video. It hinges open into the wind.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
hjo wrote:
He put the door in upside down on that video. It hinges open into the wind.
It's correct. It's on the left-hand side, behind the cab.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Oh. I thought that was the right side.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Spot welds.

With the floorboard off, I can reach the spot welds here with an actual spot welder.

I was looking at photos. It looks like my old p200 has a LOT more spot welds than a rally frame photo I found.

Is that right?

The P looks like it has about 20 on the side of the bridge, then two rows of three on the top.

This rally frame seems to have less.

I guess I'll follow the P.
The P. There are a LOT! Over 20.
The P. There are a LOT! Over 20.
This blasted rally frame looks to have around 7 in the same area.
This blasted rally frame looks to have around 7 in the same area.
Hopefully I can find one of these things to rent.
Hopefully I can find one of these things to rent.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
hjo wrote:
Oh. I thought that was the right side.
I went back and checked after you posted that, because I was pretty sure it was by the driver's door. It's not obvious with the bed off the truck, though.
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
I have a similar spot welder from Harbor Freight. It's ok for thin stuff but not sure if it would work on the thicker metal of the tunnel. I bought it to use on my bus and ended up doing plug welds anyway. I seemed to have the best luck by turning up my welder and welding right through the first layer rather than drilling a hole. Practice on the bench both ways until you can bang out a row.

If you look at your photos you can see that the spot welds were made with much bigger tongs. The HF units make much smaller spot welds.
Unfortunately plug welds will not look factory as it won't make a dimple, but it will still be plenty strong.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
orwell84 wrote:
I have a similar spot welder from Harbor Freight. It's ok for thin stuff but not sure if it would work on the thicker metal of the tunnel. I bought it to use on my bus and ended up doing plug welds anyway. I seemed to have the best luck by turning up my welder and welding right through the first layer rather than drilling a hole. Practice on the bench both ways until you can bang out a row.

If you look at your photos you can see that the spot welds were made with much bigger tongs. The HF units make much smaller spot welds.
Unfortunately plug welds will not look factory as it won't make a dimple, but it will still be plenty strong.
I think I might end up with plug welds. I love the dimples, though. I might try to mimic them.
⚠️ Last edited by hjo on UTC; edited 1 time
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Last little cleanup. And surgery is done. Ready for blasting.

Lesson: Don't leave your vespa out in the rain. And definitely not for outside for 35 years.
Cut up a little higher on the legshield. Reached a spot where there is no rust between the reinforcement plate and the legshield.
Cut up a little higher on the legshield. Reached a spot where there is no rust between the reinforcement plate and the legshield.
Thought I might just clean this part out, and go straight to welding before blasting.
Thought I might just clean this part out, and go straight to welding before blasting.
but... it looks bad. I will just blast it, and make sure all the rust is gone. There are pinholes, that hopefully I can build up with the welder, if they're not too big.
but... it looks bad. I will just blast it, and make sure all the rust is gone. There are pinholes, that hopefully I can build up with the welder, if they're not too big.
This, I guess is ok. There's a small amount of rust, but it's just on one side, and two spot weld lengths. I think it would be really hard to patch just a strip.
This, I guess is ok. There's a small amount of rust, but it's just on one side, and two spot weld lengths. I think it would be really hard to patch just a strip.
all done.
all done.
Back home. Ready to blast.
Back home. Ready to blast.
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3127
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3127
Location: northern New York
UTC quote
That pitting is really deep. I would be tempted to cut out that little angle piece and weld a new piece in.

You could also blast it clean, back up with copper and fill up the pits. I figured out a way to weld up pits by increasing the wire stick out and decreasing the angle of the torch... like less than 45* and zig zagging the torch back and forth. This makes a cold non penetrating weld that just puts a layer of weld material over the pits. Worst case scenario, it doesn't work and you patch it.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
orwell84 wrote:
That pitting is really deep. I would be tempted to cut out that little angle piece and weld a new piece in.

You could also blast it clean, back up with copper and fill up the pits. I figured out a way to weld up pits by increasing the wire stick out and decreasing the angle of the torch... like less than 45* and zig zagging the torch back and forth. This makes a cold non penetrating weld that just puts a layer of weld material over the pits. Worst case scenario, it doesn't work and you patch it.
It's pretty bad!

I didn't even see it before. The rust in places is very condensed and solid, and doesn't come off easily.

When I blast it, it might reveal more.

With these, it seems possible to build them up with the welder, since they are inside. There are only a couple of places it has worn through, and very small holes. But blasting might reveal a lot.

This project is a pain! My last rusty vespa repair.

It's a shame it's not a PX. You can still buy whole frames NOS for those.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
All collected for blasting, and powder coating.

Labored decision on the powder coating, but it's really the best thing for the steel rims. There's enough paint on the inside of the brake cover to match. Matte silver. Matte black (almost. very dark gray) fender crest and front spring.

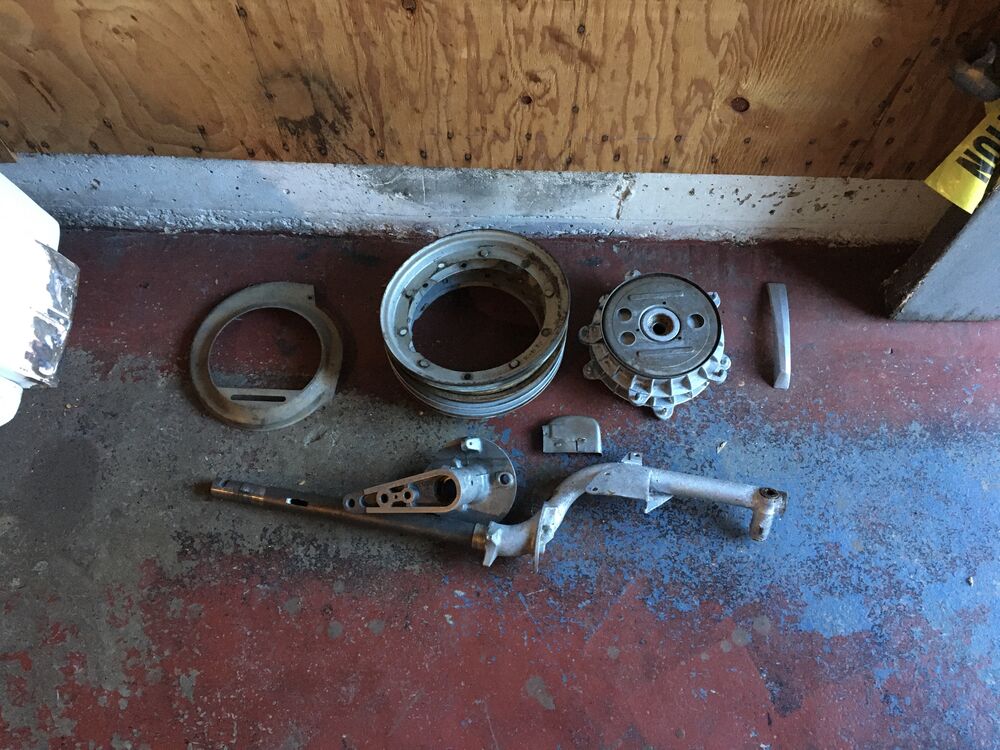

Bunch of parts.
Bunch of parts.
It will live again.
It will live again.
There aren't that many parts to powder coat.
There aren't that many parts to powder coat.
Stripped some paint on the cowl. The whole bike has this veiny surface rust. Which is what grows under the diffuse little rust spots that show through the paint.
Stripped some paint on the cowl. The whole bike has this veiny surface rust. Which is what grows under the diffuse little rust spots that show through the paint.
Straightened out the tail. Needs a couple of welds, and minor reshaping, but looks pretty square!
Straightened out the tail. Needs a couple of welds, and minor reshaping, but looks pretty square!
I can almost picture it being a Vespa again!
I can almost picture it being a Vespa again!
Rally booty is the best.
Rally booty is the best.
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
That is some fine, fine booty!
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
I love it. I think the SS was just slightly wider, but those two have the best shape.

Definitely has the wasp vibe too.
Forum member supplied image with no explanatory text
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Tiresss. Tire-ed.

I was looking at tires. I love Continental Zippy 1s, even though they aren't really the style of a stock Rally. The rounded sport tires just handle so well.

It looks like Zippy 1s might be discontinued. You can still find them in the US, but the German shops don't have them.

It looks like they've been replaced with one called Conti Twist.
Zippy 1s. RIP?
Zippy 1s. RIP?
From Continental's Zippy-free website. Very similar.
From Continental's Zippy-free website. Very similar.
Continental Twist on a 10" rim.
Continental Twist on a 10" rim.
UTC

Addicted
1968 VBB150
Joined: UTC
Posts: 703
Location: OC

Addicted
1968 VBB150
Joined: UTC
Posts: 703
Location: OC
UTC quote
hjo wrote:
Learn something new each day.

I guess I need these for the seam. If the metal is too close, it expands and warps, and you need a bit of space to fill in with the weld.

Still on the fence about trying this. I will practice a day or two more.

This project is taking forever.
I have these clamps (Unused so far, let me know if you want to borrow - I am happy to send your way for as long as you need them!
Forum member supplied image with no explanatory text
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
dsnyder586 wrote:
I have these clamps (Unused so far, let me know if you want to borrow - I am happy to send your way for as long as you need them!
Thanks!! I ended up getting some. One of those things I'll use once.

I hope I don't have to do the same with a 220v spot welder. Those are such specialized thing, they don't seem to be at equipment rental places.
Forum member supplied image with no explanatory text
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0214s ][ Queries: 4 (0.0053s) ][ live ][ 313 ][ ThingOne ]
