OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
I love that ad. It's like the Marlboro Man and disco lady. Can't picture them together, or ever getting on that bike.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
hjo wrote:
I love that ad. It's like the Marlboro Man and disco lady. Can't picture them together, or ever getting on that bike.
For sure, because neither of them would ever have Helmet Hair or the "I rode a motorcycle to Cincinnati" look.
@swiss1939 avatar
UTC

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY

Ossessionato
@swiss1939 avatar
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY
UTC quote
Hasselhoff turned that job down. This guy just happened to be in the right place at the right time that day.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
Hasselhoff was never in the running for that ad because of Kitt.

Kitt was always jealous AF of other vehicles and would have gone all Christine on every Vespa it saw if Hasselhoff had been seen with one.
@swiss1939 avatar
UTC

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY

Ossessionato
@swiss1939 avatar
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: UTC
Posts: 4110
Location: Staten Island, NY
UTC quote
Listen.. christine was in the right. when you get treated like shit.. you snap eventually! She was protecting her man who took care of her.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
One little thing at a time.

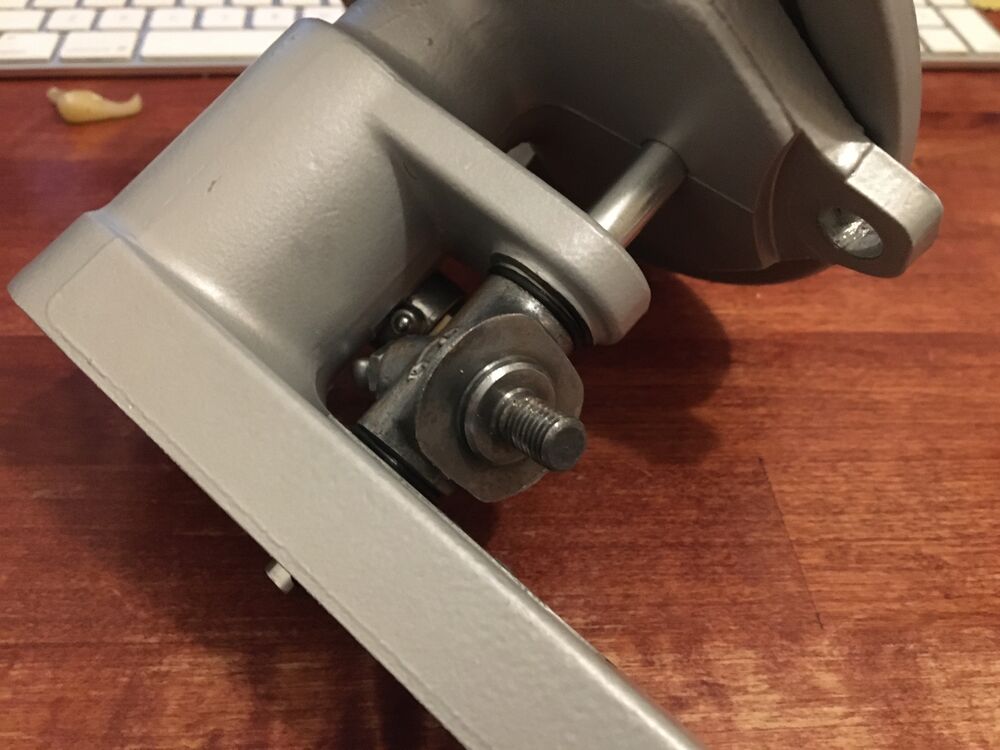

Got the spring pivot pin. Fabricated the washer. The trick: stretch out the o rings around the pivot piece, and they snap into place after the pin is there.
Got the spring pivot pin. Fabricated the washer. The trick: stretch out the o rings around the pivot piece, and they snap into place after the pin is there.

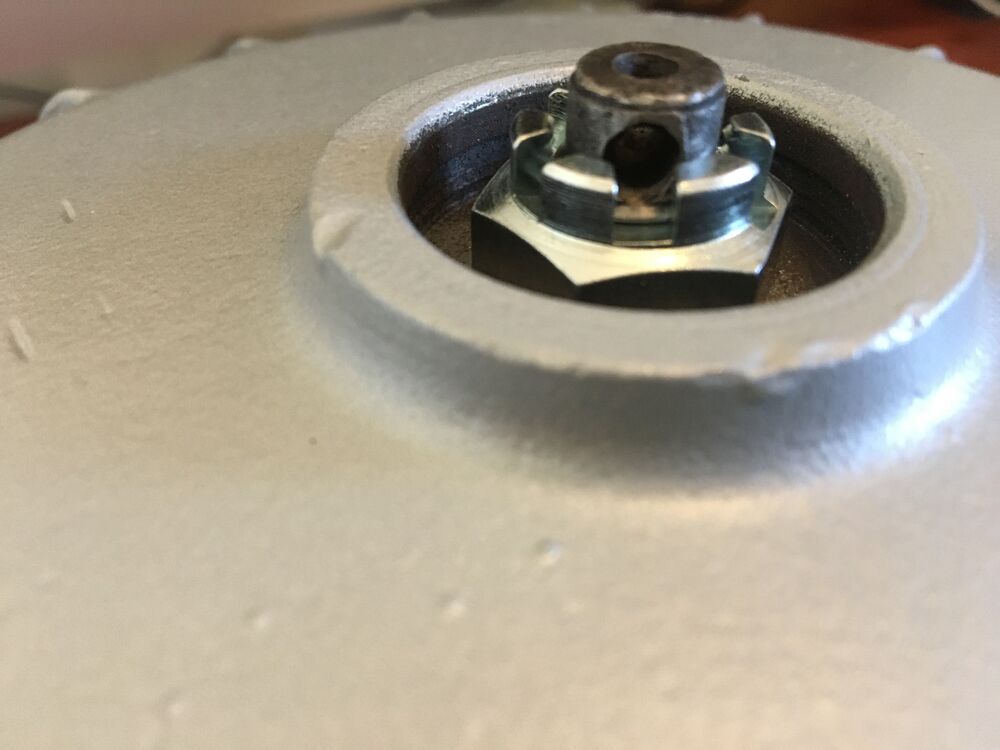

These bearings are a pain. Still trying. The kit came with washers the Rally didn't have. They might help get the bearings in. The bearings are free, so the pin has to be in there when you're tapping them in.
These bearings are a pain. Still trying. The kit came with washers the Rally didn't have. They might help get the bearings in. The bearings are free, so the pin has to be in there when you're tapping them in.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
It might be too late to help you now, but I used caged bearings to replace those when I rebuilt my GL front fork. Made it a much easier job.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
I might have to redo these.

I bought the kit for the Rally, but these are really hard to do!

The bearings are very delicate. Just a thin sheet metal cage, and roller bearings that fall out.

I got one almost seated using the wrist pin puller (which has been very handy. Also worked on the rear engine mount).

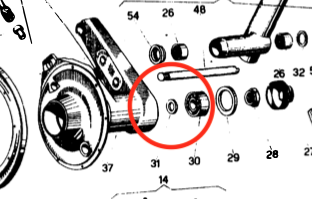

I guess the washers it comes with are for other models. They show in the parts book
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
The kit comes with four of these washers
The kit comes with four of these washers
But no washers in the Rally parts book.
But no washers in the Rally parts book.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
Like I said above, unless you're committed to doing it Old School, try these needle roller bearings. I assume they're a match (otherwise, you can just find the ID & OD you need). They pressed right in and have been working well for almost a year.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
chandlerman wrote:
Like I said above, unless you're committed to doing it Old School, try these needle roller bearings. I assume they're a match (otherwise, you can just find the ID & OD you need). They pressed right in and have been working well for almost a year.
12 for $10!

Those look more substantial. They're caged, and have a heavier shell.

If I destroy these ones (possible), i'll try those!
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Managed to get the bearings in!

The front end of these bikes is harder to do than the engine.
A small victory.
A small victory.
Forum member supplied image with no explanatory text
This is the finish I'm going for. All the original hardware. Cleaned up, but not all shiny and new. There are some gauges, pits, and darkening of the metal. But seems appropriate for the age of the bike.
This is the finish I'm going for. All the original hardware. Cleaned up, but not all shiny and new. There are some gauges, pits, and darkening of the metal. But seems appropriate for the age of the bike.
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4260
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4260
Location: Florence, OR
UTC quote
That is looking pristine! Very nice. And yeah, front ends take some figuring, that's for sure...
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
qascooter wrote:
That is looking pristine! Very nice. And yeah, front ends take some figuring, that's for sure...
I think it's also the least-documented part of the bike, yet seems to have more variations than any other section except maybe the electrical system, but wiring diagrams exist and everyone *knows* to expect pain when dealing with electrickery.
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
hjo wrote:
The front end of these bikes is harder to do than the engine.
True story.

Congrats on the efforting it looks amazing!
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1712
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1712
Location: California
UTC quote
looking factory fresh enjoying your progress!
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Front end almost all together now.
Forum member supplied image with no explanatory text
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Some famous people on a stock white 1974 Rally.
Forum member supplied image with no explanatory text
⚠️ Last edited by hjo on UTC; edited 1 time
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
chandlerman wrote:
I think it's also the least-documented part of the bike, yet seems to have more variations than any other section except maybe the electrical system, but wiring diagrams exist and everyone *knows* to expect pain when dealing with electrickery.
True. Full of surprises.
But the wiring diagrams out there for that US spec bike leave a lot to be desired. The only setup I've seen so far with ?? on the diagram
UTC

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1931
Location: Philadelphia

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1931
Location: Philadelphia
UTC quote
hjo wrote:
Some famous people on a stock white 1974 Rally.
My aunts and mom went to HS with Hall and Oates. Well one of them. He's originally from my hometown of Lansdale,Pa just outside Philly
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
FridayMatinee wrote:
My aunts and mom went to HS with Hall and Oates. Well one of them. He's originally from my hometown of Lansdale,Pa just outside Philly
I have grown to appreciate Hall and Oates. They wrote some good songs!

I got the shock. There is one that looks identical to the original, but apparently this one is higher quality.

It might drive me crazy that it's not original looking. But it's close.

Anyone have experience with these vs the Mauro Pasoli ones?
Forum member supplied image with no explanatory text
UTC

parallelogramerist
Joined: UTC
Posts: 5224

parallelogramerist
Joined: UTC
Posts: 5224
UTC quote
hjo wrote:
I have grown to appreciate Hall and Oates. They wrote some good songs!

I got the shock. There is one that looks identical to the original, but apparently this one is higher quality.

It might drive me crazy that it's not original looking. But it's close.

Anyone have experience with these vs the Mauro Pasoli ones?
First off, what do you mean "I have grown to appreciate Hall and Oates"? No love for them in the 80's? Heck, i appreciated them when i was 6. What could be more awesome than a mustache and moose knuckle denim jeans?
@greasy125 avatar
UTC

Sergeant at Arms
Weird 80's Vespas & Cool Vintage Lambrettas
Joined: UTC
Posts: 14921
Location: The state of insanity, SoCal

Sergeant at Arms
@greasy125 avatar
Weird 80's Vespas & Cool Vintage Lambrettas
Joined: UTC
Posts: 14921
Location: The state of insanity, SoCal
UTC quote
they're good shocks, I've run and installed a ton of them. they've been pretty much the defacto replacement for years. there's also escort which aren't awful, but could or could not look anything like stock depending on the batch. there's also another manufacturer that is escaping me at the moment but they were the weapon of choice about 20 years ago.

anyway, snap on the Gabriel no body will notice and it'll ride way better than some 40 yr old blowed out piece of junk.

also, top marks for the work. it looks ace!
@ray8 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1873
Location: Los Angeles

Molto Verboso
@ray8 avatar
Joined: UTC
Posts: 1873
Location: Los Angeles
UTC quote
whodatschrome wrote:
What could be more awesome than a mustache and moose knuckle denim jeans?
Clean shave, and a fishtail parka.

At that time army surplus stores couldn't give them away. Should have invested in those
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
whodatschrome wrote:
First off, what do you mean "I have grown to appreciate Hall and Oates"? No love for them in the 80's?
I was too pretentious. They were "mainstream," as opposed the "alternative" bands I liked that were selling out stadium shows. 🙂

Thanks! I'll try the Gabriel. It looks really well constructed
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4260
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4260
Location: Florence, OR
UTC quote
hjo wrote:
I was too pretentious. They were "mainstream," as opposed the "alternative" bands I liked that were selling out stadium shows. 🙂

I saw The Clash open for The Who at the Coliseum in LA back in the day.

Wait, what is this thread about again? Oh yeah, a crazy clean 74 Rally, white. Ok, back on track now Razz emoticon
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
qascooter wrote:
I saw The Clash open for The Who at the Coliseum in LA back in the day.

Wait, what is this thread about again? Oh yeah, a crazy clean 74 Rally, white. Ok, back on track now Razz emoticon
I saw the Who's Farewell Tour at the LA Coliseum. And saw them again after that, because they never stopped touring.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
One complete front end. Clean enough to put on a blanket.

Hopefully. I wasn't sure about the internal spacer washer on the axle. If it's wrong, have to find one, and the wheel won't turn when it's tightened.

The Gabriel shock looks ok!
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
I'm not sure about the spacer washer in on the main hub nut. The parts book says there isn't one, but It definitely needs one. I have this thick one that I'm not sure if it's front or rear.
I'm not sure about the spacer washer in on the main hub nut. The parts book says there isn't one, but It definitely needs one. I have this thick one that I'm not sure if it's front or rear.
All the puzzle pieces fit back together.
All the puzzle pieces fit back together.
The starting point.
The starting point.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Why I'm leaning towards white.

This bike had a lot of soul. I would have kept the patina, but the rust was so bad, it had to be all repaired.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9833
Location: Nashville

45 Days Since Last Explosion
UTC quote
That looks amazing. My hat is off to you for bringing this one back from what was probabll going to be the grave.

As to the spacer washer, I don't see how it could *not* have one. I'd say this maybe one of those examples of how the terrain defines the map and not the other way around.
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
FridayMatinee wrote:
My aunts and mom went to HS with Hall and Oates. Well one of them. He's originally from my hometown of Lansdale,Pa just outside Philly
Pretty sure he's wearing your Aunts or Moms shoes.

(I can't go for that. No. No can do.)

Ok seriously, front end work is banging!
That really looks amazing man helluva job!
@rallygeek avatar
UTC

Hooked
Polaris Grey Rally 200, Blue Marine Primavera ET3, Coral Red 50 Special
Joined: UTC
Posts: 411
Location: Melbourne

Hooked
@rallygeek avatar
Polaris Grey Rally 200, Blue Marine Primavera ET3, Coral Red 50 Special
Joined: UTC
Posts: 411
Location: Melbourne
UTC quote
I like the white, most important thing is the side decals, they make it go much faster..
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7154
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7154
Location: So Cal
UTC quote
No spacer on the front hub. Why do you say it definitely needs one?
Forum member supplied image with no explanatory text
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
SoCalGuy wrote:
No spacer on the front hub. Why do you say it definitely needs one?
I think this is right.

However... I haven't tightened down the axle yet, which will pull in the axle. But it should sit on the taper the same.

My big concern: (last photo)
This washer spaces out the hub from the bearing. I had one that was the right dimension, but thinner than the one in the parts book. And it's only available from Euro parts people. If mine is wrong, the hub will have too much resistance.

The axle is strange. It doesn't seat completely on the wheel side, bc the seal is there, so it seats on the seal, and is positioned by the nut on the other side. But seems like an impact on the hub could push it in too far.
There's a clean mark on the hub where it looks like a washer was.
There's a clean mark on the hub where it looks like a washer was.
This one is the right size.
This one is the right size.
It's very wide!
It's very wide!
With it, the castle nut is flush with the hub. This is a strange castle nut. The grooves are different depths.
With it, the castle nut is flush with the hub. This is a strange castle nut. The grooves are different depths.
Without. It threads too far down, and the hub is wobbly.
Without. It threads too far down, and the hub is wobbly.
This one is the big concern.
This one is the big concern.
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7154
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7154
Location: So Cal
UTC quote
You may be correct. This is the part circled in your photo. When I get home I'll check my GL and see how i mounted the hub.

https://www.sip-scootershop.com/en/product/spacer-axle-front-wheel-34x26x3-mm-front-right_20071000
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
SoCalGuy wrote:
You may be correct. This is the part circled in your photo. When I get home I'll check my GL and see how i mounted the hub.

https://www.sip-scootershop.com/en/product/spacer-axle-front-wheel-34x26x3-mm-front-right_20071000
I think I put the wrong washer! It was much thinner.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Random
These things cleaned up surprisingly well. They had so much rust. Wish I had a before photo.
These things cleaned up surprisingly well. They had so much rust. Wish I had a before photo.
Awkward antennae (the old ones).
Awkward antennae (the old ones).
@birdsnest avatar
UTC

Not So Moderator
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX

Not So Moderator
@birdsnest avatar
VNB VSC VMA VSX - o9c vbc vmb
Joined: UTC
Posts: 8253
Location: Hustletown, TX
UTC quote
Love the og turn signals.

(Also a fan of the Frightened Rabbit poster!)
UTC

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1931
Location: Philadelphia

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1931
Location: Philadelphia
UTC quote
Yeah that Frightened Rabbit print is nice. Only got to see them a few times before Scott died.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Frightened Rabbit! That was so sad!

I saw them at the Fillmore in SF around 2010.
OP
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
Are these spacers placed correctly?

The rear hub rubs on the back plate. I think they might be too thick. Or maybe they go inside?

This was a Piaggio OEM gasket set.

But the hub is also a little wobbly. All the splines look fine, though. It must straighten out when it's tightened down.

I'll try the impact wrench, and hopefully it will be ok.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Splines
Splines
And splines. I guess the bolt holds it tight more than the splines.
And splines. I guess the bolt holds it tight more than the splines.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0205s ][ Queries: 4 (0.0046s) ][ live ][ 313 ][ ThingOne ]
