UTC quote
What paint did you use?
@chandlerman avatar
UTC

Innovator
63 GL, 62 VBB, 05 Stella, 66 Smallstate, 66 Lammy S3, 63 Lammy S3 Riverside
Joined: UTC
Posts: 11639
Location: Nashville

24 Days Since Last Explosion

Innovator
@chandlerman avatar
63 GL, 62 VBB, 05 Stella, 66 Smallstate, 66 Lammy S3, 63 Lammy S3 Riverside
Joined: UTC
Posts: 11639
Location: Nashville

24 Days Since Last Explosion
UTC quote
qascooter wrote:
What paint did you use?
Whatever was left in the picture from his prior post after he finished tagging up his hood. Razz emoticon
@charlieman22 avatar
UTC

Nedminder
62 VBB1T Round Tail W/ leaner sidecar
Joined: UTC
Posts: 4233
Location: california

Nedminder
@charlieman22 avatar
62 VBB1T Round Tail W/ leaner sidecar
Joined: UTC
Posts: 4233
Location: california
UTC quote
The painting tree.
We all have one.
The guy who bought my home probably wonders what kind of disease is causing the red/pea she and primer colors on his tree.
Could always just go darker gray over existing if you don't like?
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal
UTC quote
No comment on the color - depends on the wheels & rest of the scoot.

But since you've already done all the prep and paint, why not splash some 2K clear over it? Get a nice rock hard finish on there that'll hold up and be easy to clean.
@charlieman22 avatar
UTC

Nedminder
62 VBB1T Round Tail W/ leaner sidecar
Joined: UTC
Posts: 4233
Location: california

Nedminder
@charlieman22 avatar
62 VBB1T Round Tail W/ leaner sidecar
Joined: UTC
Posts: 4233
Location: california
UTC quote
Thumbs up on 2k clear.
Socal introduced me.
Hard a a rock - legit
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
It's rust oleum pro aluminum. I'm thinking I may add some regular gray on top to better match the fork
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 63 VBB (Storm)
Joined: UTC
Posts: 4949
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62), 63 VBB (Storm)
Joined: UTC
Posts: 4949
Location: Florence, OR
UTC quote
sdjohn wrote:
It's rust oleum pro aluminum. I'm thinking I may add some regular gray on top to better match the fork
Ahhh, I was wondering because I didn't remember the GL front end come out that aluminiumy
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Matches the powder coat on the fork and hub better. However, you ever get that can of spray paint that won't spray worth a shit no matter how much you shake it? You know, the one that could say "orange peel inside"? That's this can. It's a good thing this is not a high visibility part.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I tried to start my VBB fork. Didn't get so far. The loose bearings are a pain in the ass.
My progress….
My progress….
⚠️ Last edited by sdjohn on UTC; edited 1 time
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I am stumped on the small bearing side. Is 15982 the little washer shown on the axle in the second picture? And part 2007, it looks to go under the screw in cap on the assembly picture but not in the Paxton book. Is it different for VBB vs later?
Missing 15982 and 2007 it seems
Missing 15982 and 2007 it seems
Washer 15982 on the axle??? What's the scoop on the spacer, that photo looks like it's in the way of the cap?!?
Washer 15982 on the axle??? What's the scoop on the spacer, that photo looks like it's in the way of the cap?!?
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
to top it off, my order says I bought them ROFL emoticon

I'm gonna have to sleuth through my parts. Anyone have a size on 15982???

Bitsa bikes are a unique form of hell.
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I found 15982!
Gotcha!!
Gotcha!!
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Now I understand!
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I now have enough parts and answers to continue. I will need one of those 2007's, but I'm not placing an order yet…
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote

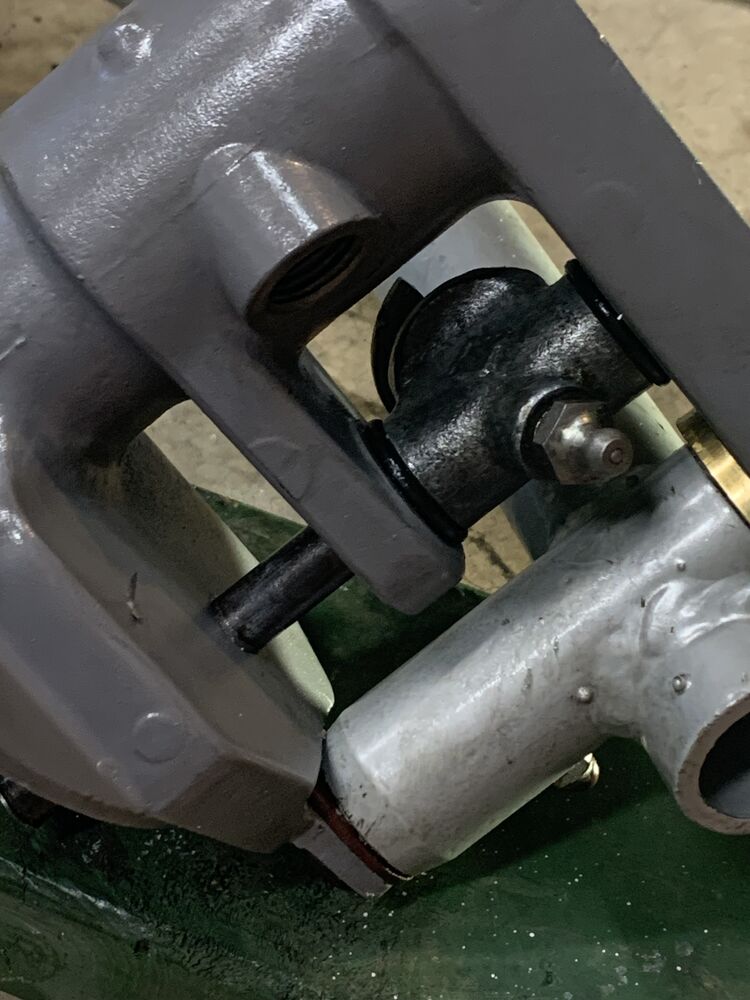

The original needle bearings for the pivot don't feel very smooth after assembly. Should I replace them with something like this kit from Mercato?
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
This big nut can't be right, or you can't get a socket on it. The smaller one I used was from the Allstate fork
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I think this is right?!? Seems weird to have a felt on the one side inside the spacer and nothing on the other side for a seal but that looks like the parts manual.
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Damnit, mounted backwards!
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Fixed
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
It's so frustrating I have no idea what some of this shit I ordered is, not each piece comes with a part number. What the hell is this?
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
It's the dust shield isn't it?!!
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Sacrificial lamb, good thing the Allstate fork had spare parts.
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
One step closer.
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
The Stoffi spring is a nightmare to get on. I tried a stock one and got it first or second try. I wrestled this bastard for like 1/2 hour or more. It's on. I hope I can get the fender bolts on.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Do these "ears" on the shock serve a purpose? With the Stoffi spring, they don't line up. I had it assembled but couldn't get it home against the pivot because they don't line up. I tried rotating the bush by using a drift against the ears but it won't easily rotate in the rubber. I can't for the life of me understand what purpose they serve. Can I just flip the shock around and mount it? (Edit nope it will be in the way of the nut ?!$&@) - suggestions?!? Dremel them off ?!?
Stupid ears don't line up
Stupid ears don't line up
Less pesky side
Less pesky side
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
Looks like this thread has some ideas, but I still don't understand what the tabs do…

Fronk shock
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62), 63 VBB (Storm)
Joined: UTC
Posts: 4949
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62), 63 VBB (Storm)
Joined: UTC
Posts: 4949
Location: Florence, OR
UTC quote
Hey John,

I think those tabs hold the suspension at a certain angle. I know I had to really compress everything to line the tabs up, then tighten it down. It was this way on both the 62 Allstate and the 63 GL.

I just remember it was a PITA and took a lot of fanangling....
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I'm thinking that to get them to line up as is, I would have to go back to a stock shock. This stiff one does appear to be a bit longer. I'm debating it, because the length may be a problem. I have a couple stock ones.
@108 avatar
UTC

Ossessionato
V range 50s
Joined: UTC
Posts: 2427

Ossessionato
@108 avatar
V range 50s
Joined: UTC
Posts: 2427
UTC quote
You can't turn the rubber bushing?
UTC

Ossessionato
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 2422
Location: Philadelphia

Ossessionato
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 2422
Location: Philadelphia
UTC quote
I had to clamp a 2x4 to the swing arm to install that part.
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal
UTC quote
john - the tabs are important. They determine the pre-load on the damper.

If it's absolutely impossible to get the tabs lined up, you can put the shock in the swing arm upside down and gently move the tabs to a better angle.
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
108 wrote:
You can't turn the rubber bushing?
I will try, there is a good suggestion in the thread I linked to rotate it around 180, do up the bolt and nut, then use that clamp load to allow you to turn the bushing a few degrees in the rubber.
@chandlerman avatar
UTC

Innovator
63 GL, 62 VBB, 05 Stella, 66 Smallstate, 66 Lammy S3, 63 Lammy S3 Riverside
Joined: UTC
Posts: 11639
Location: Nashville

24 Days Since Last Explosion

Innovator
@chandlerman avatar
63 GL, 62 VBB, 05 Stella, 66 Smallstate, 66 Lammy S3, 63 Lammy S3 Riverside
Joined: UTC
Posts: 11639
Location: Nashville

24 Days Since Last Explosion
UTC quote
FridayMatinee wrote:
I had to clamp a 2x4 to the swing arm to install that part.
This is how I've done it in the past as well. Makes it an easy job.
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
The more I think about it, the spring length won't matter. I was able to get both the top and the bottom bolts of the dampener in and the tabs still didn't line up. Shock length would just make that more of a bitch to install (yes) but the tabs need to rotate, regardless of which spring is in there.

I didn't have a nut for the lower bolt last night but I do now. I will try the rotate the bushing thing.
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
I'm beginning to see why the PX bikes are the workhorse of the vintage world Laughing emoticon
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal
UTC quote
Are you compressing the shock while you're installing it?
Forum member supplied image with no explanatory text
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
SoCalGuy wrote:
Are you compressing the shock while you're installing it?
I pushed it to the lowest travel by hand but I didn't use zip ties to make it go further. Can it go further? It's a stock shock, CIF.
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal
UTC quote
Don't know. I had to zip tie that SIP shock. No way it was going on otherwise.

Just don't rotate the bushing too far. The shock needs to travel in both directions.
OP
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
it's roughly as far off as yours was, maybe a bit less:
External inline image provided by member with no explanatory text
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7449
Location: So Cal
UTC quote
~ Welcome to the 8" World ~

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Modern Vespa is made possible by our generous supporters.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2025 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0289s ][ Queries: 6 (0.0163s) ][ live ][ 335 ][ ThingOne ]
