So I've been kinda on the hunt for a rusty Vespa project for the past few years. There were the two rust buckets that Modkuo posted up in Nor Cal, which I was interested in, but i already have a 1961 Allstate (VBB), so it would be essentially the same scooter. Plus those scooters were priced way too high for being windfalls. I was still jonesing for one though. I went over to my friend's house and showed him the pics of the two Nor Cal scooters on my phone. He looked at the pics, then looked at me, then looked at the pics, then looked at me, then looked at the pics one last time, then looked at me and said, "I got one of those. Do you want to go see it?" Duh! We drove right over to his storage unit and he pulled out an old rusty 1958 VB1T widebody. There was no engine, but all the body parts were there. I told him my vision for the scooter, and a deal was struck in a matter of 2 seconds.

He also said that he had a P200 in bits in his storage unit as well, sooooo I just had to buy that as well. The only thing I was interested in was the engine though...


EDIT: i just came across previous threads of mine regarding hydro disc brake conversion options...
Which fork to use for a 10" disc brake VB1?
P fork and headset on a PK
⚠️ Last edited by whodatschrome on Mon, 27 Mar 2023 20:54:12 +0000; edited 6 times
Sat, 30 Oct 2021 19:05:54 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Sat, 30 Oct 2021 19:05:54 +0000 quote
THIS is gonna be good....

Did you get a gas tank with it?

Pretty hard to find, but this might work:

https://www.scootermercato.com/Scooter-Parts/Used-Parts/VL3-Tank
Sat, 30 Oct 2021 19:15:29 +0000

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: Tue, 24 Apr 2012 23:44:25 +0000
Posts: 1342
Location: Deep in the heart of Texas

Molto Verboso
GL, PK, PE200 with hack, Sears Rust Badge
Joined: Tue, 24 Apr 2012 23:44:25 +0000
Posts: 1342
Location: Deep in the heart of Texas
Sat, 30 Oct 2021 19:15:29 +0000 quote
Sat, 30 Oct 2021 19:24:25 +0000

Veni, Vidi, Posti
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: Fri, 05 Apr 2013 02:54:23 +0000
Posts: 7882
Location: San Diego, CA

Veni, Vidi, Posti
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: Fri, 05 Apr 2013 02:54:23 +0000
Posts: 7882
Location: San Diego, CA
Sat, 30 Oct 2021 19:24:25 +0000 quote
Very cool, I think you made out well here!
Sat, 30 Oct 2021 19:44:48 +0000

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: Wed, 11 Jan 2006 15:25:08 +0000
Posts: 3994
Location: Florence, OR

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: Wed, 11 Jan 2006 15:25:08 +0000
Posts: 3994
Location: Florence, OR
Sat, 30 Oct 2021 19:44:48 +0000 quote
SCORE! It always pays off to tell people what you're up to, cause you never know....

Watching....
OP
Sat, 30 Oct 2021 20:09:36 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 30 Oct 2021 20:09:36 +0000 quote
Yeah, so you've probably guessed my plan is to find a widebody engine and swap it into a P frame...


Nah, this VB1 frame is rusty enough that I won't feel bad stuffing a P200 engine in it. So I'm after two things with this build, having a stock P200 engine and a full hydro disc brake up front. I'll probably switch over to 10" rims as well. I like having the extra ground clearance.
OP
Sat, 30 Oct 2021 20:19:50 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 30 Oct 2021 20:19:50 +0000 quote
V oodoo wrote:
THIS is gonna be good....

Did you get a gas tank with it?

Pretty hard to find, but this might work:

https://www.scootermercato.com/Scooter-Parts/Used-Parts/VL3-Tank
Alas no tank came with it. I checked out the one in your link. It would definitely match the rust....errr patina on the VB1, but I'm REALLY leaning towards going after an oversized 6 Days repop tank.

I cut out the floor under the tunnel since it was so dang rotted out. I'll definitely be following your lead on using a large sheet of metal (Probably Aluminium) bolted up underneath.

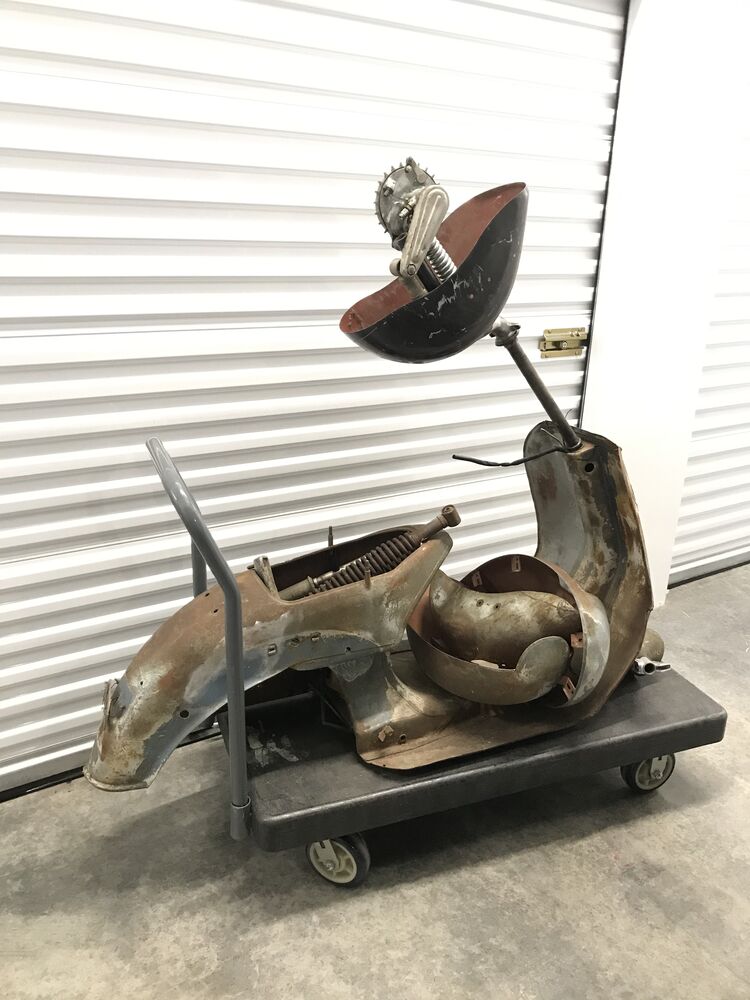

This pic is after I cut out the floor and blasted EVERYTHING for about 45 minutes with my pressure washer. It removed tons of flaky rust. I'll come back with a wire wheel, pressure wash it again, then start pouring on the Ospho.
Sat, 30 Oct 2021 21:33:21 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Sat, 30 Oct 2021 21:33:21 +0000 quote
Looks familiar, you gonna put in that P200 motor?

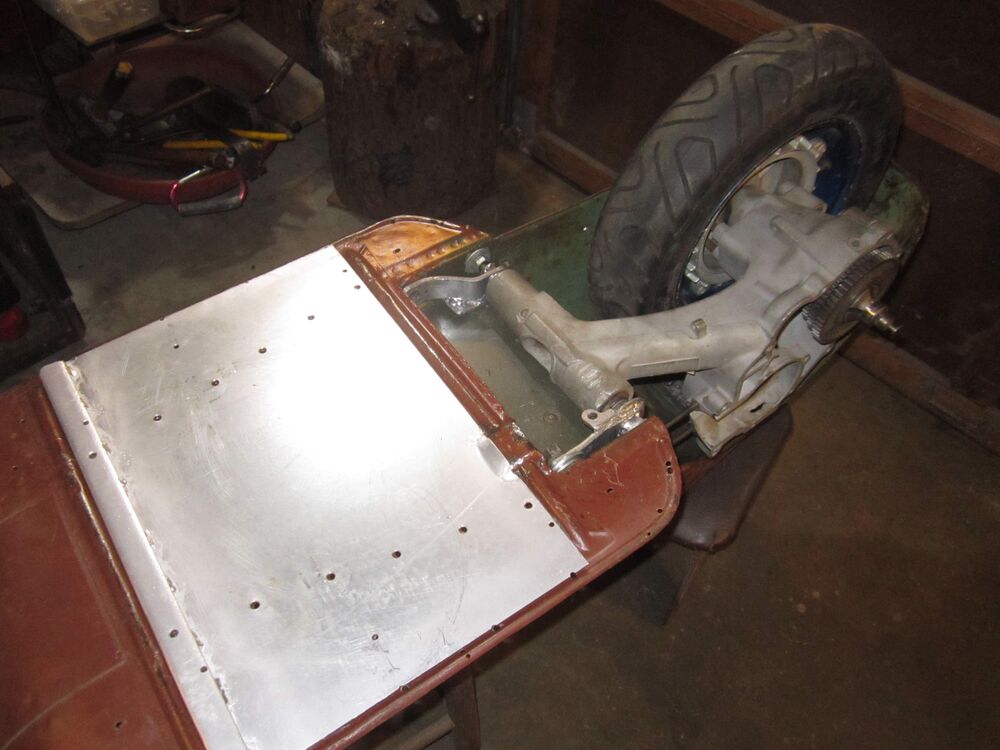

You can see the motor mount I made for 'modern' GL150 motor I used.
Reinforced 16 ga galvanized steel cover bolted on.
OP
Sat, 30 Oct 2021 22:24:17 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 30 Oct 2021 22:24:17 +0000 quote
I'll actually remove the non-oiler P200 that's in my 61 Allstate 200, swap that into this VB1, then rebuild this new to me auto-lube 200 and toss it back into my Allstate 200 (and install an oil reservoir).

Thanks for those floorboard and engine mount pics. I'm trying to decide if I want to fab up my own conversion engine mount, or go the chicken route and simply buy a pre made one. I think the only difficult part is the trial and error of where exactly to position the engine.
Sat, 30 Oct 2021 23:48:46 +0000

Molto Verboso
bare metal cafe racer
Joined: Fri, 01 Sep 2017 22:23:57 +0000
Posts: 1379
Location: Aotearoa (New Zealand)

Molto Verboso
bare metal cafe racer
Joined: Fri, 01 Sep 2017 22:23:57 +0000
Posts: 1379
Location: Aotearoa (New Zealand)
Sat, 30 Oct 2021 23:48:46 +0000 quote
whodatschrome wrote:
Yeah, so you've probably guessed my plan is to find a widebody engine and swap it into a P frame...


Nah, this VB1 frame is rusty enough that I won't feel bad stuffing a P200 engine in it. So I'm after two things with this build, having a stock P200 engine and a full hydro disc brake up front. I'll probably switch over to 10" rims as well. I like having the extra ground clearance.
I've heard that the fork angle on the widebodies is pretty steep making them twitchy when upgrading the bhp etc. guessing you could solve that if it really is an issue when modifying a fork?
Sun, 31 Oct 2021 00:18:08 +0000

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: Sat, 21 Jul 2018 00:30:56 +0000
Posts: 4110
Location: Staten Island, NY

Ossessionato
P208, Stella VMC Stelvio 187, Stella 150, VNX1T, V9A1T, V9B1T, 02 Sportster XLH1208
Joined: Sat, 21 Jul 2018 00:30:56 +0000
Posts: 4110
Location: Staten Island, NY
Sun, 31 Oct 2021 00:18:08 +0000 quote
Can't wait to see the vb1t done!

Another maroon p200. makes me wonder if they sold any other p200 color in the US!
Sun, 31 Oct 2021 00:37:25 +0000

Not So Moderator
VNB VSC 09C VMA VSX - vbc vmb
Joined: Wed, 28 May 2008 17:31:07 +0000
Posts: 7460
Location: Hustletown, TX

Not So Moderator
VNB VSC 09C VMA VSX - vbc vmb
Joined: Wed, 28 May 2008 17:31:07 +0000
Posts: 7460
Location: Hustletown, TX
Sun, 31 Oct 2021 00:37:25 +0000 quote
swiss1939 wrote:
Another maroon p200. makes me wonder if they sold any other p200 color in the US!
Silver with bad paint!


Looking forward to watching this one!
OP
Sun, 31 Oct 2021 00:45:23 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 00:45:23 +0000 quote
Fresh out of the storage unit!
Sun, 31 Oct 2021 02:15:36 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Sun, 31 Oct 2021 02:15:36 +0000 quote
Great patina, I certainly hope you're not thinking of painting that original beauty...


couldn't resist
OP
Sun, 31 Oct 2021 02:39:10 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 02:39:10 +0000 quote
V oodoo wrote:
Great patina, I certainly hope you're not thinking of painting that original beauty...


couldn't resist
No way Jose! No painting whatsoever is allowed. That rust is staying put. In fact it might even grow a bit since I'm located in the PAC NW.
Sun, 31 Oct 2021 02:40:40 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Sun, 31 Oct 2021 02:40:40 +0000 quote
A few more detail shots to help you decide. This is heavier than the one SIP has and not that hard to make. I can get you a few dimensions if you like
Sun, 31 Oct 2021 02:44:58 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Sun, 31 Oct 2021 02:44:58 +0000 quote
Well okay.... best get a fresh tetanus shot and avoid toney places
(Jose, eh, not Yanni? )

I have some pics of the shock mount you'll need to make too, I'll take a look.
⚠️ Last edited by V oodoo on Sun, 31 Oct 2021 02:50:16 +0000; edited 1 time
OP
Sun, 31 Oct 2021 02:46:30 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 02:46:30 +0000 quote
I pressure washed the ever living heck out of the engine this evening. I wasn't concerned about getting any of the internal bit wet since I was going to disassemble the engine right away. I did remove the stator before I pressured washed though. So I set all my tools next to the engine and hit the stop watch...
OP
Sun, 31 Oct 2021 02:52:30 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 02:52:30 +0000 quote
...7 minutes 29 seconds later the cases were split.


12 minutes 58 seconds in and it was disemboweled.
OP
Sun, 31 Oct 2021 03:17:39 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 03:17:39 +0000 quote
The whole transmission looks to be in excellent shape! There quite a bit of slop in the gear stack. I'll have to see what all I have for shims. The only wear I see is two little nicks on the 4th gear...which is perfect since I was planning on replacing that 35T 4th with a 36t short 4th gear anyhow! Even the shift cross is in great shape. I will replace the cross with a fancier DRT (or equivalent) version.

The piston has scoring on all 7 sides of it, so out it will go. The crank looks great too...well except for a slight rust ring where it rode on the flyside oil seal. I should be able to polish it out with some 500 grit sandpaper.

The engine has a 20/20 carb on it, so I'll have to swap a 24/24 on it for sure. I forgot to check to see what cylinder head is on it, but since it has a 20/20 carb, I'm betting it has the less desirable USA head. If that's the case I might splurge and buy a SIP machined zero squish head. We'll see how much $$$ is left before I start pumping too many dollars into it.


So it looks like the only things that will need replacing are;
-piston (GS)
-crank bearings
-4th gear (36T P125)
-seal kit
-gasket kit
-cruciform (DRT)
-DRT clutch nut
-magnetic oil drain plug (GS)
-primary rebuild kit
Sun, 31 Oct 2021 12:10:35 +0000

Ossessionato
2007 Stella 225
Joined: Sat, 02 Nov 2019 20:44:07 +0000
Posts: 3522
Location: Rochester, Minnesota

Ossessionato
2007 Stella 225
Joined: Sat, 02 Nov 2019 20:44:07 +0000
Posts: 3522
Location: Rochester, Minnesota
Sun, 31 Oct 2021 12:10:35 +0000 quote
We should get our new resident machinist to make a jig, so he can cut heads down for us. I was thinking a plate with four studs and adjustable nuts to level up a head to machine it. Maybe hold down clamps on the edges to keep it snug to the studs?
Sun, 31 Oct 2021 12:32:40 +0000

Moderibbit
1980 P200E - "Old Rusty", 1976 ET3 Primavera
Joined: Thu, 12 Jun 2008 14:04:57 +0000
Posts: 8892
Location: Atlanta, GA

Moderibbit
1980 P200E - "Old Rusty", 1976 ET3 Primavera
Joined: Thu, 12 Jun 2008 14:04:57 +0000
Posts: 8892
Location: Atlanta, GA
Sun, 31 Oct 2021 12:32:40 +0000 quote
I love this thread
OP
Sun, 31 Oct 2021 14:04:22 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sun, 31 Oct 2021 14:04:22 +0000 quote
Christopher_55934 wrote:
We should get our new resident machinist to make a jig, so he can cut heads down for us. I was thinking a plate with four studs and adjustable nuts to level up a head to machine it. Maybe hold down clamps on the edges to keep it snug to the studs?
That would be nice. No machine shops around in my parts are set up to machine cylinder heads. The other nice thing about the SIP version is that i has an O-ring in the head.
Sun, 31 Oct 2021 21:48:54 +0000

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC
Sun, 31 Oct 2021 21:48:54 +0000 quote
Cool project Whodats! Love me some VB1. I have a '58 I'll get back to building on of these days. Similar in patina too.

So, just incase you're thinking of it; I do have a spare engine to fit your VB1; well - atleast a headstart on one: cases, swingarm, misc internal bits. HmU if you want to know more.

Good luck!
OP
Mon, 01 Nov 2021 01:38:25 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Mon, 01 Nov 2021 01:38:25 +0000 quote
GeekLion wrote:
Cool project Whodats! Love me some VB1. I have a '58 I'll get back to building on of these days. Similar in patina too.

So, just incase you're thinking of it; I do have a spare engine to fit your VB1; well - atleast a headstart on one: cases, swingarm, misc internal bits. HmU if you want to know more.

Good luck!
Thank you for the offer, but i'm definitely going with a stock 200 engine. I'd like to stick with only a specific generation of Vespa engines (P/PX200's) so that i can have a large stock of parts that will fit ALL my Vespa scooters. That philosophy has been working pretty darn well for me over the years.
Mon, 01 Nov 2021 02:04:02 +0000

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: Sun, 23 Aug 2020 21:02:46 +0000
Posts: 1687
Location: Philadelphia

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: Sun, 23 Aug 2020 21:02:46 +0000
Posts: 1687
Location: Philadelphia
Mon, 01 Nov 2021 02:04:02 +0000 quote
This is perfect. I love this so much. I hope to find a VB1 one day too. Gonna pop some popcorn and enjoy this one.
Mon, 01 Nov 2021 03:52:21 +0000

Molto Verboso
71' Sprint Veloce , 05' Vespa PX150, 1978 P200E
Joined: Mon, 04 Jul 2011 21:54:36 +0000
Posts: 1429
Location: Tucson, AZ

Molto Verboso
71' Sprint Veloce , 05' Vespa PX150, 1978 P200E
Joined: Mon, 04 Jul 2011 21:54:36 +0000
Posts: 1429
Location: Tucson, AZ
Mon, 01 Nov 2021 03:52:21 +0000 quote
My take on this is that I cheer every time that I see another Vespa back on the road. The fact that thanks God we have sources of parts for just about every replacement that we need this is already a good reason to go out there and hunt for a vespa.

Kudos to you for rescuing another vintage vespa.
Mon, 01 Nov 2021 03:59:51 +0000

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: Thu, 26 Sep 2013 22:01:08 +0000
Posts: 6975
Location: So Cal

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: Thu, 26 Sep 2013 22:01:08 +0000
Posts: 6975
Location: So Cal
Mon, 01 Nov 2021 03:59:51 +0000 quote
Cheering you on brother.
OP
Mon, 01 Nov 2021 06:16:10 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Mon, 01 Nov 2021 06:16:10 +0000 quote
V oodoo wrote:
Well okay.... best get a fresh tetanus shot and avoid toney places
(Jose, eh, not Yanni? )

I have some pics of the shock mount you'll need to make too, I'll take a look.
So how far back did you position the engine swingarm holes (measurements in "on center")? And what where did you offset it to the left and right? Making my own brackets would be too difficult, but figuring out exactly where to position the engine might be. That's why i was looking at buying a SIP conversion engine mount bracket. But i'm sure if i did that, i'd probably end up cutting and modifying it a little bit. I'm also reading that with the SIP bracket, the rear wheel will need to be mounted on backwards in order to get the correct offset on the engine. I'm guess so that there's less cutting that needs to be done to the scooter frame? I'm not really concerned about slicing and dicing into something that's won't ever be concours d'elegance.


I had no idea until i just looked it up...turns out Yanni is Greecenese! Now it's all making sense
Mon, 01 Nov 2021 06:44:09 +0000

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens

Style Maven
'74 50s x3 '78 P200 E '84 Cosa '91 PK50XL2 - & - '58 AllState '68 Sprint '66(?) Super125 and '72 DanMotor Super150
Joined: Tue, 23 Nov 2010 02:37:37 +0000
Posts: 9414
Location: seattle/athens
Mon, 01 Nov 2021 06:44:09 +0000 quote
I'll get some measurements and take a few more pics. I think it would also be useful to ask GeekLion for wheel center to pivot center distance to verify difference to P motor for your new hole locations. I didn't do that and I'll get the sideways offset best I can, I think I had to just go as far as I could but not sure how close to 'correct'. I still have a too long P fork Mickey Moused in it and never have ridden it fast .



Project thread: vee bee one- got gas gauge, almost got seat!
Mon, 01 Nov 2021 07:22:46 +0000

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC
Mon, 01 Nov 2021 07:22:46 +0000 quote
whodatschrome wrote:
Thank you for the offer, but i'm definitely going with a stock 200 engine. I'd like to stick with only a specific generation of Vespa engines (P/PX200's) so that i can have a large stock of parts that will fit ALL my Vespa scooters. That philosophy has been working pretty darn well for me over the years.
I love this strategy. Fully interchangable spare parts for days and days
OP
Sat, 13 Nov 2021 00:11:03 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 00:11:03 +0000 quote
I found some slight pitting of rust on the crankshaft, RIGHT where the flyside oil seal rides. Arrrg!
OP
Sat, 13 Nov 2021 00:15:12 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 00:15:12 +0000 quote
But I did get a care package from SIP this today! The cylinder and the new GS piston are currently at the machine shop, either getting a bore or a hone.

I got the primary rebuilt with a DRT spring kit.
OP
Sat, 13 Nov 2021 00:21:21 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 00:21:21 +0000 quote
The P200 4th gear (35 tooth) that was in the engine had a couple nicks in it, so I had to buy a new one. I decided to use a short (36 tooth) 4th that's from a P125 gearbox. The cruciform had very little wear, but whenever you split a case you have to take the opportunity to change it out! I decided to try out a harder DRT cross.
⚠️ Last edited by whodatschrome on Sat, 13 Nov 2021 01:26:07 +0000; edited 1 time
OP
Sat, 13 Nov 2021 00:26:33 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 00:26:33 +0000 quote
And since I needed a new crank, well...I decided to try out a 60mm long stroke! I'll be using the stock top end on this engine. Maybe I can get away with using the stock USA cylinder head? I dunno yet.

The crank looks way lots more nice than the stock 57mm version.
⚠️ Last edited by whodatschrome on Wed, 09 Nov 2022 06:27:24 +0000; edited 1 time
Sat, 13 Nov 2021 04:01:29 +0000

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC

The Dude
Too Many piles of Junk that need too much work and too much money
Joined: Mon, 06 May 2019 08:34:14 +0000
Posts: 1643
Location: PNW from LBC
Sat, 13 Nov 2021 04:01:29 +0000 quote
Good stuff here. Bummer about the crank corrosion, but good opportunity to upgrade. Looks like the SIP 60m stroke crank is very nice. I am looking at these cranks for my Patina200E; which I'll be doing a similar build on. Interesting how they altered the machining for the intake opening web. You should be able to use the stock USA head, as the 60m stroke should give 0.0 squish, then just shim the head to where you want it.
Sat, 13 Nov 2021 04:56:13 +0000

Veni, Vidi, Posti
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: Fri, 05 Apr 2013 02:54:23 +0000
Posts: 7882
Location: San Diego, CA

Veni, Vidi, Posti
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: Fri, 05 Apr 2013 02:54:23 +0000
Posts: 7882
Location: San Diego, CA
Sat, 13 Nov 2021 04:56:13 +0000 quote
Honestly I'd consider using some emery cloth on that crank to smooth it and try running it. But no biggie.
OP
Sat, 13 Nov 2021 05:03:59 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 05:03:59 +0000 quote
GeekLion wrote:
Good stuff here. Bummer about the crank corrosion, but good opportunity to upgrade. Looks like the SIP 60m stroke crank is very nice. I am looking at these cranks for my Patina200E; which I'll be doing a similar build on. Interesting how they altered the machining for the intake opening web. You should be able to use the stock USA head, as the 60m stroke should give 0.0 squish, then just shim the head to where you want it.
And that's exactly how i'm having to look at buying that new SIP crank. But that corroded crank is sooooo close to being a keeper though! The SIP cranks looks to be a much more efficient design with that "knife" edge that it has. The con-rod is pretty darn nice as well. The last P200 engine i built has a stock squish of 3.8mm! so it should be interesting to see what my initial squish will be. The guy at the machine shop might be finished with the hone/bore (not sure which i'm getting. I'll leave that up to him) on my cylinder this weekend.

I'm really interested to see how much more torque the long stroke will give me. I guess there's no real "apples to apples" testing though. Since the long stroke will give me an actual squish, i should get a bit more power out of it by just having that squish. I'm also really curious what my ending cylinder head compression will be once i set my squish. I guess i'll just have to wait and see!

I live where there's lots of hills and headwinds, so having that short 4th gears REALLY helps out my scooters big time.

My widebody engine mount adapter has been stuck in customs for the past week and a half, so i'm still waiting on that. I did do a little bit more pressure washing of the rust a couple days ago. The scooter got a little bit lighter weight...
OP
Sat, 13 Nov 2021 05:07:27 +0000

parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699


parallelogramerist
Joined: Mon, 26 Oct 2015 23:20:12 +0000
Posts: 4699

Sat, 13 Nov 2021 05:07:27 +0000 quote
sdjohn wrote:
Honestly I'd consider using some emery cloth on that crank to smooth it and try running it. But no biggie.
You're probably right John. I might also be able to simply just press the fly side seal in a little bit further in order to miss the pitting? I did a very quick sand with a piece of 500 grit paper that was floating around on the floor of my shop. I think some actual emery cloth would fix it....but it was a really good excuse to buy a 60mm crank! I spent a fair amount of time (and a few $$$) to get a 1.4mm squish on my last P200 engine build. I used a 57mm crank, had to mill the top of my cast iron cylinder down, through in some extra gaskets, buy a MMW zero squish head, and reprofile the cylinder head's combustion chamber in order to lower the compression. My thought (hope?) is that a 60mm crank will let me bypass a few of those steps.
⚠️ Last edited by whodatschrome on Sat, 13 Nov 2021 05:14:10 +0000; edited 1 time
Sat, 13 Nov 2021 05:12:21 +0000

Nedminder
62 VBB1T Round Tail W/ leaner sidecar
Joined: Sat, 26 Jan 2019 09:50:15 +0000
Posts: 3868
Location: california

Nedminder
62 VBB1T Round Tail W/ leaner sidecar
Joined: Sat, 26 Jan 2019 09:50:15 +0000
Posts: 3868
Location: california
Sat, 13 Nov 2021 05:12:21 +0000 quote
Just catching up on this one and joining the party.
Whodat! U gotta round tail wide body - by which I am of course referring to the scooter.
Looks to be about same shape as mine.
Like your gas tank solution.
Haven't decided what I will do to try amd recover what's left of mine - which is mostly dust…

Great project.
  DoubleGood Design

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

All Content Copyright 2005-2023 by Modern Vespa. All Rights Reserved.

[ Time: 0.0460s ][ Queries: 4 (0.0209s) ][ Debug on ][ 297 ][ Thing Two ]
