Hello,

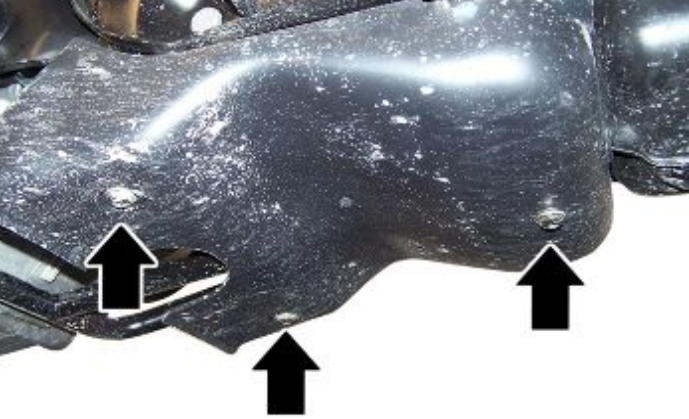

I would like help in finding the part number for the plastic lower cover ( three screws ) underneath the engine ( 2018 Mp3 500 ), mine is missing and I would like to replace it, I don`t have the old part to get a part number off. I looked through the parts diagrams but could not find it. I will be impressed if anyone knows the number of hand but if anyone is doing work in that area and could find the part number, I would appreciate it. A piaggio dealer was phone but was told I would need a part number to order it ( no help there then ), any help will be appreciated.



Fri Nov 05, 2021 9:04 pm

Hooked
50cc Beo, MP3 400 2012, BigBeo 2003
Joined: 30 May 2015
Posts: 368
Location: Chelyabinsk, Russia

Hooked
50cc Beo, MP3 400 2012, BigBeo 2003
Joined: 30 May 2015
Posts: 368
Location: Chelyabinsk, Russia
Fri Nov 05, 2021 9:04 pm linkquote
For my 2012 mp3 400 it is 653293.
Fri Nov 05, 2021 9:59 pm

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England
Fri Nov 05, 2021 9:59 pm linkquote
Thank you for your reply, The part number does not seem to come up for my bike even though your part number gave me " Lower Spoiler Closure " to look for but still no luck. Did you find the part number on a parts diagram, if so under what heading was it under so I may look on my bike's parts diagram. I appreciate your help.
Fri Nov 05, 2021 10:09 pm

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England
Fri Nov 05, 2021 10:09 pm linkquote
The Piaggio parts site said your part number is not for my bike,,fowlersparts.co.uk says not for my bike but motorcyclespareparts.eu list the part number ok for the 2018 MP3 500 SPORT ABS (USA) which I assume is the same as my UK bike.
Fri Nov 05, 2021 10:40 pm

Hooked
50cc Beo, MP3 400 2012, BigBeo 2003
Joined: 30 May 2015
Posts: 368
Location: Chelyabinsk, Russia

Hooked
50cc Beo, MP3 400 2012, BigBeo 2003
Joined: 30 May 2015
Posts: 368
Location: Chelyabinsk, Russia
Fri Nov 05, 2021 10:40 pm linkquote

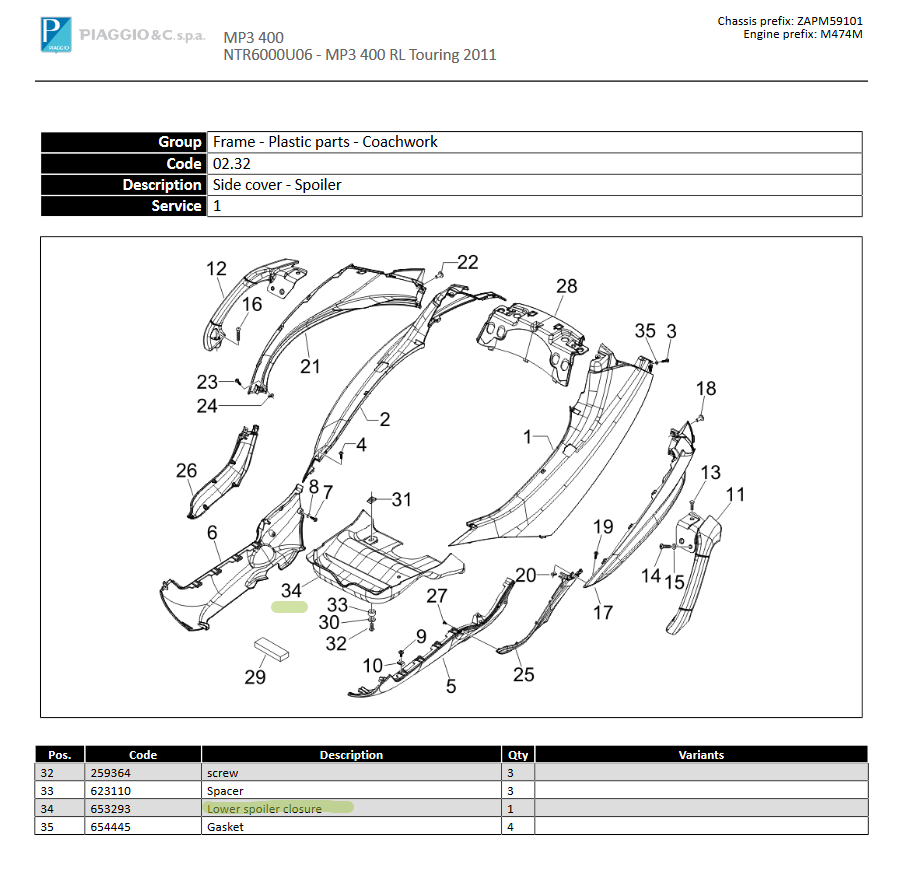

Here



Sat Nov 06, 2021 7:10 am

Ossessionato
Gilera Fuoco 500ie
Joined: 11 Oct 2009
Posts: 4330
Location: Netherlands Olst

Ossessionato
Gilera Fuoco 500ie
Joined: 11 Oct 2009
Posts: 4330
Location: Netherlands Olst
Sat Nov 06, 2021 7:10 am linkquote
a abs dont have it any more you can fit one but you need the vbracket also
Sat Nov 06, 2021 4:11 pm

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England

Member
2018 Mp3 500 LT Sport ABS
Joined: 21 Sep 2021
Posts: 24
Location: England
Sat Nov 06, 2021 4:11 pm linkquote
Thank you, Jah, and Maksor, it is not shown in the parts diagram for my bike because , as Maksor said, they do not fit it to the ABS model and I did not think to look at a parts diagram for an earlier model, but think I will order one anyway as the V-Bracket is already fitted. I appreciate your help.
