UTC

Molto Verboso
'07 GTS250, '07 LX150, '81 P200E, '78 P200E, '64 V90 and 3 Ciaos
Joined: UTC
Posts: 1177
Location: Tucson, AZ

Molto Verboso
'07 GTS250, '07 LX150, '81 P200E, '78 P200E, '64 V90 and 3 Ciaos
Joined: UTC
Posts: 1177
Location: Tucson, AZ
UTC quote
SaFiS wrote:
The 6305 is 25x62x17mm…

Since they're crank bearings they usually have special codes…

Personally I buy Japanese NTN bearings for the clutch side. OEM code is SC0563 and it's a crank specific bearing with 9 balls…
Chris is right, my bad. NTN is a good option!

SKF and NTN also list the code as 98305. That looks to have 8 balls, though.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Finally stopped putting off my rotary pad repair. Used the old crank and 2 layers of waxed paper bolted into the case until the JB weld set up. Enlarged the id/reduced the od of the old bearing to make it easier to get the crank in and out.

Swapped the old bearing race onto the new crank and checked clearance with the pad. No issues. The fit of the old crank was pretty sloppy compared to the new one.

Bearings arrive Tuesday. Glad I ordered a set as I don't want to reuse the old bearing race on the new crank. Pretty sure you're not supposed to do that.

Also chamfered the ports on the new cylinder.

Boring and tedious work, but I think the pad repair came out better than last time. From this point it should be a straightforward reassembly. Then I can finally finish the 200.
Forum member supplied image with no explanatory text
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
New crank and bearings are in and everything is turning smoothly with case halves test fitted.

Thought I was getting near the finish line, but when putting together the gear stack with the new short forth, the endplay is really tight. I could barely shove a couple .005" feeler gauges in there. Should be .006"-.016". I wouldn't sweat it, but it feels tight. The new short 4th is 1mm wider.

Shim is 1.9mm, the ones available are all thicker.

Thinking of taking the shim down a little on the surface plate with some fine grit sandpaper. This would fix the end play but I'm not sure if the thicker fourth will cause problems. I imagine this has happened before.
Forum member supplied image with no explanatory text
@bajarob avatar
UTC

Addicted
1961 VS5T, 1981 P200E, Rigid Frame Chopper, 2001 Harley FXDXT
Joined: UTC
Posts: 933
Location: Ventura, CA

Addicted
@bajarob avatar
1961 VS5T, 1981 P200E, Rigid Frame Chopper, 2001 Harley FXDXT
Joined: UTC
Posts: 933
Location: Ventura, CA
UTC quote
orwell84 wrote:
New crank and bearings are in and everything is turning smoothly with case halves test fitted.

Thought I was getting near the finish line, but when putting together the gear stack with the new short forth, the endplay is really tight. I could barely shove a couple .005" feeler gauges in there. Should be .006"-.016". I wouldn't sweat it, but it feels tight. The new short 4th is 1mm wider.

Shim is 1.9mm, the ones available are all thicker.

Thinking of taking the shim down a little on the surface plate with some fine grit sandpaper. This would fix the end play but I'm not sure if the thicker fourth will cause problems. I imagine this has happened before.
I just finished fitting mine and I don't think I have any fingerprints left. 😝 It was a bitch to do.
UTC

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: UTC
Posts: 4599
Location: London UK

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: UTC
Posts: 4599
Location: London UK
UTC quote
orwell84 wrote:
New crank and bearings are in and everything is turning smoothly with case halves test fitted.

Thought I was getting near the finish line, but when putting together the gear stack with the new short forth, the endplay is really tight. I could barely shove a couple .005" feeler gauges in there. Should be .006"-.016". I wouldn't sweat it, but it feels tight. The new short 4th is 1mm wider.

Shim is 1.9mm, the ones available are all thicker.

Thinking of taking the shim down a little on the surface plate with some fine grit sandpaper. This would fix the end play but I'm not sure if the thicker fourth will cause problems. I imagine this has happened before.
Sounds perfect. If the gears spin freely, it's enough to run in the new cog.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Jack221 wrote:
Sounds perfect. If the gears spin freely, it's enough to run in the new cog.
Thanks,

For a minute I considered skipping the short fourth.

I will check it again, but it feels a little on the tight side. I will sand the shim until the cogs spin freely and check how they mesh with the X-mas tree. If everything lines up as it should then I'll button it up and check shifting by spinning the wheel and shifting with the batwing on the selector box.

Hopefully all goes better this time; new crank, P and C, rings, wrist pin and a better job on the rotary pad. And the autolube works fine. Having a crank with straight stumps should help with the vibration.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Corrected the end play and got the gear box together.

Do these look like they are lining up properly with the x-mass tree?
Forum member supplied image with no explanatory text
@bajarob avatar
UTC

Addicted
1961 VS5T, 1981 P200E, Rigid Frame Chopper, 2001 Harley FXDXT
Joined: UTC
Posts: 933
Location: Ventura, CA

Addicted
@bajarob avatar
1961 VS5T, 1981 P200E, Rigid Frame Chopper, 2001 Harley FXDXT
Joined: UTC
Posts: 933
Location: Ventura, CA
UTC quote
orwell84 wrote:
Corrected the end play and got the gear box together.

Do these look like they are lining up properly with the x-mass tree?
Your gear stack looks great. They don't need to be perfectly centered. What matters most is where the cruciform ends up at each shift point.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Thanks. They never seem to end up centered. I'm just gonna button it up. Confirmed the shaft is bottomed out. Phone camera is the best thing that ever happened to engine builders with bad eyesight.
Forum member supplied image with no explanatory text
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Buttoned up the case last night and measured my new cylinder just out of curiosity. I thought my old cylinder was wearing out with the piston bore clearance measuring something like .0085" or so, but the new one measures about the same. I guess they were designed to run with a lot of clearance.

I'm not sure if I have a 12HP version. According to FMP, the difference is the height of the exhaust port; 39mm (for the 12HP) vs 41 to the top of the cylinder. Mine measures 38.5mm.

I have a lot of respect for the stock design. It's almost as if it was engineered with the expectation that things would not be perfect; a little air leak, some oil sucking or dripping and ballpark timing. A couple soft seizes wouldn't kill it. They knew that some people would run it wide open all day long, but they would never be able to spin it fast enough to break it. It seems pretty insensitive to small changes in jetting. The genius of a cheap and sloppy mass produced engine.

Hoping to finish it up today and bolt it into the p200 this weekend. This project has taken way longer than expected with unexpected setbacks and juggling another scooter, a bus and the rest of life.

I'm still really enjoying it though, which is how I know I should keep going.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
orwell84 wrote:
I'm not sure if I have a 12HP version. According to FMP, the difference is the height of the exhaust port; 39mm (for the 12HP) vs 41 to the top of the cylinder. Mine measures 38.5mm.
And *that* is why you always have to do your own measurement versus trusting what the promised port timings are.

I agree on how various design decisions accounted for poor manufacturing or maintenance quality, along with expected poor treatment by the owners.

A lot of tuning is just wiping away those buffers, producing a more efficient/powerful motor, but with the resulting loss of resilience.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
chandlerman wrote:
And *that* is why you always have to do your own measurement versus trusting what the promised port timings are.

I agree on how various design decisions accounted for poor manufacturing or maintenance quality, along with expected poor treatment by the owners.

A lot of tuning is just wiping away those buffers, producing a more efficient/powerful motor, but with the resulting loss of resilience.
I liked your tuning overview a lot. A certain level of tune doesn't have to be unreliable, but more details have to be just right and stay that way. Air leaks for starters. A tight engine is critical. And just because it was tight on the bench, doesn't mean it will stay that way as I have learned more than once. Cheaper parts and materials that will hold up forever on a stock engine just won't cut it when the HP and heat go up. And it's all in the combo.
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
chandlerman wrote:
And *that* is why you always have to do your own measurement versus trusting what the promised port timings are.

I agree on how various design decisions accounted for poor manufacturing or maintenance quality, along with expected poor treatment by the owners.

A lot of tuning is just wiping away those buffers, producing a more efficient/powerful motor, but with the resulting loss of resilience.
Not to hi-jack here - apologies to Orwell - but this is why I asked the question awhile back about the "O-tune". It may be that I get into the engine during the cold months as I don't expect the 1980 P200 seals of my new to me scoot to last forever. If it happens, a soft rebuild would be order with checking and shimming stuff along the way. But the ability to tweak the engine for efficiency remaining in stock form (no aftermarket top ends, reed setup, etc...) would be desirable while the engine is taken apart. Until then, I'll just keep taking notes. Who knows, I may ever learn something with this old brain of mine.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
Tierney wrote:
Not to hi-jack here - apologies to Orwell - but this is why I asked the question awhile back about the "O-tune". It may be that I get into the engine during the cold months as I don't expect the 1980 P200 seals of my new to me scoot to last forever. If it happens, a soft rebuild would be order with checking and shimming stuff along the way. But the ability to tweak the engine for efficiency remaining in stock form (no aftermarket top ends, reed setup, etc...) would be desirable while the engine is taken apart. Until then, I'll just keep taking notes. Who knows, I may ever learn something with this old brain of mine.
Scott (QAScooter) did this on one of his P200's and added like 5 MPH of top end and noticeable acceleration/power compared to stock, yet he's still able to ride it WOT all over the Oregon coast without issues.

And he didn't even do anything particularly aggressive (e.g. no adjusting port heights or the like).

When I put the Malossi 210 on my P200 motor, all I did was clean up the intake and match the ports. No intake timing mods or anything and that was enough to get me from stock to about 16 or 17 HP.

With the P200's in particular, there's SOOOOO much easy performance to be gained from just improving the overall build quality and tweaking the port timings within the massive squish of a stock crank.
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
I have read thru the thread by Scott (QAScooter) about all the work he did on Ruby and have it bookmarked so I can find it again easily. Lots of good stuff there and I am so appreciative of that write up. Any work that may happen is months out as there are too many things going on here now, but that's alright as have time to compile all these ideas. The only mod I may do now is find a 24/24 carb to replace the 20/20. Whether it will make any difference, I don't know. SDjohn did not seem to think so with a stock engine. Thanks for your reply, Chandlerman.
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8545
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8545
Location: San Diego, CA
UTC quote
maybe you will notice the 24.24 if you o-tune it? on mine I could not notice anything. it's probably marginally better, but based on my butt-dyno, not worth the money to go replace it unless you are going further. I'd spend $ on an exhaust any day before I'd worry about going from 20.20 to 24.24.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
On a stock 200, the 24/24 really only becomes necessary if you're getting up past 6,000 RPM's for your power peak.

I have a 24/24 on my P200 because it's a Malossi 210 and it puts out peak power at about 7,200 RPM's.
UTC

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: UTC
Posts: 4599
Location: London UK

Jet Eye Master
PX221 MHR, O tuned PX200, PX125 and some motorbikes
Joined: UTC
Posts: 4599
Location: London UK
UTC quote
Can only compare carbs that are jetted well. 20/20 carbs jet easier. 26/26 difficult. Performance comes from being on the lean side of too rich.
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
Thanks guys, good stuff here, but this is still Orwell's thread. When I feel good enough again to get back on the scoot project, I'll start my own thread and not Hi-jack someone else's who is actually making progress.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Tierney wrote:
Thanks guys, good stuff here, but this is still Orwell's thread. When I feel good enough again to get back on the scoot project, I'll start my own thread and not Hi-jack someone else's who is actually making progress.
No worries. Chime in anytime.
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
Thank you. Been following you build and learning and relearning as I go here.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Tierney wrote:
Thank you. Been following you build and learning and relearning as I go here.
Relearning is the right word. Second time I've had this engine apart. Almost a re-build as I've replaced the top end, crank and crank bearings. The old crank flywheel stump had excessive runout. Big end bearing play I only noticed when the engine was last assembled. I could feel it with a light touch on the flywheel. Stella engine with everything rebuilt didn't have the same looseness there. I couldn't feel it doing the push-pull with the crank out.

When I rebuilt my last bus engine, I took it to an older experienced friend and dry-built the shortblock in front of him to learn how to feel…how loose is loose. How tight is tight. I had gone full mental micrometer on the whole thing, but feel is the ultimate check that it's right. Check feel of every part separately in the case, all together, and as you're torquing it all up. Eventually you start to trust yourself.

Got the top end on last night and let it sit on the bench overnight to let the goo set up. Re-check torque, pressure test and it goes in the bike for the first time since I brought it home in December of 2021. That should give this whole project a needed boost.
200 rebuild take 2.
200 rebuild take 2.
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote

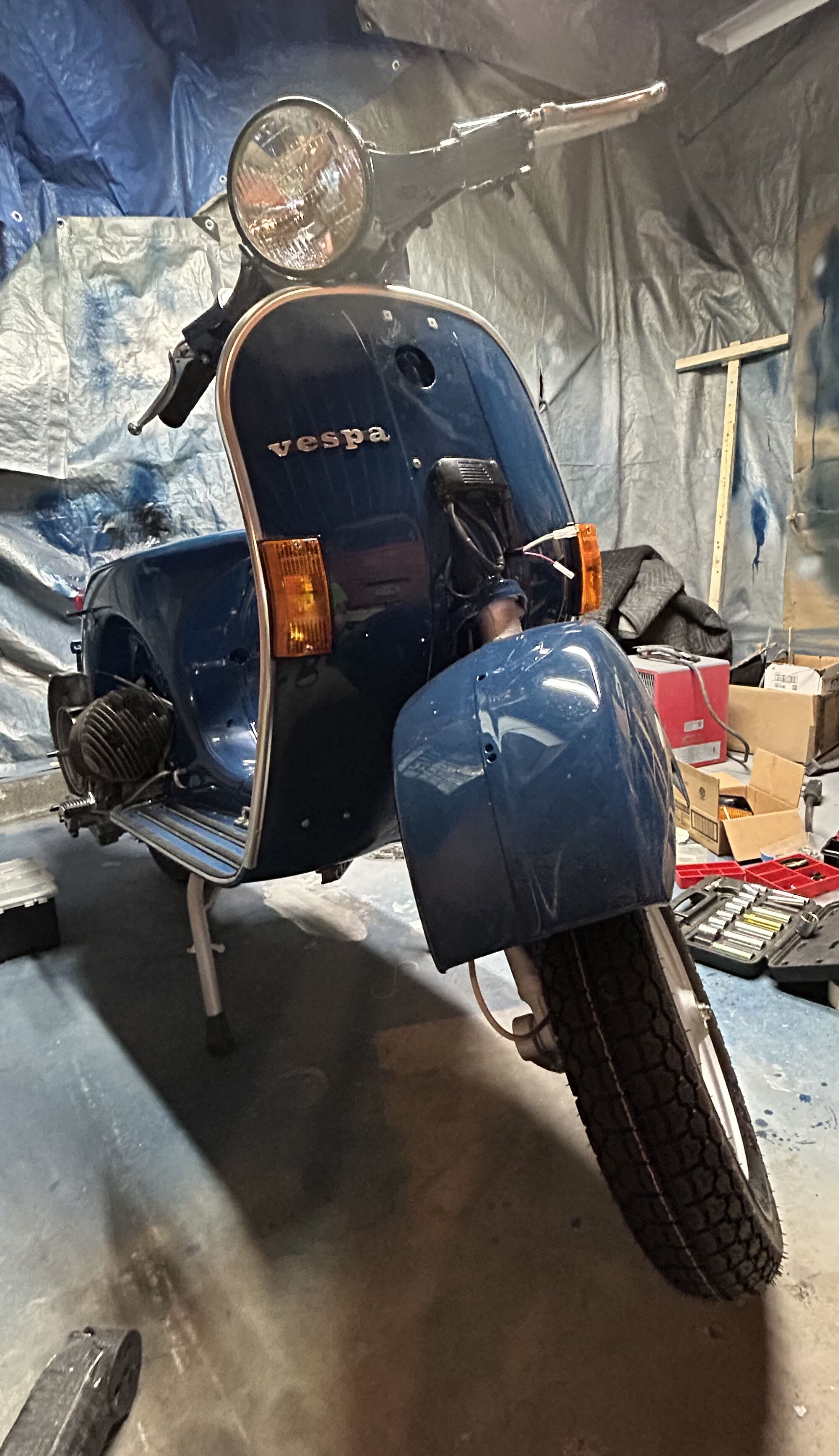

It's in!
Finally
Finally
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
Congrats! That is one good looking P.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
orwell84 wrote:
It's in!
Looking great! Nice work! Clap emoticon Clap emoticon Clap emoticon
UTC

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1980
Location: Philadelphia

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1980
Location: Philadelphia
UTC quote
orwell84 wrote:
It's in!
Jumpin Jesus on a pogo stick, she's in!
@qascooter avatar
UTC

Ossessionato
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4285
Location: Florence, OR

Ossessionato
@qascooter avatar
79 P200E (Ruby), 62 Allstate (B-62)
Joined: UTC
Posts: 4285
Location: Florence, OR
UTC quote
FridayMatinee wrote:
Jumpin Jesus on a pogo stick, she's in!
How about BunGeeZus.... Razz emoticon
Forum member supplied image with no explanatory text
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
qascooter wrote:
How about BunGeeZus.... Razz emoticon
ROFL emoticon
UTC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC

Veni, Vidi, Posti
Joined: UTC
Posts: 7056
Location: Tega Cay, SC
UTC quote
Dude that came up with that is going to Hell, for sure.
UTC

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1980
Location: Philadelphia

Molto Verboso
1958 Allstate 177VMC, 1962 Allstate, Yamaha Vino 70cc
Joined: UTC
Posts: 1980
Location: Philadelphia
UTC quote
Perfection!
UTC

Molto Verboso
'07 GTS250, '07 LX150, '81 P200E, '78 P200E, '64 V90 and 3 Ciaos
Joined: UTC
Posts: 1177
Location: Tucson, AZ

Molto Verboso
'07 GTS250, '07 LX150, '81 P200E, '78 P200E, '64 V90 and 3 Ciaos
Joined: UTC
Posts: 1177
Location: Tucson, AZ
UTC quote
Tierney wrote:
Dude that came up with that is going to Hell, for sure.
Maybe. But it'll only last until his Bungie takes up.

Hiya Satan! Yoink!
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
Sometimes Jesus on a bungee and finishing this scooter have seemed like equally likely events. For sure, on some days my money's on bungee Jesus.
@safis avatar
UTC

Ossessionato
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4314
Location: Veria, Greece

Ossessionato
@safis avatar
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4314
Location: Veria, Greece
UTC quote
qascooter wrote:
How about BunGeeZus.... Razz emoticon
ROFL emoticon ROFL emoticon ROFL emoticon ROFL emoticon
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9957
Location: Nashville

72 Days Since Last Explosion
UTC quote
az_slynch wrote:
Maybe. But it'll only last until his Bungie takes up.

Hiya Satan! Yoink!
ROFL emoticon ROFL emoticon ROFL emoticon
OP
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3202
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3202
Location: northern New York
UTC quote
The shift cables I installed ended up being too short. Definitely the inner cables as an old one from the Stella was a few inches longer. Not sure how I ended up with them, I don't know what kind of scooter they would go on.

I could cut down the outer cables, but would probably be easier to replace the inners. I was able to connect them to the selector box, but they are difficult to work with.
Forum member supplied image with no explanatory text
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.3234s ][ Queries: 4 (0.3158s) ][ live ][ 313 ][ ThingOne ]
