OP
Thu, 28 Jul 2022 23:03:57 +0000

Ossessionato
2019 GTS300 Supertech E3 50,000km
Joined: Wed, 18 Nov 2020 02:36:54 +0000
Posts: 4042
Location: Batmania aka Melbourne, Australia

Ossessionato
2019 GTS300 Supertech E3 50,000km
Joined: Wed, 18 Nov 2020 02:36:54 +0000
Posts: 4042
Location: Batmania aka Melbourne, Australia
Thu, 28 Jul 2022 23:03:57 +0000 quote
[I stole this post from vespaforum.de by the guy who makes the oil pans with sight glass (sold at sip and scooterwest) as I reckon many here will find it interesting]

https://vespaforum.de/viewtopic.php?f=16&t=58705&sid=7ed70a091ce91047343013fdbbb33ff0
GTS Peter wrote:
Again and again I receive inquiries regarding broken dipsticks at the HPE. Here is a photo from the inside. Maybe it will help one or the other to understand where to poke around and why violence is not a solution:






Thu, 28 Jul 2022 23:34:03 +0000

Hooked
2022 GTS 300 SuperTech
Joined: Sun, 15 May 2022 18:41:55 +0000
Posts: 121
Location: Boston, MA

Hooked
2022 GTS 300 SuperTech
Joined: Sun, 15 May 2022 18:41:55 +0000
Posts: 121
Location: Boston, MA
Thu, 28 Jul 2022 23:34:03 +0000 quote
Very cool to see the inside, but why oh why did Piaggio create such limited clearance and omit a sightglass? Still think it's a shit design haha.
Thu, 28 Jul 2022 23:56:48 +0000

Veni, Vidi, Posti
2007 LX150 2015 GTS (on the bench) 2017 BV 350
Joined: Fri, 14 Sep 2012 00:46:39 +0000
Posts: 11667
Location: Fond du Lac, Wisconsin

Veni, Vidi, Posti
2007 LX150 2015 GTS (on the bench) 2017 BV 350
Joined: Fri, 14 Sep 2012 00:46:39 +0000
Posts: 11667
Location: Fond du Lac, Wisconsin
Thu, 28 Jul 2022 23:56:48 +0000 quote
"Violence is not a solution."
Fri, 29 Jul 2022 00:09:37 +0000

Addicted
GTS 300 hpe
Joined: Sat, 28 Sep 2019 15:13:52 +0000
Posts: 755
Location: NYC

Addicted
GTS 300 hpe
Joined: Sat, 28 Sep 2019 15:13:52 +0000
Posts: 755
Location: NYC
Fri, 29 Jul 2022 00:09:37 +0000 quote
fledermaus wrote:
"Violence is not a solution."
Lol Looks like a Google translate fail of "Gewalt ist keine Lösung". Which means, applying brute force won't lead to good results.
Fri, 29 Jul 2022 00:36:23 +0000

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: Sun, 26 Aug 2007 20:16:15 +0000
Posts: 42779
Location: Pleasant Hill, CA

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: Sun, 26 Aug 2007 20:16:15 +0000
Posts: 42779
Location: Pleasant Hill, CA
Fri, 29 Jul 2022 00:36:23 +0000 quote
Good find. Explains a lot!
Fri, 29 Jul 2022 00:43:24 +0000

Ossessionato
2015 GTS 300 Super (Melody: 2015-2021, RIP), 2022 GTS SuperTech (Thelonica; bit the dust 02-22-23)
Joined: Wed, 22 Apr 2015 17:25:54 +0000
Posts: 3910
Location: Asbury Park, NJ

Ossessionato
2015 GTS 300 Super (Melody: 2015-2021, RIP), 2022 GTS SuperTech (Thelonica; bit the dust 02-22-23)
Joined: Wed, 22 Apr 2015 17:25:54 +0000
Posts: 3910
Location: Asbury Park, NJ
Fri, 29 Jul 2022 00:43:24 +0000 quote
I knew it: after a handful of in-and-out experiences (ahem), this puts it plain as day. (And, yet another good reason to change out the stock oil pan for the sight-glass-equipped version.) Thanks for this!
Fri, 29 Jul 2022 00:46:14 +0000

Veni, Vidi, Posti
LX190 Friday afternoon special, Primavera, some pushbikes
Joined: Fri, 12 Oct 2007 21:16:28 +0000
Posts: 9467
Location: Hermit Kingdom

Veni, Vidi, Posti
LX190 Friday afternoon special, Primavera, some pushbikes
Joined: Fri, 12 Oct 2007 21:16:28 +0000
Posts: 9467
Location: Hermit Kingdom
Fri, 29 Jul 2022 00:46:14 +0000 quote
fledermaus wrote:
"Violence is not a solution."
I think slapping the engineer who designed that accident waiting to happen might be helpful on several levels.
Fri, 29 Jul 2022 01:37:30 +0000

Veni, Vidi, Posti
2007 LX150 2015 GTS (on the bench) 2017 BV 350
Joined: Fri, 14 Sep 2012 00:46:39 +0000
Posts: 11667
Location: Fond du Lac, Wisconsin

Veni, Vidi, Posti
2007 LX150 2015 GTS (on the bench) 2017 BV 350
Joined: Fri, 14 Sep 2012 00:46:39 +0000
Posts: 11667
Location: Fond du Lac, Wisconsin
Fri, 29 Jul 2022 01:37:30 +0000 quote
giallo wrote:
Lol Looks like a Google translate fail of "Gewalt ist keine Lösung". Which means, applying brute force won't lead to good results.
Usually the translation is a bit of a fail, but in this case, well, it becomes poetry.
⬆️    About 1y elapsed between posts    ⬇️
Sat, 20 May 2023 22:08:28 +0000

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada
Sat, 20 May 2023 22:08:28 +0000 quote

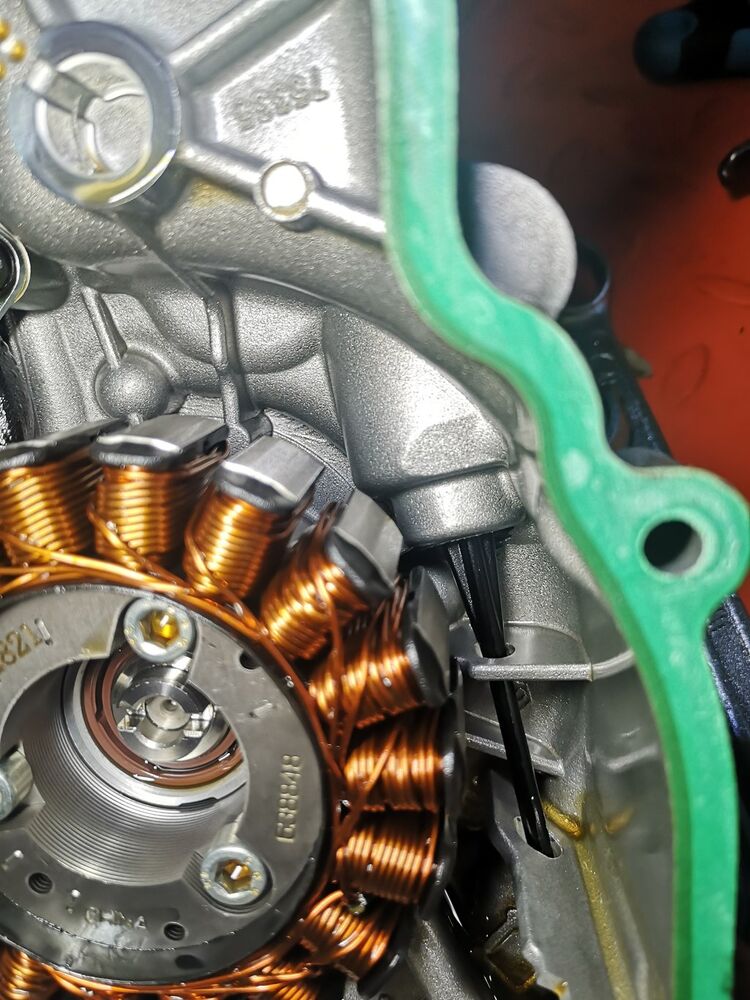

Fantastic picture! so not only do you have to get the bulls eye on one hole but actually two holes! FFS. On my GTS 300 2022 there is not enough clearance to hold the dipstick straight as you hit the gas tank. So now I know this is super tricky. You have to bend the dip stick in just right way and get it through both holes. It must be very common to never pass through the second hole. Who ever heard of something like this on a user part.

I've broken the dipstick off on my machine and came here looking for answers. Taking it apart is a lot of work - see the video on replacing the water pump for a Vespa GTS Water Pump Rebuild by robot from Vespa Motorsport. I'd post the link but this is my first post - I'd probably break my account forever.

I've drained the oil trying to fish the broken part out. No success - it's stuck in the gallery somewhere. Then I carefully measured 1.3L of the old oil to put it back in. Now I have 600ml of extra oil. What??? this is a used scooter and I was checking the oil level which seemed way over but I can't verify it now. And the vespa store is closed for the long weekend.

Can someone please post the dimensions of the dip stick? The over all length, the distance from the top of the threads down to empty and the distance from the top of the threads down to full? Then I can at least see if I've got the right amount of oil in the machine.
Sat, 20 May 2023 22:27:06 +0000

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany
Sat, 20 May 2023 22:27:06 +0000 quote
janger wrote:
Can someone please post the dimensions of the dip stick? The over all length, the distance from the top of the threads down to empty and the distance from the top of the threads down to full? Then I can at least see if I've got the right amount of oil in the machine.
Would it help you to measure in centimeters? Then I'll go measure for you.
Sat, 20 May 2023 23:03:45 +0000

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany
Sat, 20 May 2023 23:03:45 +0000 quote
In each case at the top (above the sealing ring) to

Maximum: 91,71mm / 3.6085 in
Minimum: 102,09mm / 4.0190 in
Total length: 109,62mm / 4.3155 in

Even if this looks a bit inaccurate due to the angle and because I had to put down the dipstick and the caliper to take pictures, the measurements are exact.

Didn't know I could switch the caliper between mm and inches.

GTS 300 2022

My fingers smell like oil now....

Now just hope that I do not break off the thing when screwing...

Edit: Photos and measurements for minimum and maximum updated


Total 109,62mm


Total 4.3155 in


Maximum 91,71mm


Maximum 3.6105 in


Minimum 102,09mm


Minimum 4.0190 in



Last edited by GermanGTSDriver on Sun, 21 May 2023 10:41:36 +0000; edited 1 time
Sun, 21 May 2023 00:23:09 +0000

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada
Sun, 21 May 2023 00:23:09 +0000 quote
GermanGTSDriver wrote:
In each case at the top (above the sealing ring) to

Even if this looks a bit inaccurate due to the angle and because I had to put down the dipstick and the caliper to take pictures, the measurements are exact.

Didn't know I could switch the caliper between mm and inches.

We speak metric in Canada. mm is good.
Thanks so much GermanGTS! I knew if I asked someone could help! Now I can make a temporary one. Maybe I'll cut off the rest of the broken bit and the temporary one can be permanent riding around in the baby carrier!

Last edited by janger on Sun, 21 May 2023 21:38:34 +0000; edited 1 time
Sun, 21 May 2023 00:29:58 +0000

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: Sun, 26 Aug 2007 20:16:15 +0000
Posts: 42779
Location: Pleasant Hill, CA

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: Sun, 26 Aug 2007 20:16:15 +0000
Posts: 42779
Location: Pleasant Hill, CA
Sun, 21 May 2023 00:29:58 +0000 quote
Don't just buy a new dipstick - get the sight glass sump cover instead. GTS Oil Pan Sight Glass
Sun, 21 May 2023 00:44:23 +0000

Ossessionato
2015 GTS 300 Super (Melody: 2015-2021, RIP), 2022 GTS SuperTech (Thelonica; bit the dust 02-22-23)
Joined: Wed, 22 Apr 2015 17:25:54 +0000
Posts: 3910
Location: Asbury Park, NJ

Ossessionato
2015 GTS 300 Super (Melody: 2015-2021, RIP), 2022 GTS SuperTech (Thelonica; bit the dust 02-22-23)
Joined: Wed, 22 Apr 2015 17:25:54 +0000
Posts: 3910
Location: Asbury Park, NJ
Sun, 21 May 2023 00:44:23 +0000 quote
jimc wrote:
Don't just buy a new dipstick - get the sight glass sump cover instead. GTS Oil Pan Sight Glass
This. When I'm back on my feet (literally), and wheels, my next GTS will have the sight-glass oil pan added, just as I did with Thelonica...unless, of course, Piaggio comes to its senses by then and makes the damned things standard-issue.
OP
Sun, 21 May 2023 00:55:43 +0000

Ossessionato
2019 GTS300 Supertech E3 50,000km
Joined: Wed, 18 Nov 2020 02:36:54 +0000
Posts: 4042
Location: Batmania aka Melbourne, Australia

Ossessionato
2019 GTS300 Supertech E3 50,000km
Joined: Wed, 18 Nov 2020 02:36:54 +0000
Posts: 4042
Location: Batmania aka Melbourne, Australia
Sun, 21 May 2023 00:55:43 +0000 quote
janger wrote:
You have to bend the dip stick in just right way and get it through both holes.
No bending needed
Sun, 21 May 2023 04:21:27 +0000

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada
Sun, 21 May 2023 04:21:27 +0000 quote
Temporary dipstick. I made this using the dimensions so kindly provided germangtadriver . It is a TIG aluminium welding rod bent 90 degrees - the big bend is so I can't drop it into the motor and make matters worse. I filed marks into the rod to make it easy to see where the oil is.

I got the scooter going again today hooray.



Sun, 21 May 2023 05:39:57 +0000

Ossessionato
'70 Super 150, Medley 150S, Moto Guzzi Bellagio
Joined: Wed, 23 Nov 2011 00:05:43 +0000
Posts: 2509
Location: Sydney, Australia

Ossessionato
'70 Super 150, Medley 150S, Moto Guzzi Bellagio
Joined: Wed, 23 Nov 2011 00:05:43 +0000
Posts: 2509
Location: Sydney, Australia
Sun, 21 May 2023 05:39:57 +0000 quote
I'm planning on getting one of these. No bending or breaking I'd imagine.



Mon, 22 May 2023 18:29:38 +0000

Addicted
Piaggio Beverly 300 ie - 2012
Joined: Sun, 08 Aug 2021 16:36:14 +0000
Posts: 957
Location: Belgium

Addicted
Piaggio Beverly 300 ie - 2012
Joined: Sun, 08 Aug 2021 16:36:14 +0000
Posts: 957
Location: Belgium
Mon, 22 May 2023 18:29:38 +0000 quote
janger wrote:
Temporary dipstick. I made this using the dimensions so kindly provided germangtadriver . It is a TIG aluminium welding rod bent 90 degrees - the big bend is so I can't drop it into the motor and make matters worse. I filed marks into the rod to make it easy to see where the oil is.

I got the scooter going again today hooray.
Will do the job.
⬆️    About 5w elapsed between posts    ⬇️
Tue, 27 Jun 2023 03:17:12 +0000

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada

Lurker
GTS 300
Joined: Sat, 20 May 2023 21:56:34 +0000
Posts: 4
Location: Calgary, Canada
Tue, 27 Jun 2023 03:17:12 +0000 quote
Update. I had my GTS 300 in for first service and asked about getting the broken dipstick out under warranty. Piaggio replied back to the dealer saying:

""Unfortunately, this occurs when the dipstick has not dropped in correctly, then screwed in. This only happens when it is force in to cause this type of breakage. As this is not a manufacturer defect the customer is responsible for the removal. I recommend draining the oil to see if the broken dip stick can be removed before removing the sump.""

So the broken bit is till stuck in there while I try to encourage Piaggio to do the right thing. I ordered the necessary parts ($15... a gasket and a few incidentals) to take the motor apart and put it back together as the dealer thought they would take from 2 weeks to 6 months to arrive. I'm not sure what I'm going to do.

I received a metal aluminium replacement dipstick today from SIP and put it in. I think the all metal version is much better - you can't start the threads if it isn't through both holes inside properly. This is a good solution. Clean oil on it though is practically invisible - I had to touch the stick and see if there was oil at different places.
Tue, 27 Jun 2023 04:44:43 +0000

Hooked
2022 GTS 300 HPE, 2022 Primavera 150
Joined: Thu, 30 Jun 2022 02:21:42 +0000
Posts: 245
Location: Alabama

Hooked
2022 GTS 300 HPE, 2022 Primavera 150
Joined: Thu, 30 Jun 2022 02:21:42 +0000
Posts: 245
Location: Alabama
Tue, 27 Jun 2023 04:44:43 +0000 quote
A thread about the cnc dipstick and varying solutions
New CNC HPE 300 oil dipstick: won't break but will it work?
⬆️    About 12w elapsed between posts    ⬇️
Sun, 17 Sep 2023 02:29:50 +0000

Lurker
2007 GTS 300
Joined: Sun, 17 Sep 2023 02:01:02 +0000
Posts: 2
Location: Gresham, Oregon

Lurker
2007 GTS 300
Joined: Sun, 17 Sep 2023 02:01:02 +0000
Posts: 2
Location: Gresham, Oregon
Sun, 17 Sep 2023 02:29:50 +0000 quote
Strawberrysoda - I totally agree. The designers should be forced to insert and remove the dipstick in all weather conditions on a hot engine for eternity!
Sun, 17 Sep 2023 07:48:15 +0000

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany

Addicted
Vespa GTS 300
Joined: Fri, 02 Sep 2022 18:41:22 +0000
Posts: 693
Location: Germany
Sun, 17 Sep 2023 07:48:15 +0000 quote
Riding Amok wrote:
Strawberrysoda - I totally agree. The designers should be forced to insert and remove the dipstick in all weather conditions on a hot engine for eternity!
1st Vespa commandment: Thou shalt not check the oil level when the engine is hot!
Tue, 19 Sep 2023 13:19:44 +0000

Hooked
2021 GTS 300 Supersport, Triumph Tiger 800
Joined: Sun, 26 Sep 2021 08:03:39 +0000
Posts: 377
Location: Oxford, UK

Hooked
2021 GTS 300 Supersport, Triumph Tiger 800
Joined: Sun, 26 Sep 2021 08:03:39 +0000
Posts: 377
Location: Oxford, UK
Tue, 19 Sep 2023 13:19:44 +0000 quote
So I went and topped up my oil yesterday and whilst unscrewing the dipstick, lo and behold only half of it emerged.

1, Has anyone successfully managed to get a dealer to get the broken part out and replaced under warranty?

2, Can the broken part stuck inside cause any damage?



I have a glass sight oil pan so I don't use the dipstick to check the oil level.
  DoubleGood Design

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

All Content Copyright 2005-2023 by Modern Vespa. All Rights Reserved.

[ Time: 0.0348s ][ Queries: 6 (0.0100s) ][ Debug on ][ 286 ][ Thing Two ]
