UTC quote

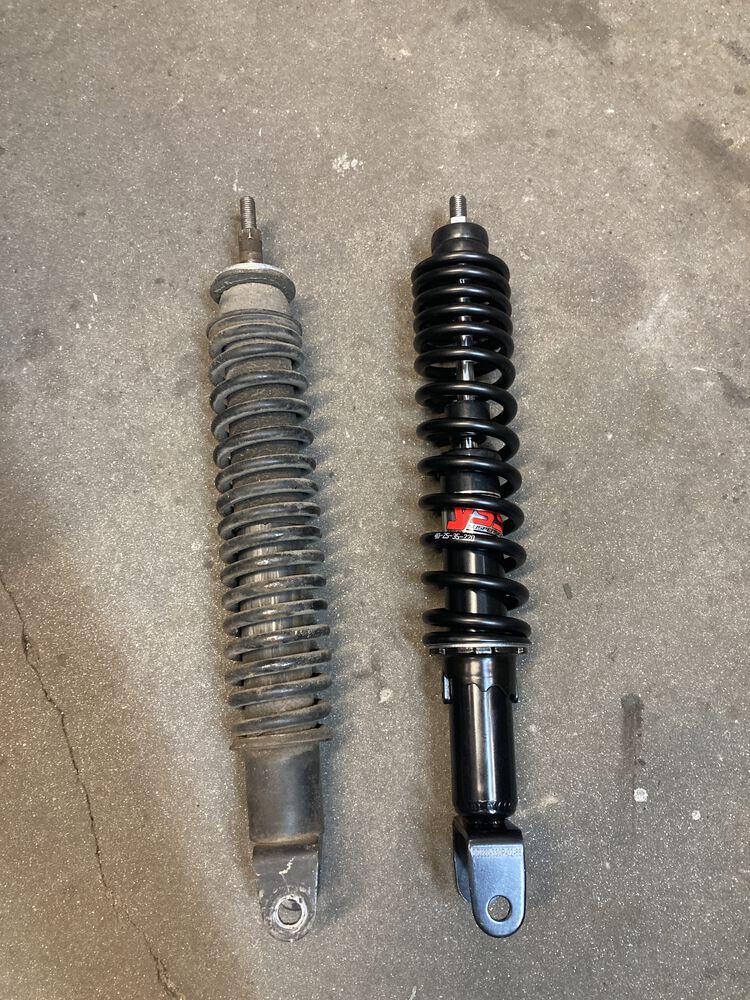

Added few M14 washers to make rear shock 10mm longer and found used but in better condition than old upper rubbers. Now there is more space between chassis and air filter.

External inline image provided by member with no explanatory text

Changed front tire for more roady than before.
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text

Tidied up the electrical mess a bit.
External inline image provided by member with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Finally sorted out problem with glove box door lock.
One guy from FB send me a photo of how it should be looking. And I turns out that my door totally fked up. There is no mounting for lock barrel anymore and push button catch destroyed. So I need new door and push button assembly, new lock barrel I already have.
Forum member supplied image with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
I'm happy today done few moments.

Put new legshield beading and handlebar. Also cables.
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text

Found a pair of NOS clutch and brake levers.
External inline image provided by member with no explanatory text

Cleaned switches and add some silicone to fresh it a bit.
External inline image provided by member with no explanatory text

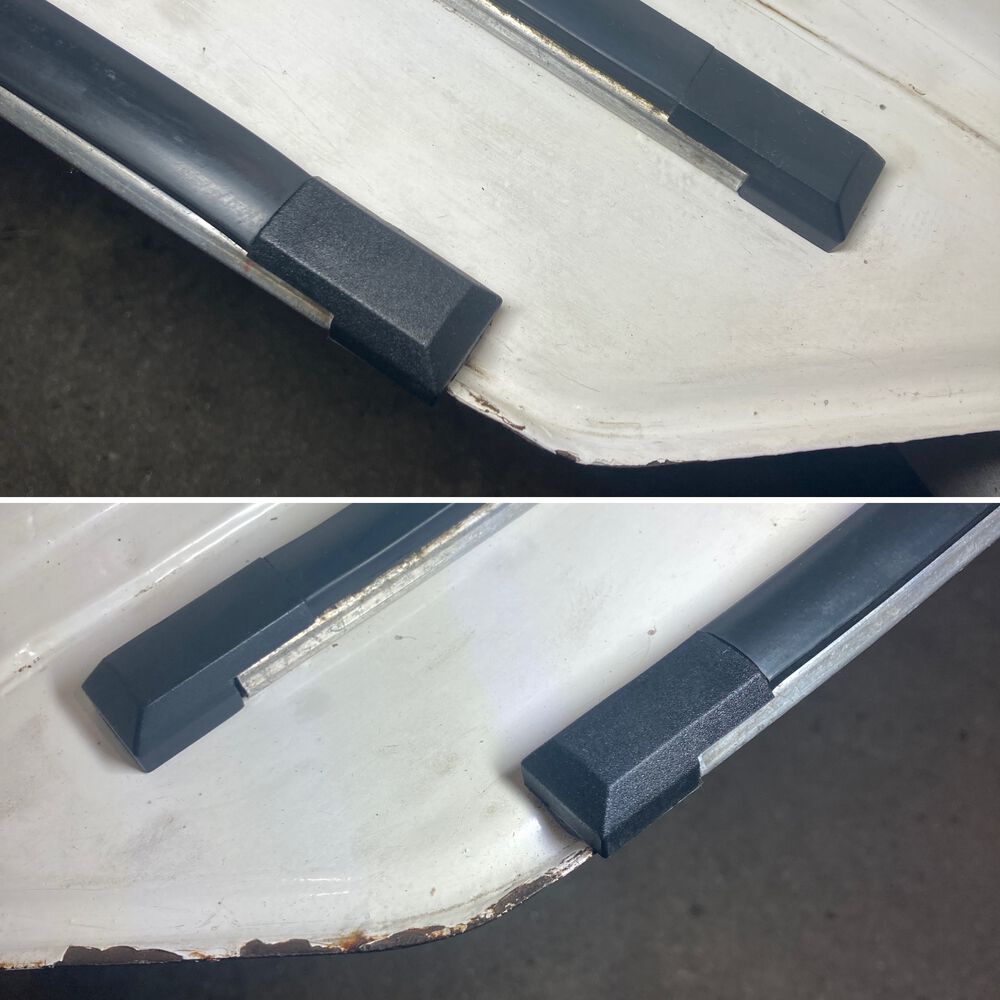

Put new rubbers in outer floor rails and temporary fixed end caps with screws while waiting a new pair to come.
External inline image provided by member with no explanatory text
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA
UTC quote
someone did some tunnel surgery in the past - have you looked in there to see why yet?
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
sdjohn wrote:
someone did some tunnel surgery in the past - have you looked in there to see why yet?
Here in Kyiv is motorcycle service. They also repairs scoots, quads and other. I already reworked two PK's after them. And it was totally trash. Some kind of vietbodge. They don't know what to do with classic Vespa but earnings is more important.

So on my PK S there was sticker Of this service under the seat. And I was waiting for some surprises. I think they cut tunnel because they can't stretch in cable outers. They did not treat the weld area with anything. This explains why tunnel cover was mount on rivets and not on screws - so the owner cannot easy take off cover and see that mess.
I look in and see nothing criminal, sprayed anti-rust spray.
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA
UTC quote
sounds like you've already thought it all out, that's good. too bad about the surgery. Maybe you can get the rest of the seam welded up or at least use some sealer along it.
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
On my smallie, someone also did tunnel surgery. There's MIG wire hanging off the inside that I could see when I pulled the brake pedal to change the light switch. Other than being ugly, though, the work itself looked fine.

Lotta strange stuff happens to these things over sixty years.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
sdjohn wrote:
sounds like you've already thought it all out, that's good. too bad about the surgery. Maybe you can get the rest of the seam welded up or at least use some sealer along it.
It will be welded next time big rebuild. Now it cleaned, painted and holes filled with sealant.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Good progress today.

All cables done.
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text

New model correct grips.
External inline image provided by member with no explanatory text

Fitted original(TRIOM) rear indicators and bumper.
External inline image provided by member with no explanatory text

New original(TRIOM) headlight and old cleaned headlight rim.
External inline image provided by member with no explanatory text

New tank cap gasket.
External inline image provided by member with no explanatory text

Pity that I have only one this plastic wheel nuts cover. Hope that I can find another one later.
External inline image provided by member with no explanatory text

Center floor cover after good cleaned and spray with silicone. Not ideal but much better than before.
External inline image provided by member with no explanatory text

Idk why but the more time I spend with Snowball the more I like it.
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
@hjo avatar
UTC

Molto Verboso
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA

Molto Verboso
@hjo avatar
Scattered remnants of (two!) 1974 Rallys
Joined: UTC
Posts: 1847
Location: San Francisco, CA
UTC quote
That cleaned up so nice!
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA
UTC quote
are you going to replace missing badges too? it's looking better all the time.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
hjo wrote:
That cleaned up so nice!
Still dirty but much better than it been for years
sdjohn wrote:
are you going to replace missing badges too? it's looking better all the time.
Yes. I removed old badges to clean it good, them also had no mounting pins and was holds badly on old two-side scotch. Under badges there also lot of dirt.
UTC

Addicted
PK50XL, PK100S, ET3, Matchless G80S, Honda CBR400RR, Ducati ST4S
Joined: UTC
Posts: 611
Location: UK

Addicted
PK50XL, PK100S, ET3, Matchless G80S, Honda CBR400RR, Ducati ST4S
Joined: UTC
Posts: 611
Location: UK
UTC quote
Thats looking really good!
@108 avatar
UTC

Ossessionato
V range 50s
Joined: UTC
Posts: 2403

Ossessionato
@108 avatar
V range 50s
Joined: UTC
Posts: 2403
UTC quote
White PKs always look great
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Thanks for good words guys.

Today was a good day.
I got Snowball out for a test ride and to gas station.

What I can say? It runs much better than I expected. I had doubts about primary gear, 2.86 seems too long for me.
But it turns out that I was wrong. Scoot have very nice start and easily gets to the 80 km/h and seems like it can do more. I checked with GPS and seems that old original speedo is very accuracy.

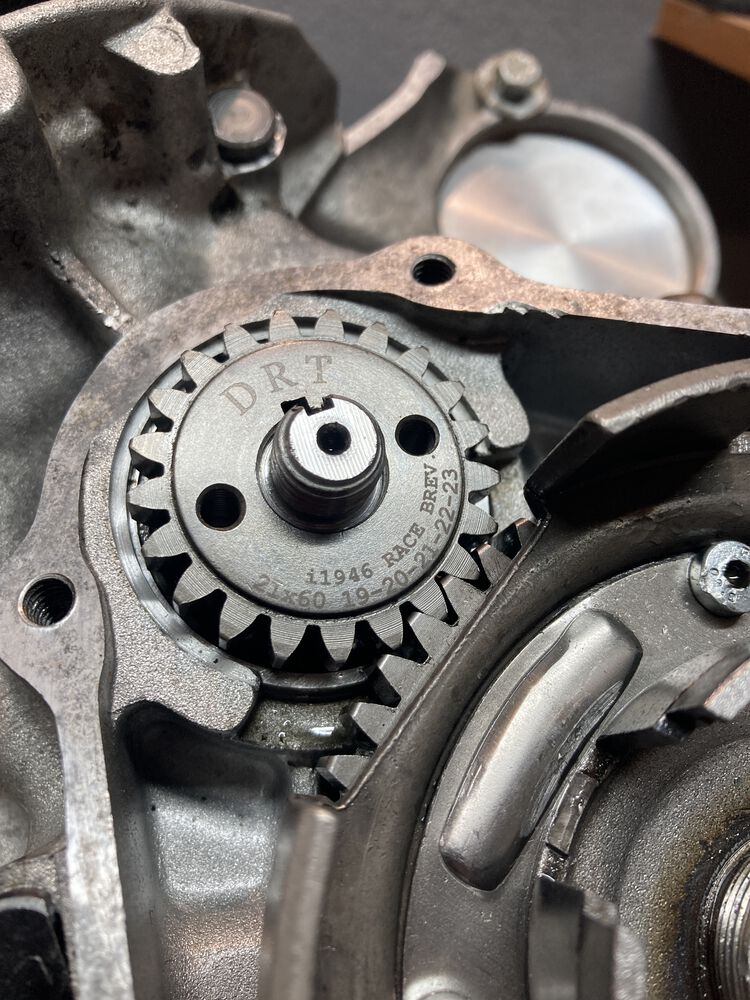

Now I also think about to try 2.72 primary gear.
At other side even this 80 km/h is too much for it as with old original shocks this speed is really scare me

All badges on the places. Piaggio lettering, hexagon and "electronic" is new and "vespa" and "pk50s" is original one. I searched for new "vespa" lettering and can't find nothing in the same size. Very happy that I have original correct badge.
External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
As original centre stand is worn out and too short I get it to mate who can weld it longer. And temporarily I will use only side stand.
I have 3.5mm thick stainless steel plate and decide to made floor reinforcement plate.
External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

Find a pair of this little rubbers for glove box door.
External inline image provided by member with no explanatory text
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
That's an amazing transformation! Nicely done!
@sdjohn avatar
UTC

Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA

Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 8511
Location: San Diego, CA
UTC quote
where's your engine door? you had one when you picked it up.

looking great.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
chandlerman wrote:
That's an amazing transformation! Nicely done!
Thanks mate. Much more still need to do.
sdjohn wrote:
where's your engine door? you had one when you picked it up.

looking great.
It need more attention and maybe welding lock hook. Also need to sort with bent lower hooks. And good cleaning.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote

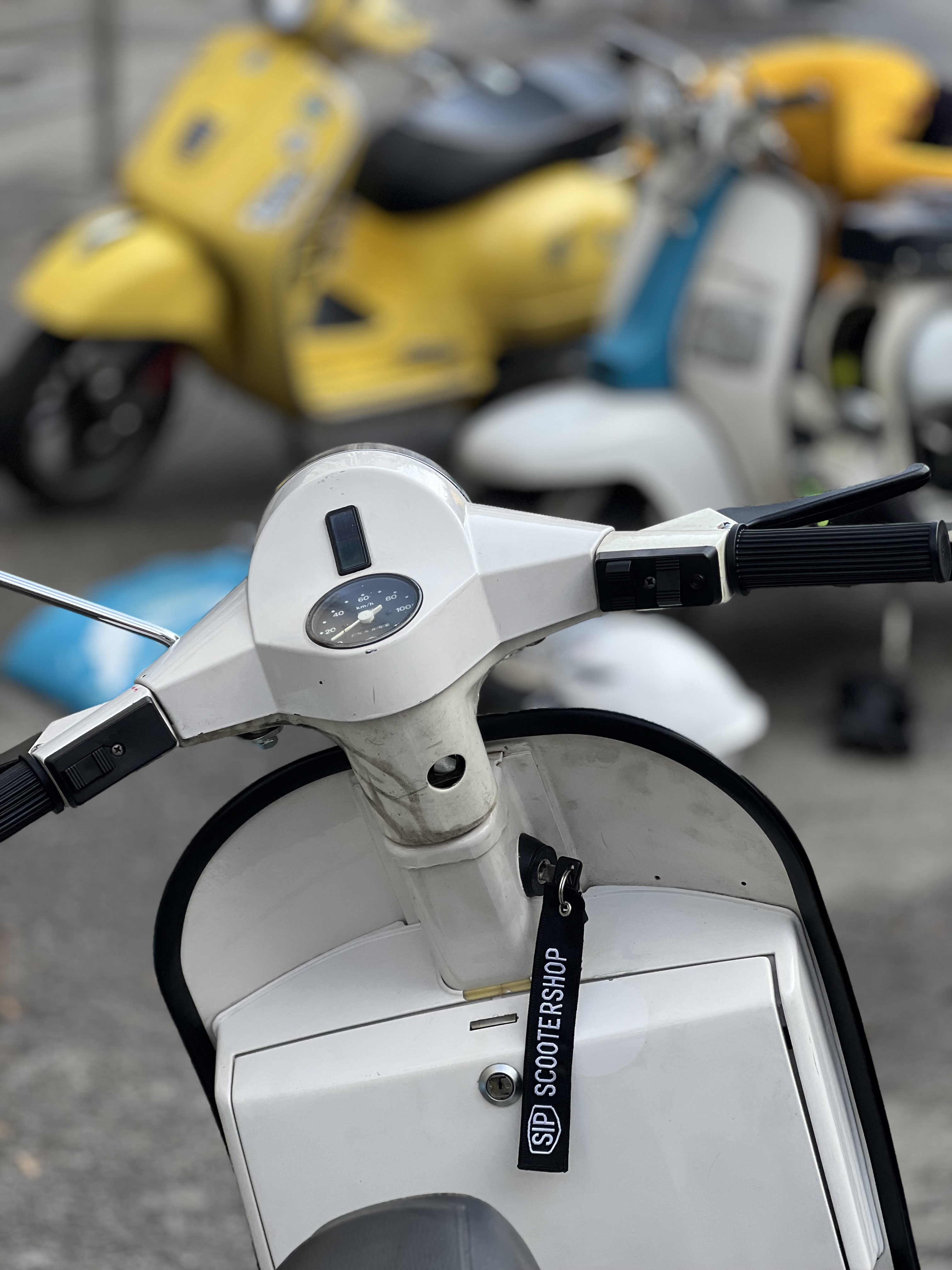

Four days ago I met with my scooter friends first time in 2023. And went for little ride.

There was a funny situation with Lambretta. It suddenly lost the spark. After half hour fixing it was ok again. After 2-3 km run it lost again. It repeated five times.
Then we decide to help our lambrettista go to a garage. It was shame for him as he not like Vespas but little white PK take to garage he beloved Lambretta on the side panel of which the inscription "Assistenza Stradale" flaunts.

External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
⚠️ Last edited by roland87 on UTC; edited 1 time
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
The more I look at pictures of your PK, the more I think "I kinda want one of those..."

Thanks for sharing the pics. Bunch of great looking scooters there
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
chandlerman wrote:
The more I look at pictures of your PK, the more I think "I kinda want one of those..."

Thanks for sharing the pics. Bunch of great looking scooters there
Thanks Chandlerman. Still not a bunch but a small part of our fellows.
I have very similar relations with PK.
I don't like it very much but when I worked on that orange 50 XL I took some interest in it. But I still did not want PK XL as it is very popular Vespa in our group - ten or twelve pcs. And totally another thing when I saw this(already mine) PK 50S! And more I ride it the more I like it.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
I started to tear down original PK S engine.
There was some surprises as with most of that engines. Often it's not good surprises.
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text

WTF is that?
External inline image provided by member with no explanatory text

But there was one very good surprise.
TA-DAM!! Malossi 112 in perfect condition!(was mounted on totally standard engine Facepalm emoticon and 16.10 carb Facepalm emoticon with 56 MJ Facepalm emoticon)
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text

I am not such cool specialist that can tell about mileage of looking on cylinder but I think it less than 1000 km. How do you think fellas?
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3140
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3140
Location: northern New York
UTC quote
I no longer undervalue small frames. They are not actually small…maybe more narrow. The mounting for the center stand seems to be a design flaw of all Vespas. The floor is just not sturdy enough to hold up to all the flexing over time. The plate is a good idea.

Not sure about your cylinder, but seeing original hone marks is always a good sign and not seeing any is never good.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
orwell84 wrote:
I no longer undervalue small frames. They are not actually small…maybe more narrow. The mounting for the center stand seems to be a design flaw of all Vespas. The floor is just not sturdy enough to hold up to all the flexing over time. The plate is a good idea.

Not sure about your cylinder, but seeing original hone marks is always a good sign and not seeing any is never good.
I saw reinforcement plates on SIP. But $20 + delivery cost is too much IMO for the plate with four holes. So I bought two similar plate but bit wider, longer and thicker on local market for the $5. Spent near half an hour to mark and drill holes. I also want to made same for my 50 Special.

Here also bad news. Yesterday on way home I seized cylinder. I was wait till it cooled down but it not started. There is no compression. I always have problems in the past with this Polini 102cc after reboring. I think that guys who did the work done something wrong.

I'm not very upset as I have that Malossi 112. I also think about to put in 4 speed gear box from original engine. It turns that gear box also in good condition.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
I worked a bit on Malossi barrel. Chamfered all rough edges. Changed exhaust studs for M8. And polished exhaust port.

Tiny M6
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
Good M8
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
External inline image provided by member with no explanatory text
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
Sorry to hear you seized it. I'm glad you had another top end to install, though.

The modified Malossi is looking good.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote

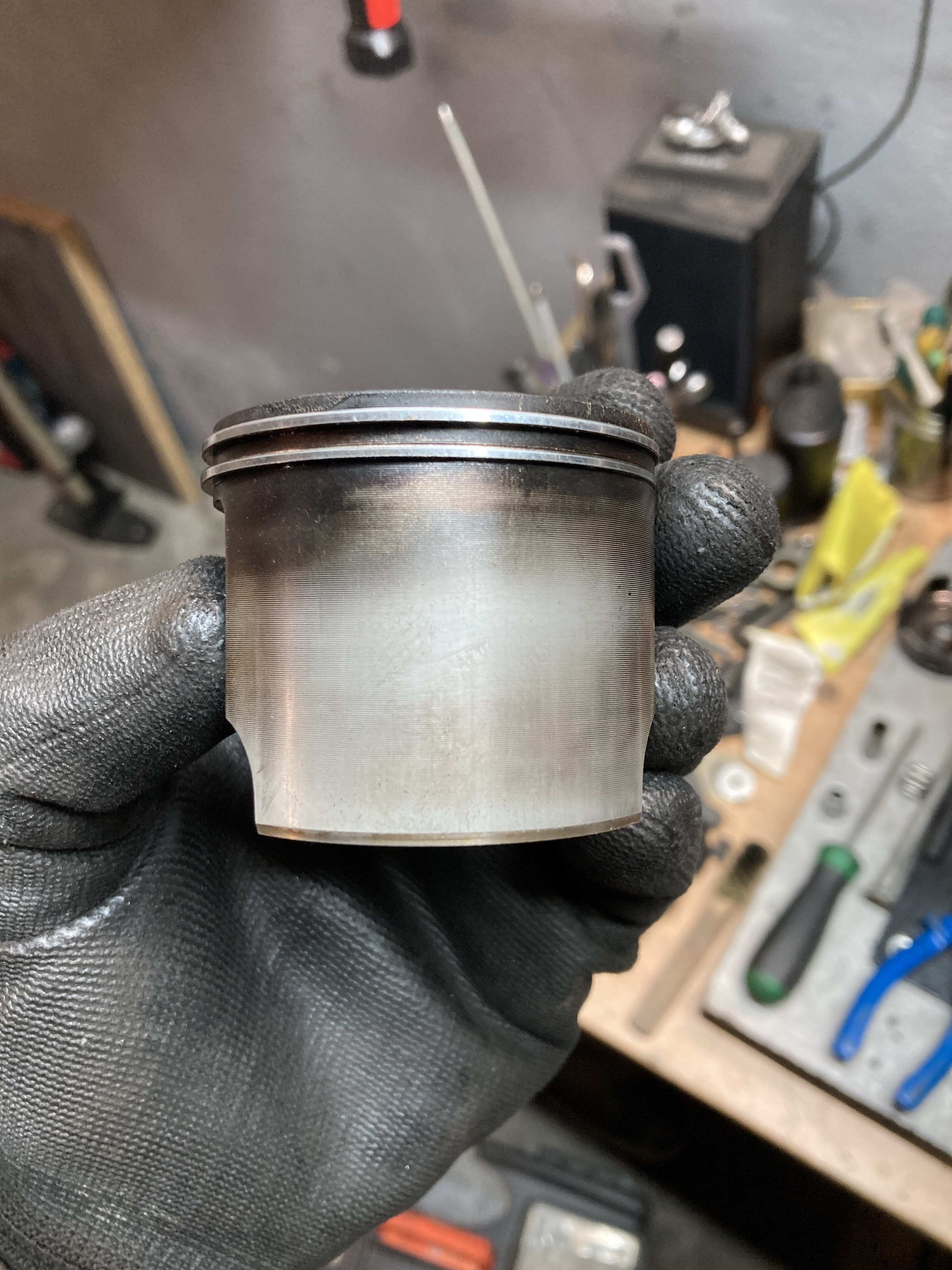

Engine again on the table. Opened it, removed gear box. Waiting for the new 4 speed gear selector.
Forum member supplied image with no explanatory text
One more offering to the God of Speed
One more offering to the God of Speed
Forum member supplied image with no explanatory text
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
Been there, done that.
@108 avatar
UTC

Ossessionato
V range 50s
Joined: UTC
Posts: 2403

Ossessionato
@108 avatar
V range 50s
Joined: UTC
Posts: 2403
UTC quote
That looks like a pretty solid seize.

Glad nothing else seems to be damaged…
@safis avatar
UTC

Ossessionato
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4277
Location: Veria, Greece

Ossessionato
@safis avatar
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4277
Location: Veria, Greece
UTC quote
You're not the first ROFL emoticon ROFL emoticon

Personally, I'd clean it and run it again. I've run worse when I was a kid…
@chandlerman avatar
UTC

Lucky
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion

Lucky
@chandlerman avatar
76 Sprint V, 63 GL, 62 VBB, 05 Stella, 66 Smallstate, 79 P200E, 66 Lammy S3
Joined: UTC
Posts: 9842
Location: Nashville

48 Days Since Last Explosion
UTC quote
SaFiS wrote:
You're not the first ROFL emoticon ROFL emoticon

Personally, I'd clean it and run it again. I've run worse when I was a kid…
Agreed. Those thick rings will run with loads of abuse.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
SaFiS wrote:
You're not the first ROFL emoticon ROFL emoticon

Personally, I'd clean it and run it again. I've run worse when I was a kid…
yes and this is not first of my seized piston.

The main problem with this cylinder was that it always had seizes after reboring to last piston size.
I think that guy who rebored it was made some mistake.
When I got it after reboring I carefully run it in for 1000 km. There was no air leaks, jetting was right, plug colour nice, ignition timing ok.
And when I start to ride harder it starts to seized.
In total it was ten seizes and this one is eleven after what engine not starts again.

As I mentioned above this is not big problem as I have Malossi 112 in good condition. So just threw it in. Also this PK is not my main Vespa, more likely workhorse for riding to work or to give it to friend for a short ride.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Added third port to suit Malossi barrel. I was cut a bit more than need, so must cut a bit on cylinder also.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote

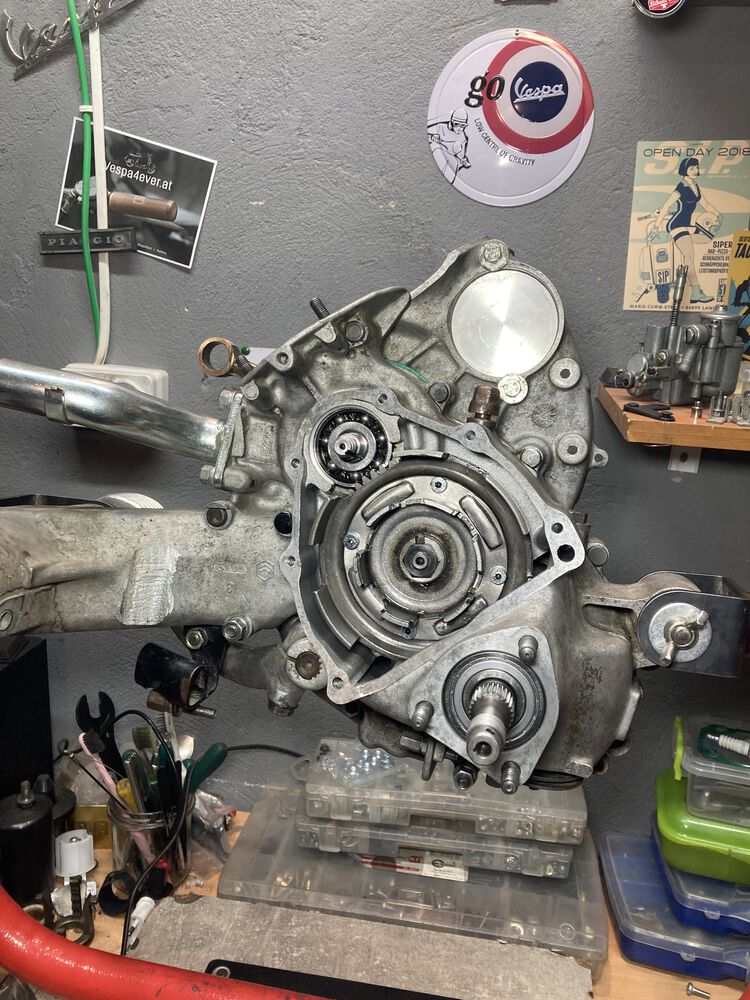

Engine nearly done.

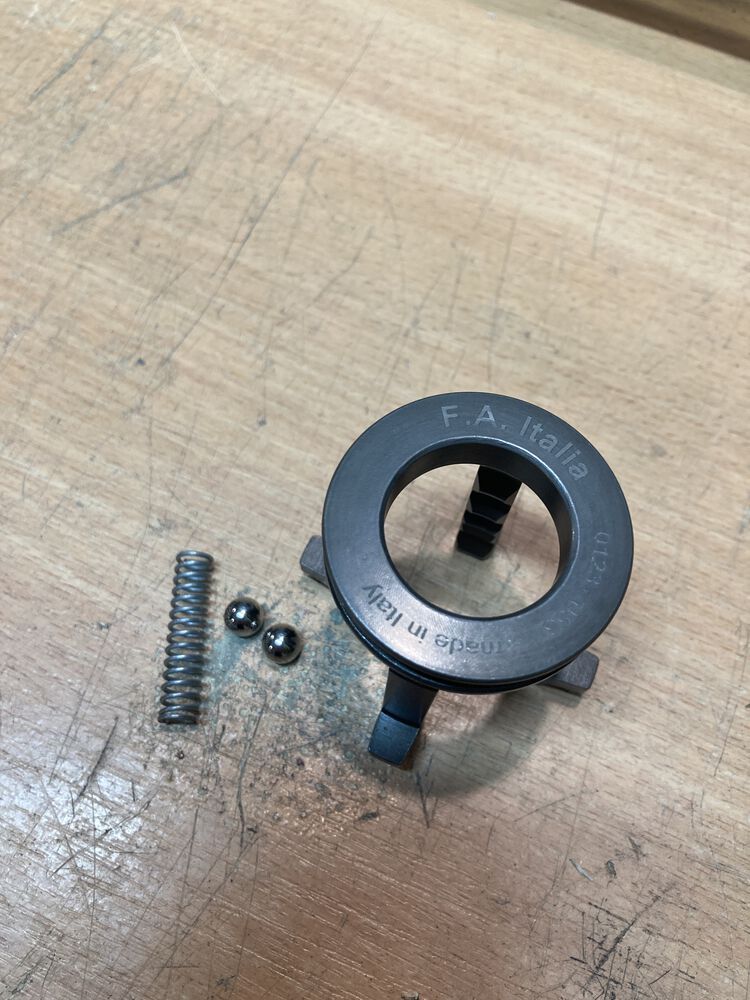

Finally received new gears selector.
Finally received new gears selector.
And mounted new spring and balls with help of this old one.
And mounted new spring and balls with help of this old one.

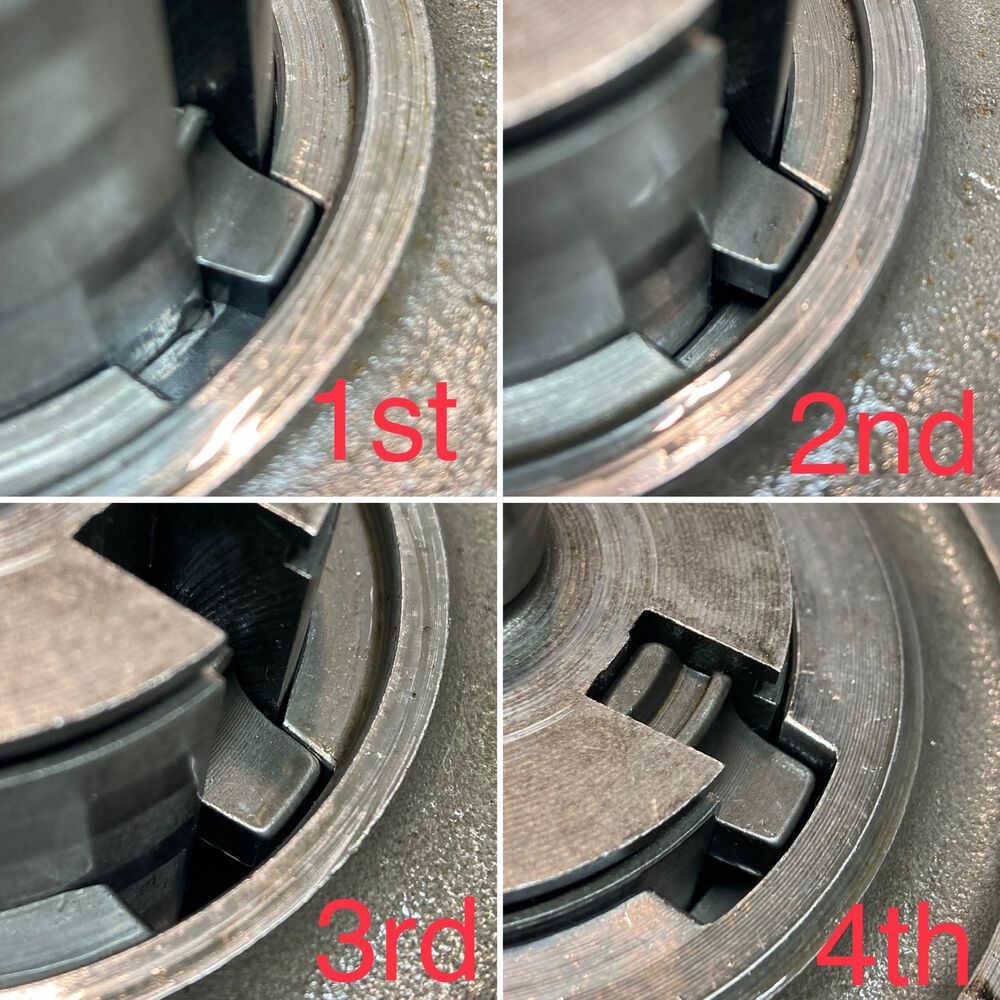

Checked cogs alignment with selector.
Checked cogs alignment with selector.

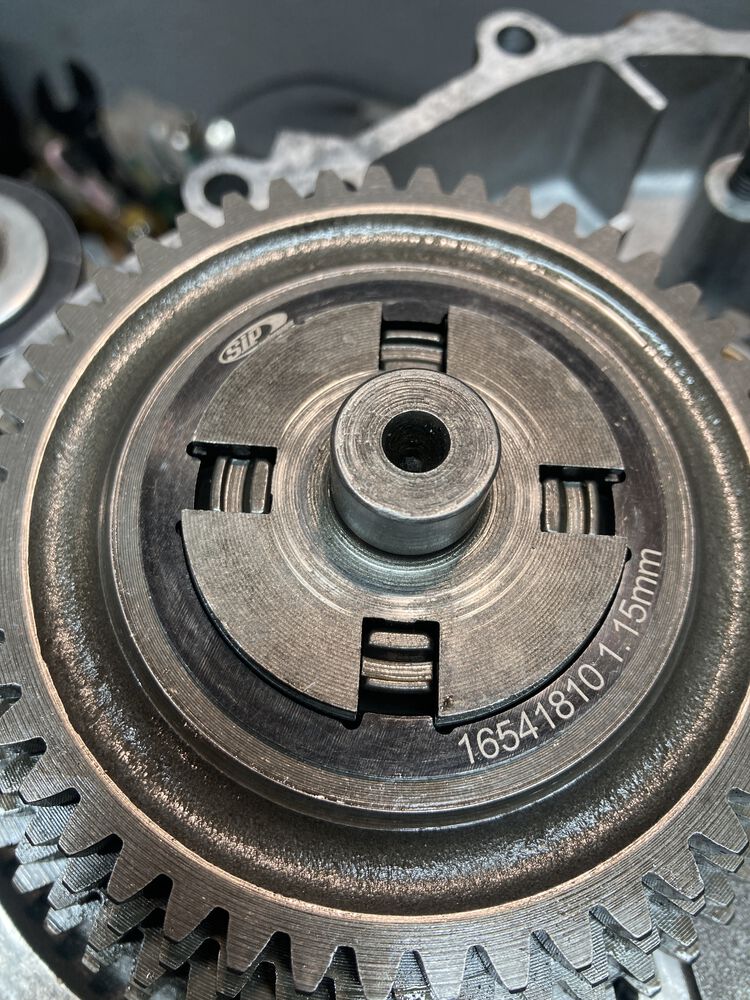

1.15 and 1.0 spacers.
1.15 and 1.0 spacers.

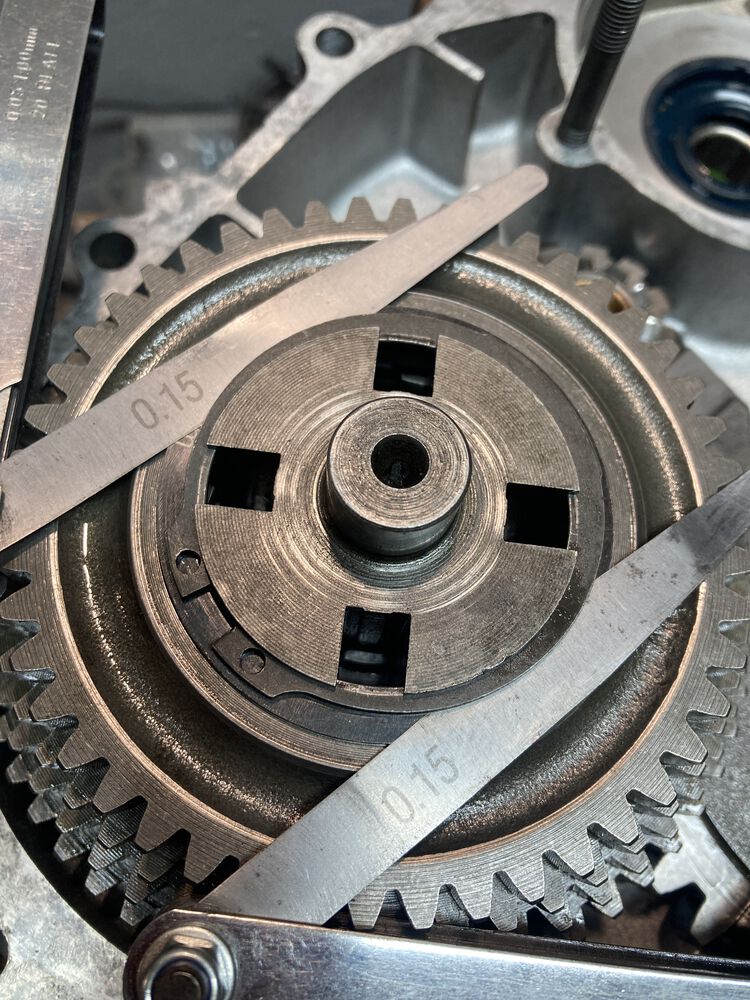

Right tolerances.
Right tolerances.
Four speed gearbox in.
Four speed gearbox in.

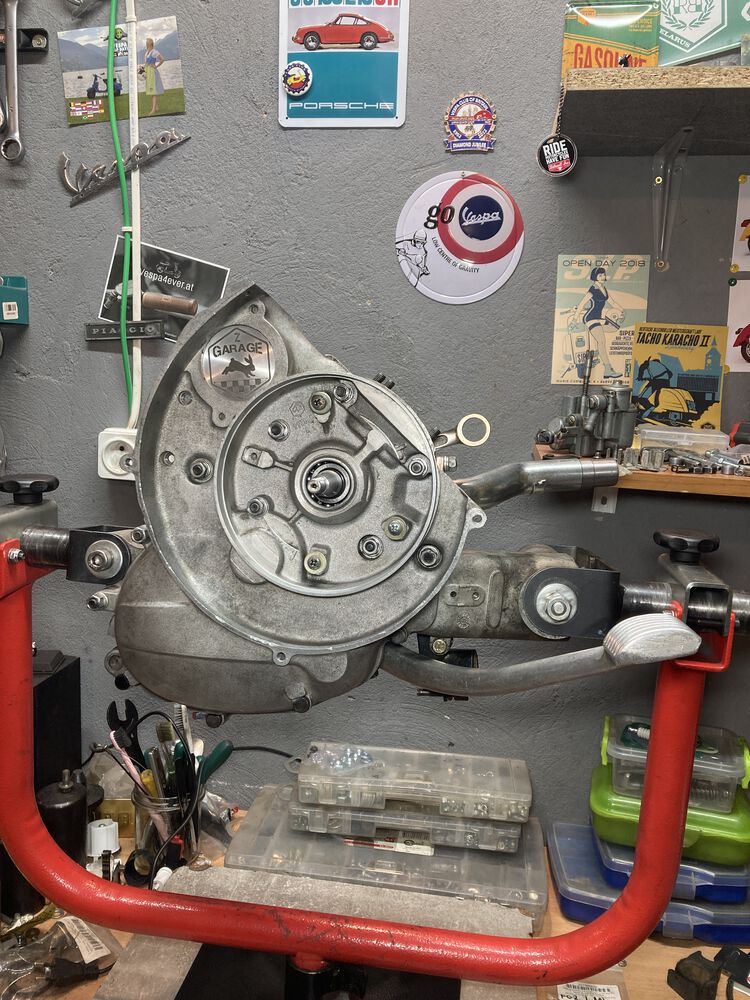

And case closed.
And case closed.
Forum member supplied image with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Done today.

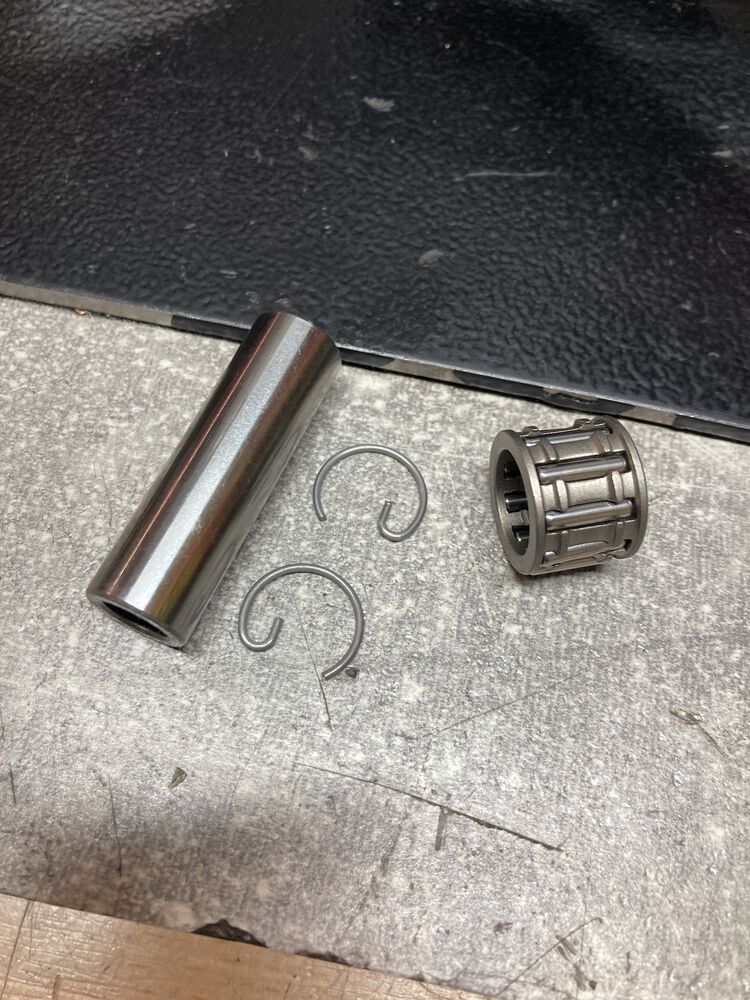

New parts - Malossi pin and Polini bearing.
New parts - Malossi pin and Polini bearing.
I'm very interested how it will go with this cylinder.
I'm very interested how it will go with this cylinder.
Primary 21/60.
Primary 21/60.

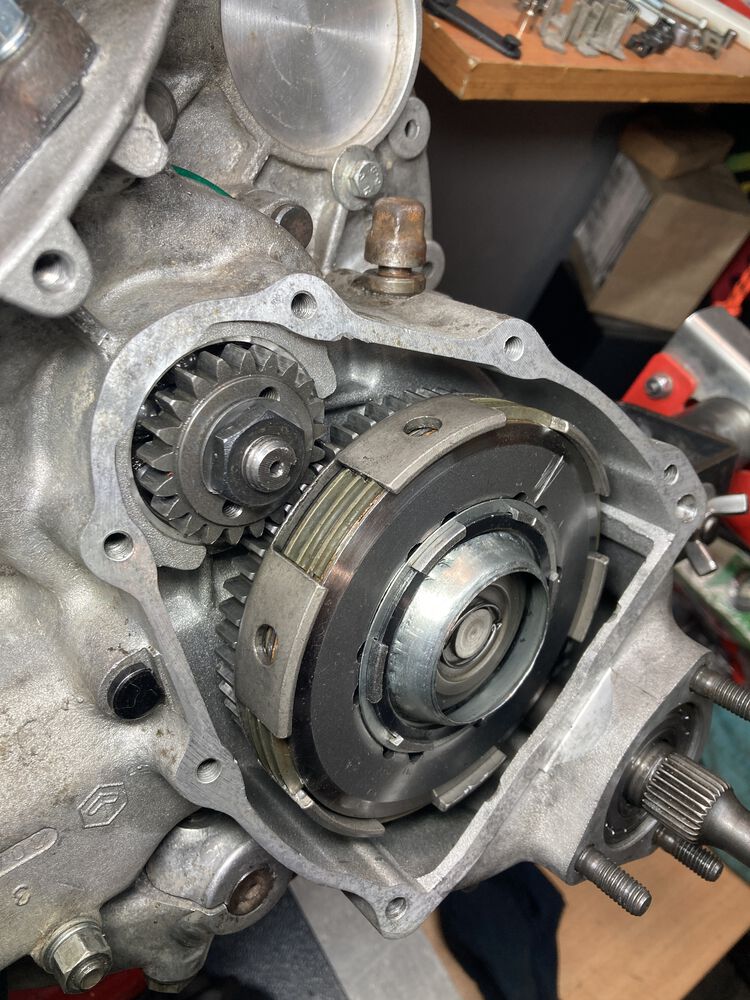

Clutch in.
Clutch in.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote

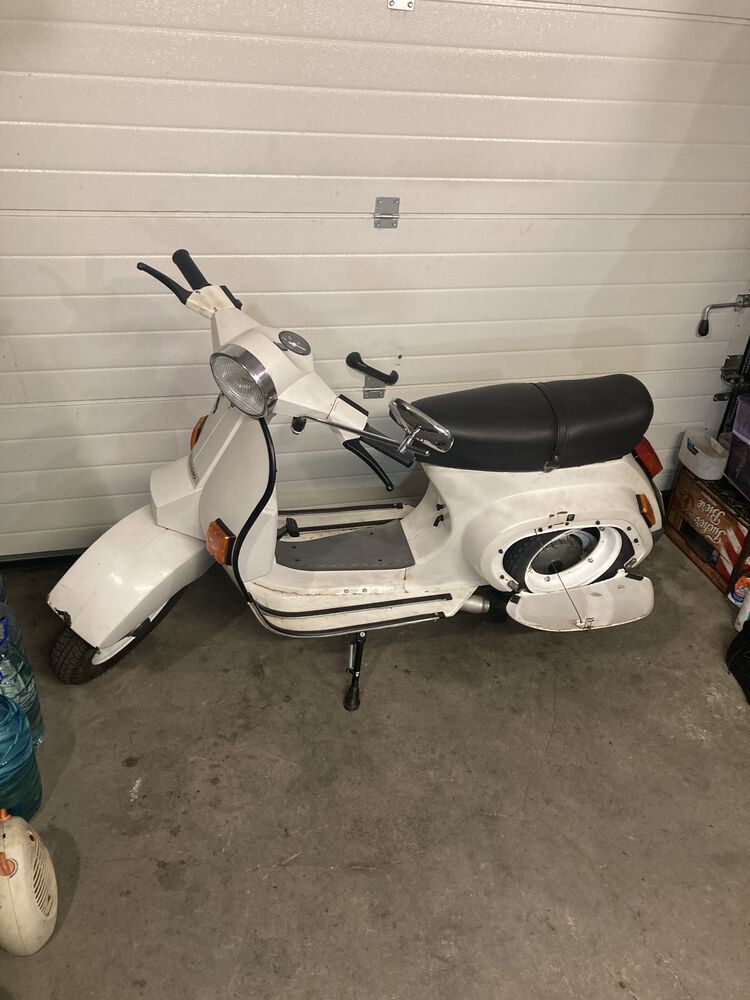

This evening I mounted engine in. So the Snowball can again stay on it own feet.
Forum member supplied image with no explanatory text

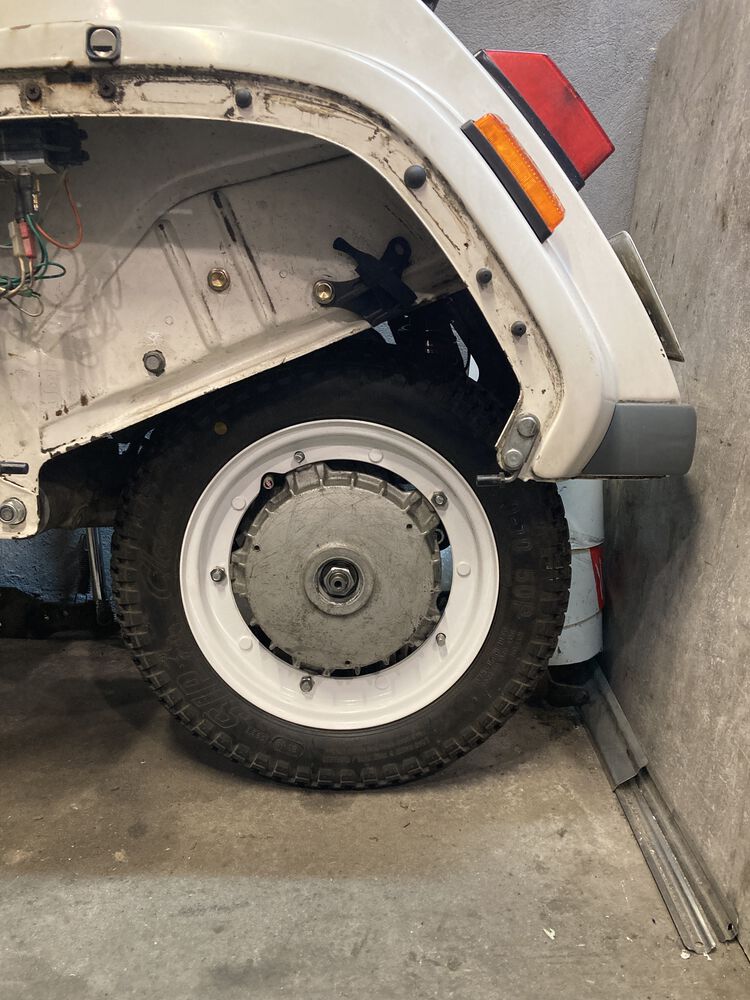

Also got back rear rim from powder coating.
Also got back rear rim from powder coating.
New YSS X-pro rear shock. As all four original ones that I have is totally dead.
New YSS X-pro rear shock. As all four original ones that I have is totally dead.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Can somebody help me with questions about ignition timings marks?

This is 4-pole ignition. And I want to know in what direction I must turn it to get close to 16º ? Clockwise?
And how much degrees factory mark is? 20º?

Yes I'm completely understand that this is very rough settings and I need to strobe it to get clear readings.

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote
Rode first 30 km on "new" cylinder(want more but weather is terrible).
Seems jetting bit wrong:
MJ 98
IJ 45

And 2.86 primary is bit long - at 1-2-3 gears all ok, but very weak at 4th, need to rev 3rd really high before shift to 4th.

Also more works was done:

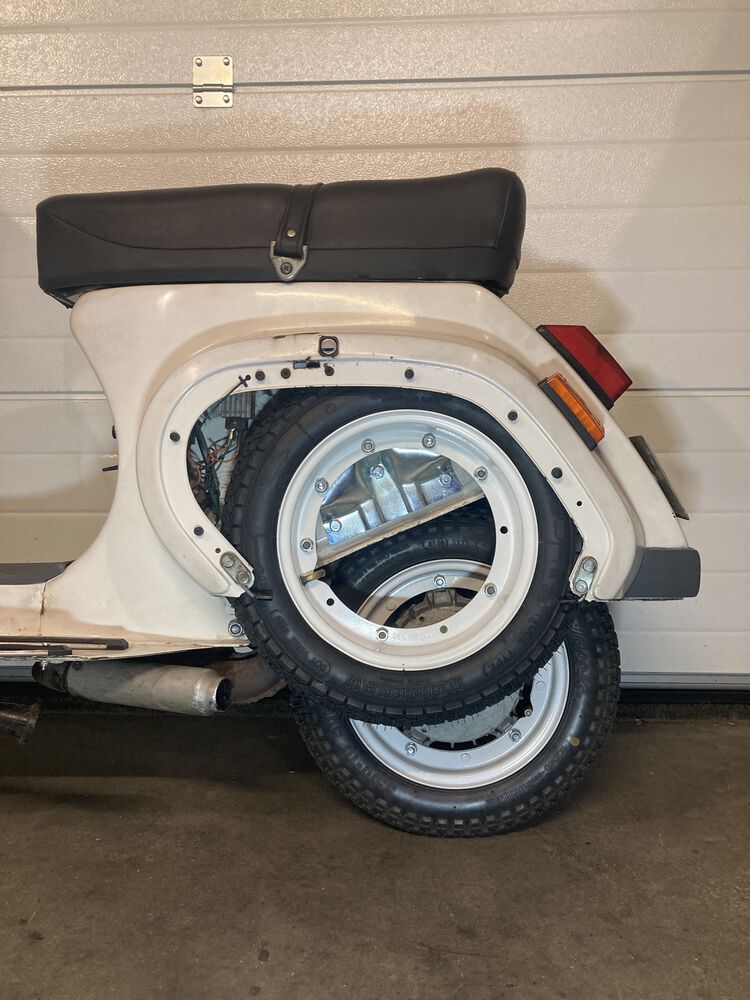

Put on spare wheel - original Piaggio rim and Heidenau K38 tyre.
Put on spare wheel - original Piaggio rim and Heidenau K38 tyre.

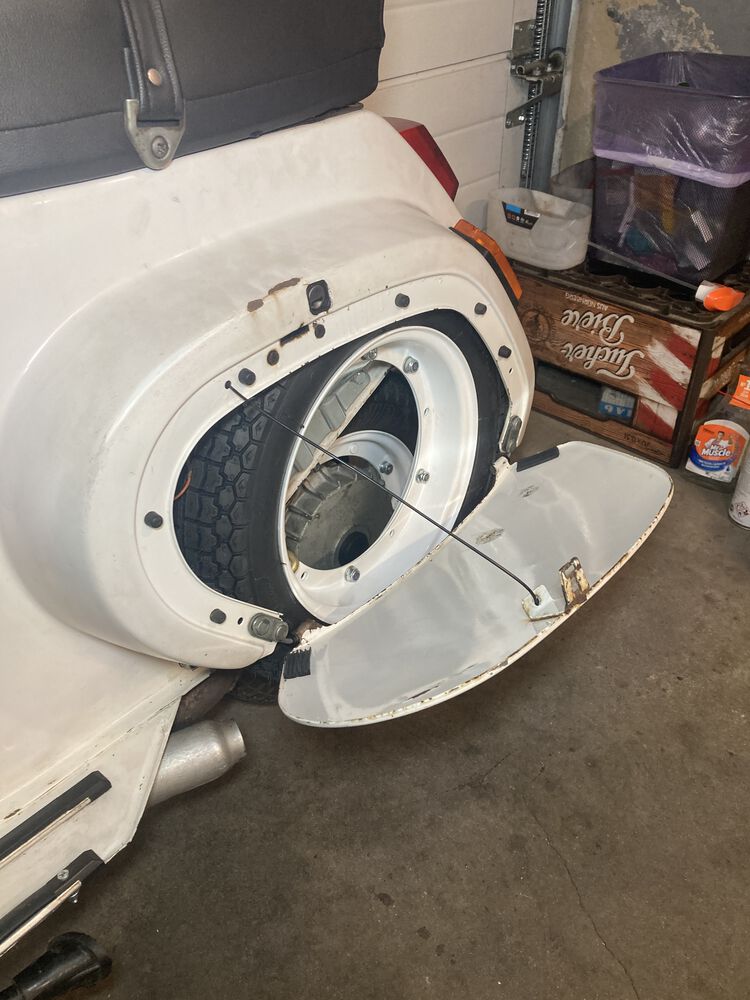

Original plastic strap which hold side cover. Don't know why it just was on my shelf.
Original plastic strap which hold side cover. Don't know why it just was on my shelf.
Original seat from my 50 Special.
Original seat from my 50 Special.
Forum member supplied image with no explanatory text

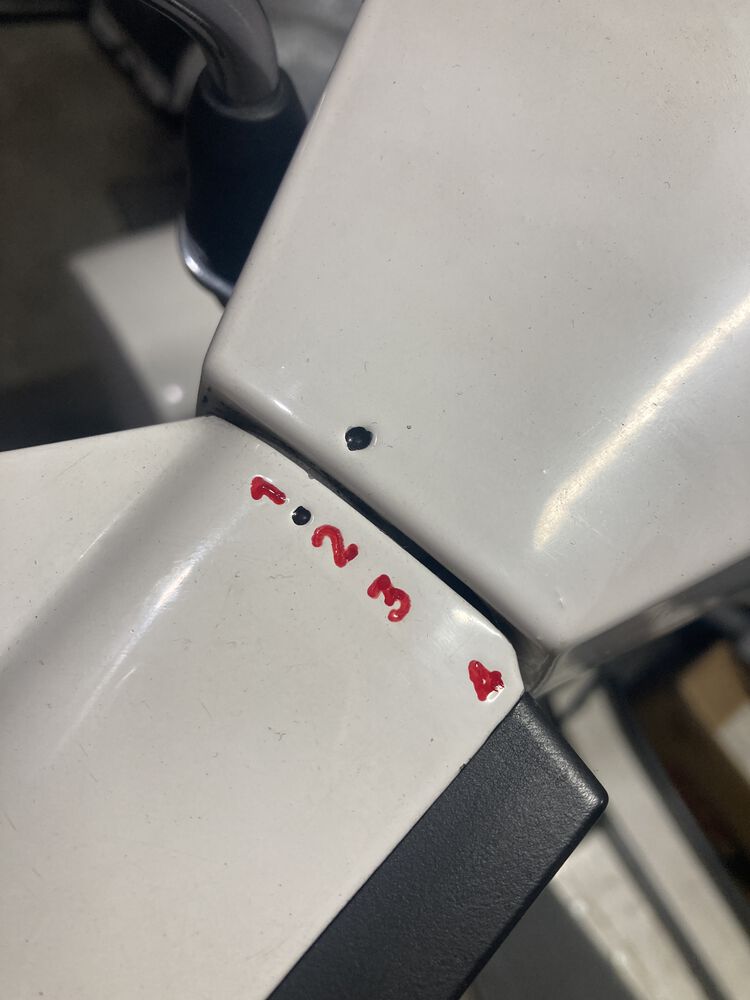

As now it have 4 speed gearbox I can proudly marked 4th. :)
As now it have 4 speed gearbox I can proudly marked 4th. :)
Mounted with rivets new pair of outer floor rails end caps.
Mounted with rivets new pair of outer floor rails end caps.
OP
@roland87 avatar
UTC

Molto Verboso
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.

Molto Verboso
@roland87 avatar
'13 LML Star 200, '81 50 Special, '81 P 150 X, '87 PK 50 Nuova, '84 PK 50 S
Joined: UTC
Posts: 1244
Location: Ukraine. Kyiv.
UTC quote

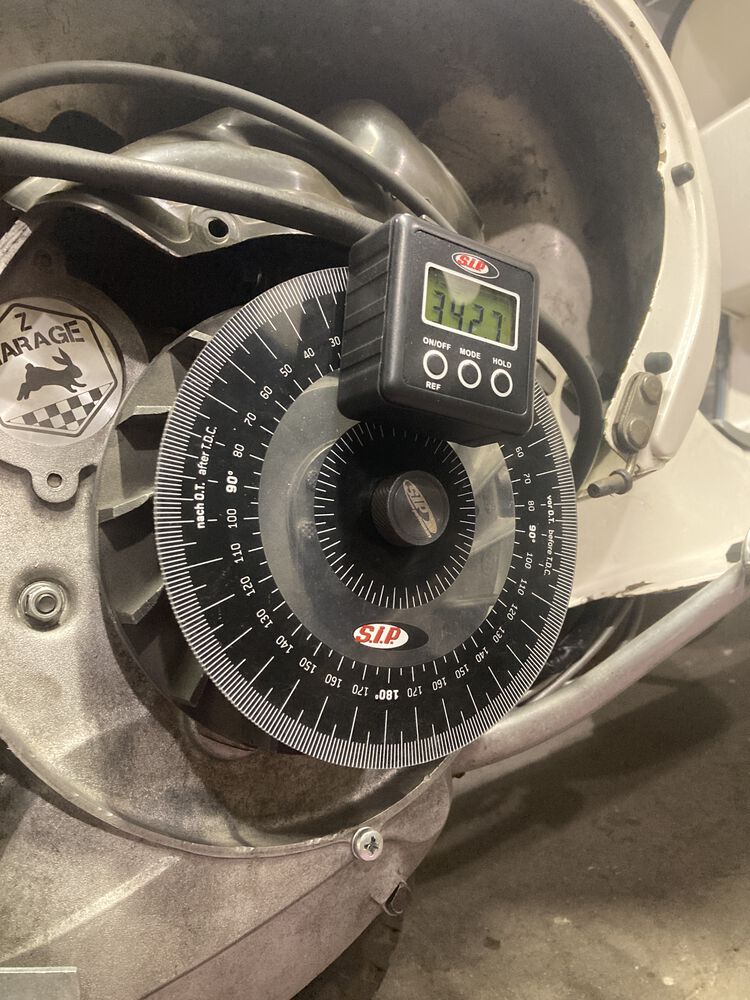

Finally got the ignition timing right. Original marks on the case/stator not even close to correct values.
Forum member supplied image with no explanatory text
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0355s ][ Queries: 4 (0.0142s) ][ live ][ 313 ][ ThingOne ]
