It is a 1970 Super 150. I am piecing back together someone else's disassembly.

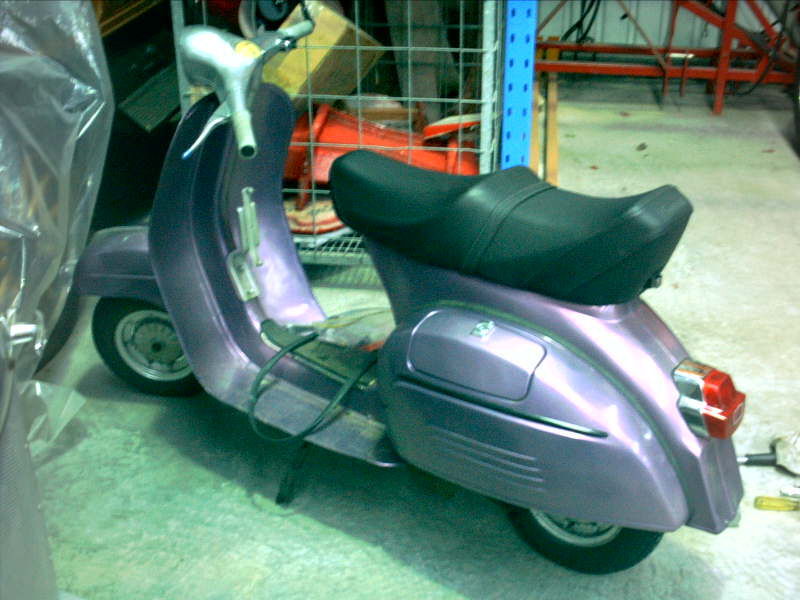

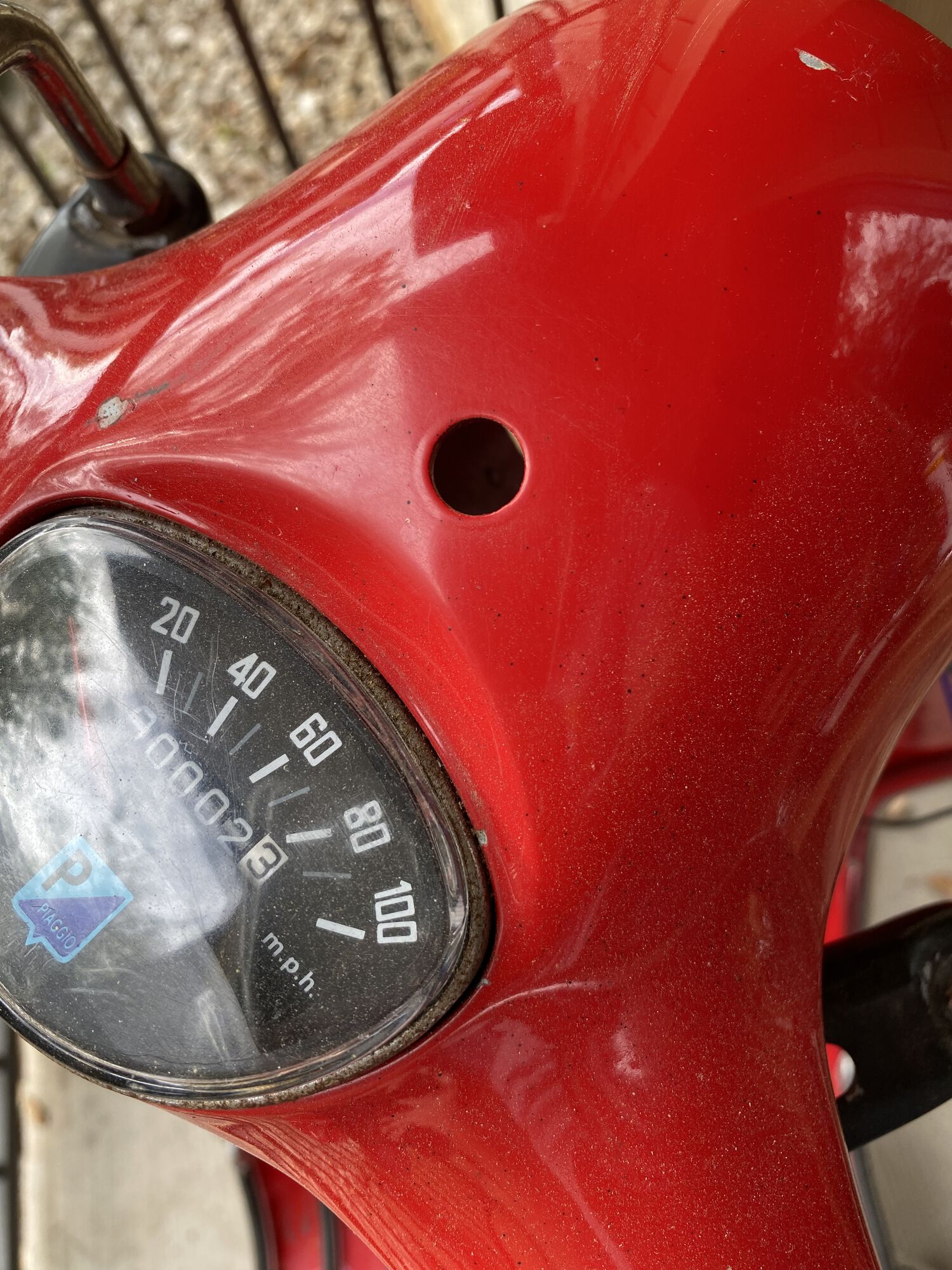

Question is what is the hole by the speedometer for?

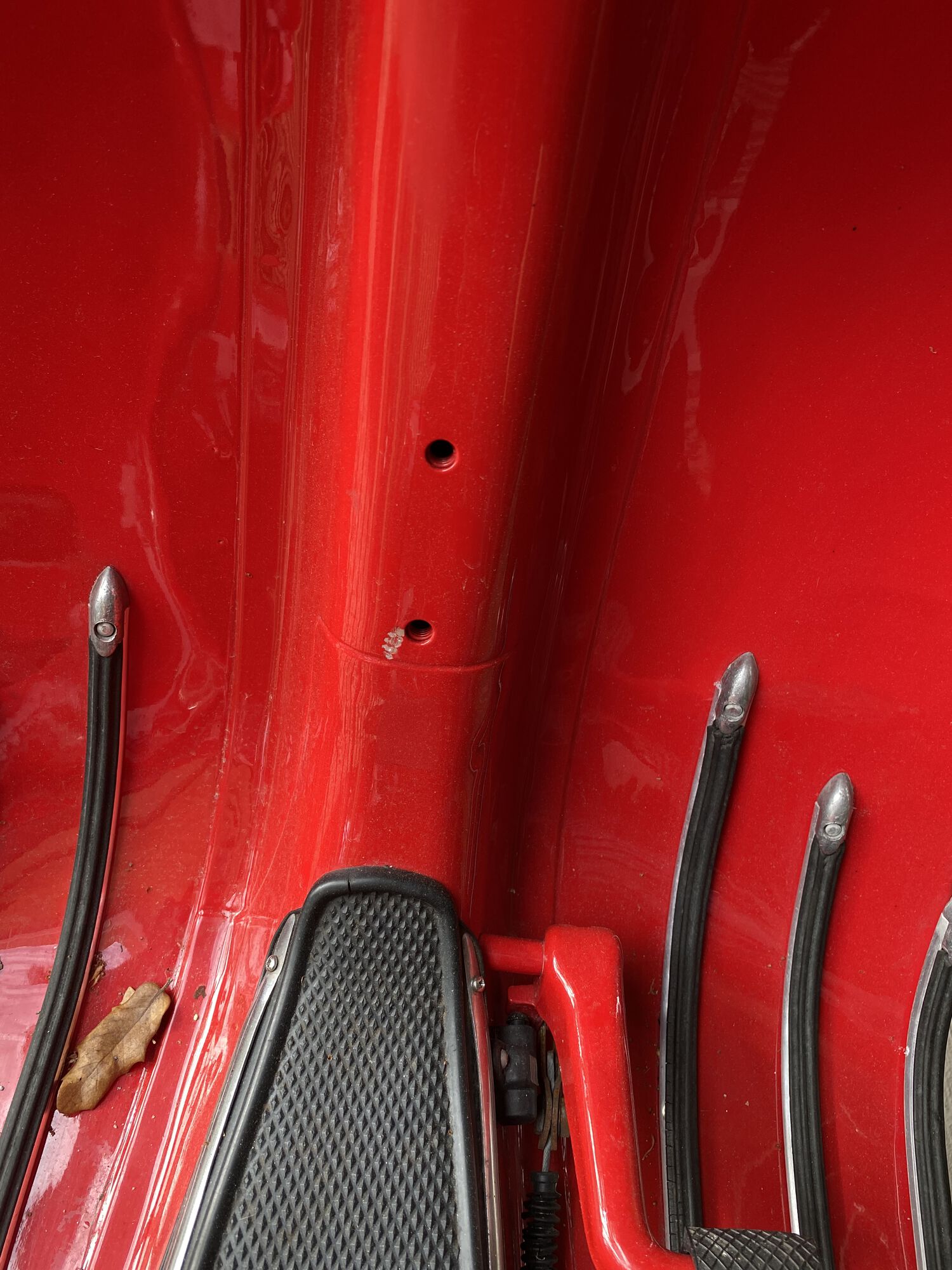

Same for the ones on the inside neck close to the floor?

This group is amazing and helpful.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text

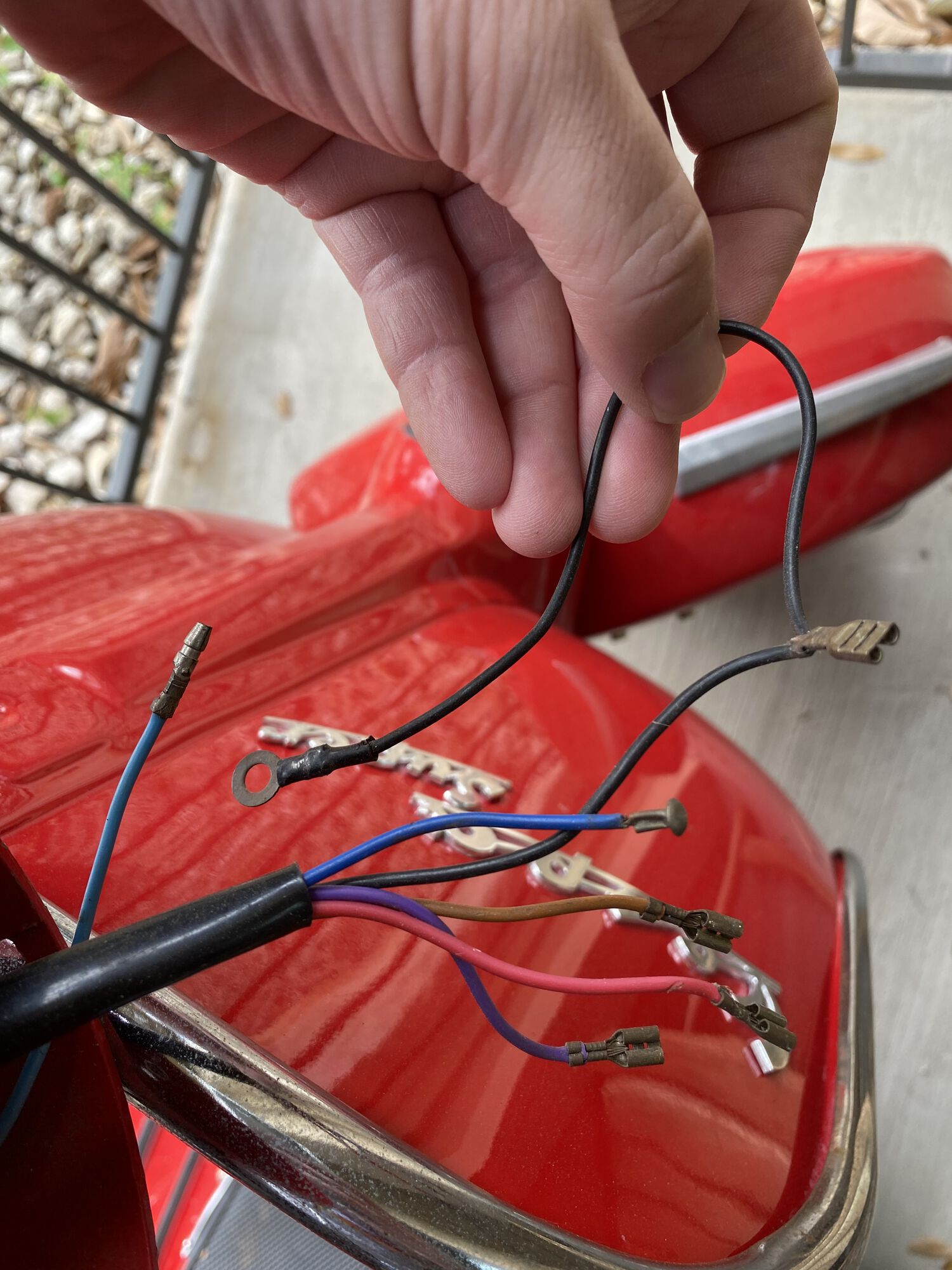

Wires out of the headlight
Wires out of the headlight
@sdjohn avatar
sdjohn
UTC
Johnny Two Tone
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA

sdjohn
Johnny Two Tone
@sdjohn avatar
'15 GTS300, '86 PX125EFL, '66 VBB, '01 ET4
Joined: UTC
Posts: 9045
Location: San Diego, CA
UTC quote
headset - indicator light for high beam

legshield - holes to mount a spare tire carrier
Positive
@subetherbass avatar
SubEtherBASS
UTC
Veni, Vidi, Posti
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 5029
Location: Australa, Mate

SubEtherBASS
Veni, Vidi, Posti
@subetherbass avatar
1997 Italjet Formula 125, 2 matching N.Z. '69 VBC Super, 177cc Racer, VespaCross Bodge, Puch SRA150, Piaggio Zip 100! & others
Joined: UTC
Posts: 5029
Location: Australa, Mate
UTC quote

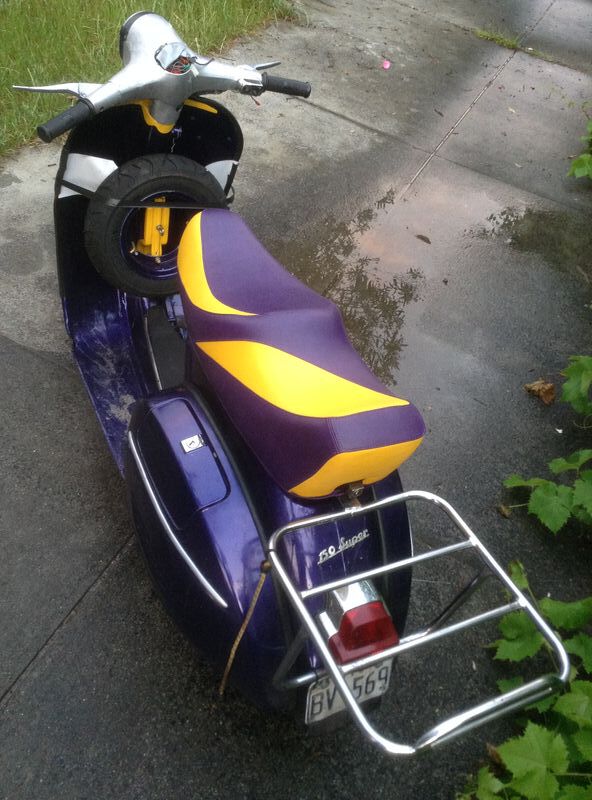

It took some searching, but I finally found pick of the spare wheel holder on my VBC

Hole by speedo is Indo Key mount or Thai Light hole
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@ray8 avatar
Ray8
UTC
Ossessionato
Joined: UTC
Posts: 2162
Location: Los Angeles

Ray8
Ossessionato
@ray8 avatar
Joined: UTC
Posts: 2162
Location: Los Angeles
UTC quote
Wiring. Some guesswork here
The 74 Super wiring is VERY different.

Purple - high beam for sure
Brown - low beam for sure
Black - headlight ground for sure. Eyelet under high-beam/running indicator light*
Pink - running headlight you don't have. Tape that**.
Dark blue(missing connector) - speedo light
Light blue idk, maybe for the new speedo(?)

*You don't have wiring there for that light as a high beam indicator. On some of these bikes it was originally a running indicator, but if you want you can make it a high beam indicator by piggybacking off the purple connector.
**Or use that to make it a running indicator.
Positive
OP
Bikesbybaker
UTC
Enthusiast
Super 150
Joined: UTC
Posts: 51
Location: Austin

Bikesbybaker
Enthusiast
Super 150
Joined: UTC
Posts: 51
Location: Austin
UTC quote
Ray8 wrote:
Wiring. Some guesswork here
The 74 Super wiring is VERY different.

Purple - high beam for sure
Brown - low beam for sure
Black - headlight ground for sure. Eyelet under high-beam/running indicator light*
Pink - running headlight you don't have. Tape that**.
Dark blue(missing connector) - speedo light
Light blue idk, maybe for the new speedo(?)

*You don't have wiring there for that light as a high beam indicator. On some of these bikes it was originally a running indicator, but if you want you can make it a high beam indicator by piggybacking off the purple connector.
**Or use that to make it a running indicator.
I appreciate it. This will provide a great starting point. Thanks again.
