Trying to figure out how to stop the MMW head from leaking on the Pinasco aluminum cylinder. I've tried permatex copper but it leaks rather quickly once hot. Makes jetting rather challenging.

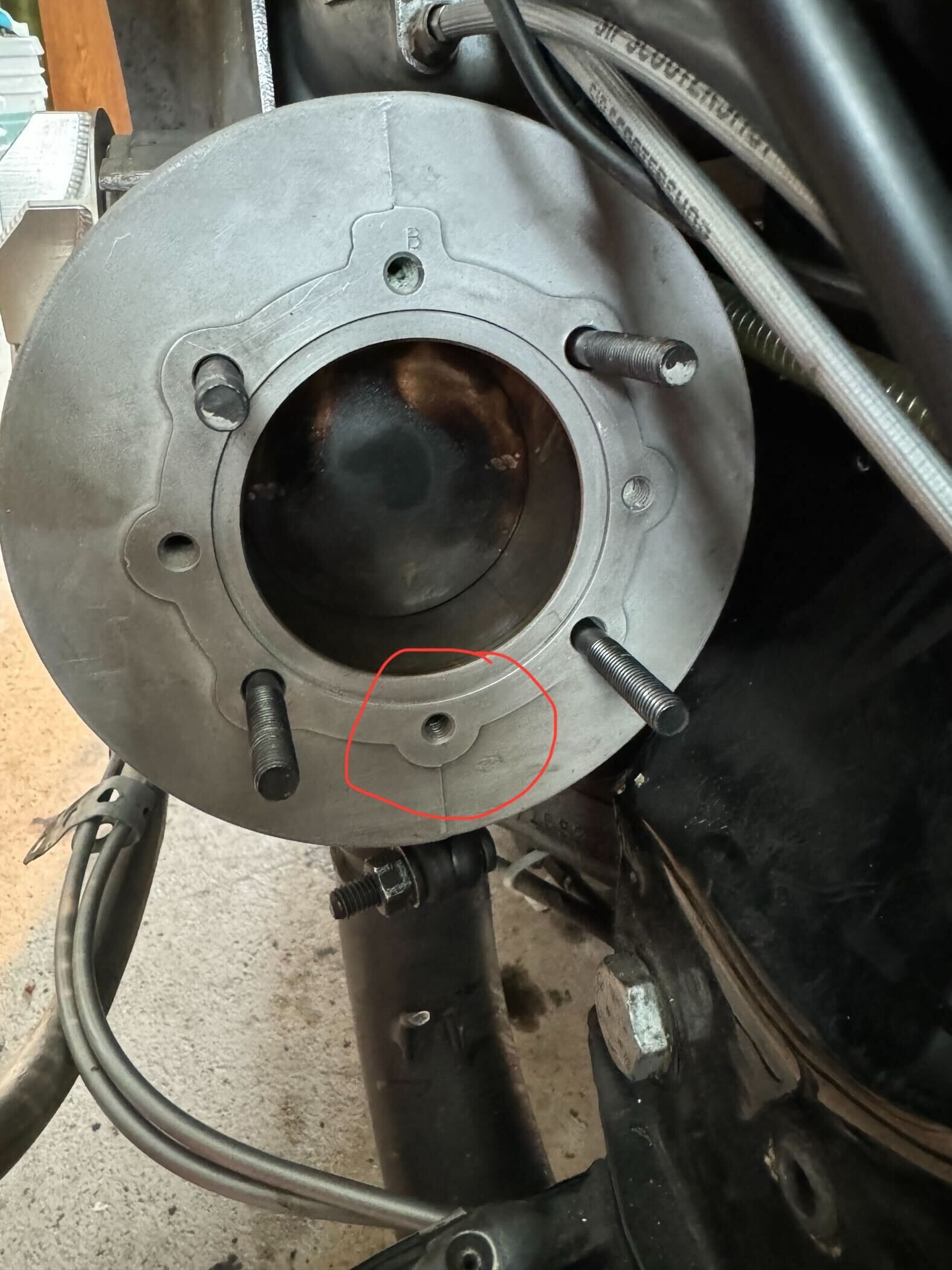

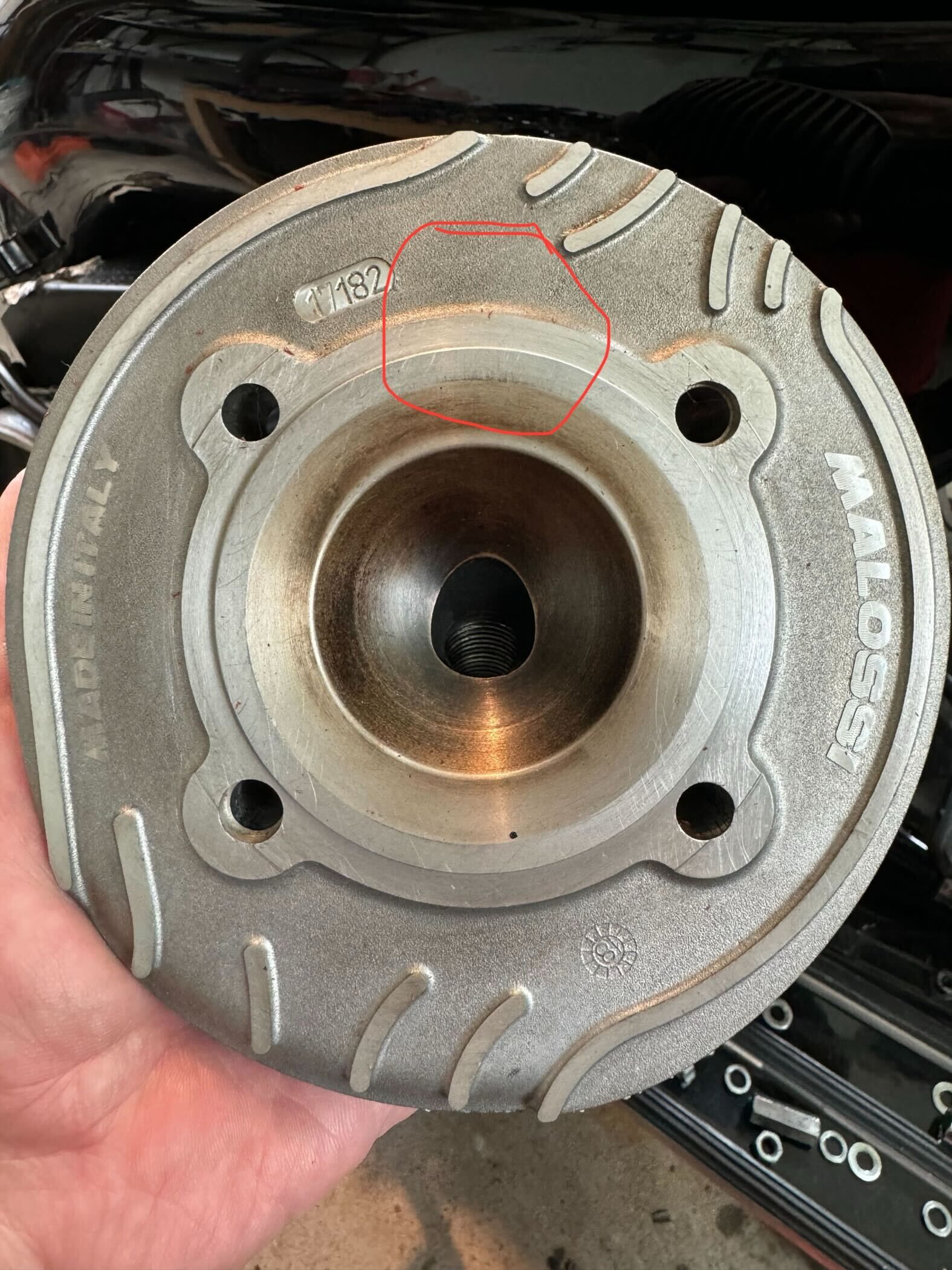

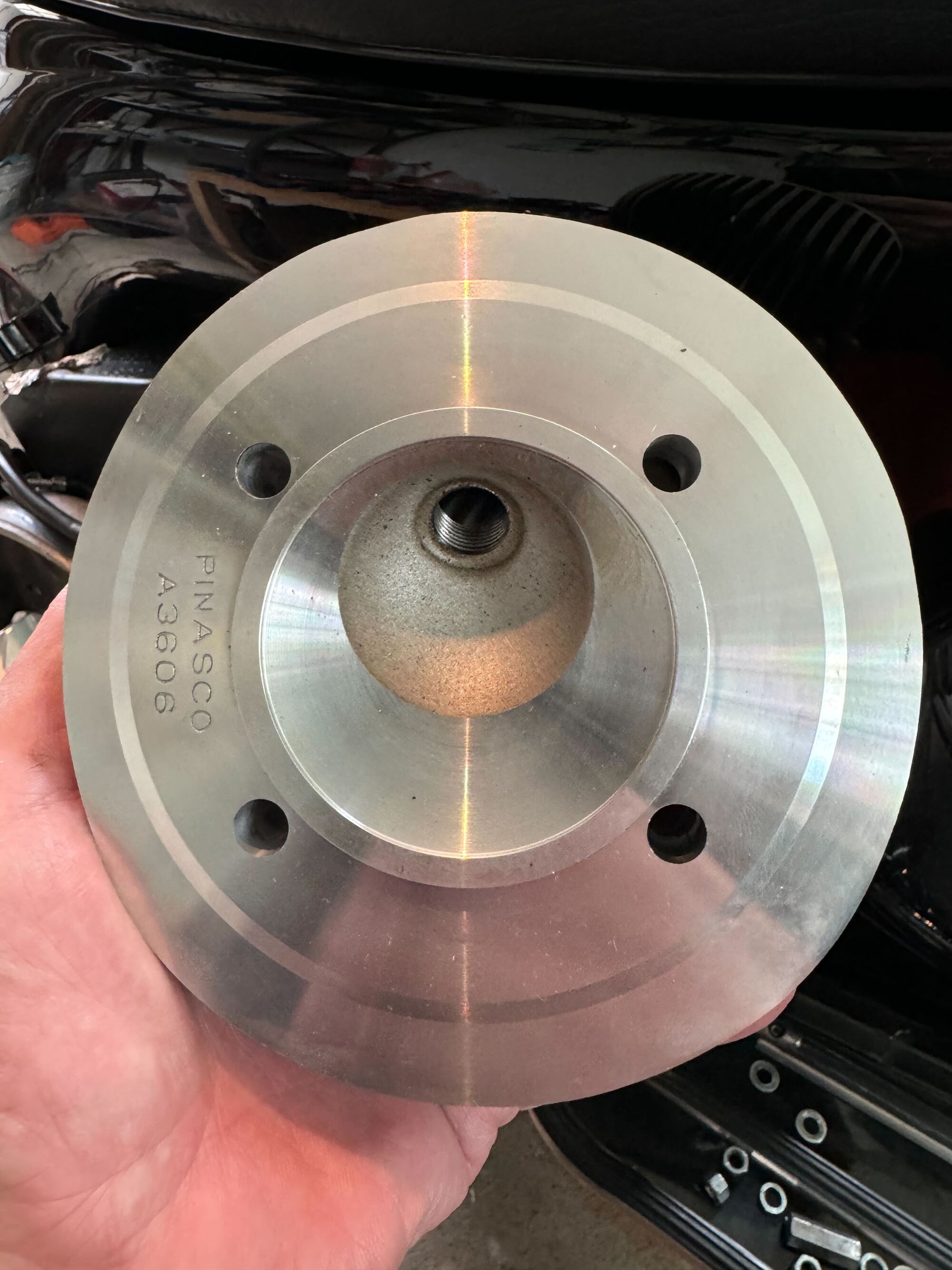

In the photos you can see the 4 unused bolt holes are just outside the rim edge. The original does have full coverage.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
-Check to see if the gaskets surfaces on both cylinder and head are true. address as needed.

-Have the head drilled to allows 8 bolts. may not be a great option here.

-purchase an 8 hole head.
@moto64 avatar
UTC

Molto Verboso
'64 Motovespa 150S (177) , '65 VBB, '66 Allstate SF, '66 180SS
Joined: UTC
Posts: 1876
Location: S.Salem, NY

Molto Verboso
@moto64 avatar
'64 Motovespa 150S (177) , '65 VBB, '66 Allstate SF, '66 180SS
Joined: UTC
Posts: 1876
Location: S.Salem, NY
UTC quote
The depths of the steps ?
@srd0060 avatar
UTC

Hooked
2022 HPE 300 tech/ 91 PX 200e/97 PX 200e
Joined: UTC
Posts: 109
Location: Australia

Hooked
@srd0060 avatar
2022 HPE 300 tech/ 91 PX 200e/97 PX 200e
Joined: UTC
Posts: 109
Location: Australia
UTC quote
Check to see if the head is not warped.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
MMW head appears level on glass, with a 2mm step. I mounted the original Pinasco head this afternoon for some test runs but rain arrived before I could take it out. I will pull it and the cylinder off tomorrow and check level/step height.

Any thoughts on installing studs in the 4 unused bolt holes and filling the hex hole with permatex copper?

https://www.fastenere.com/m8-125-metric-socket-set-screws-cup-point-din-916-stainless-steel-18-8
@srd0060 avatar
UTC

Hooked
2022 HPE 300 tech/ 91 PX 200e/97 PX 200e
Joined: UTC
Posts: 109
Location: Australia

Hooked
@srd0060 avatar
2022 HPE 300 tech/ 91 PX 200e/97 PX 200e
Joined: UTC
Posts: 109
Location: Australia
UTC quote
I would put grub screws in the holes and see if it stops the blow out.
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
Augustusflavius wrote:
MMW head appears level on glass, with a 2mm step. I mounted the original Pinasco head this afternoon for some test runs but rain arrived before I could take it out. I will pull it and the cylinder off tomorrow and check level/step height.

Any thoughts on installing studs in the 4 unused bolt holes and filling the hex hole with permatex copper?

https://www.fastenere.com/m8-125-metric-socket-set-screws-cup-point-din-916-stainless-steel-18-8
are you saying you have air coming out through one of the holes? that is a different problem all together.
@socalguy avatar
UTC

bodgemaster
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7155
Location: So Cal

bodgemaster
@socalguy avatar
63 GL, 76 Super (x2), 74 Primavera (x2), 79 P200, 06 Fly 150
Joined: UTC
Posts: 7155
Location: So Cal
UTC quote
Those holes shouldn't affect sealing. With the MMW head the combustion chamber is inside the cylinder. Or am I missing something?
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
my 4th option would be to. .. .

Scrap the Pinasco cylinder and go with BGM 177 cylinder kit, add black rubber sheath to the gear cables, and add gear cable bracket.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
GickSpeed wrote:
are you saying you have air coming out through one of the holes? that is a different problem all together.
No, no air is escaping the holes. I do have burned oil/fuel leaking from the lower portion of the head/cylinder filling the bottom bolt hole. MMW head is flat, but I haven't checked the cylinder yet.

If I entertained the BGM 177, which one? Its a 64 VBB2T engine.
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
I don't know if this is a good idea or a bad one so please shoot it down quick if it's bad. If you had the cylinder OFF could you lap the head and cylinder together with valve grinding paste?
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
Augustusflavius wrote:
No, no air is escaping the holes. I do have burned oil/fuel leaking from the lower portion of the head/cylinder filling the bottom bolt hole. MMW head is flat, but I haven't checked the cylinder yet.

If I entertained the BGM 177, which one? Its a 64 VBB2T engine.
is this a 2 or 3 port motor?
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
Which one is the MMW head I see a Malossi and a Pinasco. Why aren't you using the Pinasco isn't that which came with the piston and cylinder?
@safis avatar
UTC

Ossessionato
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4310
Location: Veria, Greece

Ossessionato
@safis avatar
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4310
Location: Veria, Greece
UTC quote
hibbert wrote:
Which one is the MMW head I see a Malossi and a Pinasco. Why aren't you using the Pinasco isn't that which came with the piston and cylinder?

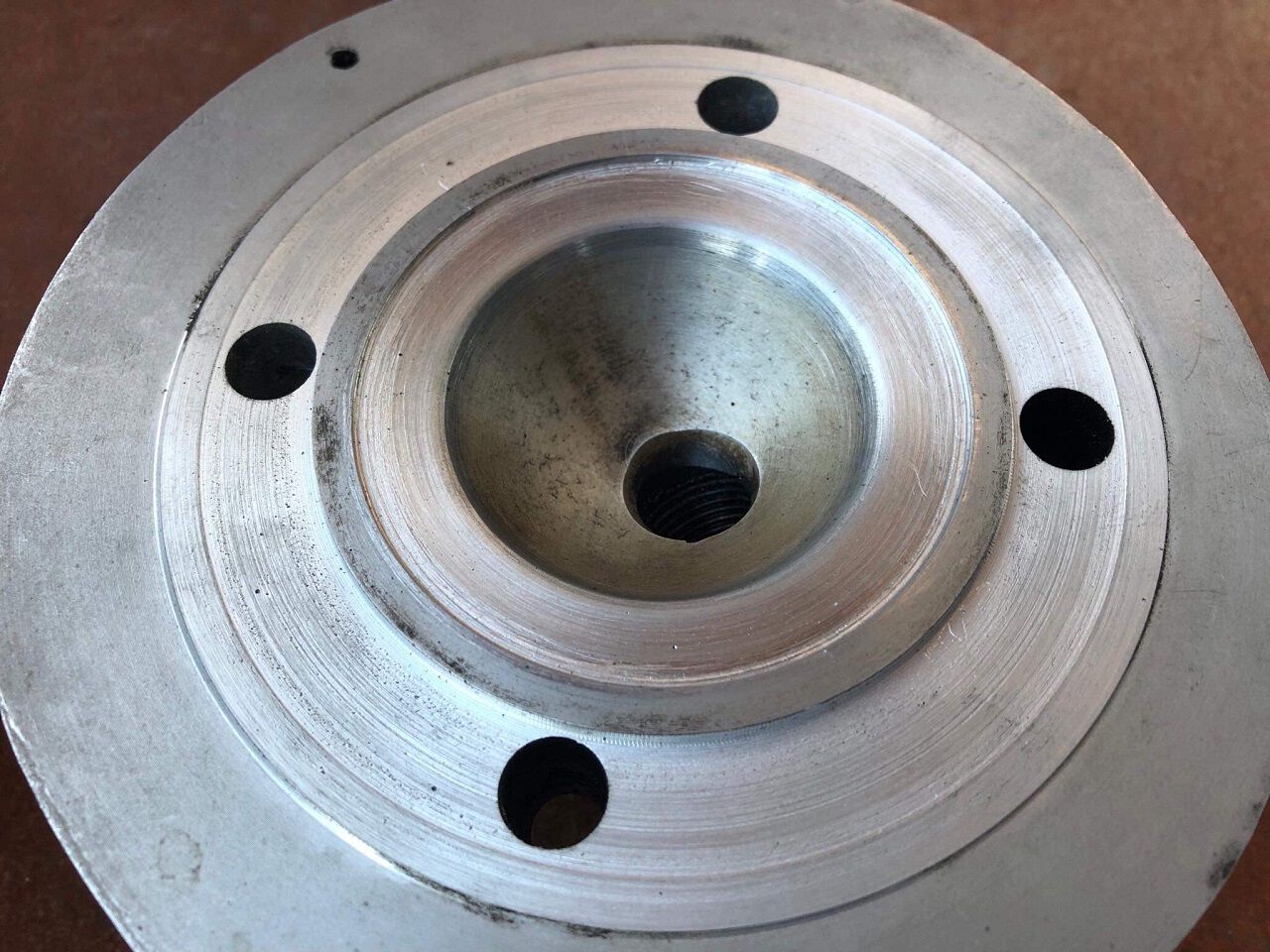

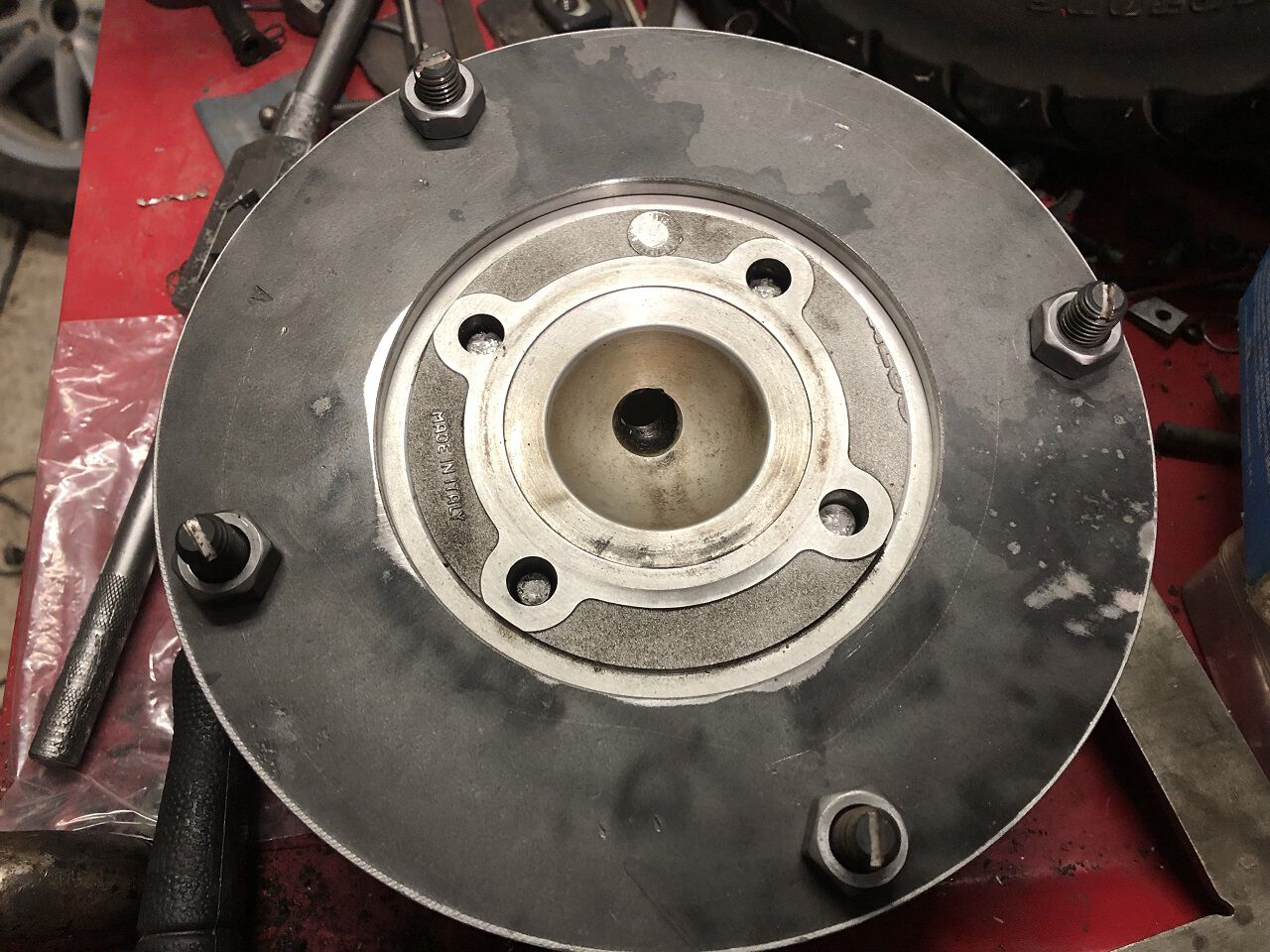

MMW head is a machined Malossi with a 'step' to fit inside the Pinasco cylinder. Pinasco head tends to ping like crazy that's why most of us bin it from the start. I did a similar thing on a friend's Sprint V.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
SaFiS wrote:
MMW head is a machined Malossi with a 'step' to fit inside the Pinasco cylinder. Pinasco head tends to ping like crazy that's why most of us bin it from the start. I did a similar thing on a friend's Sprint V.
Cool I see some machining on the Malossi. Guess I'm lucky have 2 Pinasco engines neither ping.
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia
UTC quote
hibbert wrote:
I don't know if this is a good idea or a bad one so please shoot it down quick if it's bad. If you had the cylinder OFF could you lap the head and cylinder together with valve grinding paste?
That's a great idea Hibbert!

Might also be worth checking that the step on the head is definitely touching the step down in the cylinder. If it didn't quite touch then that would explain why it keeps blowing the sealer out.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
GickSpeed wrote:
is this a 2 or 3 port motor?
Gick, its a 2 port case.
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
UTC quote
Augustusflavius wrote:
Gick, its a 2 port case.
okay. you are stuck with 2 port cylinder then.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
@gickspeed avatar
UTC

Ossessionato
Joined: UTC
Posts: 2164
Location: Racing Capital of the World

Ossessionato
@gickspeed avatar
Joined: UTC
Posts: 2164
Location: Racing Capital of the World
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
What do you mean, Gick. Open ports or something else?

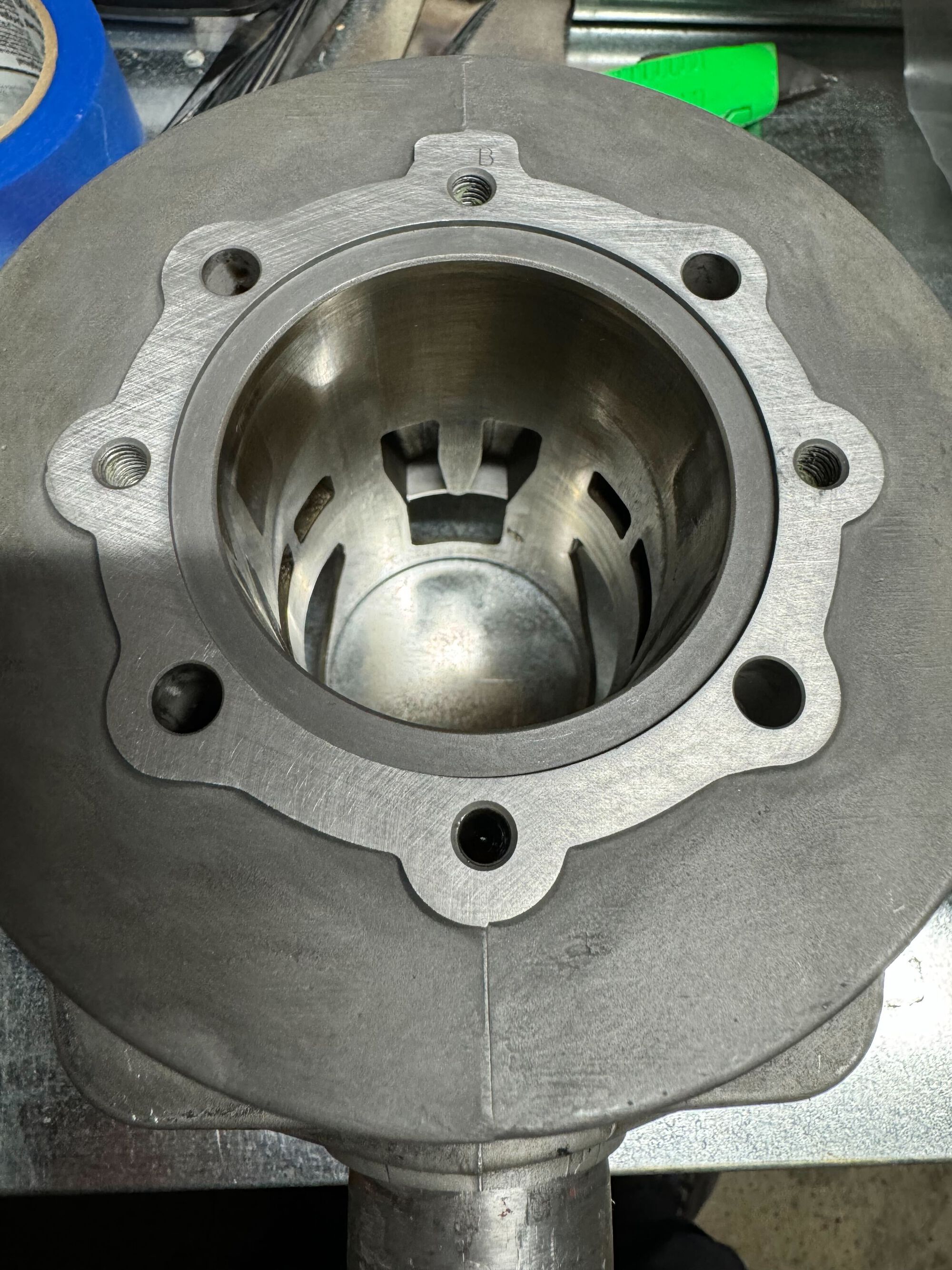

Step depth on the Pinasco cylinder is 1.5mm, and the height on the MMW is 2mm. Also the width of the Pinasco is 73.7mm and the MMW is 73mm. Lots of play.

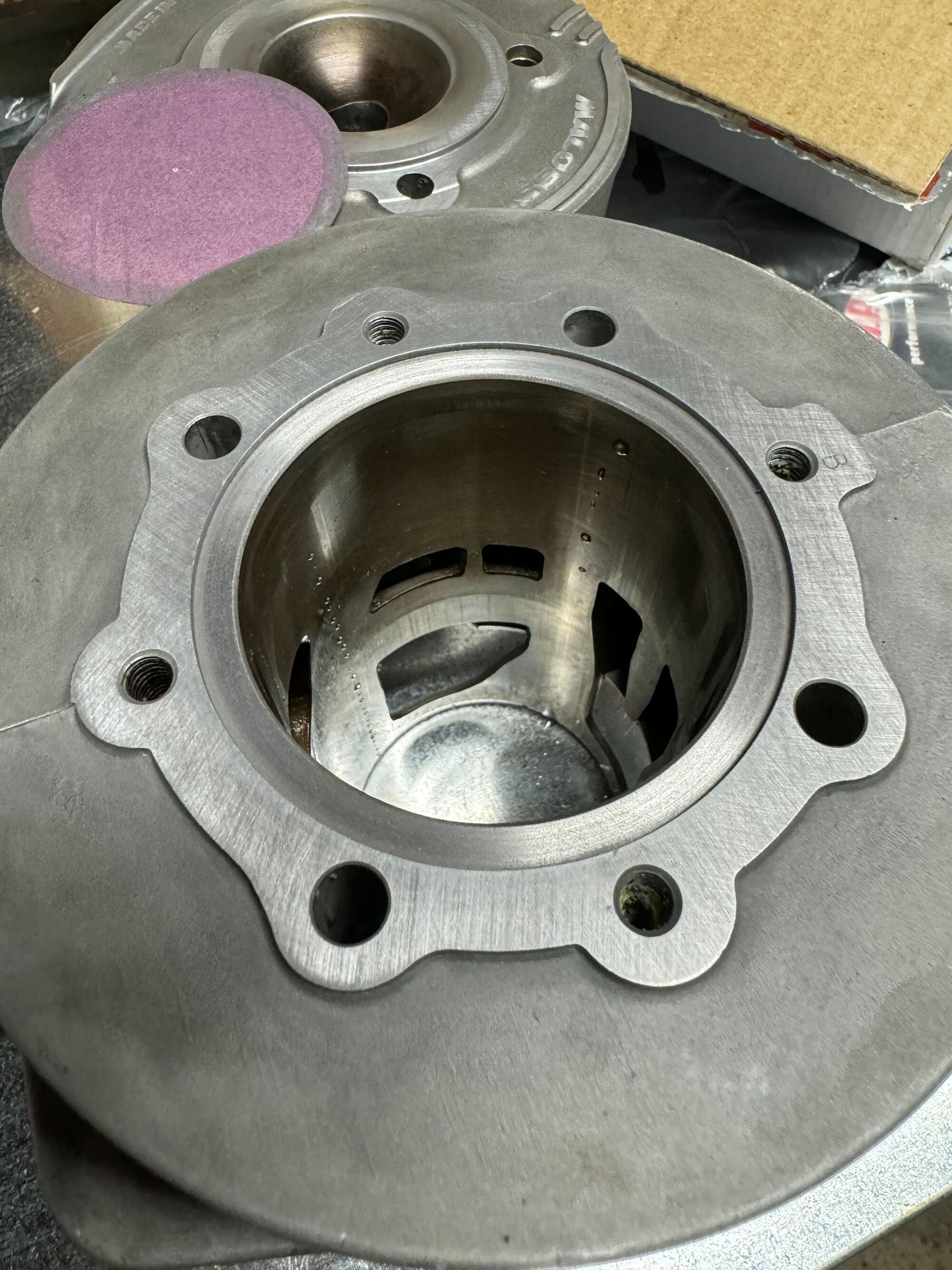

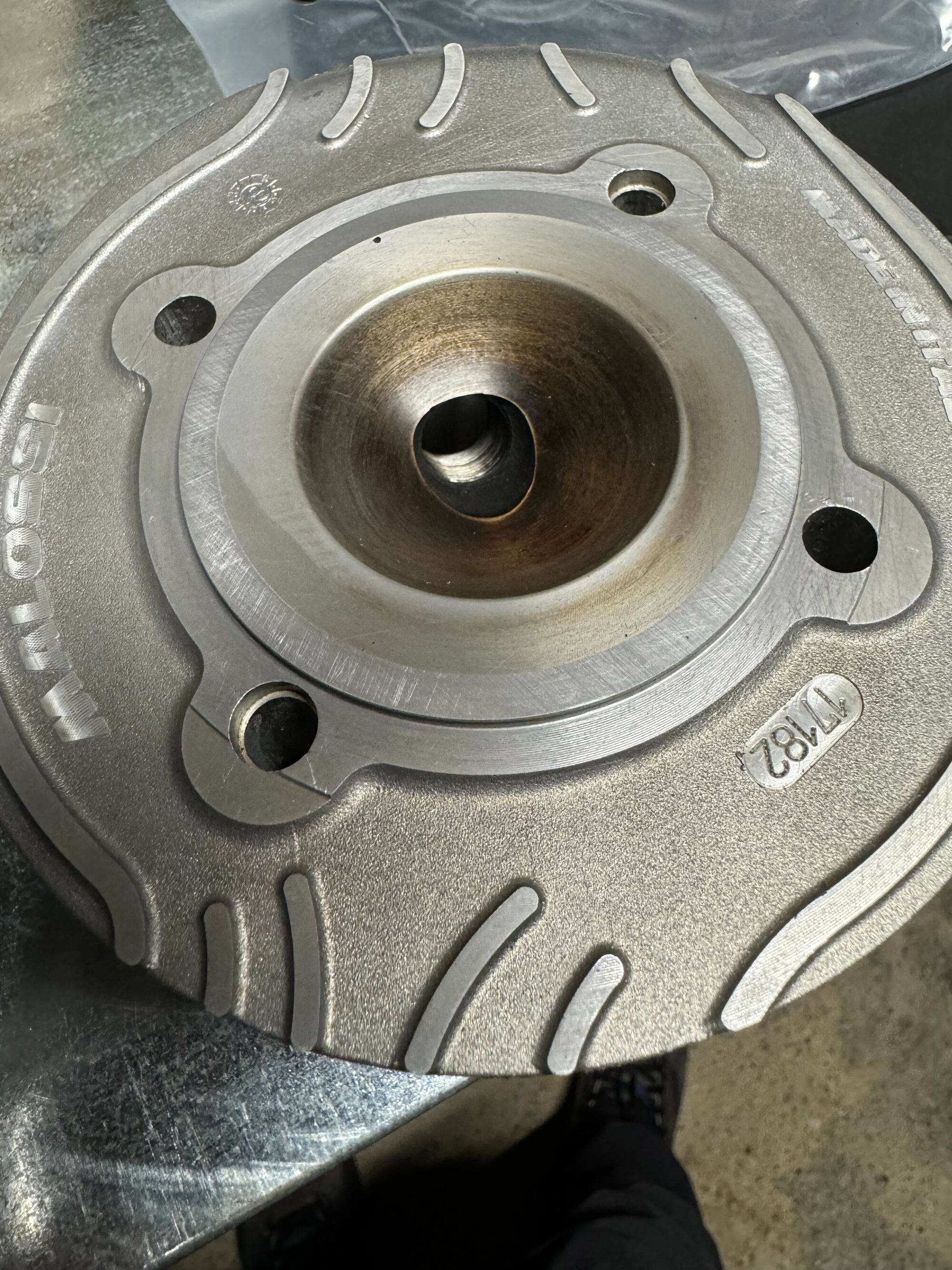

I've lapped the cylinder and the MMW head on 320 grit wet sand paper and will re-mount with permatex copper. Not holding out hope with so much play in the step.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia
UTC quote
Clearly the step is not the issue then..

Even with 0.7mm play, the sealing surface still should be wide enough to create a seal easily. Not sure why it doesn't.

Did the lapping show up any high or low spots?

Gick means that if you put in a spacer to cover the third port in the BGM cylinder, you would need to take that thickness off the bottom of the cylinder. Pinasco make a 3-port 177 for 2-port case that comes with a spacer, and already has the cylinder shortened.
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia
UTC quote
Of course if you were to put a 60mm crank in there you'd have room for a 1.5mm (give or take) spacer, then you could fit the BGM if that's what you really wanted. You'd probably need to make that one yourself I think.
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
Augustusflavius wrote:
What do you mean, Gick. Open ports or something else?


Step depth on the Pinasco cylinder is 1.5mm, and the height on the MMW is 2mm. Also the width of the Pinasco is 73.7mm and the MMW is 73mm. Lots of play.

I've lapped the cylinder and the MMW head on 320 grit wet sand paper and will re-mount with permatex copper. Not holding out hope with so much play in the step.
Lapping the cylinder the way I understand you did it may not help. The top of the cylinder isn't the sealing surface it's down in the step. That's why I mentioned removing the cylinder and lapping the cylinder and head together. You can rotate the head when studs are out of the way.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
hibbert wrote:
Lapping the cylinder the way I understand you did it may not help. The top of the cylinder isn't the sealing surface it's down in the step. That's why I mentioned removing the cylinder and lapping the cylinder and head together. You can rotate the head when studs are out of the way.
I understand what you're saying now. I will give it a try.
Ginch wrote:
Did the lapping show up any high or low spots?
Not on the head but I haven't checked the cylinder step yet. Top of the cylinder had a slight low spot but as I now understand its not the mating surface.
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia
UTC quote
hibbert wrote:
Lapping the cylinder the way I understand you did it may not help. The top of the cylinder isn't the sealing surface it's down in the step. That's why I mentioned removing the cylinder and lapping the cylinder and head together. You can rotate the head when studs are out of the way.
I was looking on my phone and thought the dark part (the sealing surface) was dark from lapping...
UTC

Molto Verboso
One or two fun scoots....nothing too precious
Joined: UTC
Posts: 1983
Location: UK (South East)

Molto Verboso
One or two fun scoots....nothing too precious
Joined: UTC
Posts: 1983
Location: UK (South East)
UTC quote
I would just buy a proper Pinasco head. The one with eight holes was (I think) introduced with the 177/187 Magny Cours kit, and can be purchased separately. I think it's marked A3703 or something.
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
swa45 wrote:
I would just buy a proper Pinasco head. The one with eight holes was (I think) introduced with the 177/187 Magny Cours kit, and can be purchased separately. I think it's marked A3703 or something.
The 8 hole is also a center plug I believe. I haven't had trouble with the A3606 4 hole head but apparently others have.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
I lapped the step and will install tonight. Here's hoping for the best now that it should be flat and smooth surfaces.
Forum member supplied image with no explanatory text
@hibbert avatar
UTC

Molto Verboso
Vespa
Joined: UTC
Posts: 1750
Location: California

Molto Verboso
@hibbert avatar
Vespa
Joined: UTC
Posts: 1750
Location: California
UTC quote
That looks good from here. I use copper silicone on the step.
UTC

Molto Verboso
One or two fun scoots....nothing too precious
Joined: UTC
Posts: 1983
Location: UK (South East)

Molto Verboso
One or two fun scoots....nothing too precious
Joined: UTC
Posts: 1983
Location: UK (South East)
UTC quote
hibbert wrote:
The 8 hole is also a center plug I believe. I haven't had trouble with the A3606 4 hole head but apparently others have.
Yes it is center plug. I did similar on my 225, swapping out the 4 hole 810 (VRH) for an 8 hole, center plug A3611(10?). Definite improvement, but not sure which characteristic made the most difference.
OP
UTC

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee

Member
1964 VBB, 1974 90
Joined: UTC
Posts: 40
Location: Milwaukee
UTC quote
hibbert wrote:
That looks good from here. I use copper silicone on the step.
No leaks after lapping and assembly with copper silicon.

Thanks for everyone's responses
@ginch avatar
UTC

Veni, Vidi, Posti
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia

Veni, Vidi, Posti
@ginch avatar
74 Super, 75 Super, PX project, LML off-roader and '66 Blue Badge Smallframe
Joined: UTC
Posts: 8693
Location: Victoria, Australia
UTC quote
Augustusflavius wrote:
No leaks after lapping and assembly with copper silicon.

Thanks for everyone's responses
Glad it worked out for you.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0185s ][ Queries: 4 (0.0025s) ][ live ][ 313 ][ ThingOne ]
