So I'm trying to pull my swingarm and it's stuck. Tapped on it for 15 minutes and doesn't seem to want to budge. I also feel like there's... A LOT of wiggle here. Is it too much wiggle? Should I go ahead and get a new bearing? https://drive.google.com/file/d/1tks-xygeSooWFKnlUnVkOHFg5vhFnMzx/view?usp=drivesdk

Sidebar: do we think this exhaust bushing is good to reinstall with, rather than replace?

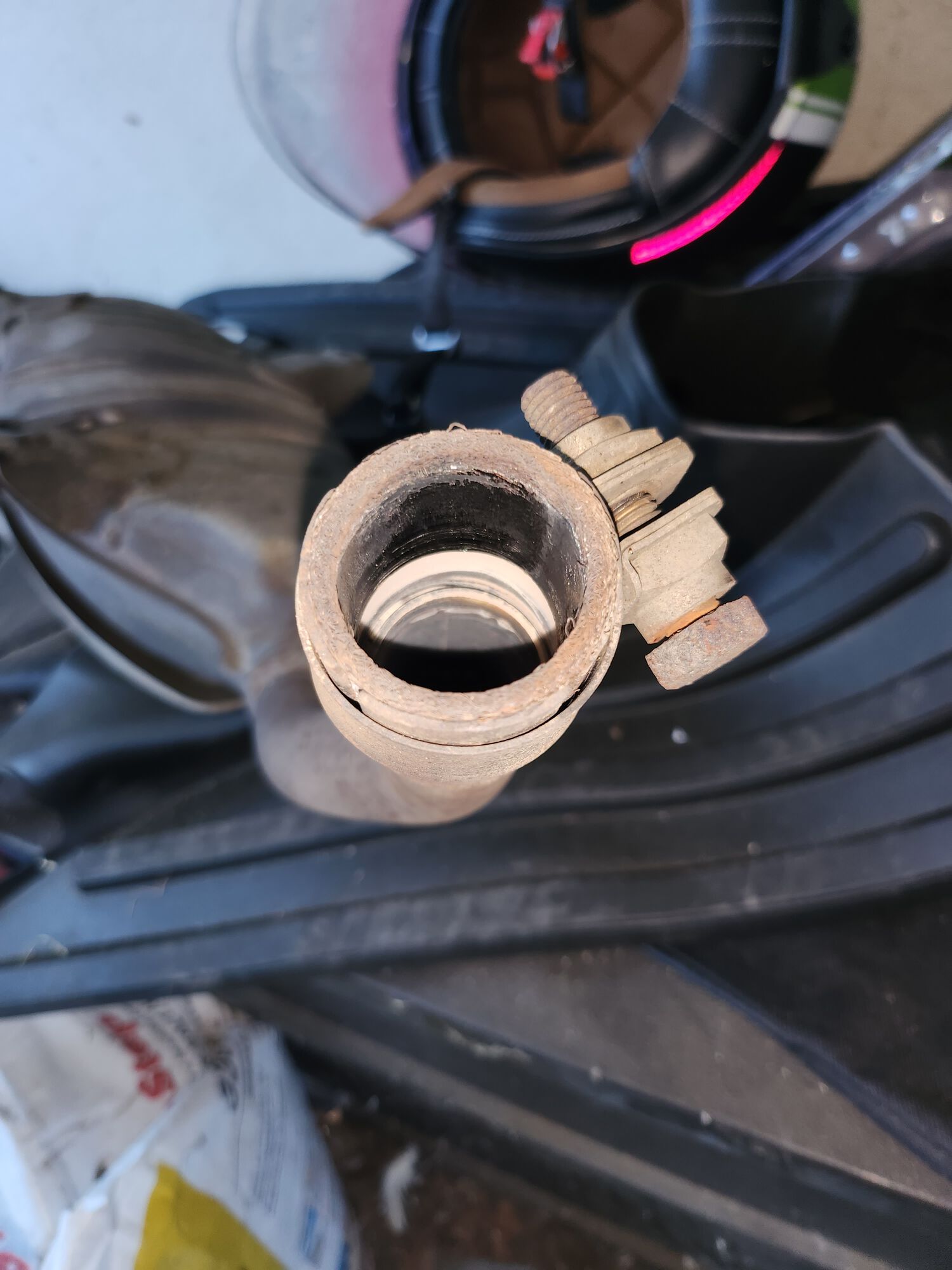

Forum member supplied image with no explanatory text

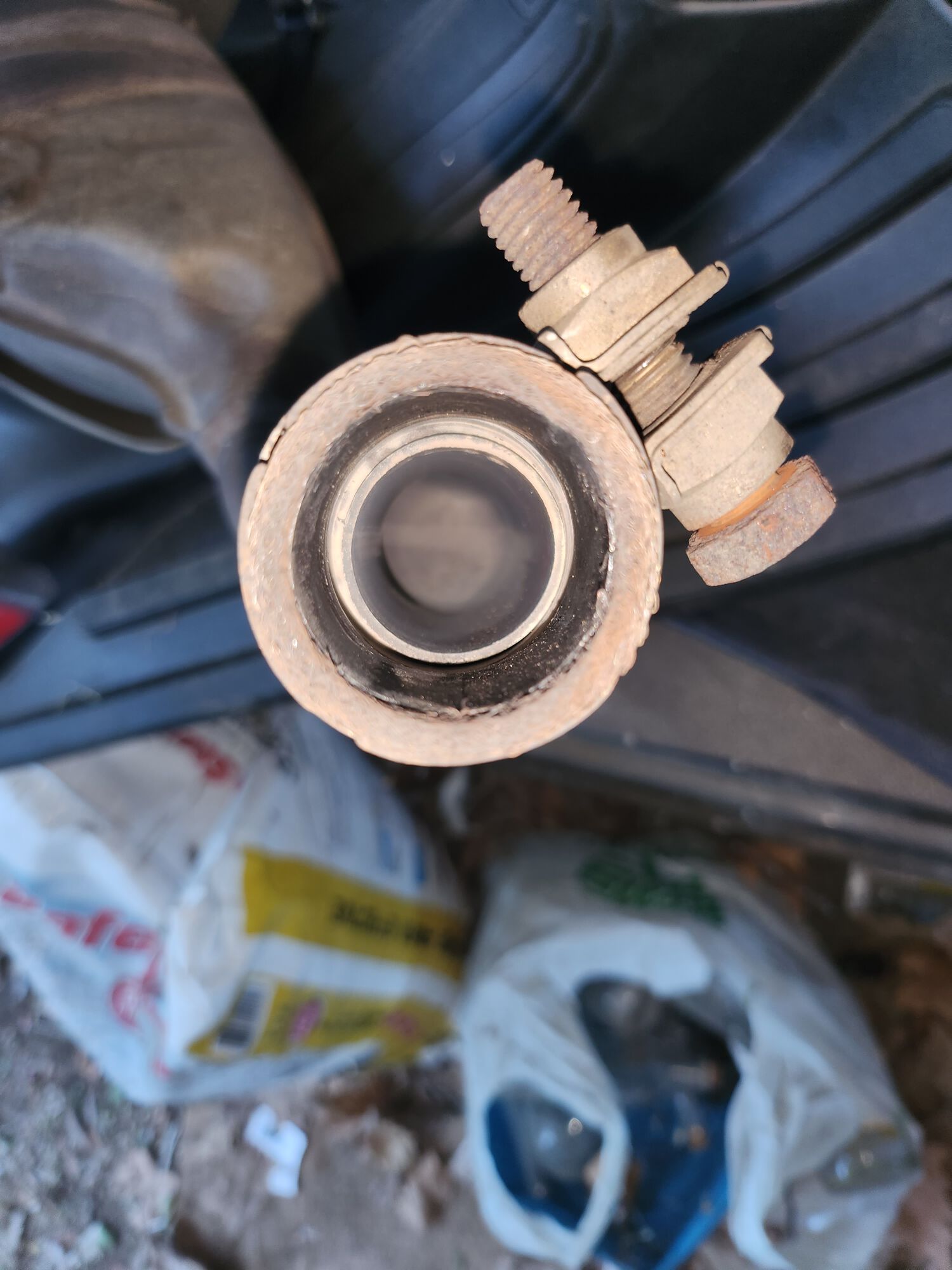

Forum member supplied image with no explanatory text
@simcha avatar
UTC

Member
GTS 300 Super
Joined: UTC
Posts: 21
Location: Devon UK

Member
@simcha avatar
GTS 300 Super
Joined: UTC
Posts: 21
Location: Devon UK
UTC quote
Way to much wiggle, swop the bearing out. The arm will come away use loads of penetrating oil and get someone to hold the bike then pull and giggle pull and giggle it will come away, I've done it recently. The bushing looks good to me.
Oh the joys of biking!
@simcha avatar
UTC

Member
GTS 300 Super
Joined: UTC
Posts: 21
Location: Devon UK

Member
@simcha avatar
GTS 300 Super
Joined: UTC
Posts: 21
Location: Devon UK
@steelbytes avatar
UTC

Veni, Vidi, Posti
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5723
Location: Batmania aka Melbourne, Australia

Veni, Vidi, Posti
@steelbytes avatar
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5723
Location: Batmania aka Melbourne, Australia
UTC quote

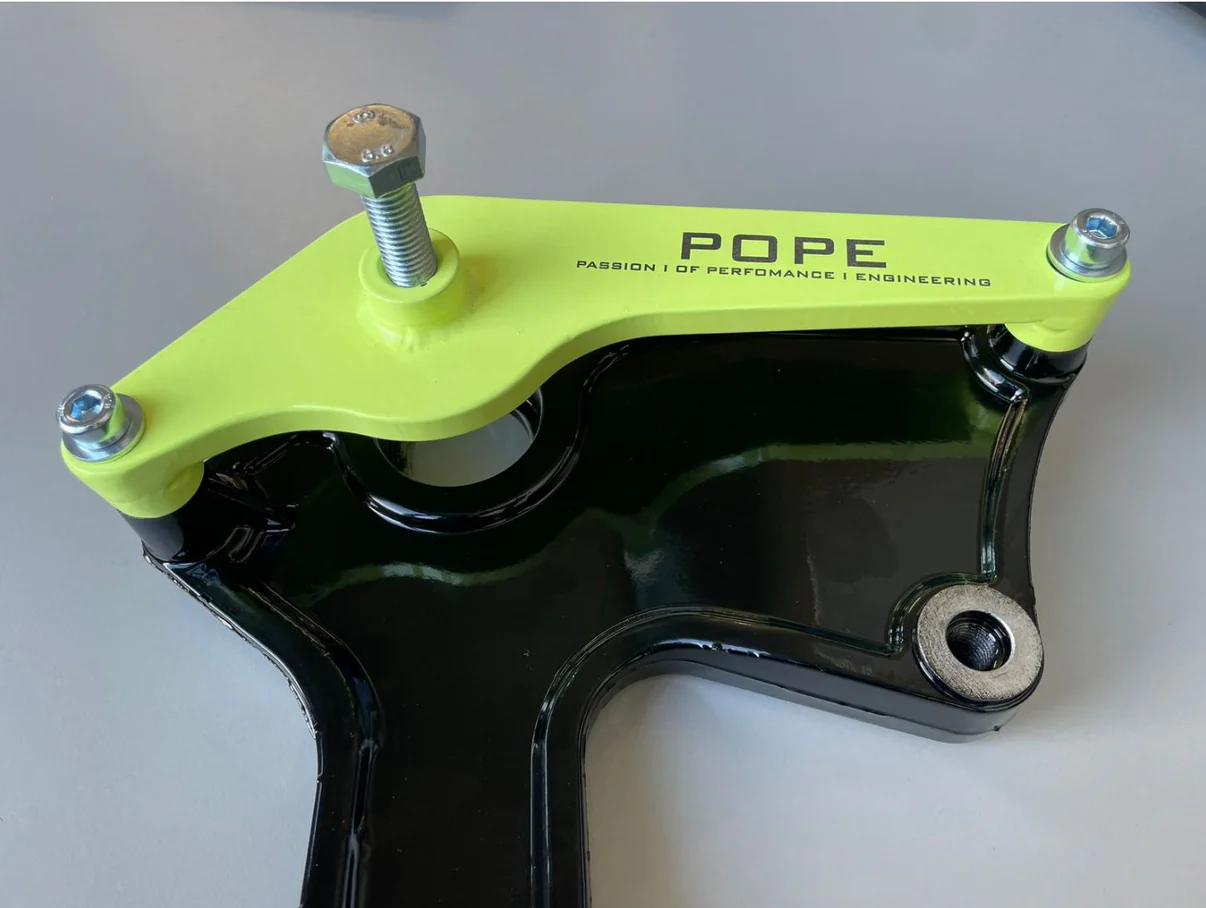

here's a tool (not sure if hammering is good for the bearing at the other end of the axle ...) https://pope-passion.myshopify.com/products/abzieher-fur-schwingarm

This related tool might also be useful http://pope-passion.myshopify.com/products/abzieher-fur-radnabe-wenn-es-mal-klemmt
Forum member supplied image with no explanatory text
@wbdvt avatar
UTC

Molto Verboso
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont

Molto Verboso
@wbdvt avatar
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont
UTC quote
First let's get terminology correct: that is the exhaust bracket not swing arm

Use lots of penetrating oil and heat the bearing. Patience as it will take time. You can get a bearing puller from Harbor Freight and get it on there and put some pressure. Another way is to put axle nut on and tap with hammer

Eventually you will hear a pop and will come loose.

Replace the bearing in the exhaust bracket
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
Yeah when it was clearly clunking I figured it was looser than it oughta be. Bearing now enroute from Scooter West. I'll find a puller at HF and try that later this week. Gotta get some torx bits for the torque wrench anyway for putting it back together.

Edited to add: I've been doing the tapping with the nut rethreaded partway, I think the play in the bearing isn't helping.
UTC

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada
UTC quote
wbdvt wrote:
First let's get terminology correct: that is the exhaust bracket not swing arm

Use lots of penetrating oil and heat the bearing. Patience as it will take time. You can get a bearing puller from Harbor Freight and get it on there and put some pressure. Another way is to put axle nut on and tap with hammer

Eventually you will hear a pop and will come loose.

Replace the bearing in the exhaust bracket
Yes lets get the terminology correct by all means...it's a bushing inside the exhaust not a bearing.

As for the swingarm/exhaust bracket there are many names for that. I like to call it a swingarm/exhaust bracket because it is in fact part of the swinging arm assembly once it is bolted on.

I would totally use the same exhaust bushing again. I would use some copper anti seize and be careful re-installing the muffler part of the exhaust but if you can get it to slip in there without damaging the bushing it easily has one more useful tour of duty and possibly more.

Re-installing without catching anything is key! Even if you put a new bushing in there if you don't get the muffler to slide in without catching and tearing it up it may leak. Although it is sometimes way easier to get the muffler to slide in with a new bushing.

I would absolutely order the bushing to have on hand in case the muffler re-install does not go well and then when the muffler re-install goes fine with a little anti-seize I would hide the new bushing from myself somewhere in the garage...
@jimc avatar
UTC

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA

Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA
UTC quote
skids wrote:
As for the swingarm/exhaust bracket there are many names for that. I like to call it a swingarm/exhaust bracket because it is in fact part of the swinging arm assembly once it is bolted on.
No it's not, it's nowhere near the swingarm - the exhaust bracket is solidly part of the engine and transmission. The actual swingarm is right in front of the engine...
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
For my own sanity I am going to take Scooter West at their title, and simply add that the point of language is communication:
https://www.scooterwest.com/suspension-arm-gt-gts-gtv-1a001903.html

Regardless, I will carefully try to reinstall the same exhaust bushing (though I ordered a spare that's due for delivery today anyway), and I will install a new rear axle bearing once I get the [large metal piece that the rear axle goes in that the shock and muffler attach to] to come off. Slowly getting more familiar with wrenching on it. It's due for valves and all that and I think my dusty patio and hand tools may still warrant popping it up to the dealer for that.
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
Oh wait ya'll don't think I was calling the muffler/exaust pipe the swingarm do you? Pic was for the bushing question, link to video was for how clunky the bearing was.
UTC

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada
UTC quote
jimc wrote:
No it's not, it's nowhere near the swingarm - the exhaust bracket is solidly part of the engine and transmission. The actual swingarm is right in front of the engine...
In my Piaggio Liberty parts catalogue the swingarm is referred to as the "Chassis side swinging arm" and what I like to call the "swingarm/exhaust bracket" is called in the parts catalogue the "Braccio sospensione DX completo" which I take to mean it is the part that completes the swingarm?
@jimc avatar
UTC

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA

Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA
UTC quote
skids wrote:
In my Piaggio Liberty parts catalogue the swingarm is referred to as the "Chassis side swinging arm" and what I like to call the "swingarm/exhaust bracket" is called in the parts catalogue the "Braccio sospensione DX completo" which I take to mean it is the part that completes the swingarm?
"Braccio sospensione DX completo" means "complete right side suspension bracket".

I accept that it's a suspension support bracket on many models, but other models only have a left-hand side or centre shock absorber, and on those the bracket merely supports the exhaust. So calling it an exhaust support bracket is correct for pretty much all models that I know about.
UTC

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada
UTC quote
My post was merely to dog wbdvt (and I hope it was taken in the nature I intended) because I think everyone knows he knows it is a bushing inside the exhaust not a bearing.

I really don't care what we call the exhaust bracket. On a Liberty 50 there is no bracket that connects to the rear wheel it just holds up the exhaust so I think there is less confusion when referring to the one on the Liberty 150 that does connect to the rear wheel (and subsequently on occasion get stuck) as a swingarm/exhaust bracket.

I think swingarm/exhaust bracket is way better than "Braccio sospensione DX completo" but there you have for my bike anyway the "official" term.

I thought it was funny wbdvt started out the post with "First of all lets get the terminology correct" and then proceeded to call a bushing a bearing. I am hoping he thought it was funny the way I called him out on a typo when we all know he knows better.

No offense intended it was meant to come across as good natured ribbing.
@wbdvt avatar
UTC

Molto Verboso
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont

Molto Verboso
@wbdvt avatar
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont
UTC quote
wbdvt wrote:
First let's get terminology correct: that is the exhaust bracket not swing arm

Use lots of penetrating oil and heat the bearing. Patience as it will take time. You can get a bearing puller from Harbor Freight and get it on there and put some pressure. Another way is to put axle nut on and tap with hammer

Eventually you will hear a pop and will come loose.

Replace the bearing in the exhaust bracket
Ok I must be missing something all the previous posts o the bearing vs bushing terminology.

No where did I refer to the exhaust bushing as a bearing. I said the bearing in the exhaust bracket. I know the difference

In fact, I have it on good authority that, if you watch The Big Scoot when released, you will see me on the ground in a gas station parking lot in Navajo Nation on the 2023 Cannonball replacing said exhaust bushing
UTC

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada
UTC quote
No it's me...I am missing that you were referring to the bearing in the bracket and not the bushing in the exhaust.

Original poster asked about (with pictures) replacing the bushing. He said bushing you said bearing.

I misunderstood what you said and thought it was funny.

What's funny is my poor reading comprehension...as Rosanne Rosannadanna would say, nevermind.
UTC

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada

Addicted
2020 piaggio liberty 150
Joined: UTC
Posts: 832
Location: Reno Nevada
UTC quote
wbdvt wrote:
Ok I must be missing something all the previous posts o the bearing vs bushing terminology.

No where did I refer to the exhaust bushing as a bearing. I said the bearing in the exhaust bracket. I know the difference

In fact, I have it on good authority that, if you watch The Big Scoot when released, you will see me on the ground in a gas station parking lot in Navajo Nation on the 2023 Cannonball replacing said exhaust bushing
So since you have had the experience of an exhaust going bad did it look like from the pictures that one was good to use again?

I always try to reuse the exhaust gaskets my self and I thought it looked good from the pictures. I am a huge fan of copper anti seize and if it doesn't catch going back in, if the exhaust mounts smoothly once it has been anti-seized it is easily replaceable...it comes back out easier which has to happen every time the wheel comes off.

I knew you knew I thought it was a typo and funny. I miss-read for some reason and apologize for any confusion.
@wbdvt avatar
UTC

Molto Verboso
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont

Molto Verboso
@wbdvt avatar
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont
UTC quote
No problem.

I have reused the exhaust bushing but never used any anti-seize when putting an exhaust back together. It is a graphite bushing so I don't needs any and never heard of anyone doing that.

When the bushing goes bad, you will hear it as it sounds and is an exhaust leak. If not taken care of, it can melt the rear brake line. That is a decent amount of work to replace and then purge of air when refilling with brake fluid.

Did the exhaust bracket come off yet?
@jakem avatar
UTC

Addicted
Vespa Sprint Sport S 125cc
Joined: UTC
Posts: 662
Location: Brighton, England

Addicted
@jakem avatar
Vespa Sprint Sport S 125cc
Joined: UTC
Posts: 662
Location: Brighton, England
UTC quote
How old is the GTS? What's the mileage?
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
Bracket has not come off yet - I've been super busy this week and haven't made a run to HF for a puller. As far as age and mileage, it's a 2018, and just over 20k. It's probably been a year since it last came off and TBH the bearing may never have been replaced. I'm not in a huge hurry since I probably won't get a chance to get it to a tire shop until next week anyway.
@tor2ga avatar
UTC

Ossessionato
Looking for the next one, probably electric
Joined: UTC
Posts: 3654
Location: Babcock Ranch, Florida

Ossessionato
@tor2ga avatar
Looking for the next one, probably electric
Joined: UTC
Posts: 3654
Location: Babcock Ranch, Florida
UTC quote
As long as you are in HF check to see if they have the exhaust pipe expander. It allows you to expand the pipe and slip the bushing back in much easier.
@motovista avatar
UTC

Veni, Vidi, Posti
GT 2.4
Joined: UTC
Posts: 9032
Location: Watts, Cherokee Nation

Veni, Vidi, Posti
@motovista avatar
GT 2.4
Joined: UTC
Posts: 9032
Location: Watts, Cherokee Nation
UTC quote
This is a good example of why we use and recommend stainless steel bearings for that application. I've broken one of the puller tools trying to get an OEM bearing off, and destroyed a few bearings with a drill just to get them off the axle. Since going to stainless steel, this hasn't been an issue.
@wbdvt avatar
UTC

Molto Verboso
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont

Molto Verboso
@wbdvt avatar
'16 Sprint S 150, 2 x '06 GTS 250, '12 GTS 300, '74 Vespa 150 Super
Joined: UTC
Posts: 1516
Location: Vermont
UTC quote
Agree with Motovista. All the bearings I buy from him are SS
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
I just ordered the slightly cheaper bearing from Scooter West. Eventually a gallon of penetrating oil and a lifetime of banging on the axle freed it up. 3 Arm puller (and enough huffing and puffing to leave me sore the next day) pushed out the old bearing and seated the new one (with a little anti-sieze that I doubt will help when it's time to replace again). Waiting on the tire now - I should have ordered it sooner but I naively thought someone might have one nearby.
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
Back on the road and riding like a dream! I feel better having done it, though the internals (variator, belt, valves) I still might let a dealership handle. I'm just banging away with mostly hand tools in a messy patio. I don't want a family of spiders moving into the header because I ran out of time one night.
UTC

Enthusiast
2005 Vespa GT200
Joined: UTC
Posts: 94
Location: San clemente ca

Enthusiast
2005 Vespa GT200
Joined: UTC
Posts: 94
Location: San clemente ca
UTC quote
Sorry but I have to weigh in here with my 2 cents or is that my 2 nonsensical anyhow there isn't a single torx head bolt on any modern vespa I think you mean Allen when referring to actual bolt head type for reassembling the swingarm/ exhaust muffler mount that said when dismantling said item remove all bolts necessary but leave the rear axle nut on by a few threads then using four fingers under and behind the swingarm just below said axle nut pull towards you whilst wacking the axle nut with a 2by4 piece of Doug fir and said swingarm should pop off.
@jimc avatar
UTC

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA

Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43923
Location: Pleasant Hill, CA
UTC quote
Nitro200 wrote:
Sorry but I have to weigh in here with my 2 cents or is that my 2 nonsensical anyhow there isn't a single torx head bolt on any modern vespa I think you mean Allen when referring to actual bolt head type for reassembling the swingarm/ exhaust muffler mount that said when dismantling said item remove all bolts necessary but leave the rear axle nut on by a few threads then using four fingers under and behind the swingarm just below said axle nut pull towards you whilst wacking the axle nut with a 2by4 piece of Doug fir and said swingarm should pop off.
I'm afraid you're dead wrong. Nearly all Piaggio bikes including Vespas use Torx bolts rather than Allen bolts. This started in 2010...
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
jimc wrote:
I'm afraid you're dead wrong. Nearly all Piaggio bikes including Vespas use Torx bolts rather than Allen bolts. This started in 2010...
Jimc is quite correct here - t25 and t40 for this job, to be specific.
Also of note to anyone finding this thread about to pull their wheel: when bolting the wheel back on take care to get the washers under the tone ring before tightening. I didn't on the first one and it crimped the tone ring with it. Had to pull it and hammer it back true. Not apocalyptic but worth avoiding.
@steelbytes avatar
UTC

Veni, Vidi, Posti
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5723
Location: Batmania aka Melbourne, Australia

Veni, Vidi, Posti
@steelbytes avatar
2019 GTS300 Supertech E3 60,000km
Joined: UTC
Posts: 5723
Location: Batmania aka Melbourne, Australia
UTC quote
Nitro200 wrote:
I think you mean Allen when referring to actual bolt head type for reassembling the swingarm/ exhaust muffler mount
jimc wrote:
I'm afraid you're dead wrong. Nearly all Piaggio bikes including Vespas use Torx bolts rather than Allen bolts. This started in 2010...
might be some miscommunication or confusion ...

iirc the bolts holding the exhaust to the bracket are torx whereas the bolts holding the bracket to the engine are allen.
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
SteelBytes wrote:
might be some miscommunication or confusion ...

iirc the bolts holding the exhaust to the bracket are torx whereas the bolts holding the bracket to the engine are allen.
Yup! t40 for the exhaust/wheel bolts, 6mm allen for the bracket, plus t25 for the speed sensor clips.

Also an 8mm socket for the sensor, a 17 (I think) for the shock, and a 24mm for the axle. I did all these with an adjustable though.
@jk_single avatar
UTC

Enthusiast
Vespa P200E, Fly 50, Vespa S50, Vespa GTS 300
Joined: UTC
Posts: 88
Location: West coast of Finland

Enthusiast
@jk_single avatar
Vespa P200E, Fly 50, Vespa S50, Vespa GTS 300
Joined: UTC
Posts: 88
Location: West coast of Finland
UTC quote
Trenchleton wrote:
Yup! t40 for the exhaust/wheel bolts, 6mm allen for the bracket, plus t25 for the speed sensor clips.

Also an 8mm socket for the sensor, a 17 (I think) for the shock, and a 24mm for the axle. I did all these with an adjustable though.
Adjustable Torx? ROFL emoticon
OP
@trenchleton avatar
UTC

Hooked
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California

Hooked
@trenchleton avatar
GTS 300 Super Sport (Verde Speranza)
Joined: UTC
Posts: 267
Location: California
UTC quote
jk_single wrote:
Adjustable Torx? ROFL emoticon
That's why I said an 8mm socket.
UTC

Enthusiast
2005 Vespa GT200
Joined: UTC
Posts: 94
Location: San clemente ca

Enthusiast
2005 Vespa GT200
Joined: UTC
Posts: 94
Location: San clemente ca
UTC quote
Sorry my bad on the torx/Allen bolts
I have a 2005 gt200 didn't know they started using torx in 2010.
