Hello,

I got a SIP VNA/VNB Speedo and SIP Fuel tap for a build - but I cant workout what the extra (orange) wire is for? What The? emoticon
Anyone have an idea?

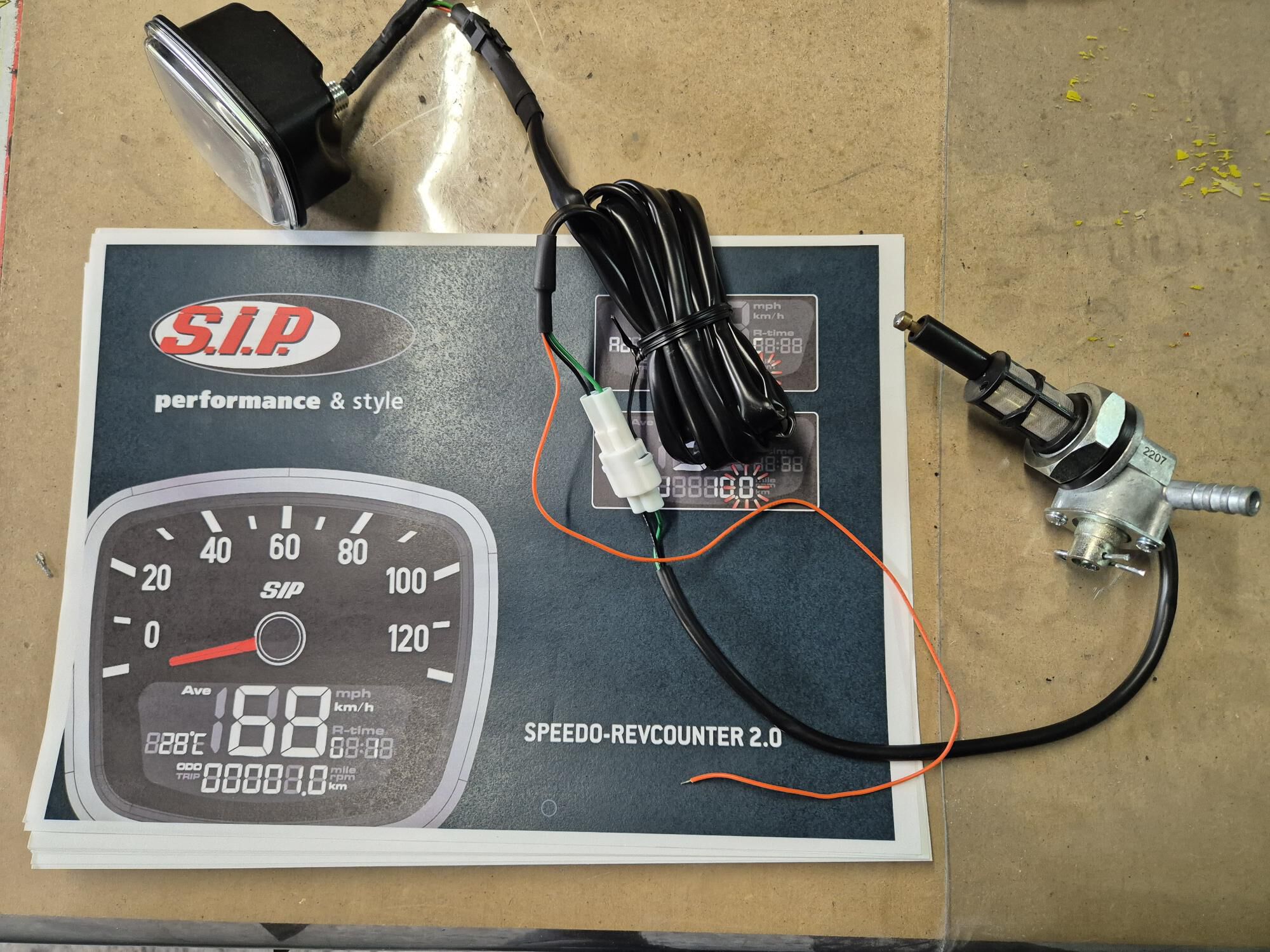

Speedo all hooked up with extra wire..
Speedo all hooked up with extra wire..
@safis avatar
SaFiS
UTC
Ossessionato
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4787
Location: Veria, Greece

SaFiS
Ossessionato
@safis avatar
1979 P150X, 1983 P200E, 1987 PK125XL Elestart, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: UTC
Posts: 4787
Location: Veria, Greece
UTC quote
If I recall it's for battery / charge voltage reading, connects to +12V DC. Leave disconnected if no battery…
whodatschrome
UTC
parallelogramerist
Joined: UTC
Posts: 5847

whodatschrome
parallelogramerist
Joined: UTC
Posts: 5847
UTC quote

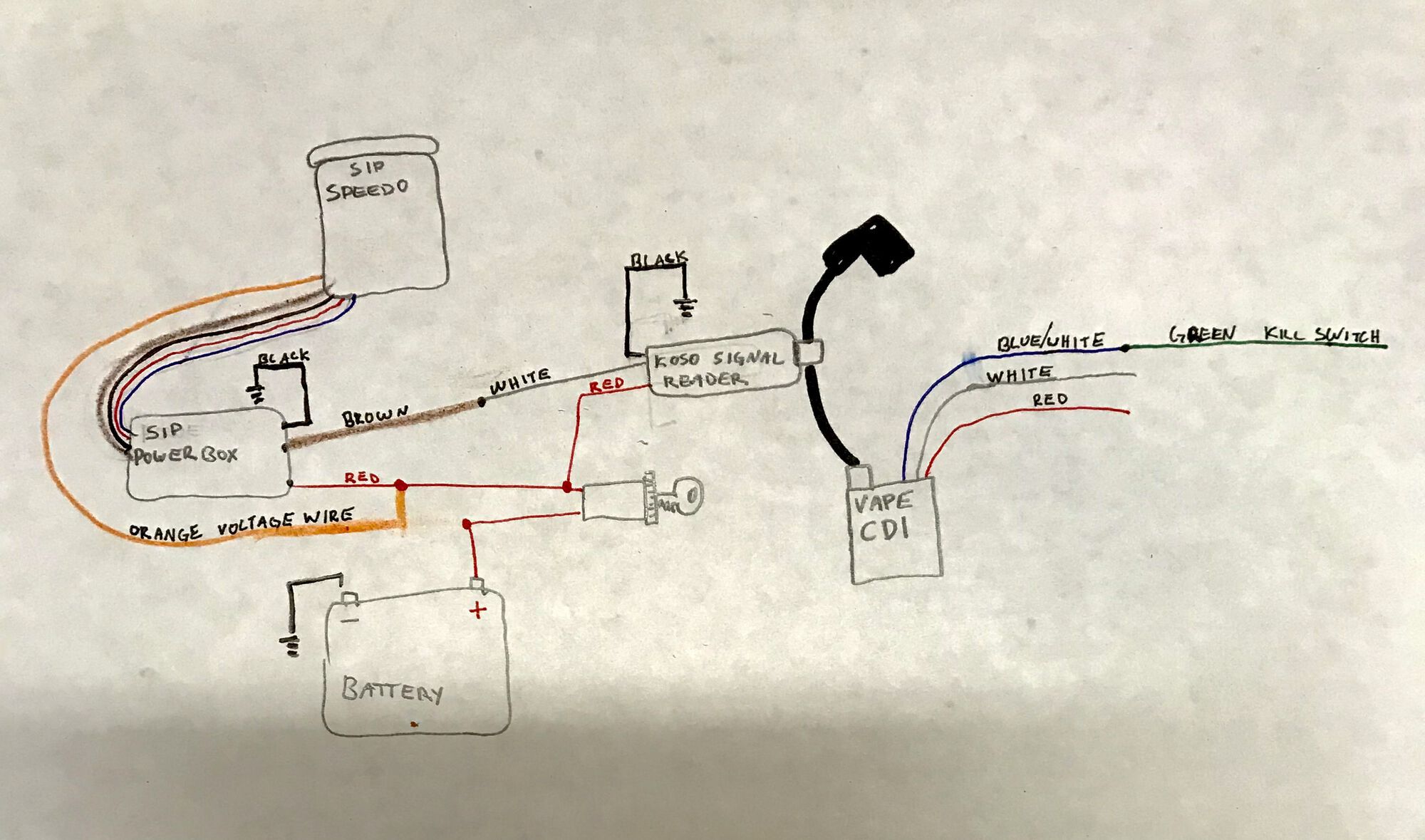

This is how i wires up my Allstate VNA's SIP speedo to my 12VDC (with a battery). As Safis said, the orange wire is for the voltage reading.


And good luck fitting the speedo in the VNA's cramped headset. It's NOT a fun project.

EDIT: by the way, i ended up deleting the fuel level wires from my SIP speedo. I was running out of room for wires to pass through the steering column, so i simply cut out those wires. I never had my heart set on having a fuel gauge in the first place, so it didn't bother me whatsoever to remove it.
Forum member supplied image with no explanatory text
