Sir, am esyam. Need some help about wiring 12v cdi super 150.

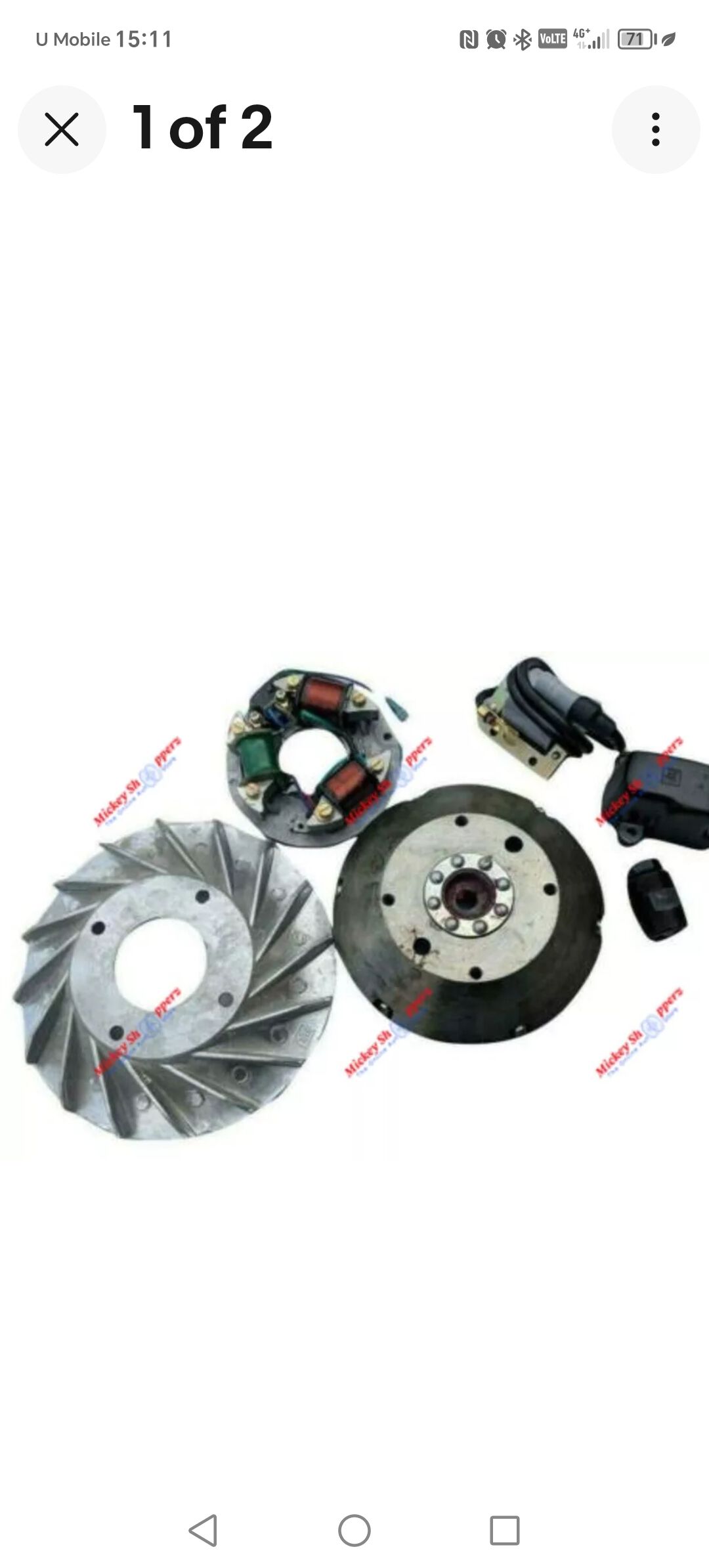

I use the 12v cdi set as pic attached but confused about wiring.Looking the reference pic some use only 3 terminal on the cdi and got pic shows use all terminal,
I got red black green grey and blue.
Has the blue same with violet.?
Which wire goes to 3 terminal on regulator.
Also which wires goes to cdi.
How to setting the pulsor that inside the magnet.

Thanks for any help as a reference that will start my engine. Tq

I believe that's a Bajaj ignition system.

Do you have a diagram of the wiring in your Super?
If not perhaps a Bajaj wiring diagram might be a good start to work it out?

I got but which wire to ac regulator, some picture wired only 3 terminal to cdi unit, grey red and blue..

Post your diagram and we can have a look for you.

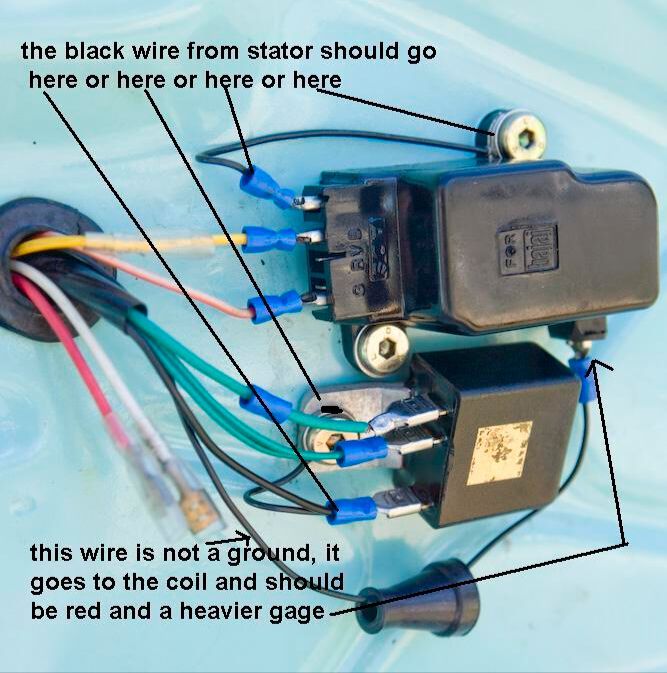

Try to. Follow this but can't.

I try this

Are they your photos or from the installation instructions?

Photos from Google,

The reason I asked about your wiring diagram is, I don't know if your scooter has original wiring or what it has in it. It might have had a different loom put in it that didn't stick to original colors. Also different markets often had different looms. You may have even made it yourself.

It's one thing to ask "where does the red wire connect?" when you know where the red wire comes from... so if you have a diagram that matches what you have in your scooter, show us here so we can offer some advice.

Those ignition systems were quite popular a few years ago so someone will have an idea.

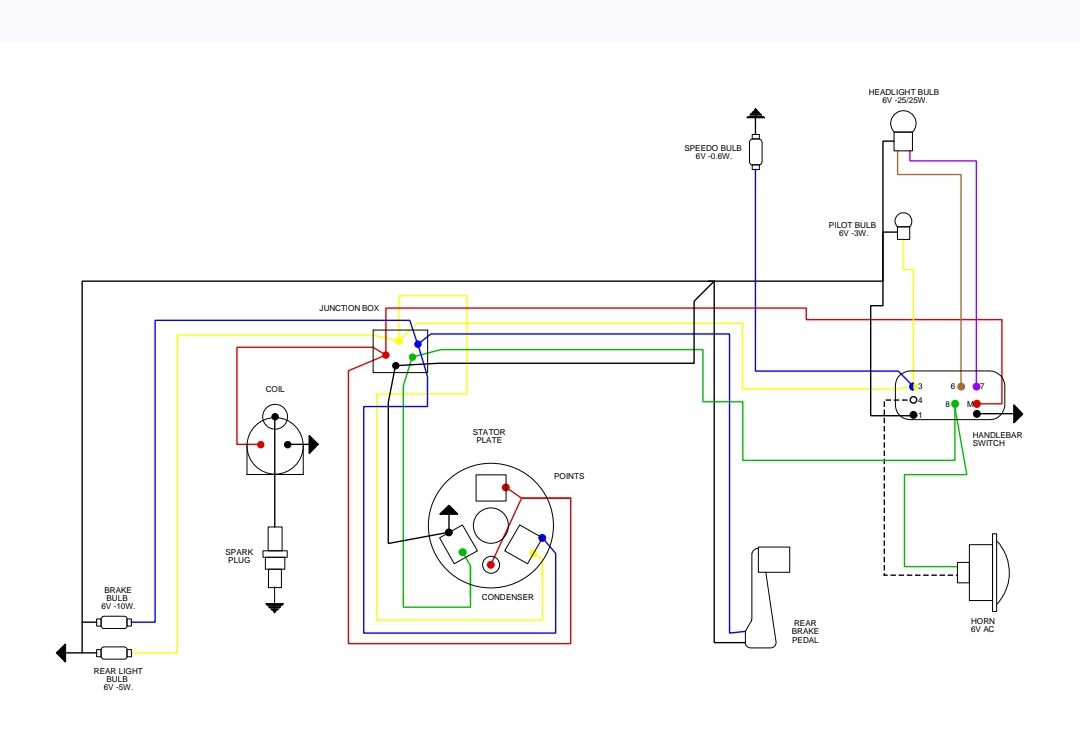

This the diagram, thanks for help.

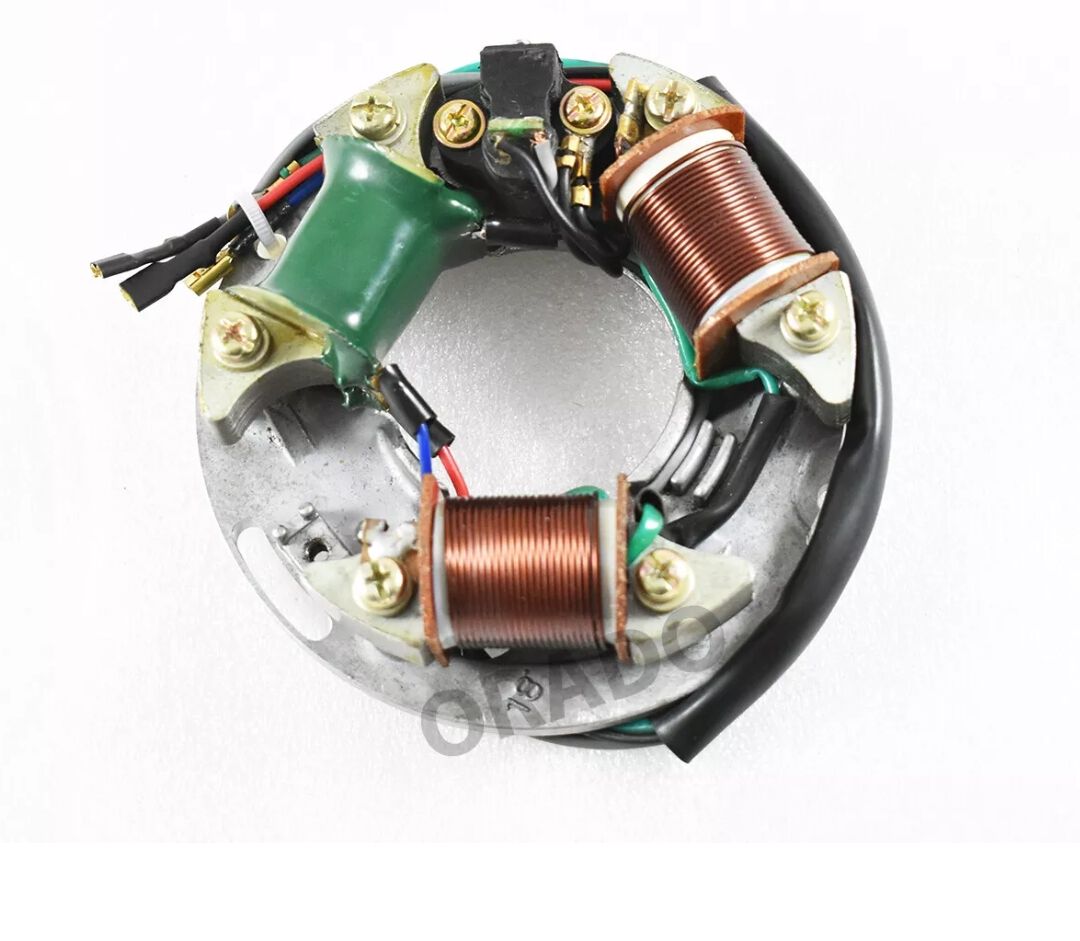

This stator I bought. Tq for help.

Ok, I've found a few things that might help you put it together. I had hoped someone with more experience with this particular ignition system would chip in but...

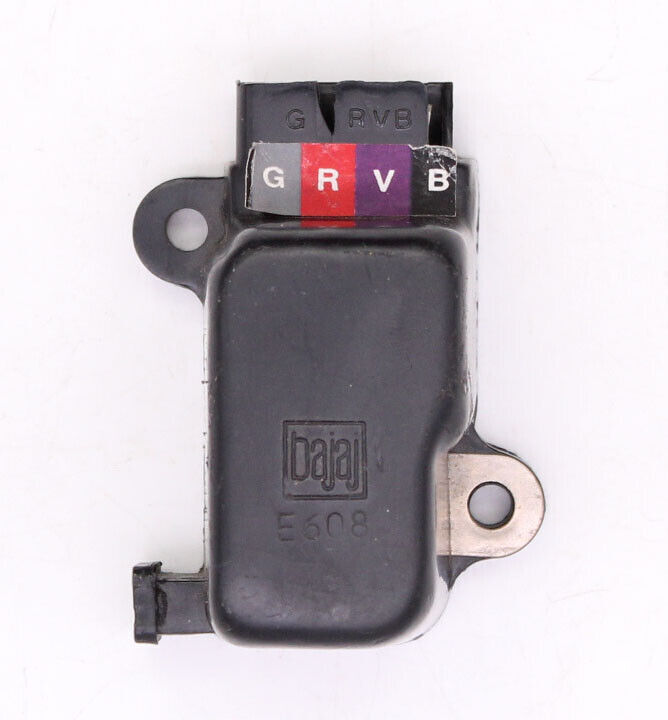

This pic at the bottom is a good start, the sticker is not on yours by the looks. V is for violet but looks blue to me in most pictures I've seen.

This is discussing the installation of your ignition, there's a couple of diagrams that may help.
https://modernvespa.com/forum/topic163820

If you look under where it has the price you'll see "downloads". Get the first one, it's not a great explanation but looks like a couple of clues in there.
https://www.sip-scootershop.com/en/product/conversion-kit-bajaj-12v-e-ignition-for-vespa-125-vna-vnb-gt-gtr-1-super-ts-1-150-vba-vbb-t4-gl-sprint-v-1-super-1_50025000

This appears to use the same colour wiring from the stator, it doesn't say for sure it is Bajaj but looks like a good bet. The tips about correct switches to use are important too. You could use this as a base and draw your own system over the top.


This page has another diagram which may be useful to cross-reference.
https://southernscoot.co.nz/bajaj-scooter-update-3/

Let's know how you get on.

Thanks for a gud information. These are very much to help me and revise the information, hope will settle soon.
