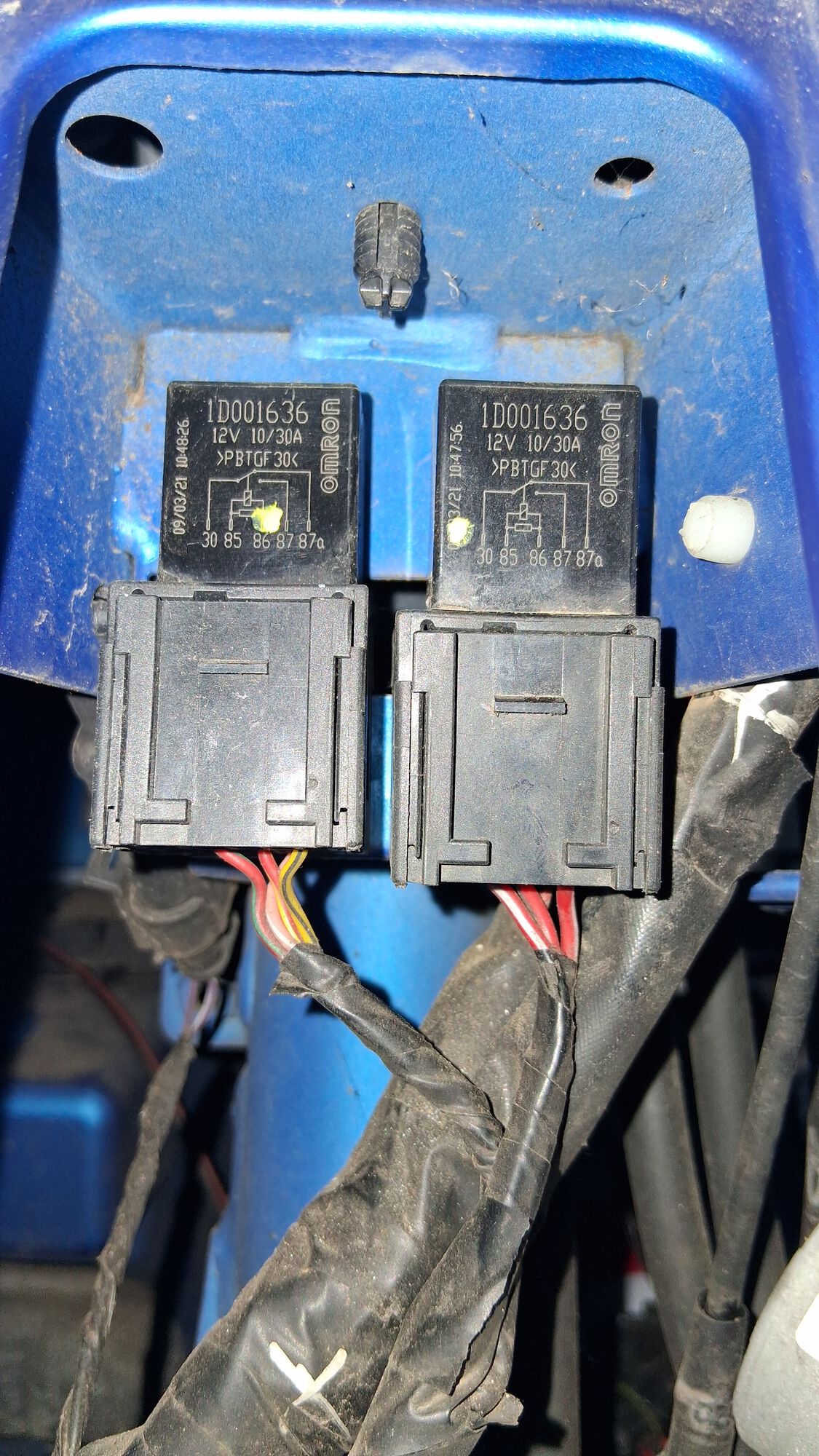

Hi, can any one help me, what are the two relays for in the horn cover on a Vespa GTS super 125 iget 2021 (omron 1d001636)
[/img]
Relays on Vespa GTS 125 iget 2021
Relays on Vespa GTS 125 iget 2021
@jimc avatar
jimc
UTC
Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 46114
Location: Pleasant Hill, CA

jimc
Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 46114
Location: Pleasant Hill, CA
UTC quote
One will be for the radiator cooling fan, the other for the headlights. You can test which is which by pulling one out. If the headlights no longer come on, that's that one, if they do, it's for the fan.

Sadly, I don't have a wiring diagram for you newer model.
⚠️ Last edited by jimc on UTC; edited 1 time
Spiz
UTC
Member
GTS 150 Super
Joined: UTC
Posts: 47
Location: Melbourne, Australia

Spiz
Member
GTS 150 Super
Joined: UTC
Posts: 47
Location: Melbourne, Australia
UTC quote

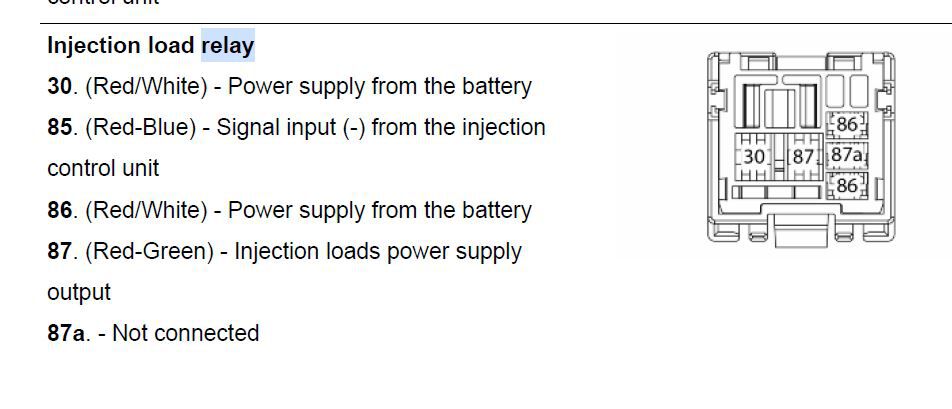

The RH one in the image is possibly the injection load relay.
The LH one possibly the headlight relay.

(the 125 iGet doesn't have a radiator cooling fan.)
Forum member supplied image with no explanatory text
OP
@matt86 avatar
Matt86
UTC
Member
Vespa GTS Super iget 125 2021
Joined: UTC
Posts: 5
Location: Northamptonshire

Matt86
Member
@matt86 avatar
Vespa GTS Super iget 125 2021
Joined: UTC
Posts: 5
Location: Northamptonshire
UTC quote
Thank you for your relpy, do you know if the fuel pump has a relay
Spiz
UTC
Member
GTS 150 Super
Joined: UTC
Posts: 47
Location: Melbourne, Australia

Spiz
Member
GTS 150 Super
Joined: UTC
Posts: 47
Location: Melbourne, Australia
UTC quote
No relay for the fuel pump that I can see.
Looking at the diagram for a Piaggio Medley (iGet 125) there are only 2 relays on that model.
First is the injection load relay, second is the seat release solenoid relay.
May be the same for your Gts iGet.
@jimc avatar
jimc
UTC
Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 46114
Location: Pleasant Hill, CA

jimc
Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 46114
Location: Pleasant Hill, CA
UTC quote
Spiz wrote:
The RH one in the image is possibly the injection load relay.
The LH one possibly the headlight relay.

(the 125 iGet doesn't have a radiator cooling fan.)
Thanks for the correction!

I hope someone somewhere can provide the circuit diagram for this model...
