I added the relay to cut out the buzzer at stop lights. I used the small terminal Strip and wired it like the drawing Cincinnati John posted except I switched the ground side of the buzzer.


I used a tap at the rear brake switch and ran the wire down the brake hose and zip tied it to the harness.

Works great, cost only a couple bucks.

Thanks, this is a great thread...

White to ground and white to buzzer ground side.
Orange to brake switch and other orange to ground...
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
UTC

Member
GTS 250 ie
Joined: UTC
Posts: 5
Location: Sheffield UK

Member
GTS 250 ie
Joined: UTC
Posts: 5
Location: Sheffield UK
UTC quote
turn signal beeper/power outlet
Just joined as new recruit: read your info. on beeper etc, can't wait to have a go myself. Cheers
@yucca avatar
UTC

Hooked
2008 GTS 250
Joined: UTC
Posts: 167
Location: Dolan Springs, AZ

Hooked
@yucca avatar
2008 GTS 250
Joined: UTC
Posts: 167
Location: Dolan Springs, AZ
UTC quote
Modified wiring for relay. Switch on ground side.

Same Same. Just the way it worked out.
Forum member supplied image with no explanatory text
⬆️    About 1 month elapsed    ⬇️
@blaising avatar
UTC

Enthusiast
GTS300
Joined: UTC
Posts: 93
Location: Florida

Enthusiast
@blaising avatar
GTS300
Joined: UTC
Posts: 93
Location: Florida
UTC quote
Mod works great
This is my first real post on MV, so go easy if I don't get it right...

I followed Cinci John's method to the letter with a couple of twists suggested by others. I used epoxy to attach the wire block to the back of the knee panel, and used the crimp on connectors with one leg cut off to plug into the alarm block. I also used a marine type 12v receptacle instead of the kind you can get at the auto parts place. I'm planning on eventually getting that connector from Scooterwest that mates to the alarm block to make the whole installation a bit more ship shape.

I was a bit wary that the turn signal beeper would be too loud but found that I don't mind the fact that cagers take notice. Anything that raises awareness of my presence to surrounding traffic is a good thing, I figure. The beeper really does it's job too -I haven't accidentally left my signal on one time since install. Before, it was a daily occurrence.

My next tweak will be a button to open my community gate...as soon as I can locate a proper momentary switch.

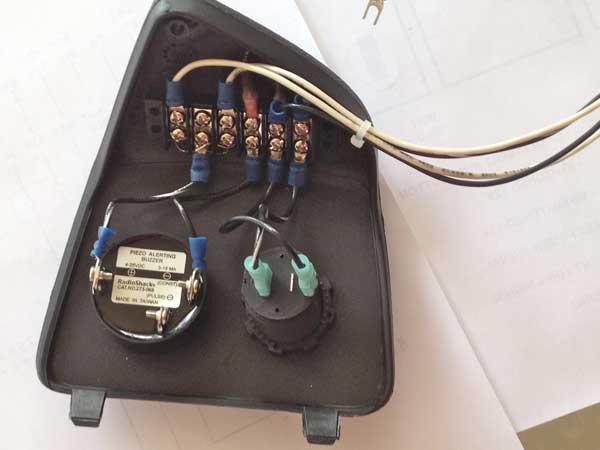

You can just barely see one of those crimp on connectors in the top of photo before I cut one leg off
You can just barely see one of those crimp on connectors in the top of photo before I cut one leg off
The marine receptacle looks great - no silver trim like the ones you get at the auto parts place
The marine receptacle looks great - no silver trim like the ones you get at the auto parts place
Plugging in the battery tender is now a piece of cake. No more removing the floor panel.
Plugging in the battery tender is now a piece of cake. No more removing the floor panel.
⬆️    About 9 months elapsed    ⬇️
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
30,000 views! Woo-hoo!!
There's some fine-looking work here!!
⬆️    About 2 months elapsed    ⬇️
UTC

Lurker
GTS300
Joined: UTC
Posts: 3
Location: Australia

Lurker
GTS300
Joined: UTC
Posts: 3
Location: Australia
UTC quote
Brake relay and alarm interface
Yucca wrote:
I added the relay to cut out the buzzer at stop lights. I used the small terminal Strip and wired it like the drawing Cincinnati John posted except I switched the ground side of the buzzer.

I used a tap at the rear brake switch and ran the wire down the brake hose and zip tied it to the harness..
HI all, Thanks for the contributions on this thread. I've had a go at the wiring in the turn beeper and aux power connectors using the instructions here. So far so good.

I would like to have a crack at installing the relay to cut off the beeper while the break is applied. I read through the a post (quoted above) about how the break light wire was accessed.

Can anyone point to some instructions on how to access the brake light wire (I gather the the handlebar cover needs to be removed, bit worried about breaking something). Also what sort of connector was used to 'splice' into the wire in the picture?

Also, I was looking for something that might access the alarm connector in a cleaner way (I found the wires came loose on my first try and I didn't have much luck with the modified 'U' lugs). I came across this Alarm Interface Splitter over at scooter west (see attached image).

It occurs to me that one of the male plugs could be removed with the wires fed into the 'splitter' board and the other connecter left as is. Any comments about this as a connection solution?

Cheers,

Steve
Alarm splitter connector
Alarm splitter connector
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
The male plug of that splitter could be used: cut off the female connectors along with the wires to one of them, splice to the remaining wires, and plug the male end into the scooter's female connector - but the price of that thing takes my breath away! I would most profoundly like to know the manufacturer and part no. of that male connector.

To access the brake light wires, you'd remove the headset per these instructions: GT/GTS: Headset Cover Removal.
The switched side of the brake circuit has white/black insulation - that's where you'd want to tap in.

Use a splice terminal (most auto parts stores will have 'em) to tap into the brake wire without cutting the wire. It's a clamp that pierces the insulation to make contact with the wire.
Forum member supplied image with no explanatory text
UTC

Lurker
GTS300
Joined: UTC
Posts: 3
Location: Australia

Lurker
GTS300
Joined: UTC
Posts: 3
Location: Australia
UTC quote
Thanks
Yes the alarm connector / splitter is not exactly cheep, but it does offer a clean solution I guess. Thanks very much for the additional info.
⬆️    About 1 year elapsed    ⬇️
@undertoker avatar
UTC

Hooked
Gts300ie
Joined: UTC
Posts: 182
Location: Milton Keynes, UK

Hooked
@undertoker avatar
Gts300ie
Joined: UTC
Posts: 182
Location: Milton Keynes, UK
UTC quote
ExonicJay wrote:
Just kidding.

Three switches are for garage door openers
One Switch is for the Headlight Modulator
1 LED for alarm (Gorilla with remote pager)
And of course a cigar lighter also used as a charging port for the battery.
And the piezo beeper for the turn signals.

Picture shows battery tender plug connected

External inline image provided by member with no explanatory text

The the Right knee panel really does have MI-6 stuff.
Only Q and 007 know what it does.


I have now labeled some of the MI-6 functions on my ET4.

External inline image provided by member with no explanatory text

Here is where to by the labels:
http://www.aestheticreations.net/smartgroupbuy.htm
Laughing emoticon love this
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
40,000 views and still kickin'! Clown emoticon
@undertoker avatar
UTC

Hooked
Gts300ie
Joined: UTC
Posts: 182
Location: Milton Keynes, UK

Hooked
@undertoker avatar
Gts300ie
Joined: UTC
Posts: 182
Location: Milton Keynes, UK
UTC quote
Rightly so
Plenty of scooters should,have had this from the factory really
Great thread guys, well done
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
Thanks. It was something of a group effort. BTW, the mod still works just fine after all the miles, even with the wires poked into the connector. But I sure would like to find a source for the mating connector...
@gee-bee avatar
UTC

Banned
GTS 300
Joined: UTC
Posts: 417
Location: Rancho Mirage Calif

Banned
@gee-bee avatar
GTS 300
Joined: UTC
Posts: 417
Location: Rancho Mirage Calif
@tmoore avatar
UTC

Member
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago

Member
@tmoore avatar
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago
UTC quote
12v outlet with toggle switch
Has anyone wired a 12v outlet to unswitched lead with a toggle mounted next to outlet? So you can turn outlet on and off with toggle switch. I would like to charge battery via outlet, but would prefer to not have hot outlet 24/7.
@jimc avatar
UTC

Moderaptor
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43475
Location: Pleasant Hill, CA

Moderaptor
@jimc avatar
The Hornet (GT200, aka Love Bug) and 'Dimples' - a GTS 300
Joined: UTC
Posts: 43475
Location: Pleasant Hill, CA
UTC quote
I'm sure people have - but why not just wire it via the ignition switch, so it's off when the scooter is locked? Saves the cost of a switch...
@tmoore avatar
UTC

Member
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago

Member
@tmoore avatar
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago
UTC quote
jimc wrote:
I'm sure people have - but why not just wire it via the ignition switch, so it's off when the scooter is locked? Saves the cost of a switch...
I park in a large parking garage and would like to occasionally hook up my battery tender to 12v outlet while the scooter is unattended. I've done a bit of research today and it looks pretty simple to wire the toggle inline with the hot lead.
@aerophil avatar
UTC

Enthusiast
GTS 250 2008
Joined: UTC
Posts: 71
Location: Newport Pagnell England

Enthusiast
@aerophil avatar
GTS 250 2008
Joined: UTC
Posts: 71
Location: Newport Pagnell England
UTC quote
Hi all

Please excuse my ignorance but I see that members are using the 12v socket to charge their batteries but could this be used to power accessories such as a sat nav.

Thanks again Phil
@waspman avatar
UTC

Addicted
2005 GTS 250ie
Joined: UTC
Posts: 794
Location: Stamford, Lincolnshire

Addicted
@waspman avatar
2005 GTS 250ie
Joined: UTC
Posts: 794
Location: Stamford, Lincolnshire
UTC quote
Thanks John,

Another successful mod!

Easy peasy , very clear instructions.

Cheers

Richard
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
aerophil wrote:
Hi all

Please excuse my ignorance but I see that members are using the 12v socket to charge their batteries but could this be used to power accessories such as a sat nav.

Thanks again Phil
Sure; it'll work in either direction. A wire doesn't care which way the current flows...
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
Re: 12v outlet with toggle switch
Tmoore wrote:
Has anyone wired a 12v outlet to unswitched lead with a toggle mounted next to outlet? So you can turn outlet on and off with toggle switch. I would like to charge battery via outlet, but would prefer to not have hot outlet 24/7.
That would work alright; but I'm not clear why having the plug hot continuously is undesirable. It must not be a security concern since you're contemplating putting a switch right next to it. Can you give me some background?
@tmoore avatar
UTC

Member
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago

Member
@tmoore avatar
GTS Super 300ie
Joined: UTC
Posts: 9
Location: Chicago
UTC quote
Re: 12v outlet with toggle switch
Cincinnati John wrote:
Tmoore wrote:
Has anyone wired a 12v outlet to unswitched lead with a toggle mounted next to outlet? So you can turn outlet on and off with toggle switch. I would like to charge battery via outlet, but would prefer to not have hot outlet 24/7.
That would work alright; but I'm not clear why having the plug hot continuously is undesirable. It must not be a security concern since you're contemplating putting a switch right next to it. Can you give me some background?
I've ordered a waterproof outlet, but not sure how well they work. I'm thinking the on/off toggle would be a layer of protection for the battery in the environs. Might be overkill...
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
Re: 12v outlet with toggle switch
Tmoore wrote:
Cincinnati John wrote:
Tmoore wrote:
Has anyone wired a 12v outlet to unswitched lead with a toggle mounted next to outlet? So you can turn outlet on and off with toggle switch. I would like to charge battery via outlet, but would prefer to not have hot outlet 24/7.
That would work alright; but I'm not clear why having the plug hot continuously is undesirable. It must not be a security concern since you're contemplating putting a switch right next to it. Can you give me some background?
I've ordered a waterproof outlet, but not sure how well they work. I'm thinking the on/off toggle would be a layer of protection for the battery in the environs. Might be overkill...
Honestly, I think you'd be fine to leave it hot all the time. Mine is no more waterproof than to have a plastic cover, and after five years I've never had a peep of trouble from it.
⬆️    About 8 months elapsed    ⬇️
UTC

Member
GTS 300 Sport
Joined: UTC
Posts: 6
Location: London, UK

Member
GTS 300 Sport
Joined: UTC
Posts: 6
Location: London, UK
UTC quote
Micro USB charger
Firstly, thanks to the OP and all the other contributors to this thread. I have found it extremely useful as a noob to Vespa modifications.

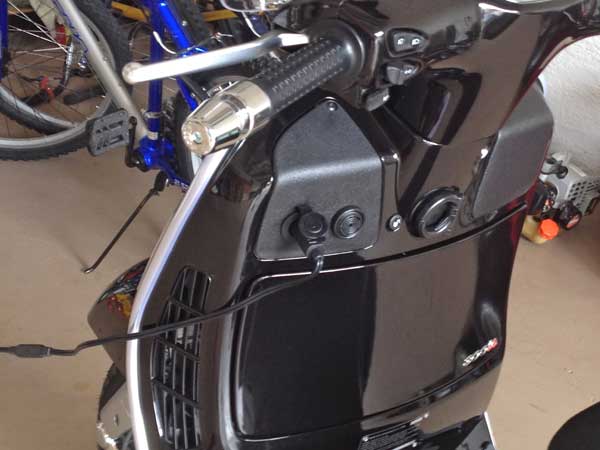

I just wanted to add what I have done on my GTS. I realised that the only thing I would need to charge whilst riding would be my phone, which I use for SatNav or GPS speedometer. I therefore wanted a neater solution than a 12v socket which would require a USB adapter and a charging cable.

I managed to find a 12v to 5v converter with micro USB on ebay for about £3 (came from China so quite a long wait for delivery).

I hooked it up to the switched connectors on the alarm block as I won't need to charge when I'm parked.

The cable is long enough to route through the head unit and emerge through the left mirror opening. I have replaced the mirror with a RAM-type mount where my phone sits.

I'm generally very pleased with the result. The only issue I have is that when I am not using the cable, the end is exposed and I haven't been able to find a cover for it anywhere. I'm yet to see if moisture could cause any problems.

I'll add some pictures if anyone wants to have a look.
Forum member supplied image with no explanatory text
⬆️    About 7 months elapsed    ⬇️
UTC

Lurker
Vespa GTS super sport 300 ABS/ASR
Joined: UTC
Posts: 4
Location: Belgium

Lurker
Vespa GTS super sport 300 ABS/ASR
Joined: UTC
Posts: 4
Location: Belgium
UTC quote
alarm connector not there anymore
I have a super sport 300 model 2014 and the alarm connector is not there anymore.
Can someone help me?
⬆️    About 8 months elapsed    ⬇️
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
60,000!
@waspman avatar
UTC

Addicted
2005 GTS 250ie
Joined: UTC
Posts: 794
Location: Stamford, Lincolnshire

Addicted
@waspman avatar
2005 GTS 250ie
Joined: UTC
Posts: 794
Location: Stamford, Lincolnshire
UTC quote
Using Cincinnati John's wiring diagram what would be the best way of silencing the beeps whilst waiting at a junction? I understand you need to splice into the black and white stopped wire from the rear brake lever. But where should this connect to?
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
waspman wrote:
Using Cincinnati John's wiring diagram what would be the best way of silencing the beeps whilst waiting at a junction? I understand you need to splice into the black and white stopped wire from the rear brake lever. But where should this connect to?
On the third page of this thread, the 18th post down, there's a wiring diagram for a circuit to disable the beeper when the brakes are applies. You'll need a relay to do it, with the coil of the relay energized from the brake light. You can tap into the black/white brake light wire at either of the brake handles.
⬆️    About 7 months elapsed    ⬇️
UTC

Hooked
GTS250ie
Joined: UTC
Posts: 193
Location: Treasure Coast, FL

Hooked
GTS250ie
Joined: UTC
Posts: 193
Location: Treasure Coast, FL
UTC quote
This is a great mod.
I got the diodes and the Radio Shack buzzer and it worked well.
It was so loud I added a switch so I didn't attract attention at stop lights
Then I realized that I had it off too much so it defeated the purpose.
So my modification to this setup is to add a relay so that the beeping stops while the brake is pulled. That was y stoplights or stop signs I don't sound like a truck backing up.
⬆️    About 3 months elapsed    ⬇️
@gozon2 avatar
UTC

Lurker
2014 GTS 300
Joined: UTC
Posts: 1
Location: Palm Coast, Florida

Lurker
@gozon2 avatar
2014 GTS 300
Joined: UTC
Posts: 1
Location: Palm Coast, Florida
UTC quote
Turn signal relay that beeps just plug it in
Here is a turn signal relay that beeps I found on ebay. I just installed it on my 2014 Vespa GTS 300. It is just the right amount of noise for me. I can hear it find at 60 mph or more. I do not wear earplugs or a helmet that covers my ears however. I just replaces the relay that is plugged in behing the left knee hole cover. It was only $6.98 free shipping.
http://www.ebay.com/itm/331912582674?orderid=&rmvSB=true
Pic of the singing (beeping) turn signal relay
Pic of the singing (beeping) turn signal relay
⬆️    About 2 years elapsed    ⬇️
UTC

Lurker
Gt200
Joined: UTC
Posts: 3
Location: Santa Cruz ca

Lurker
Gt200
Joined: UTC
Posts: 3
Location: Santa Cruz ca
UTC quote
Thanks! Great wiring diagrams
This will be my next mod this weekend.
Thanks for the ideas.
⬆️    About 2 months elapsed    ⬇️
UTC

Ossessionato
2018 Vespa GTS 300 ABS- Bianco
Joined: UTC
Posts: 2208
Location: E. KY

Ossessionato
2018 Vespa GTS 300 ABS- Bianco
Joined: UTC
Posts: 2208
Location: E. KY
UTC quote
I suggest that those who desire to install power outlets on a GTS shoulder panel take a look @ Scooterwest install video then proceed as fits your own outlet needs and install skills.
My 2018 GTS has two power outlet, side by side in the left shoulder, neither of which is a kit. I ran straight off my battery, by choice and have whats called variously a BMW/Powerlet/Hella/DIN outlet beside a dual USB outlet. These are sold on Amazon and ebay at the best prices and offer a better connection than a cig lighter or the low powered USB thats OE in the glovebox of my scooter.
I see zero need for a terminal panel nor a bunch of switches. I also suggest buying outlets that do not have plastic hinges, but spring flaps instead.
There are also waterproof outlets sold in the current MC web market place. RAM mounts makes great products that lend themselves to these scooters. I use one for my Garmin NUVI holder along with a navigation type of power cord from a powersports specialty mfg.-just google- "Red Band power cord" for a cord that works well in specialty links to power your GPS.
While I opted for a battery direct hookup, with inline fuse, on purpose you can easily go through the key by stealing power from the proper scooter circuit. I wanted power for my htd jackt. I also have an SAE connector for battery tender wired direct to battery that exits the rear of the rubber battery cover. it can also run my air compressor or my jacket with a convertor connection. Anyone needing help feel free to contact me via PM and I'll walk you through an install.
⬆️    About 2 years elapsed    ⬇️
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
100,000 reads. Unbelievable.
There's been some good ideas and good work posted in this thread!
OP
@cincinnati_john avatar
UTC

Ossessionato
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis

Ossessionato
@cincinnati_john avatar
'07 GTS-250ie - sold and gone
Joined: UTC
Posts: 2023
Location: the Queen City of the West, aka Porkopolis
UTC quote
Cincinnati John wrote:
waspman wrote:
Using Cincinnati John's wiring diagram what would be the best way of silencing the beeps whilst waiting at a junction? I understand you need to splice into the black and white stopped wire from the rear brake lever. But where should this connect to?
On the third page of this thread, the 18th post down, there's a wiring diagram for a circuit to disable the beeper when the brakes are applies. You'll need a relay to do it, with the coil of the relay energized from the brake light. You can tap into the black/white brake light wire at either of the brake handles.
This is a very late response: A simpler way to do this is to ground the beeper at the + side of the brake light (or at the switched side of one of the brake lever switches). Normally when the brake light is off, the beeper current will go to ground through the relatively low resistance of the brake light bulb filament. But when the brake light is on, the ground side of the beeper will be at high potential and there won't be voltage across the beeper to make it beep.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.1403s ][ Queries: 5 (0.1247s) ][ live ][ 313 ][ ThingTwo ]
