Took my '60 TV175 on the Moto Melee this last weekend and really got to know it better than I had in the last 17 years of owning it. It had soft-seized a year ago after fitting a new piston and exhaust so I went up a jet size and blamed the mikuni carb for leaning out at high RPM. It was boggy but I figured it would make it. I also fitted it with exhaust and cylinder head temp gauges so I could keep an eye on things.

Even running really rich the exhaust would get really hot at high RPM. I was perplexed but limped it through the 280 miles of the first day. Fifty miles into the second day I was forced to downjet to get over a 4000ft pass and could finally see what the temperature was doing with reasonable jetting. Much better power all around but still the exhaust temp would go ballistic if I tried to rev over 5000 RPM.

Finished the rest of the 740 miles with the leaner jetting and just kept my eye on the gauges. At this point I think the exhaust is too restrictive as the temperature change is huge and comes on really fast as you rev past 5000. Point is that without the gauges I'd still be chasing the jetting instead of turning my attention to the exhaust. Next steps will be to add a few holes to the exhaust and see how it changes.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
UTC

Hooked
1974 Rally 200, 2009 Yamaha C3, 2010 Honda SH150i
Joined: UTC
Posts: 403
Location: san francisco

Hooked
1974 Rally 200, 2009 Yamaha C3, 2010 Honda SH150i
Joined: UTC
Posts: 403
Location: san francisco
UTC quote
head temp didn't rise proportionately with exhaust temp?
UTC

Ossessionato
Joined: UTC
Posts: 2633

Ossessionato
Joined: UTC
Posts: 2633
UTC quote
I would like to see how you hooked up the temp guages
@rover_eric avatar
UTC

Moderator
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan

Moderator
@rover_eric avatar
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan
UTC quote
VLBJS1 wrote:
I would like to see how you hooked up the temp guages
I don't know how he did it, but you can buy EGT's and various other thermocouples and gauges that are somewhat universal.

EGT's typically require you cutting a hole in the exhaust manifold, welding a nut there, and then screwing in a thermocouple with an electric wire lead coming off of it, that runs to a gauge.

I believe "westex" is a company that a lot of scooter folk use, because their setups are small and unobtrusive.
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
aaron h. wrote:
head temp didn't rise proportionately with exhaust temp?
It did but the head temp does not react as fast. In general the EGT goes up with RPM and the CHT drops with rising RPM (due to forced air cooling). In this case the EGT would go from about 600-650c to well over 800c very quickly.
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote

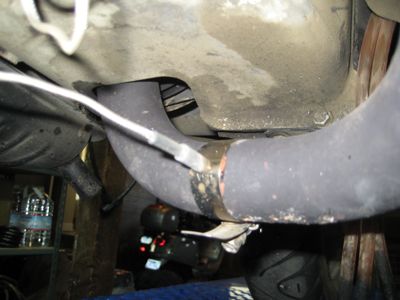

I used a clamp on style EGT and the CHT fits under the sparkplug. I used some plastic pipe to create a mount for the gauge. I'm going to ditch the speedo and move the gauge there permanently.
CHT/EGT Gauge mount
CHT/EGT Gauge mount
EGT Probe
EGT Probe

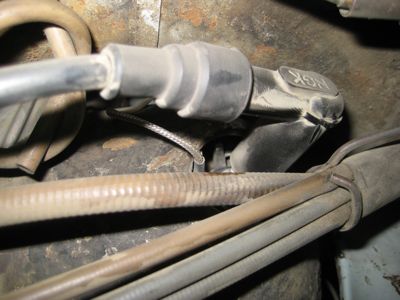

CHT Probe
CHT Probe
UTC

Ossessionato
Joined: UTC
Posts: 2633

Ossessionato
Joined: UTC
Posts: 2633
UTC quote
Ha..trip out

You are really going to ditch your speedo? Could you just get a "cluster" of guages and mount them somewhere?

This is cool..
UTC

Hooked
Too damn many
Joined: UTC
Posts: 297
Location: Seattle, WA

Hooked
Too damn many
Joined: UTC
Posts: 297
Location: Seattle, WA
UTC quote
Hey for that clamp on egt, did you still have to drill into the pipe for the sender, or does it sense the temp from the outside?

I'm ditching the speedo on my series II, as well, but that's where the tach is gonna go.
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
Team Leisure wrote:
Hey for that clamp on egt, did you still have to drill into the pipe for the sender, or does it sense the temp from the outside?

I'm ditching the speedo on my series II, as well, but that's where the tach is gonna go.
I had to drill a 1/8 in. hole for the sender, puts the tip of it in the center of the exhaust flow.

I'm going to use a stock lens and mount the gauge from the back to keep the same smooth lines.
UTC

Hooked
1974 Rally 200, 2009 Yamaha C3, 2010 Honda SH150i
Joined: UTC
Posts: 403
Location: san francisco

Hooked
1974 Rally 200, 2009 Yamaha C3, 2010 Honda SH150i
Joined: UTC
Posts: 403
Location: san francisco
UTC quote
i'm wondering...if the spike is a result of the nature of the harmonics between combustion and backpressure. wonder if you lower your pressure behind the gauge, if it will exacerbate the spike.
@big_foot avatar
UTC

Ossessionato
Scooterless at the moment
Joined: UTC
Posts: 2840
Location: Brooks, Alberta, Canada

Ossessionato
@big_foot avatar
Scooterless at the moment
Joined: UTC
Posts: 2840
Location: Brooks, Alberta, Canada
UTC quote
You could use a RAM mount attached to your mirror stalk for the gauge,
I use a RAM mount attached to the mirror stalk for my Garmin GPS.

Oh...Wait a second, You have a legshield mirror, I'm not a fan of those,
They tend to bump into things and cause too much damage to the legshield.

Why can't they make them flexible and have them springy when they hit something?

Nevermind, That's too simple of a solution,
They'd lose too much business from not fixing legshields.
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
The lambretta is really lacking for a place to mount mirrors yet alone anything else. I hate the legshield mirrors as well but they are really the only option.
UTC

nothing at all
Joined: UTC
Posts: 9656
Location: westla

nothing at all
Joined: UTC
Posts: 9656
Location: westla
UTC quote
i am not interested in either of my speedos and have been wanting for something usefull.

a tach is in the works for the et3,but i think that is not as usefull as a proper temp set up.

thanx for the clue oops Nerd emoticon
@phaetn avatar
UTC

Addicted
'78 Super 150 Mk II ported DR177, banded clutch, ASC Big Bore
Joined: UTC
Posts: 664
Location: Ottawa, ON, Canada

Addicted
@phaetn avatar
'78 Super 150 Mk II ported DR177, banded clutch, ASC Big Bore
Joined: UTC
Posts: 664
Location: Ottawa, ON, Canada
UTC quote
oopsclunkthud wrote:
I used a clamp on style EGT and the CHT fits under the sparkplug. I used some plastic pipe to create a mount for the gauge. I'm going to ditch the speedo and move the gauge there permanently.
I'm very interested in doing this after a soft seize last year (because of running out of fuel) and another at the beginning of this season after a rebuild (I believe the timing and/or jetting was off -- I've adjusted both).

I have a useless speedo (I have hooked up a cycling computer instead) and would love to put in some temp gauges.

How does the CHT lead fit under the sparkplug? Do you have to make any kind of modification to the head itself?

Thanks in advance!
@hp avatar
UTC

Addicted
'60 VS5, '63 Li 150 Special, '07 PX125
Joined: UTC
Posts: 837
Location: Seoul

Addicted
@hp avatar
'60 VS5, '63 Li 150 Special, '07 PX125
Joined: UTC
Posts: 837
Location: Seoul
UTC quote
oopsclunkthud wrote:
The lambretta is really lacking for a place to mount mirrors yet alone anything else. I hate the legshield mirrors as well but they are really the only option.
fwiw, I have had good luck so far with the 'hidden' mirror mount Casa sells. It uses only one of the headset screws, so no drilling required. I've been running it for a year and it's been very stable.

Looks like this:

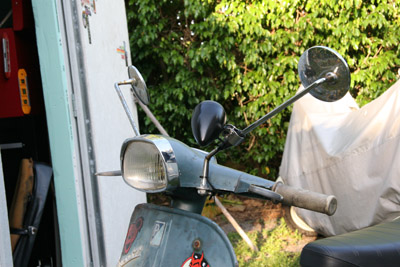

External inline image provided by member with no explanatory text
⬆️    About 2 months elapsed    ⬇️
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote

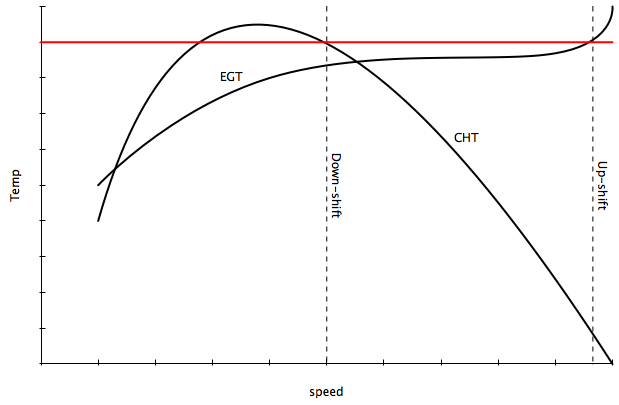

I did a short write up on my EGT/CHT setup. May be useful to some. I'm adding this setup to my MotoBi and as soon as I've got cash for more gauges I'll add it to the Maicoletta as well. This has worked well for me but your milage may vary.

http://oopsclunkthud.com/tuning/gauges.pdf
⚠️ Last edited by oopsclunkthud on UTC; edited 1 time
@rover_eric avatar
UTC

Moderator
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan

Moderator
@rover_eric avatar
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan
UTC quote
Nice writeup, Patrick. I'd like to see a bit more info on what's needed to run... how did you hook it up, what powers it, etc ?
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
Rover Eric wrote:
Nice writeup, Patrick. I'd like to see a bit more info on what's needed to run... how did you hook it up, what powers it, etc ?
I'll add to it as I setup the MotoBi. I'll list the part numbers, costs, and show pictures of the process. These gauges are self powered using the temp difference between the gauge and the sender.
@rover_eric avatar
UTC

Moderator
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan

Moderator
@rover_eric avatar
1965 Vespa SS180, 1963 Lambretta LI150
Joined: UTC
Posts: 6980
Location: Detroit, Michigan
UTC quote
Very nice.
@starreem avatar
UTC

Ossessionato
07 GTS250(RIP), 07 LX150, Several Lambrettas
Joined: UTC
Posts: 2822
Location: Raleigh, NC

Ossessionato
@starreem avatar
07 GTS250(RIP), 07 LX150, Several Lambrettas
Joined: UTC
Posts: 2822
Location: Raleigh, NC
UTC quote
Nice to see the CHT probe on your spark plug. I figured the clearance on the cowl was too tight and would require putting the probe on a cylinder stud.
⬆️    About 8 months elapsed    ⬇️
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
I know this is an old thread..but what the heck!

Has anyone figured out a good way to mount a 2-inch round CHT?

I have one on the way and have already run a tracer from the cylinder to the headset.

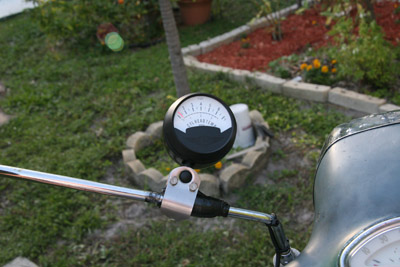

External inline image provided by member with no explanatory text

Mine is a single 100 - 700 F

I also have a shell on the way

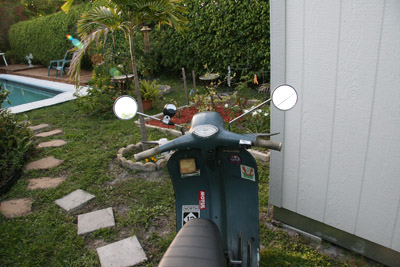

External inline image provided by member with no explanatory text

I figure I don't want to mount to the headset as it will pull the wires when turning.

Any ideas or suggestions appreciated!
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
oopsclunkthud wrote:
I did a short write up on my EGT/CHT setup. May be useful to some. I'm adding this setup to my MotoBi and as soon as I've got cash for more gauges I'll add it to the Maicoletta as well. This has worked well for me but your milage may vary.

http://blog.oopsclunkthud.com/tuning/EGT-CHT-gauges.pdf
Thanks for the write up. That and a conversation with a total gear head convinced me that it is the way to go!
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
Here's how I mounted it on my smallframe (with a P headset) I've also been playing with the idea of making a fitting to place it where the speedo goes.

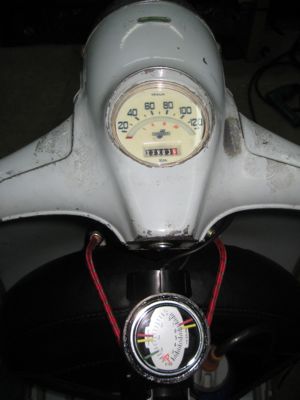

External inline image provided by member with no explanatory text
UTC

Hooked
1980 P150S 2005 GT200L
Joined: UTC
Posts: 263
Location: Louisville, KY

Hooked
1980 P150S 2005 GT200L
Joined: UTC
Posts: 263
Location: Louisville, KY
UTC quote
I just looked into this thread and I have a product suggestion and a couple of questions:

I was looking for a similar more information speedo and found this some months back:

http://www.electrosport.com/street/speedometers.php?source=adwords&gclid=CITXt92p150CFUpK2godlCt6Sg

I would love to have the fuel gauge.

But here's the question...
If you don't have a battery how do you add one?
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
[quote="oopsclunkthud"]Here's how I mounted it on my smallframe (with a P headset) I've also been playing with the idea of making a fitting to place it where the speedo goes.

I really like that position. What did you mount it to?

Oh yeah this is going on a 67 GT (Sprint)
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
I used the screw mounted gauge holder and just drilled holes in the headset top, 3 sets of holes before I got it in a position that worked. Not sure I'd go that way with a sprint.

I'd look at making a bracket coming off the windscreen/mirror mounts on the headset. Figure out where you want the gauge, where you can bolt to, and then make a bracket to connect the two.
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
oopsclunkthud wrote:
I used the screw mounted gauge holder and just drilled holes in the headset top, 3 sets of holes before I got it in a position that worked. Not sure I'd go that way with a sprint.

I'd look at making a bracket coming off the windscreen/mirror mounts on the headset. Figure out where you want the gauge, where you can bolt to, and then make a bracket to connect the two.
Thats what I was thinking. I'm just gonna have to mess with it and see what I can come up with.

Oh I did figure a sneaky way to run the tracer wire. I used some old heavy string trimmer line and ran down from the bottom spare tire mount hole into the tank area, then the other end and ran up from the same hole to the hea d set. That stuff is heavy enough to snake through but it doesn't kink when the "loop" pulls through the mounting hole.

I haven't had that trimmer for years...And my wife wonders why I never throw anything away!
@kenm avatar
UTC

Hooked
2008 PX200e MI, one of world's last 24
Joined: UTC
Posts: 100
Location: Auckland, New Zealand

Hooked
@kenm avatar
2008 PX200e MI, one of world's last 24
Joined: UTC
Posts: 100
Location: Auckland, New Zealand
UTC quote
Patrick,

In your web report you say:
[quote] A final note about CHT is that when you roll off the throttle the CHT tends to go up before it comes down. It!s not uncommon for two strokes to seize when rolling off the throttle after a hard run. This is due to running too close to the thermal limits of the oil and then reducing the lubrication. It!s a tricky situation when you know that holding WOT will push you over the limit AND rolling off it likely to as well. [unquote]

Were you talking about earlier 2T engines?
Years ago, my SS180 seized at 12400 miles while running on the flat at 50mph with mid-throttle and on a cool night. A points failure caused a second soft seize at 48200 miles in much the same conditions. I never had any trouble going down long hills after climbing them. Plug chops always looked OK if not a little rich. Surely timing must have been involved in both cases. Our premix oil at the time was ordinary 30-40 SAE mineral engine oil.

I thought that in later engines, the oil pump delivering in relation to rpm rather than throttle opening only, modern synthetic oils, and electronic ignition were supposed to have eliminated this problem.
Still, monitoring temperatures is a great idea.

Ken.
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
well it arrived and it is installed. I do need to build up the diameter of the mirror stem some more but I'm very happy with the location.

I went for a ride and I was running at about 300 deg F. I figure I need to find my "normal" range.
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
Forum member supplied image with no explanatory text
⬆️    About 3 years elapsed    ⬇️
OP
@oopsclunkthud avatar
UTC

Banned
3:5
Joined: UTC
Posts: 8995
Location: San Francisco

Banned
@oopsclunkthud avatar
3:5
Joined: UTC
Posts: 8995
Location: San Francisco
UTC quote
There has been lots of gauge threads lately and often the conversation shifts to "CHT or EGT", or "CHT vs EGT". I'd like to make a case for "CHT and EGT".

When we have both on one analog gauge we see something that we don't get any other way. I've tried to illustrate this in the attached graph. The place where the CHT hits a maximum is at lower RPM, while the EGT goes up really quickly above some RPM. With proper jetting the temps will be under their respective limits across the whole power band.

Consider the following events and how the temps would change:

We are accelerating on level ground. In first gear we pass through the point of high CHT so fast that it doesn't have time to rise much if any. We rev out till power is falling off and the EGT starts to go above the limit, then shift to second. As we accelerate through 2-4th we don't see much happening in the CHT but as we reach the top of the rev range in each gear the EGT goes up to the limit.

Now we are flying along at top speed on level ground and our jetting is perfect to keep the EGT right at the limit. we could do this all day and never get into trouble, it's a happy place to be.

The road starts to climb and gradually gets steeper and steeper. As the bike slows heading up the grade we see that the EGT is under the limit but the CHT keeps rising as the bike slows. As the CHT goes above the limit we decide to down shift and see that the CHT falls back to acceptable limits.

We crest the hill in 3rd, shift into 4th and accelerate back up to our top speed.

Now the road starts to descend and we tuck in to see what we can do with a bit of help from gravity. As we accelerate down the hill we see that the EGT is quickly rising above the limit. We decide to back off and leave blowing up the bike for another day.
Forum member supplied image with no explanatory text
@vader19 avatar
UTC

Mr. Clean
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!

Mr. Clean
@vader19 avatar
P,SUPER,V90, 50 Special
Joined: UTC
Posts: 10205
Location: This is't my locker!
UTC quote
That's a good study there oops.. the dual gauge looks like it really does offer a good meshed comparison of what's going on... Good stuff.. has me thinking.
It's a good illustration of what your motor goes through when you're not riding on the flat streets.. it's really being pushed much more than we might realize w/o the gauge.. and a CHT only tells 1/2 the story!!!!.. really valuable tools gauges are... they may actually take away a bit of the "free-wheelin, give it gas and go" factor, but they'll save your ass.. just about the time you think it can't get any funner and sieze.
Thanks for sharing.
@scooterraton avatar
UTC

Ossessionato
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida

Ossessionato
@scooterraton avatar
2 - Many
Joined: UTC
Posts: 3165
Location: Boca Raton, Florida
UTC quote
Oh I locked one up at about 65 on CBR 2012 with CHT and EGT...but I did know I was pushing the limits...I pushed just a litttttttle bit too hard!
⬆️    About 9 years elapsed    ⬇️
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
Bringing up an old thread, yes I know, even received a pop up box telling me. This is the thread I read as a newbie two years ago and reason I bought an egt gauge when I started tuning.

Working on tuning my reed setup, and trying to understand two readings. At a cruising speed of 55 - 60mph for a few miles minimum both gauges were at a steady reading. I had a CHT of about 255°F under spark plug, I also have shrink tubing around sensor to reduce air cooling for CHT. EGT was 1300°F. Never had this issue, my thoughts of a 255°CHT is a bit rich, 1300 EGT is a bit lean. Didn't have my AFR meter running.

Maybe advance timing a degree to fire sooner? More heat absorbed in cylinder head less out exhaust as waste? I need to check timing again to see where I'm at. I have a kytronik ignition so I could probably pick out a different curve at 5800 RPM cruising speed to advance timing a bit to see what happens.

https://resources.savvyaviation.com/understanding-cht-and-egt-2/

If I'm dealing with those two indicators, I could error on side of caution and richer up 1/4 throttle needle to lower EGT. But that would lower CHT also.
⚠️ Last edited by Christopher_55934 on UTC; edited 1 time
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3211
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3211
Location: northern New York
UTC quote
This is a great thread for a newb like myself. I would never had thought that an engine could seize rolling off the throttle after a hard run. It makes sense considering how a 2 stroke gets its lubrication. I have noticed while watching x-kit top speed videos that riders often rev the engine as they are slowing down. I was wondering if this was to keep up oil flow. Gauges are great but can take away from the enjoyment of riding at least for some.
@christopher_55934 avatar
UTC

Ossessionato
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota

Ossessionato
@christopher_55934 avatar
2007 Stella 225
Joined: UTC
Posts: 3547
Location: Rochester, Minnesota
UTC quote
orwell84 wrote:
This is a great thread for a newb like myself. I would never had thought that an engine could seize rolling off the throttle after a hard run. It makes sense considering how a 2 stroke gets its lubrication. I have noticed while watching x-kit top speed videos that riders often rev the engine as they are slowing down. I was wondering if this was to keep up oil flow. Gauges are great but can take away from the enjoyment of riding at least for some.
Gauges are great tools for tuning. After that hopefully setup is robust enough to not have to watch them constantly.
@orwell84 avatar
UTC

Ossessionato
Joined: UTC
Posts: 3211
Location: northern New York

Ossessionato
@orwell84 avatar
Joined: UTC
Posts: 3211
Location: northern New York
UTC quote
Christopher_55934 wrote:
Gauges are great tools for tuning. After that hopefully setup is robust enough to not have to watch them constantly.
That's the plan. Once you get to know and trust the machine it becomes the occasional glance.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0096s ][ Queries: 4 (0.0028s) ][ live ][ 313 ][ ThingOne ]
