Here's a walk-through of a project I started today... just had to share. Click any picture to see it larger.

I've been wanting some high-visibility brake lights on my GT200 ever since I bought it. The stock taillight is pretty bright, but it's an incandescent bulb and just can't match the light output of some of the LED lights that have come on the market recently. Rather than replace the stock taillight with an LED system, though, I decided to add on some cool retro-look bullet lights.

External inline image provided by member with no explanatory text

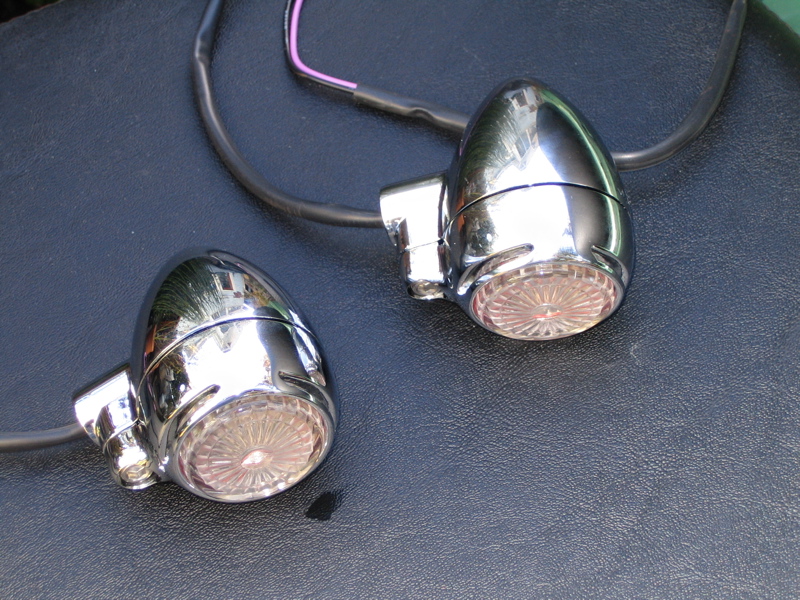

I got these from Kuryakyn (exact product page is here) who seems to carry a lot of motorcycle cruiser customization parts. They complement the styling of my GT200 pretty well, and they're extremely bright. The wires lead out of the light housing through the bolt hole (it comes with hollow bolts) making for a very clean installation.

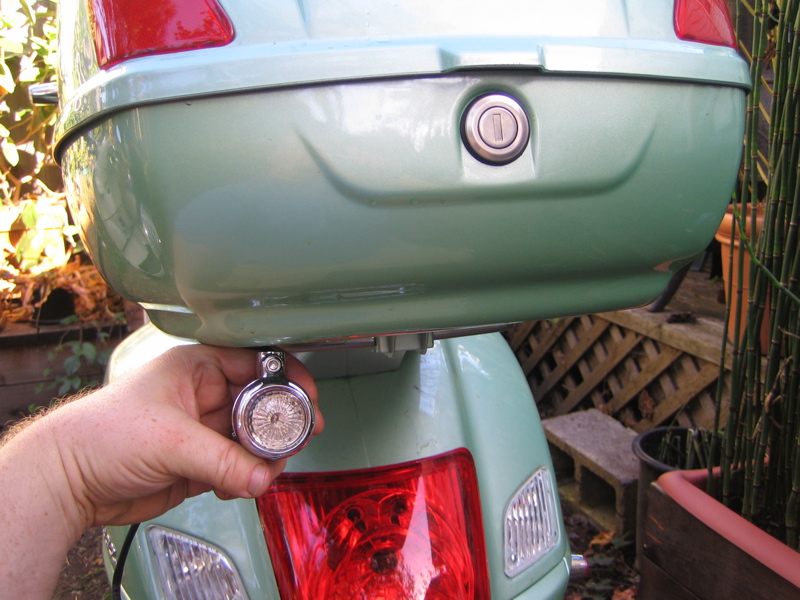

First step: find a place to mount them. I agonized over the mount location for over a week, until it dawned on me that there was really only one possibility if I still wanted my already-tight fitted cover to still fit over my scooter -- the bullets would have to be mounted under the top case, where there's some extra room in the cover.

External inline image provided by member with no explanatory text

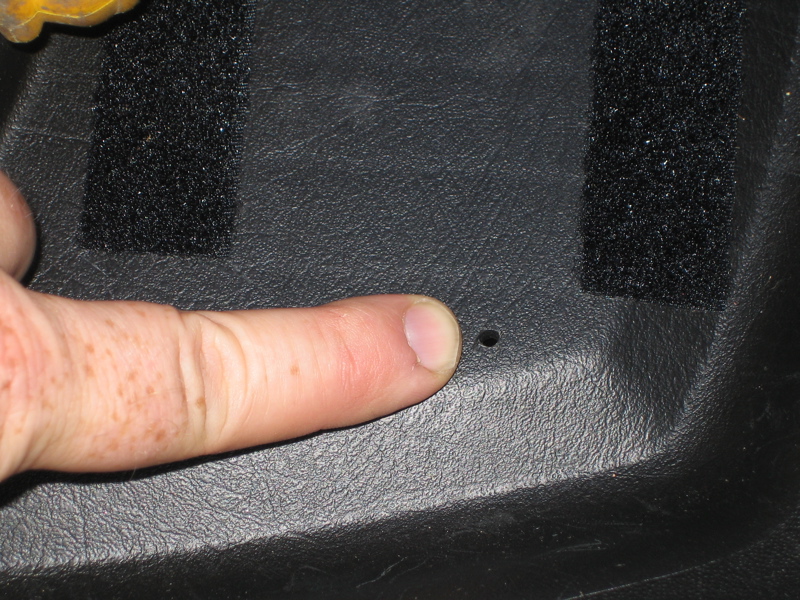

Next step: Start drilling some holes. I drilled a pilot hole from underneath the top case, using the reinforced grid on the bottom to line things up. Drilling a pilot hole in plastic is always a good idea because larger bits (a) wander around while you get the hole started, and (b) tend to gouge the plastic horribly when they break through.

External inline image provided by member with no explanatory text

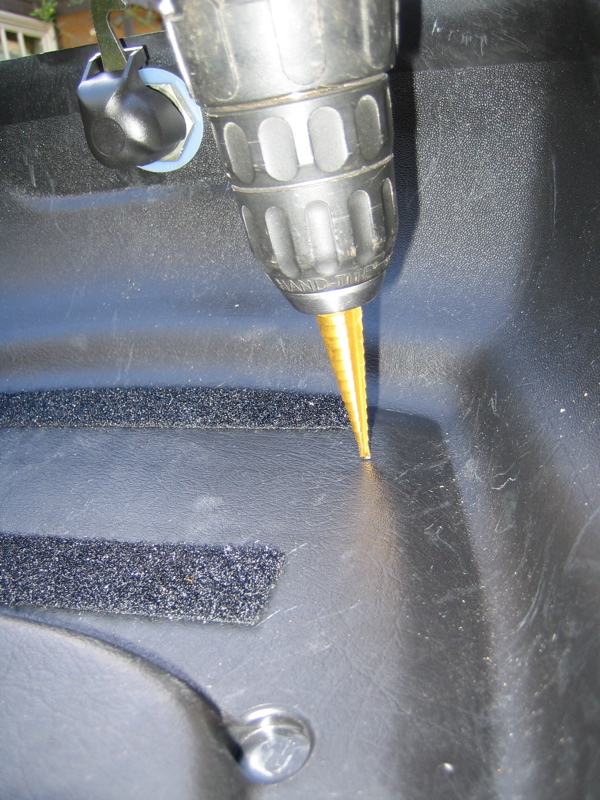

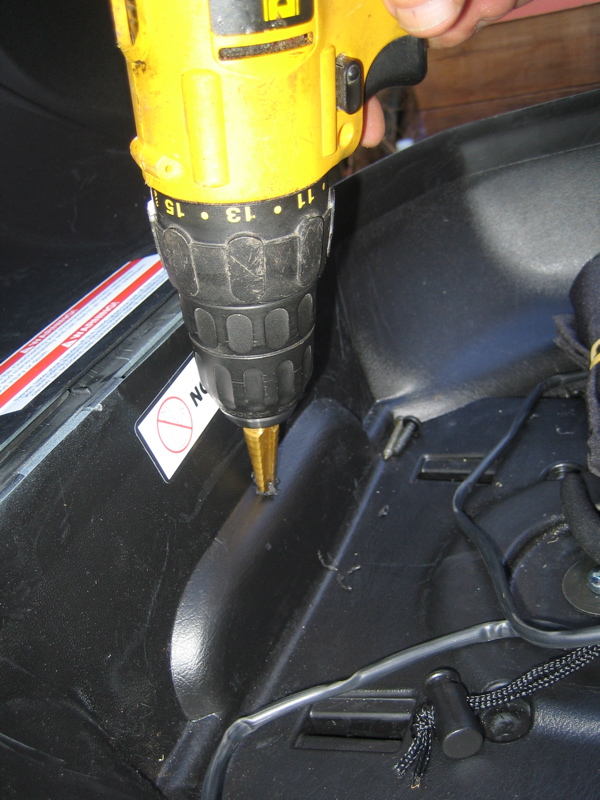

Once the pilot holes were drilled, I widened out the hole with a step bit. Step bits are a bit on the expensive side, but they're wholly worthwhile when you're dealing with plastic or aluminum or even sheet metal. I didn't measure the diameter of the bolt to determine how much to widen, I just checked every step or two until it fit snugly through the hole.

External inline image provided by member with no explanatory text External inline image provided by member with no explanatory text

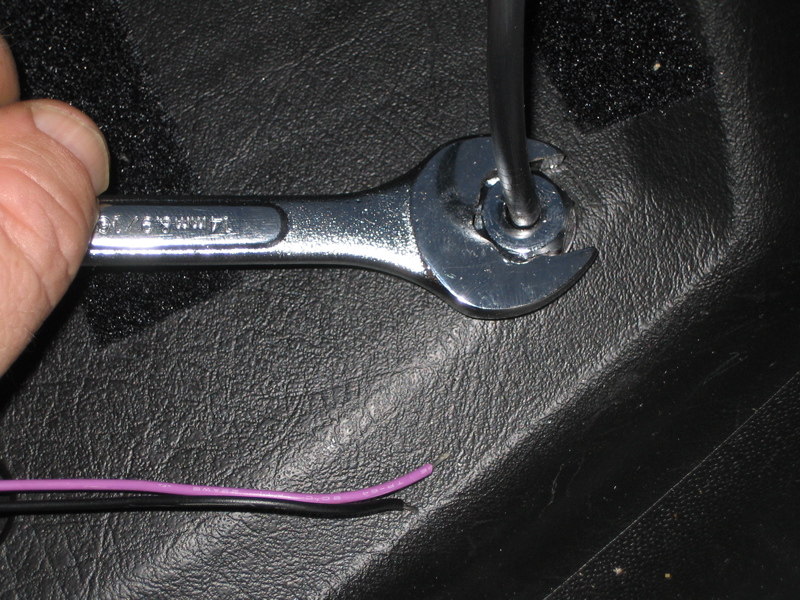

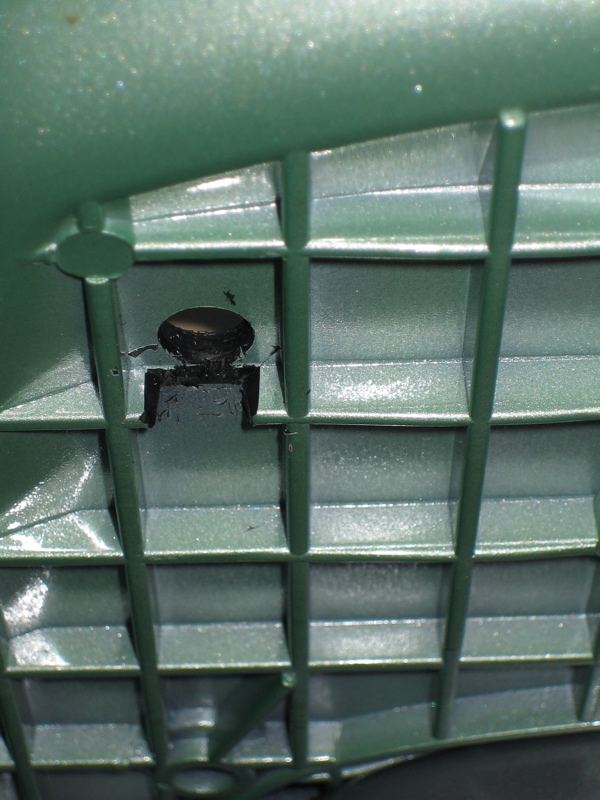

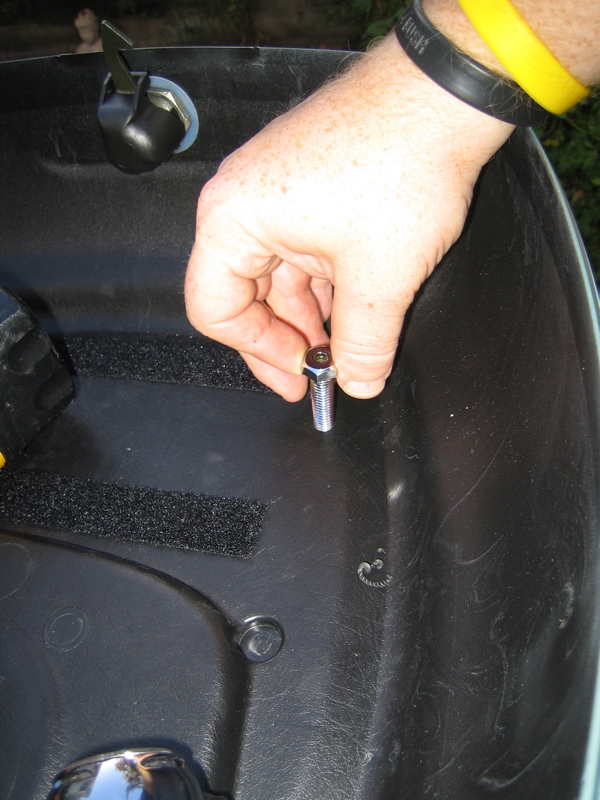

Here's where it got a little bit hairy: the base of each bullet light is a bit bigger than the rectangles in the reinforced grid underneath the top case. I could have used a washer to stand-off the base somewhat and sit it below the reinforced grid, but I opted instead just to modify the gridwork a bit with an xacto knife. It's not pretty, but it's just plastic, and no one will ever see it (except the readers of this forum ).

External inline image provided by member with no explanatory text

The hollow bolts are also a bit long for this application, so I cut them down with the handy Dremel cut-off wheel. I then fed the wires through the bolt, assembled everything, and tightened it down.

External inline image provided by member with no explanatory text

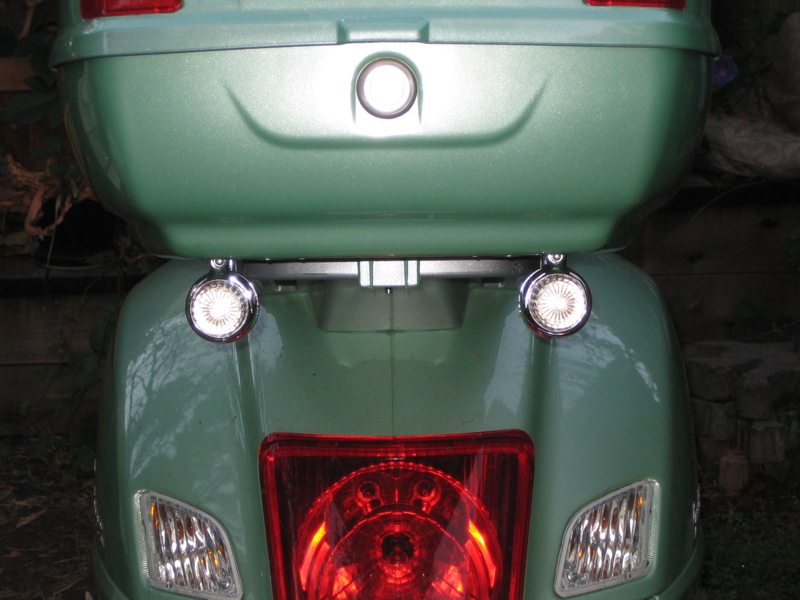

Here's the lights in the OFF mode. Don't be fooled by the bright white coming out of them -- that's just the reflected camera flash.

External inline image provided by member with no explanatory text

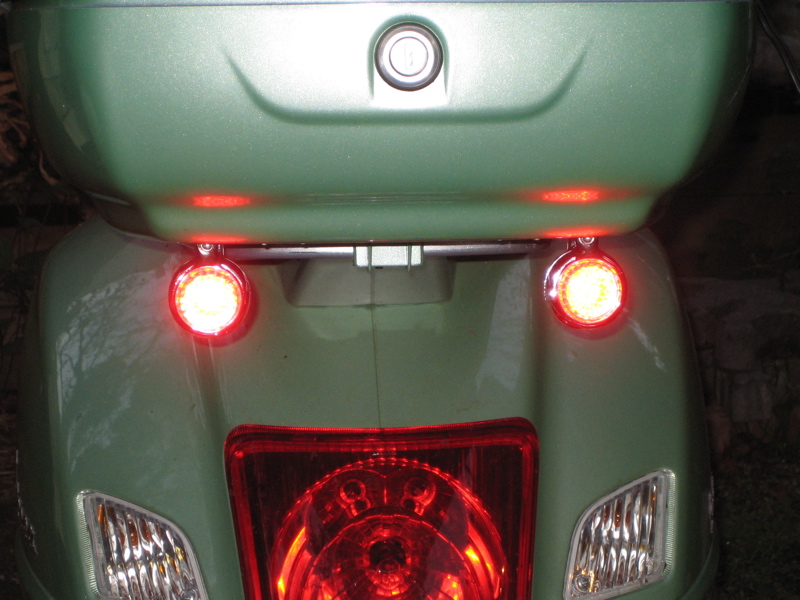

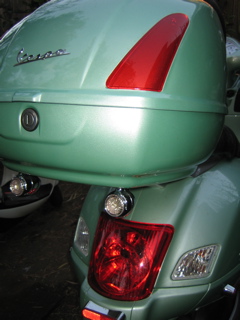

Here they are in the ON position. I haven't actually wired them into the GT200 yet, I just used a battery tender to power the lights temporarily to get an idea of how they looked. The photo does not do these lights justice -- they are very bright, well over what the camera can represent when the rest of the picture is properly exposed.

External inline image provided by member with no explanatory text

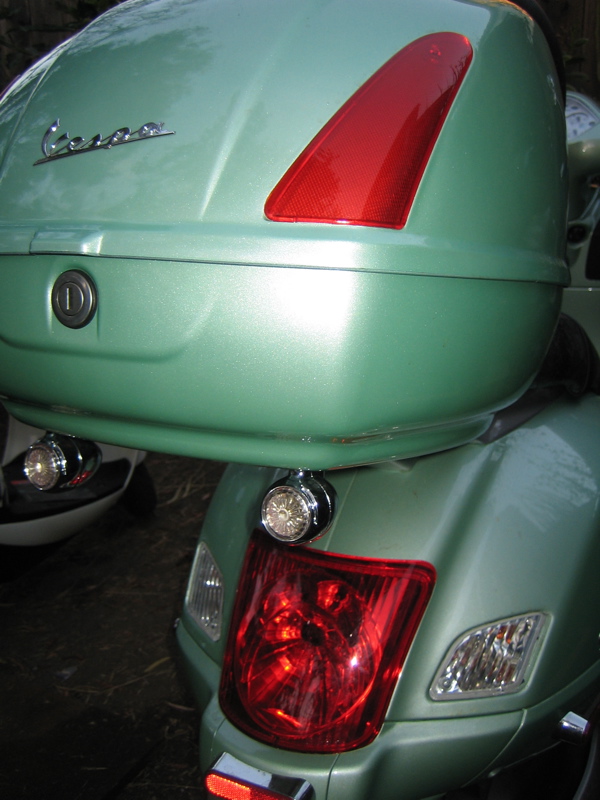

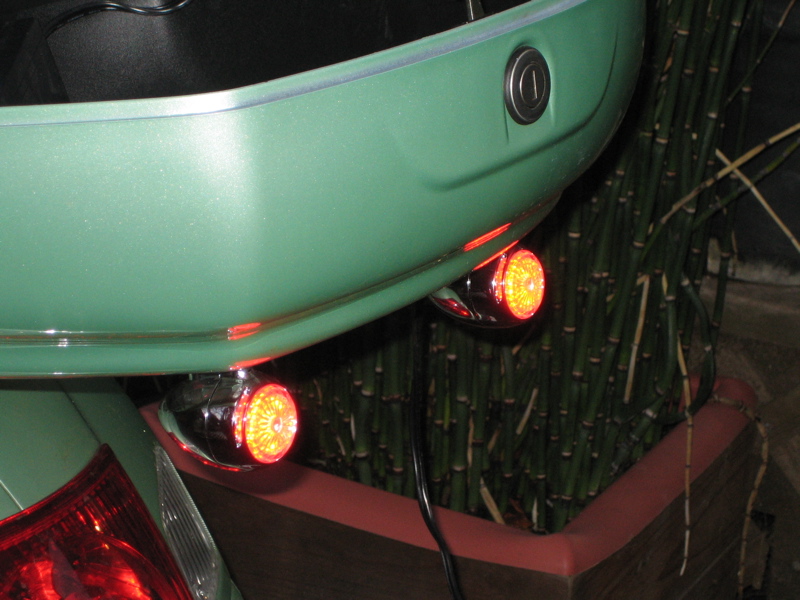

Here's another shot from an angle:

External inline image provided by member with no explanatory text

And one more, this time in the OFF position again:

External inline image provided by member with no explanatory text


My plan is to wire these into my scooter with a wig-wag device, which will give the two lights an alternating flashing pattern for a few seconds before going to solid-ON when I hit the brakes. I've seen motorcycles with this setup, and it really gets your attention, even from several blocks away. Two alternating flashing lights has a pretty immediate effect on our brains, for whatever reason, and that's just the kind of thing I want cagers to notice.
⚠️ Last edited by jess on UTC; edited 1 time
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
Bullet Lights, Part II
Here's part II of the bullet light project, where they actually get hooked up. This shouldn't really be that hard, except that it took me most of the day to figure out where to splice in the lights, how to route the wires, and what kind of quick-disconnect to put on it if I ever want to remove my top case. Hopefully this posting will save someone out there some time.

After poking around the scooter, removing various panels, and tracing the wiring harness through all of it's twists and turns, I settled on splicing into the harness on the right-hand side, toward the back, underneath the right rear fairing. It's almost the only place where the brake and turn signals are actually accessible, and then only barely. Here you can see the harness where it branches between the brake assembly and the right turn signal assembly. The left turn signal branches farther along, underneath where you can't really see it. The red piece of tape is the branch for the brake lights.

External inline image provided by member with no explanatory text

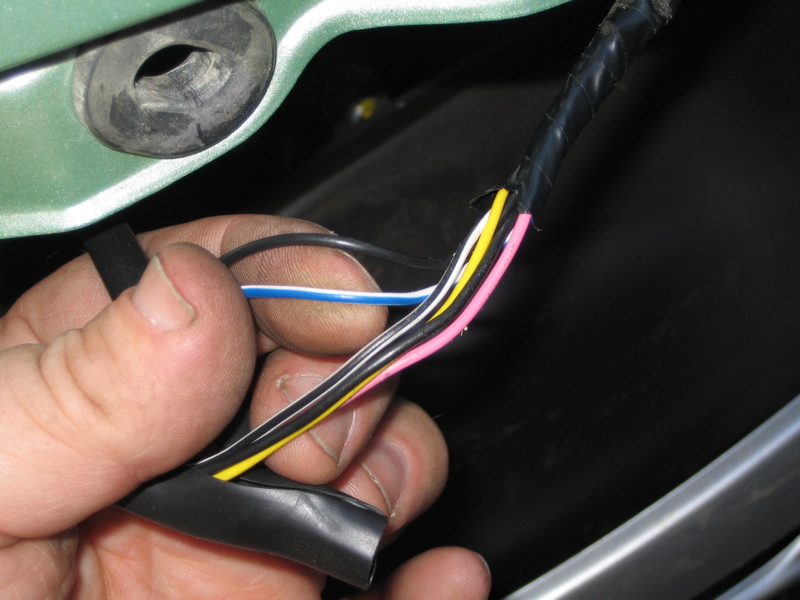

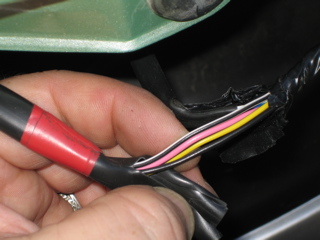

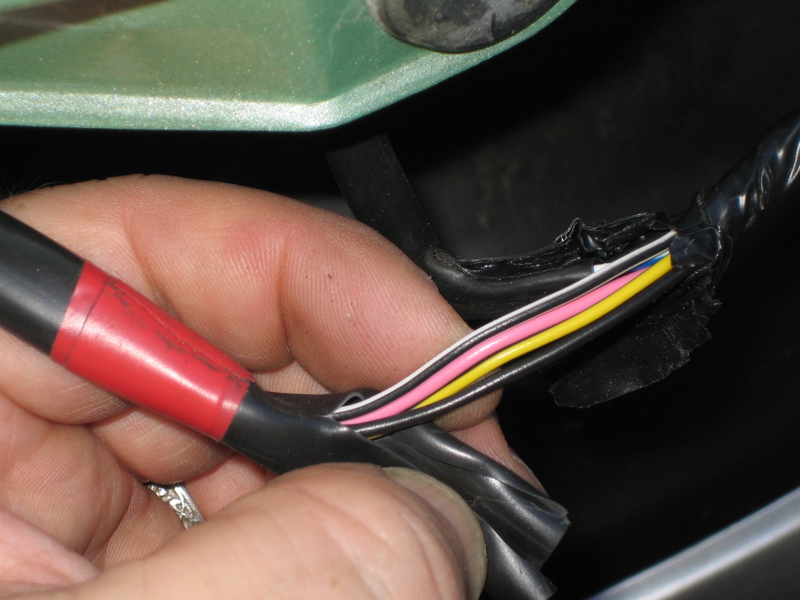

I then carefully sliced open the loom to expose the wires.

External inline image provided by member with no explanatory text

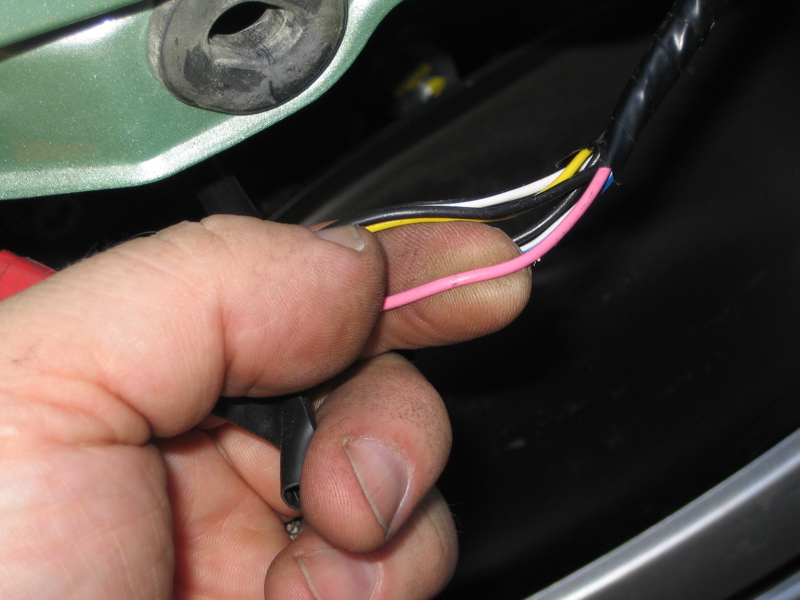

The pink wire goes to the left turn signal:

External inline image provided by member with no explanatory text

The blue / white striped wire goes to the right turn signal:

External inline image provided by member with no explanatory text

The black / white striped wire goes to the brake lights:

External inline image provided by member with no explanatory text

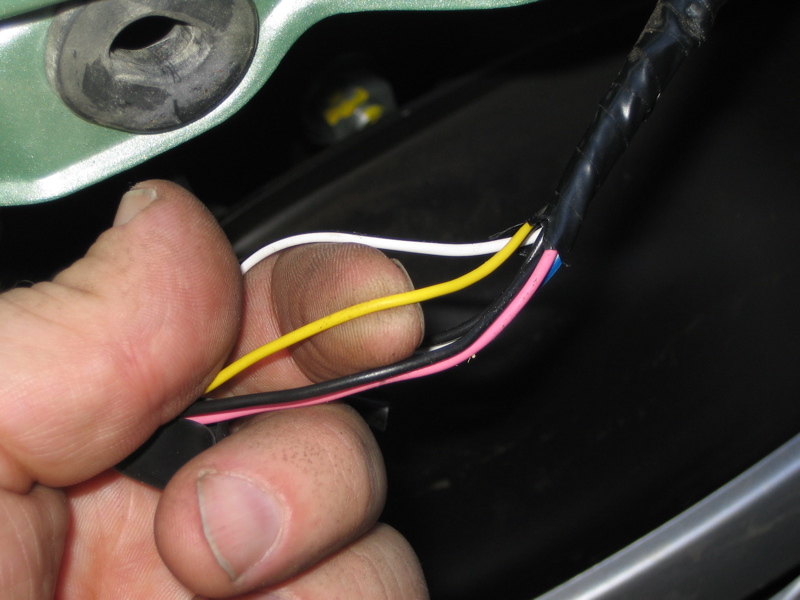

The yellow wire goes to the running lights:

External inline image provided by member with no explanatory text

I'm actually not ready for the turn signal wiring yet, as I haven't settled on what kind of LED turn signals I'll be using yet. However, I figured if I'm going to fish some wires through the scooter up to the top case, I might as well do all of them at once. I didn't use the running light wiring at all -- I hope I don't regret that in the future.

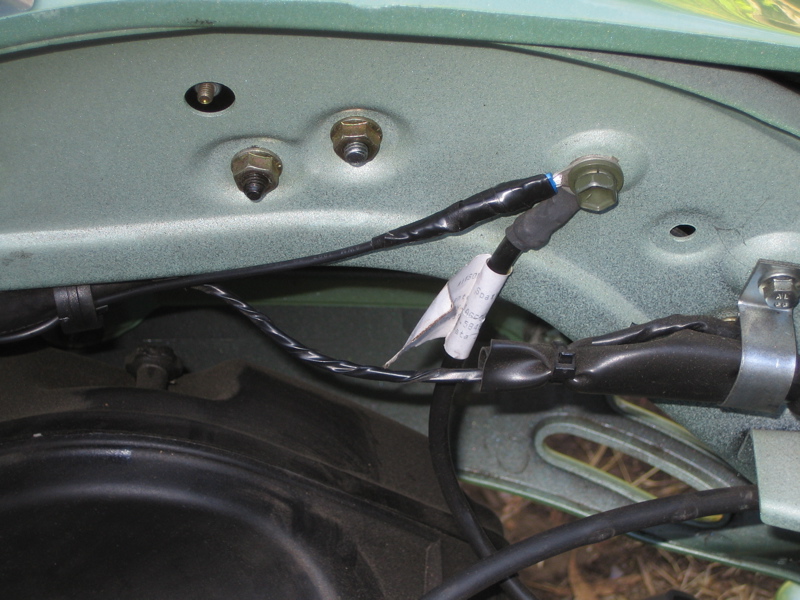

There's also a ground wire running through this harness, but I decided to run the ground wire from the nice big lug that serves as the main grounding point on the scooter, which is under the seat on the left hand side.

External inline image provided by member with no explanatory text

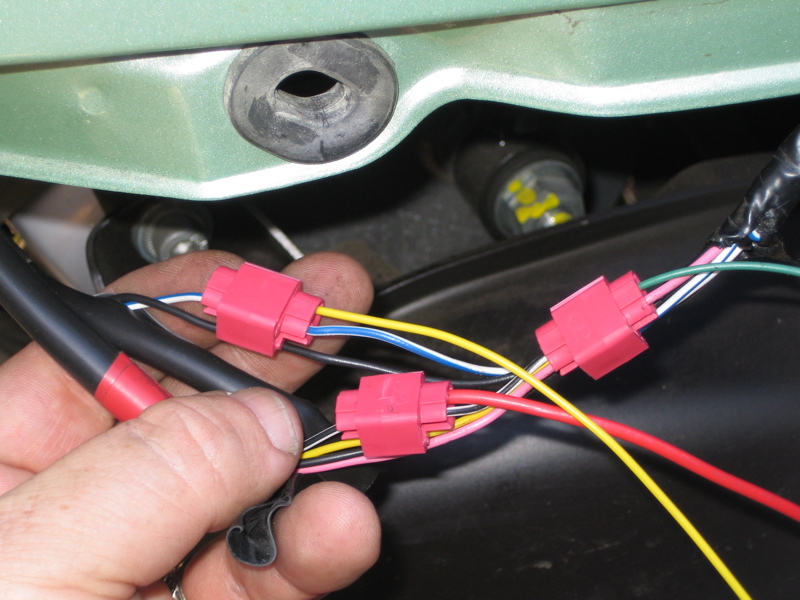

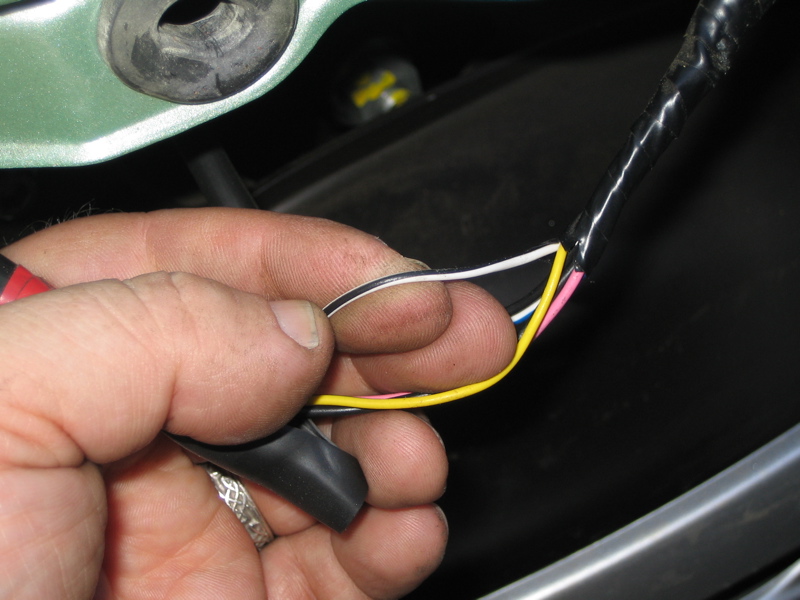

Next step is to actually splice the wires. Splice might be a bit too strong -- I'm actually using some plastic taps with a blade the cuts the insulation and contacts the metal wire inside.

External inline image provided by member with no explanatory text

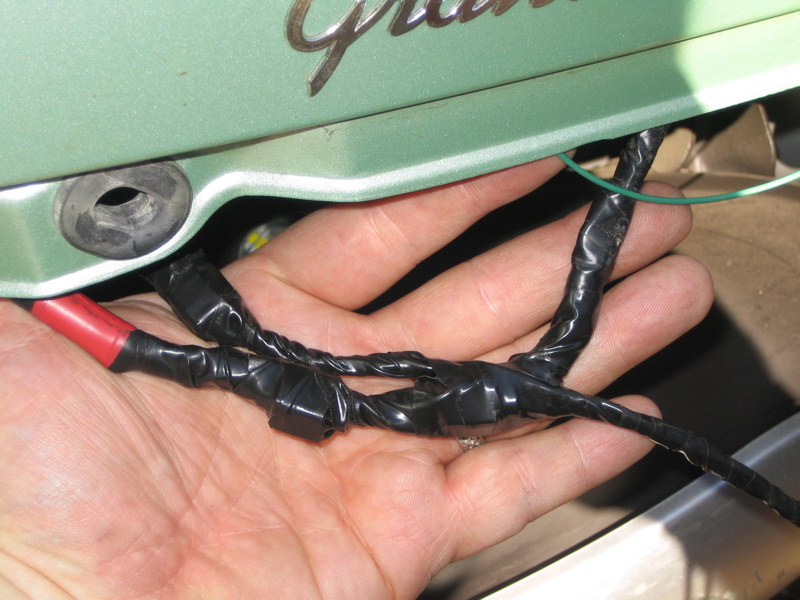

Next I taped up the harness to keep it relatively weatherproof, like so:

External inline image provided by member with no explanatory text

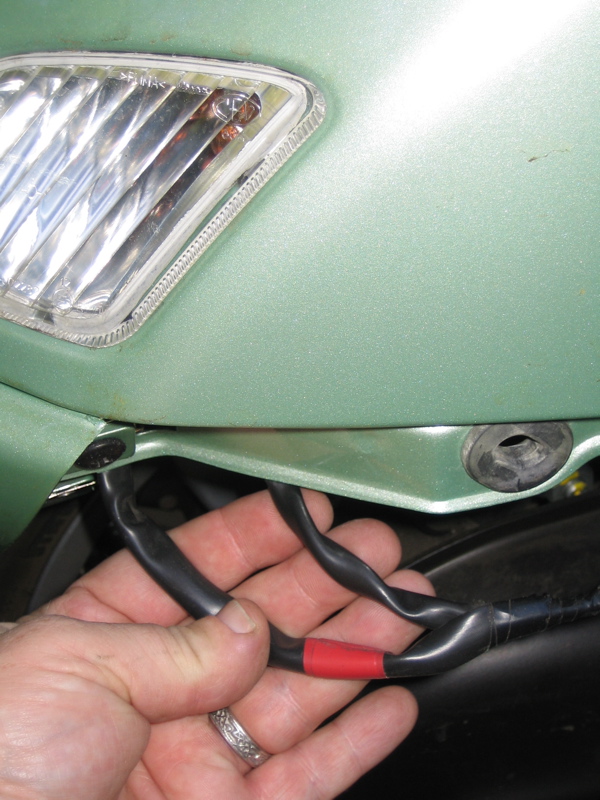

I then taped up my new wiring for several feet and fished it through the scooter. The route I took was between the right rear fender and the gas tank. There's a small space in there that you should be able to find if you poke around with something semi-rigid. I used a twig I found on the ground.

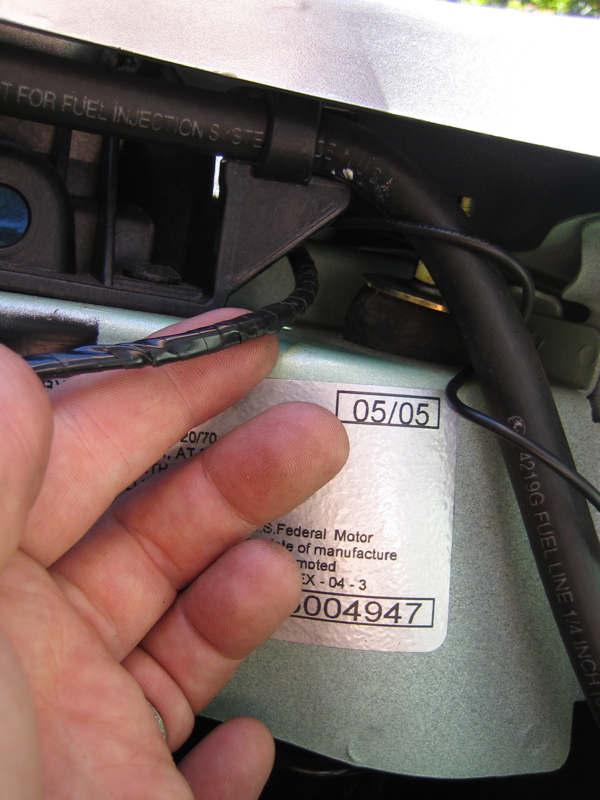

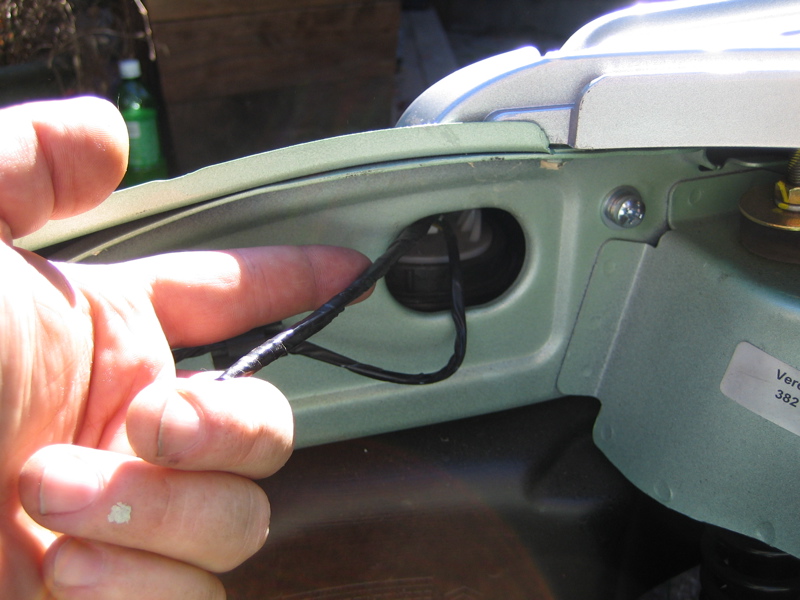

The wire then comes out right around what I think is the sending unit for the gas tank.

External inline image provided by member with no explanatory text

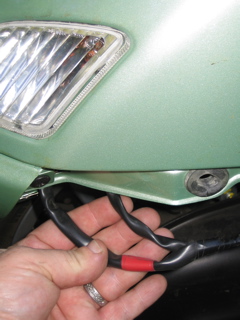

From there it gets tucked up under the lip near the seat latch, and then straight back to the left (if you were facing forward) of the seat latch mechanism. There's a small space there that allows the wire harness to come out through some grates behind and just under the seat, where the seat meets the cargo rack on the back.

External inline image provided by member with no explanatory text

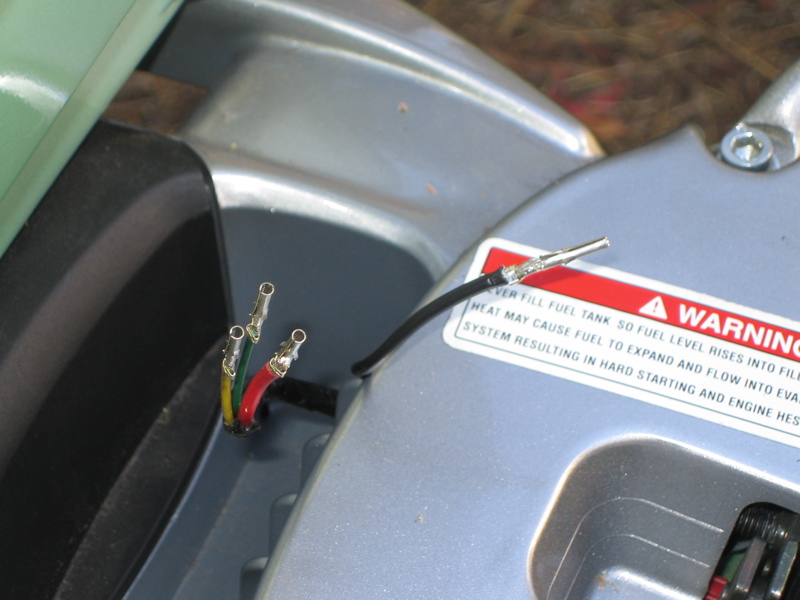

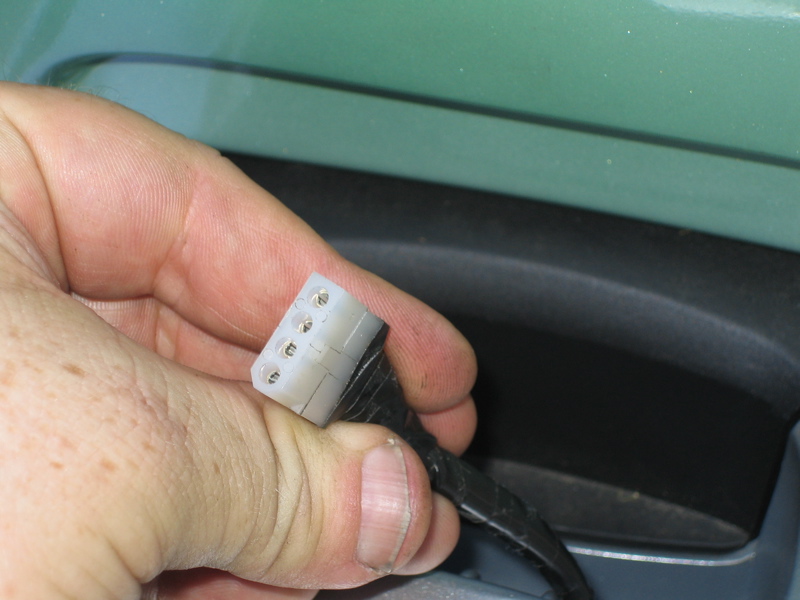

Here are the wires, with the harness stripped back and socket pins soldered on. Don't ask how I got them soldered in that spot. You can also see the ground wire here, which came out behind the seat in a similar way.

External inline image provided by member with no explanatory text

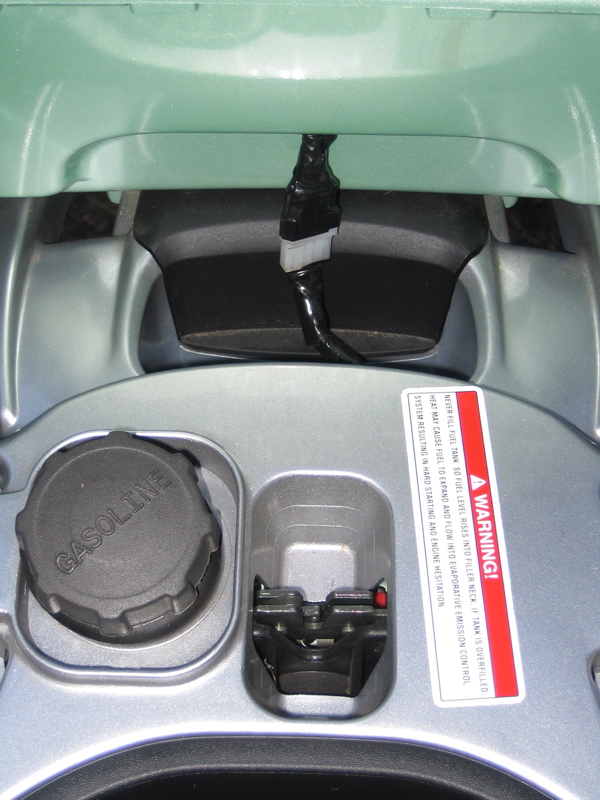

Here's the same wires with a handy connector, all taped up and weatherproof.

External inline image provided by member with no explanatory text

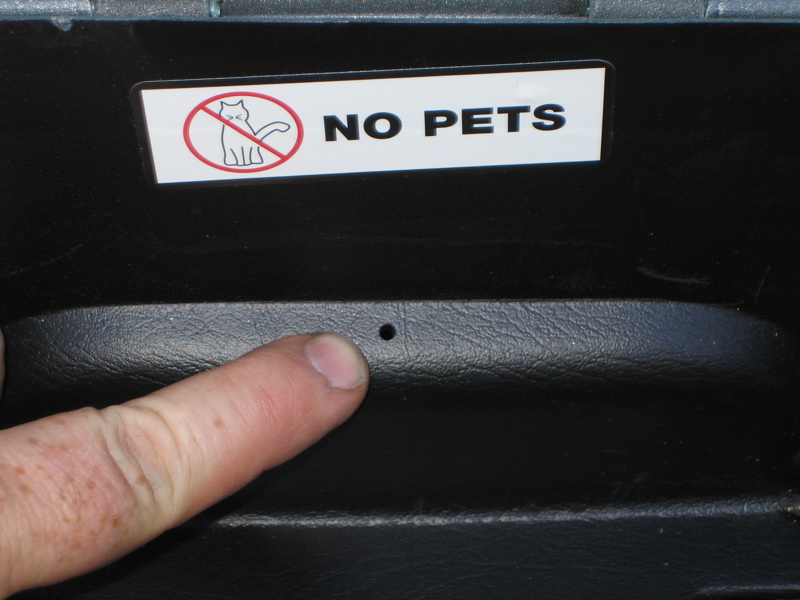

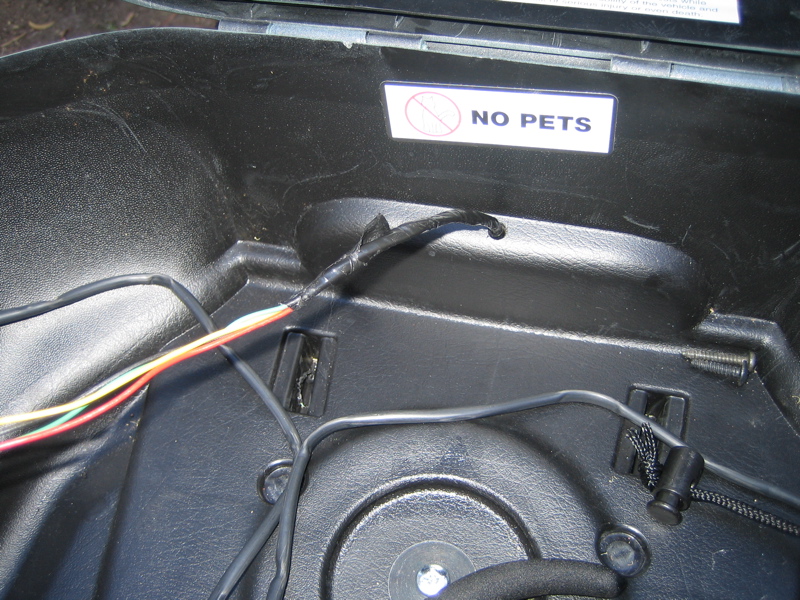

Okay -- that does it for the wiring inside the scooter proper. Now for the top case. I started by drilling a pilot hole facing downward from a ledge inside the top case.

External inline image provided by member with no explanatory text

Then I reamed out the hole to approximately the diameter of the second wiring harness.

External inline image provided by member with no explanatory text

External inline image provided by member with no explanatory text

Then I connected the brake light wire to the two L.E.D. bullet lights and taped off the tail light wires for later. I left it kind of loose because I still have to acquire and connect a wig-wag unit to make the two bullet brake lights do the alternating flash before going solid after a few seconds of braking.

Here's the two conectors together on the outside of the top case. You can't really see them at all when the seat is down.

External inline image provided by member with no explanatory text
@bryce-o-rama avatar
UTC

Ossessionato
Peugeot Looxor
Joined: UTC
Posts: 3220
Location: KCMO

Ossessionato
@bryce-o-rama avatar
Peugeot Looxor
Joined: UTC
Posts: 3220
Location: KCMO
UTC quote
Looks pretty swank.
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
Looks pretty swank

Thanks, Bryce. This is the kind of project I really love, for some reason. On every vehicle I own, I seem to gravitate toward electrical stuff and rewiring. Not sure why -- it's not like I'm an electrician or anything -- just one of those things.

I'd love to hear from anyone else who has done or is thinking of doing any LED or other electrical projects. Always looking for a new idea...
@napacoach avatar
UTC

Banned
M@
Joined: UTC
Posts: 3536
Location: Napa

Banned
@napacoach avatar
M@
Joined: UTC
Posts: 3536
Location: Napa
UTC quote
i have some blue LEDs tucked behind the side radiator vents & one set under the back of the seat vents (i lopped off my rear rack)
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
i have some blue LEDs tucked behind the side radiator vents & one set under the back of the seat vents (i lopped off my rear rack)

You know I want to see some pictures of that, right?
⬆️    About 1 month elapsed    ⬇️
@vespagt avatar
UTC

Hooked
Joined: UTC
Posts: 114

Hooked
@vespagt avatar
Joined: UTC
Posts: 114
UTC quote
NapaCoach wrote:
i have some blue LEDs tucked behind the side radiator vents & one set under the back of the seat vents (i lopped off my rear rack)
matt, would love to see photos of the back seat vent LEDs.
@bark211 avatar
UTC

Hooked
2005 Vespa GT200
Joined: UTC
Posts: 153

Hooked
@bark211 avatar
2005 Vespa GT200
Joined: UTC
Posts: 153
UTC quote
Brilliant Jess! The wig-wag will grab drivers attention and could pay off big time in the piece of mind/do they see me department. Very good idea and thanks for the detailed directions with photos.
@ramrezz425 avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1139
Location: Whittier, CA

Molto Verboso
@ramrezz425 avatar
Joined: UTC
Posts: 1139
Location: Whittier, CA
UTC quote
you should be doing instruction manuals for piaggio,
your instructions and pics are excellent!, btw the mod is cool too.
jess wrote:
Looks pretty swank

Thanks, Bryce. This is the kind of project I really love, for some reason. On every vehicle I own, I seem to gravitate toward electrical stuff and rewiring. Not sure why -- it's not like I'm an electrician or anything -- just one of those things.

I'd love to hear from anyone else who has done or is thinking of doing any LED or other electrical projects. Always looking for a new idea...
@dixiecrat avatar
UTC

Enthusiast
LX 150
Joined: UTC
Posts: 71
Location: Sunny South

Enthusiast
@dixiecrat avatar
LX 150
Joined: UTC
Posts: 71
Location: Sunny South
UTC quote
A while back I swapped the rear bulbs on a Beemer for led "bulbs" which were supposed to be super bright. Well, they were very bright, but you had to be looking straight down the back of the MC to see them. The angle of projection was very narrow. Have you noticed anything like this with these lamps? I sent the leds back.
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
Dixiecrat wrote:
A while back I swapped the rear bulbs on a Beemer for led "bulbs" which were supposed to be super bright. Well, they were very bright, but you had to be looking straight down the back of the MC to see them. The angle of projection was very narrow. Have you noticed anything like this with these lamps?
That's a pretty common problem with some of the older LED bulb replacements that I've seen, especially the ubiquitous 1156 and 1157 type bulb replacements. These bullet lights are sold as a unit, i.e. LED panel + housing + lens, and it's a good match. The lens does a good job of diffusing the LEDs to a reasonable angle.

I've also seen some newer LED replacement bulbs that have the LEDs oriented around the outside of the unit, facing sideways and even slightly backwards, in addition to forwards. The idea is that a regular incandescent bulb radiates approximately in a sphere, while LEDs emit directly out the top of the device. By aiming some LEDs in other directions, it more closely approximates the characteristics of an incandescent bulb, which is then usually bounced back by the reflective housing that most automotive and cycle bulbs are mounted in. This ends up resulting in a more diffuse pattern of light coming through the lens instead of the specular light typical of LEDs.

Part of the problem, too, is that most lenses are designed with incandescent bulbs in mind, and these just don't work very well with LEDs. More diffusion at the lens would allow the light from LEDs to be scattered at a wider angle, with a resultant reduction in specular light transmission directly in front of the LEDs.
@theoz avatar
UTC

Sir Frets-A-Lot
Vespa GT250ie/L, Honda Ruckus 50, Honda NT700V, Honda CB125
Joined: UTC
Posts: 11197
Location: Bee eff eee.

Sir Frets-A-Lot
@theoz avatar
Vespa GT250ie/L, Honda Ruckus 50, Honda NT700V, Honda CB125
Joined: UTC
Posts: 11197
Location: Bee eff eee.
UTC quote
That was the neatest mod I'd ever seen someone do themselves

Matt's gill lights are neat but they don't add safety along with style
@addicted avatar
UTC

Ossessionato
Consume Less & Share More
Joined: UTC
Posts: 3130
Location: New Jersey, USA

Ossessionato
@addicted avatar
Consume Less & Share More
Joined: UTC
Posts: 3130
Location: New Jersey, USA
UTC quote
Nice project!

When comparing the brightness of LEDs to filament bulbs, its important to compare using a consistent metric. Lumens is a consistent metric. Also, keep in mind that the use of lens, and light diffusion, generate losses. The more light bends or travels through a medium, the more light is absorbed or deflected.
@dixiecrat avatar
UTC

Enthusiast
LX 150
Joined: UTC
Posts: 71
Location: Sunny South

Enthusiast
@dixiecrat avatar
LX 150
Joined: UTC
Posts: 71
Location: Sunny South
UTC quote
that is a very slick addition and by far the best job of documentation I have ever seen. Thanks Jess.
⬆️    About 1 year elapsed    ⬇️
@v_spot avatar
UTC

Hooked
GTS 250ie Red and White
Joined: UTC
Posts: 139
Location: Marysville WA.

Hooked
@v_spot avatar
GTS 250ie Red and White
Joined: UTC
Posts: 139
Location: Marysville WA.
UTC quote
Jess

Great documentation on the project. I want to do someting similar by putting LED's behind the lenses in the top case and add the modulator. Going to be a winter project. Question: has anyone done this to a GTS and are the colors of the wires etc. the same as in Jess's post. Unlike Jess, I am electrically challenged but want the added safety on the scoot for my wife.
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
V Spot wrote:
has anyone done this to a GTS and are the colors of the wires etc. the same as in Jess's post.
The wires are the same colors. I used the same technique to tap into the wiring harness on my GTS to add the integrated brake light on my GIVI top case.
@chad avatar
UTC

Olivia Newton-John
p200, vbb, gt200, px150, vnb
Joined: UTC
Posts: 4494
Location: chippewa falls, wisconsin

Olivia Newton-John
@chad avatar
p200, vbb, gt200, px150, vnb
Joined: UTC
Posts: 4494
Location: chippewa falls, wisconsin
UTC quote
jess:

go to my website www.opshd.com, click on parts + accessories, then on turn signals. if you're ever in the mood to do a mod with a set of these, let me know, i'd be willing to send you a set so that i could get a pic off them on a vespa. until now, i've only been selling them to harley people, but i think they'd look good on a scooter. i'm out of the yellow element ones, but i've got a set of red ones you can use.
@tfauch avatar
UTC

Molto Verboso
Joined: UTC
Posts: 1464
Location: Worcester, Ma USA

Molto Verboso
@tfauch avatar
Joined: UTC
Posts: 1464
Location: Worcester, Ma USA
UTC quote
This is from Chads site above:

External inline image provided by member with no explanatory text
⚠️ Last edited by TFauch on UTC; edited 1 time
@chad avatar
UTC

Olivia Newton-John
p200, vbb, gt200, px150, vnb
Joined: UTC
Posts: 4494
Location: chippewa falls, wisconsin

Olivia Newton-John
@chad avatar
p200, vbb, gt200, px150, vnb
Joined: UTC
Posts: 4494
Location: chippewa falls, wisconsin
UTC quote
thanks, i was too lazy to do that myself Laughing emoticon
@tikka avatar
UTC

Ossessionato
07 GTS250ie VCOA#2794
Joined: UTC
Posts: 3193
Location: Philly PA Burbs

Ossessionato
@tikka avatar
07 GTS250ie VCOA#2794
Joined: UTC
Posts: 3193
Location: Philly PA Burbs
UTC quote
Don't forget the other view 8) And Jess has a new GIVI for his red GTS. Hmmm Laughing emoticon

External inline image provided by member with no explanatory text
@scoot avatar
UTC

Molto Verboso
Vespa 946
Joined: UTC
Posts: 1379
Location: Lake Geneva, WI

Molto Verboso
@scoot avatar
Vespa 946
Joined: UTC
Posts: 1379
Location: Lake Geneva, WI
UTC quote
this is a great write up, this might have just inspired me to a similiar mod. The top case for the LX has a non operational brake light on it. It looks like it should be a second brake light however is just a strip of red plastic. I might look into putting a couple LED's in there and wiring them up to function with the other brake light. Thanks for the idea!
⬆️    About 2 months elapsed    ⬇️
UTC

Member
et4 150cc
Joined: UTC
Posts: 9
Location: port orange Fl

Member
et4 150cc
Joined: UTC
Posts: 9
Location: port orange Fl
UTC quote
LEDS
I like the LED ideas they are low voltage and look great. I own an ET4 150cc and just installed the clear euro style turn signal and right away had to modify. Three super bright blue LEDS in each light did the trick. I used 3 volt LEDS with a 510 ohm resistor to bring the 12volt system down to the 3 volts I needed. I also wanted park lights so i place the LEDS on a switch, they can stay on for hours with little battery drain. would like to post pics but don't know how for this mod
@flcruzr avatar
UTC

Hooked
79' Vespa P200E, 2005 Vespa GT 200
Joined: UTC
Posts: 144
Location: Orlando, FL

Hooked
@flcruzr avatar
79' Vespa P200E, 2005 Vespa GT 200
Joined: UTC
Posts: 144
Location: Orlando, FL
UTC quote
Great post Jess, I have done something similiar with more less expensive led lights so I will post them once I take pics. My main question is that I'm interested in installing those same type of kuryaken lights but for the front as driving lights or amber lights. Does anyone know if this has been done or can it be done?
OP
@jess avatar
UTC

Petty Tyrant
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California

Petty Tyrant
@jess avatar
0:7 And counting
Joined: UTC
Posts: 36481
Location: Bay Area, California
UTC quote
flcruzr wrote:
Great post Jess, I have done something similiar with more less expensive led lights so I will post them once I take pics. My main question is that I'm interested in installing those same type of kuryaken lights but for the front as driving lights or amber lights. Does anyone know if this has been done or can it be done?
I think the critical question would be where to mount them on the front. If you had a rack (or front crash bars) Kuryakyn sells P-Clamps that you could use to attach them. Other than that, I don't see why you couldn't do it.
DoubleGood Design banner

Modern Vespa is the premier site for modern Vespa and Piaggio scooters. Vespa GTS300, GTS250, GTV, GT200, LX150, LXS, ET4, ET2, MP3, Fuoco, Elettrica and more.

Buy Me A Coffee


Shop on Amazon with Modern Vespa

Modern Vespa is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com


All Content Copyright 2005-2024 by Modern Vespa.
All Rights Reserved.


[ Time: 0.0497s ][ Queries: 3 (0.0137s) ][ Debug on ][ 309 ][ Thing One ]
