Hi all, this is my first post, I'm struggling with an indicator problem, I have a px 125 disc and I've just put p200e engine in it now I can't get any indicators, new cdi, new flasher relay, any ideas, I can get 1 front indicator to come on but no flashing, the only thing missing from the main connector block is electric start connector, could this be the cause.
All/any ideas much appreciated
Mon, 31 Oct 2022 12:07:03 +0000

Molto Verboso
Joined: Thu, 03 Nov 2011 19:17:41 +0000
Posts: 1609
Location: Racing Capital of the World

Molto Verboso
Joined: Thu, 03 Nov 2011 19:17:41 +0000
Posts: 1609
Location: Racing Capital of the World
Mon, 31 Oct 2022 12:07:03 +0000 linkquote
Did you mount your px125 stator onto your p200e engine? Those stators are vastly different.
Mon, 31 Oct 2022 14:08:08 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 14:08:08 +0000 linkquote
No it is new p200 stator
Mon, 31 Oct 2022 14:16:28 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 14:16:28 +0000 linkquote
The 125 disc was when I got it just frame with loom, I had the 200 engine gathering dust in my shed
Mon, 31 Oct 2022 14:55:15 +0000

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: Sun, 02 Aug 2015 18:39:51 +0000
Posts: 3346
Location: Veria, Greece

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: Sun, 02 Aug 2015 18:39:51 +0000
Posts: 3346
Location: Veria, Greece
Mon, 31 Oct 2022 14:55:15 +0000 linkquote
European market PXs run everything on the AC side, except horn and starter when there's a battery. If both stators have the black & blue wires on the junction box everything should have worked like before...

Some photos of the junction box (engine side) and regulator / flash relay would help us see what you've got...
Mon, 31 Oct 2022 15:14:45 +0000

Molto Verboso
Joined: Thu, 03 Nov 2011 19:17:41 +0000
Posts: 1609
Location: Racing Capital of the World

Molto Verboso
Joined: Thu, 03 Nov 2011 19:17:41 +0000
Posts: 1609
Location: Racing Capital of the World
Mon, 31 Oct 2022 15:14:45 +0000 linkquote
SaFiS wrote:
European market PXs run everything on the AC side, except horn and starter when there's a battery. If both stators have the black & blue wires on the junction box everything should have worked like before...

Some photos of the junction box (engine side) and regulator / flash relay would help us see what you've got...
ah, i see the guy is in Scotland. .. so probably no American market electrical systems. got it.
Mon, 31 Oct 2022 15:40:27 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 15:40:27 +0000 linkquote

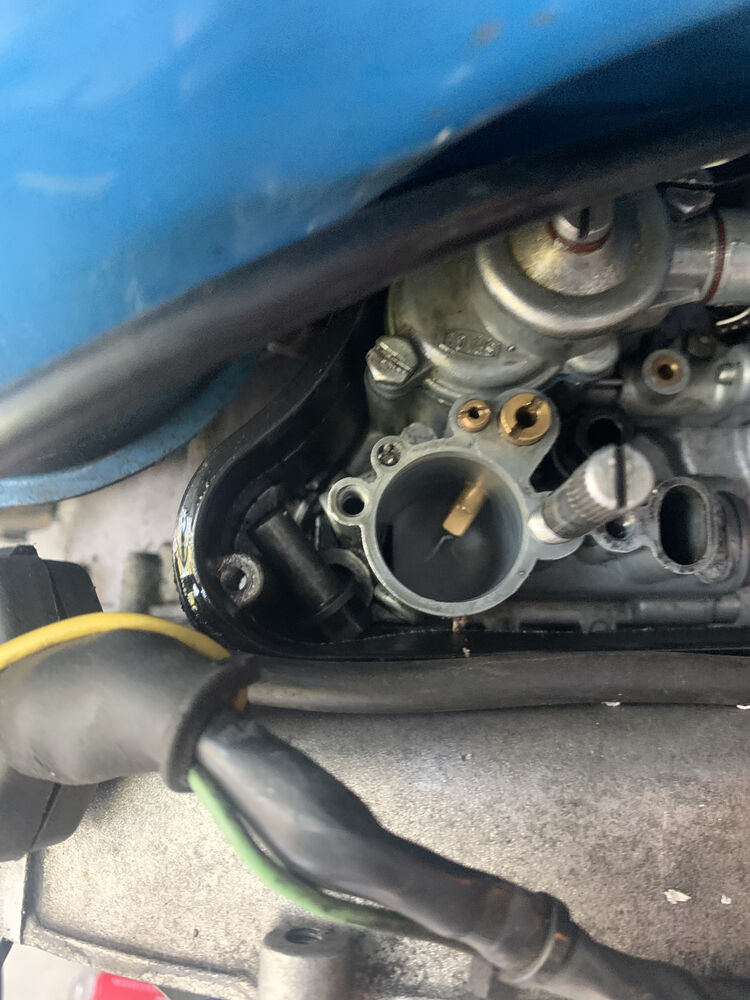

Here's a few pics,





Mon, 31 Oct 2022 15:44:10 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 15:44:10 +0000 linkquote
More





Mon, 31 Oct 2022 15:48:30 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 15:48:30 +0000 linkquote
Started out with old rusty frame, and all hard work is being held back by something silly I bet



Mon, 31 Oct 2022 15:55:09 +0000

Hooked
PK50XL, PK100S, ET3
Joined: Wed, 26 Aug 2020 14:45:29 +0000
Posts: 311
Location: UK

Hooked
PK50XL, PK100S, ET3
Joined: Wed, 26 Aug 2020 14:45:29 +0000
Posts: 311
Location: UK
Mon, 31 Oct 2022 15:55:09 +0000 linkquote
Have you ever had the indicators working? If not, have you tried swapping out the flasher unit for a known good one.

Getting the one indicator to come on sounds positive from a 'stator providing power to the relevant circuit' perspective. do both left and right front work, or just one of them.
Mon, 31 Oct 2022 16:18:11 +0000

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland

Member
px 200
Joined: Sun, 30 Nov 2014 12:46:36 +0000
Posts: 34
Location: scotland
Mon, 31 Oct 2022 16:18:11 +0000 linkquote
Swapped flasher, regulator and bulb holder from knowing working scooter, I've got another px disc working and all wiring is mirror image, I've got all headlights working, rear lights brake lights working but just one front indicator working but not flashing, doesn't flash when panels off right?
Mon, 31 Oct 2022 17:43:20 +0000

Ossessionato
73 & 74 Rally, 76 ET3, 80 P200, 06 PX150, 61 Ser 2, 65 Silver Special, 90 V5N 50, 01 ET2, 2015 HD Road Glide Special
Joined: Thu, 19 Jan 2012 07:14:28 +0000
Posts: 4486
Location: Oceanside, CA

Ossessionato
73 & 74 Rally, 76 ET3, 80 P200, 06 PX150, 61 Ser 2, 65 Silver Special, 90 V5N 50, 01 ET2, 2015 HD Road Glide Special
Joined: Thu, 19 Jan 2012 07:14:28 +0000
Posts: 4486
Location: Oceanside, CA
Mon, 31 Oct 2022 17:43:20 +0000 linkquote
Do you have a volt meter? Start at the easiest spot and work your way deeper into the scoot.

First pull the bulb. Bulb good? If yes move on. Then see if you get AC voltage at the bulb holder with a volt meter. No? Go deeper.

Check for voltage at the rears by measuring AC voltage at the cowl pin slot and the cowl latch. If your meter shows anything and then nothing and repeats it's getting some voltage. It nothing, pull the tank and see if you jostled the wires to the rear cowls.

Still nothing? Check your relays. I believe there's two by the battery on PXs. Make sure the wiring is correct per the diagram. there's usually 3 letters printed on the relays which corresponds to a certain color wire.
Mon, 31 Oct 2022 17:56:16 +0000

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: Sun, 02 Aug 2015 18:39:51 +0000
Posts: 3346
Location: Veria, Greece

Ossessionato
1979 P150X, 1983 P200E, 1988 T5, 1995 PX200E, 2011 Yamaha Fazer 600 S2
Joined: Sun, 02 Aug 2015 18:39:51 +0000
Posts: 3346
Location: Veria, Greece
Mon, 31 Oct 2022 17:56:16 +0000 linkquote
Photos and wiring look OK. One relay on European models (green). Engine needs to be running. Indicators don't light up simultaneously. Bulbs need to be the correct wattage (12V/21W) and cowls need to be on the frame. Also the indicators "telltale" bulb in the speedo needs also to be connected...
