EDIT: The UPP (Universal Passenger Peg) solution has its own thread here UPP Passenger Peg Bracket but I invite members to continue to post ideas and experiments regarding the best way to provide better footholds for your passengers.

(Formerly called "They ought to lock me up," changed title when the thread developed into something bigger)

----------------------------------

I know this is a crazy idea, and while I realize I'll never convince LarryLarry, I PROMISE this is not just a scheme to sell more UFPs.

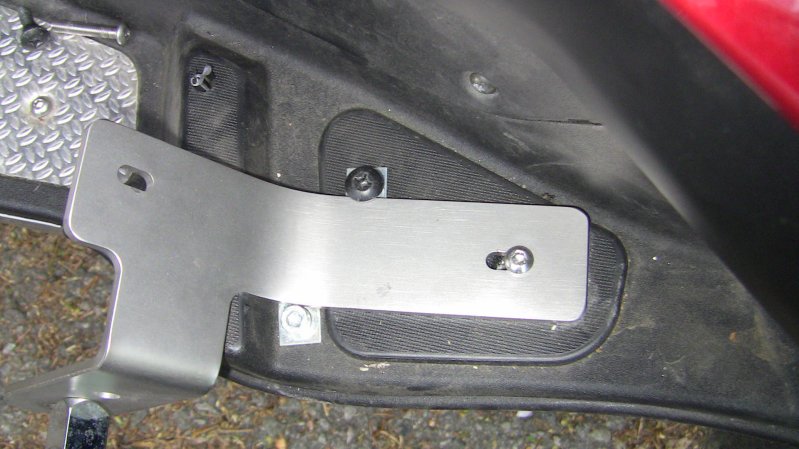

I came up with the below idea as a mounting point for passenger pegs. To be sure, this cannot support the full weight of a passenger and I am not in any way recommending it, but for something like providing just a place for the toes to go while the heel is firmly on the floorboard I think it may be possible. It's definitely out of the way of the driver's calves when stopped flatfooted, so that's something anyway.

I'll try it out at various angles and peg positions and report back this weekend.
Yes, I know that one speednut is not going to hold a lot of weight.
Yes, I know that one speednut is not going to hold a lot of weight.
Yes, I know I need to put a spacer in there. And yes, I know I'm probably insane!
Yes, I know I need to put a spacer in there. And yes, I know I'm probably insane!
⚠️ Last edited by rjeffb on UTC; edited 5 times
